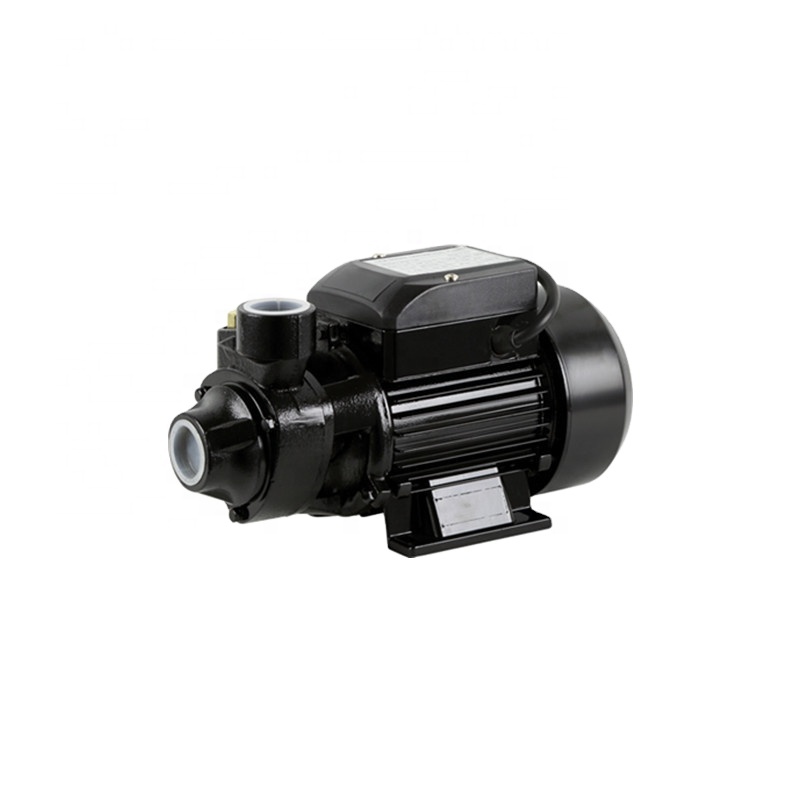

High Performance QB60 Clean Water Pump
$15.20
≥1 case
$15.00
≥240 case
$14.80
≥1080 case
Maximum flow rate:
- 30L/min
Options:
- Booster Pumps
- 32m
Basic Info
| Warranty | 1 Year |
|---|---|
| Customized Support | Oem |
| Brand Name | Tianyuan |
| Model Number | Qb60 |
| Place of Origin | Zhejiang, China |
Product description
? ? ? ? ? ? ? ? ? ? ? ? ? ? ??High performance qb60 clean water pump
? ? ? ? ? ? ? ? ??
?
| 1.Product introduction |
High performance qb60 clean water pump belongs to the vortex pump?direct-coupled?motor?
and?pump, with simple?structure, small size, light weight,?higher head. The?flow of this?pump?
is?relatively small, and it is?suitable for?conveying the temperature?does?not exceed?40°C water
or?physical and?chemical?properties which are?similar to water?liquid. The pump?applies?to?
domestic?wells pumping, car?washing,?fountains, water supply,?garden?irrigation?and other
occasions.
| 2.Application of products |
High performance qb60 clean water pump is suitable for pumping?clean water.
They are particularly suitable for:
1. Domestic application such as supply water from well, pool .etc
2. Water pressure boosting
3. Garden spraying
4. Hairdressing industry pressurized water
5. High-rise building water supply
6. Farmland garden irrigation? ? ? ?? ? ??? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??
| 3.Operating conditions |
High performance qb60 clean water pump can work normally in the?following?conditions:
1. Medium temperature is no more than 40°C
2. PH should be 6.5-8.5.
3. The volume ratio of sediment concentration in the medium is no more than
? ? ?0.1%,?and the?particle size should not exceed 0.2m.
4. The power frequency is 50Hz, the voltage of single-phase is 220v, the voltage?of?three-phase?
? ? is?380v.The voltage fluctuation ranges from 0.9 to1.1 times of?the rating. ????? ? ? ? ? ? ?
| 4.Material of products |
| Housing | Aluminum |
| Holder | Cast iron |
| Impeller | Brass? |
| Shaft with motor | Plating shaft |
| Enameled wire | 100% copper wire |
| Pump head | with stainless steel sheet insert |
| Protective measures | with thermal overload protector |

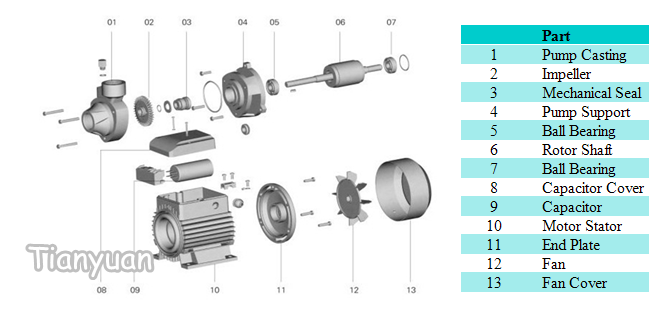

| 5.All parts of the product |
| 6.Specifications of products |
| Model | Rated power | Rated-Flow? | Rated-Head | Max-Suct | Voltage | Freq? | Inlet/outlet | |
| KW | HP | L/min | M | M | V | Hz | Inch | |
| QB60? | 0.37 | 0.5 | 30/35 | 28/35 | 9 | 220 | 50/60 | 1"X1" |
| QB65 | 0.45 | 0.6 | 35/42 | 30/45 | 9 | 220 | 50/60 | 1"X1" |
| QB70 | 0.55 | 0.75 | 42/50 | 40/50 | 9 | 220 | 50/60 | 1"X1" |
| QB80 | 0.75 | 1 | 42/50 | 45/60 | 9 | 220 | 50/60 | 1"X1" |
?

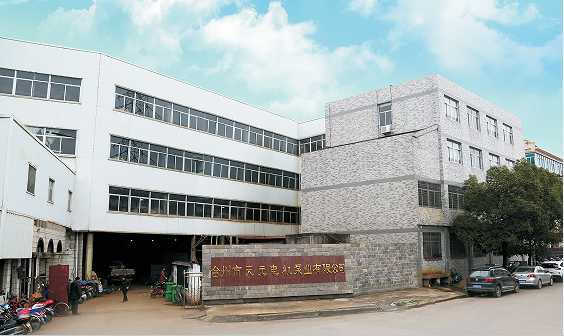

| 1.Company introduction? |
?
Taizhou Tianyuan Motor & Pump Manufacturing Co.,Ltd. is a?manufacturer and?exporter?in
china specializing in various series of pumps, electric motors, and spindle?axis. Our company is
located in beautiful seaboard city-Wenling of Zhejiang province,?which?established in 1989?with
more than 200 employees, and over 4000 square?meters workshop and advanced equipments.
With scientific management, advanced?technology, numerical control machining and strict
inspection, we provide our products?in?high quality and lower price?to users effectively.
The leading products of our company are 20 series pumps, 7 series electric motors,?hundreds of
specifications. A lot of products have been obtained the CE, UL quality?certification. Most users
give high opinion on the quality of our products.
With excellence quality of products, specific style, novelty modeling, good After-Sales?Service, our
products are exported to Eastern Europe, Western Europe, Middle East,?Southeast Asia,America,
Africa in more than 30 countries and regions.

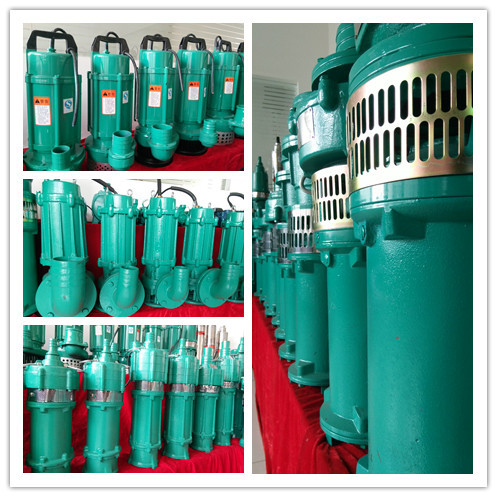

| 2.Sample room |

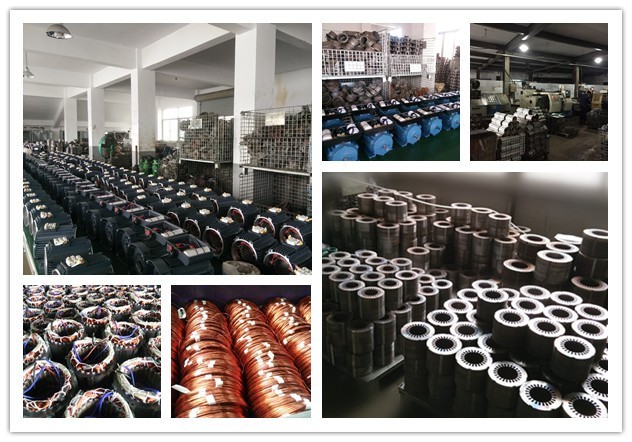

| 3.Workshop |
??
| 4.Why choose us?? |
Advantages we have:
1. Experienced slate products supplier;
2. Professional design team and sales department for your service;
3. 9 years alibaba gold supplier, factory recognized by 'CE/ISO9001' and so on;
4. 7*24 service for you, all the question will be dealed within 24hours.
Benefit you get:
1. Stable quality —— Coming from good materials and technic
2. Lower price —— Not cheapest but the lowest at the same quality
3. Good service —— Satisfactory service before and after sale
4. Delivery time —— 30-45 days for mass production?? ? ? ? ?? ?? ? ?? ? ? ? ? ? ? ? ? ??
| 5.Certification |
?
?
| 1.How to order?? |
1. Please tell us some detail information, such as the Capacity, Head, Medium,?Voltage etc.
2. We can recommend pumps for you according to your requirements as well.
3. If you have the certificate requirements, please let me know.
4. We will make quotation for you. After your confirmation, PI will send to you.
5. We will arrange the order for you as soon as receiving your payment.
6. After the goods finished, we will send the goods to you.
7. Note: Customers can order all product samples we put or you can also have your?own idea,?
? ? as we are custom-made product supplier, so any change of goods are?available.
| 2.Contact us |
? ? ? ?Any questions about High performance qb60 clean water pump
? ? ? ?are welcome,?please feel free to contact us.
?
