High Precision Laser Sensor 120M Range Sensor

This High precision Laser Sensor 120M Range Sensor is one of our best Product ,Which is aways being our

standard in this area.High precision Laser Sensor 120M Range Sensor with excellent accuracy has

been gained much recongnition from professional buyers.

Why Us

Chengdu JRT Meter is the factory of laser measure modules sensors more than 10 years. Support OEM your own laser measuring tools.
Welcome to tell us your applicaiton, we are glad to help.
Industial Applicaiton:
1. Distance optional: 40m, 60m, 100m, 120m, 150m
2. Interface optional: serial port, USB, RS232, RS485, Bluetooth etc
3. Operating temperature: -10 ºC~50 ºC can be customized.

Technical Datasheet

	Middle Module	Big Module
Product Model:	703A	604B/605B
Accuracy:	±1 mm	±3 mm
Measuring Unit:	mm/in/ft	mm/in/ft
Measuring Range:	0.03-40m/50m/60m	0.03-40m/60m/80m/100m/120m/150m
Measuring Time:	0.3-4s	0.3-4s
Laser Class:	Class Ⅱ	Class Ⅱ
Laser Type:	635nm,<1mw	635nm,<1mw

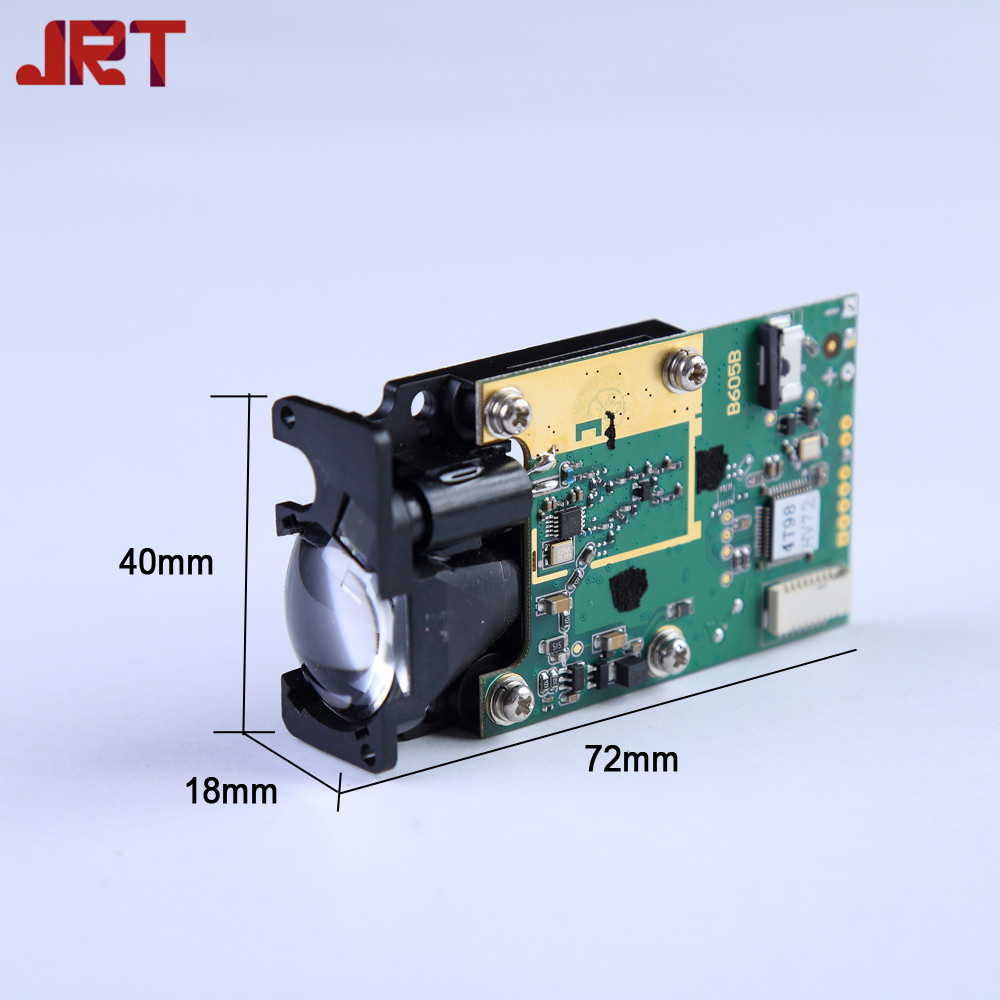

Size:	45*25*12mm	72*40*18mm
Weight:	About 10g	About 21g
Voltage:	DC2.5~3V	DC2.5~3V
Operating Temperature:	0 C°~40 C°	0 C°~40 C°
Storage Temperature:	-25 C°~60 C°	-25 C°~60 C°

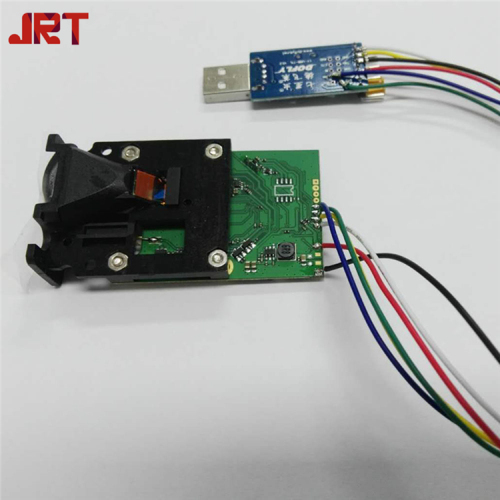

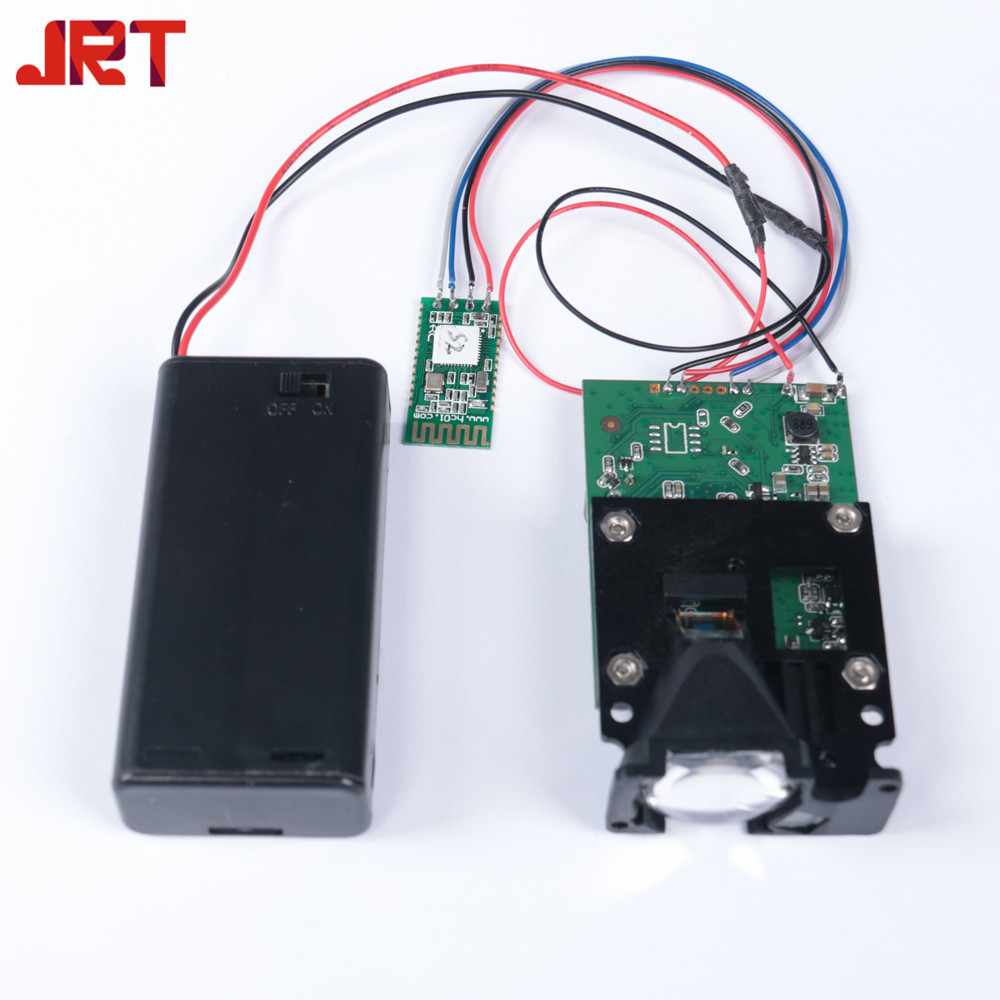

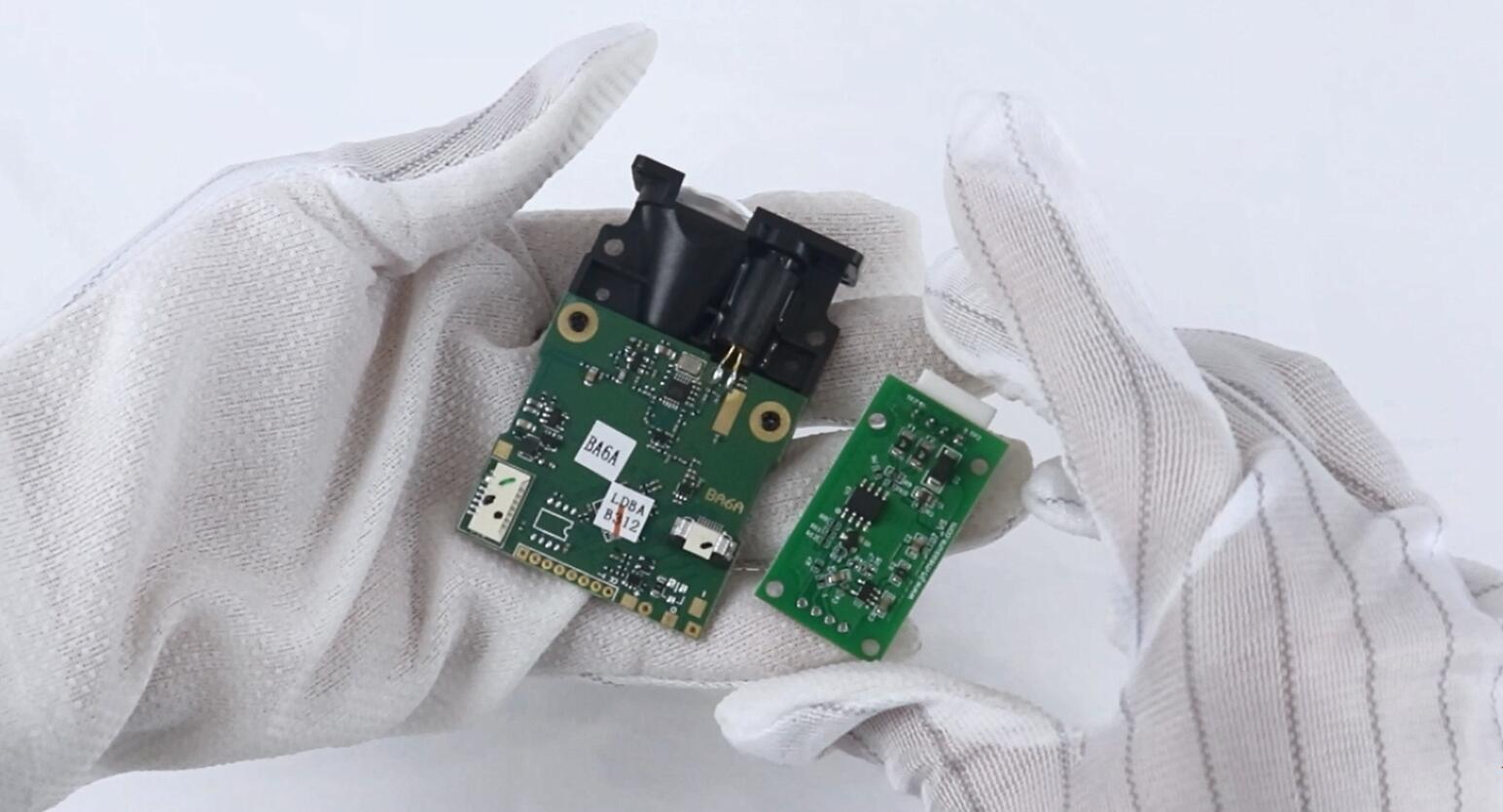

Pictures:

Note:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±3 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflection board

3. Operating temperature -10 ℃~50 ℃ can be customize

Chengdu JRT Main Smart Sensor: Industrial Laser Distance Sensors, Laser Rangefinder Sensor , Tof LiDAR Sensors.
