High Precision UTM Compression Testing Machine with Fast Delivery

  • $5950.00

    ≥1 set

  • $5650.00

    ≥3 set

  • $5300.00

    ≥10 set

use:

  • universal tensile testing machine manufacturers
Get Latest Price

Basic Info

Model No.
Brand Name
Warranty 1 Year
Customized Support Oem
Place Of Origin Hebei, China
Brand Name WIN
Model Number WIN-WEB, WIN-WE-B
power Electronic, Hydraulic
Product name High Precision Utm Universal Compression Testing Machine Price
Accuracy level Level 1
Clamping method Hydraulic
Tensile test space 700mm
Number of columns 6 columns
Maximum Test Force 100-1000KN
Piston stroke 200mm
Show More

Product description

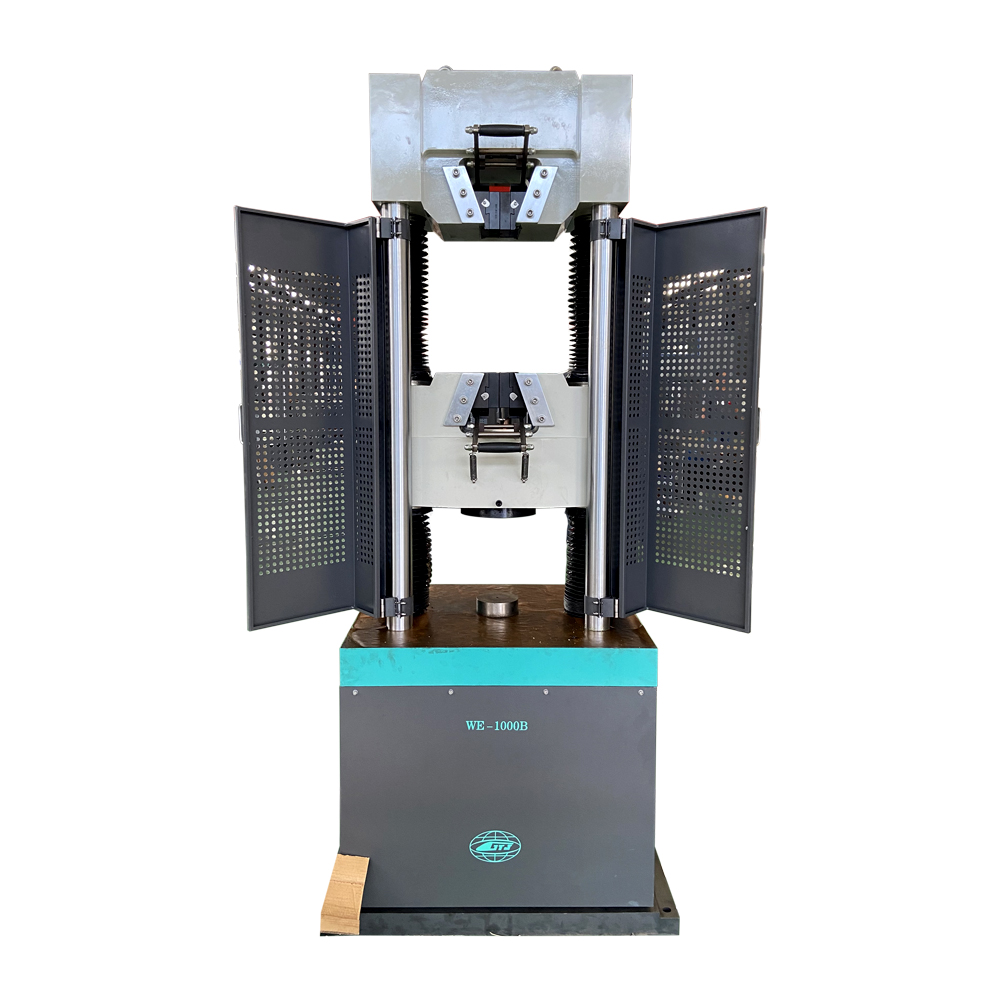

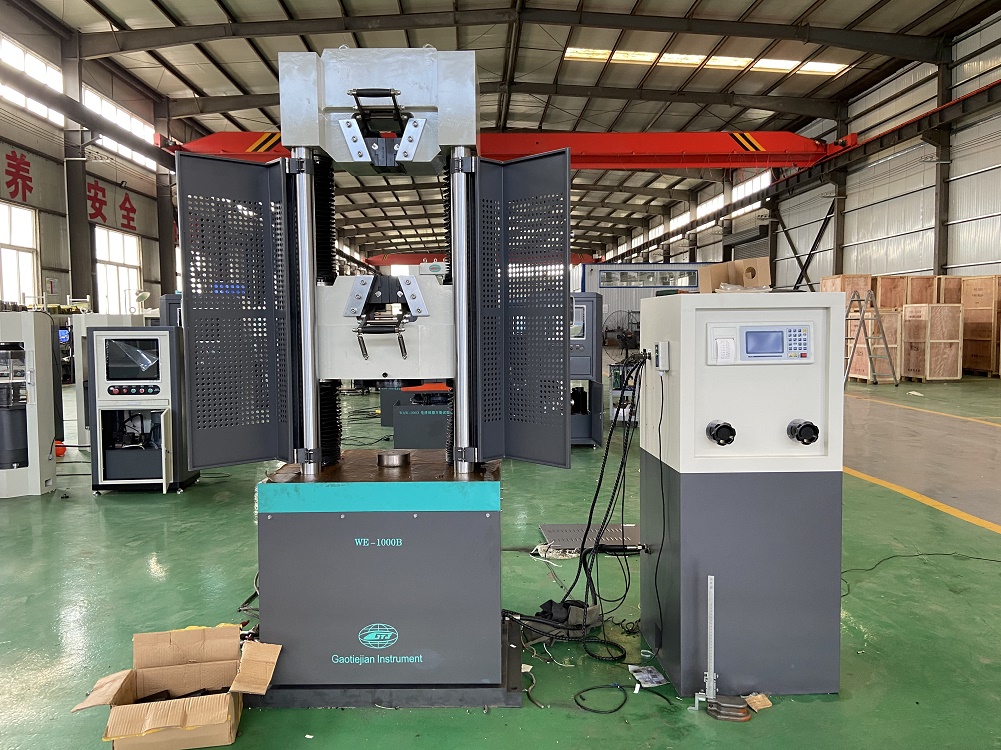

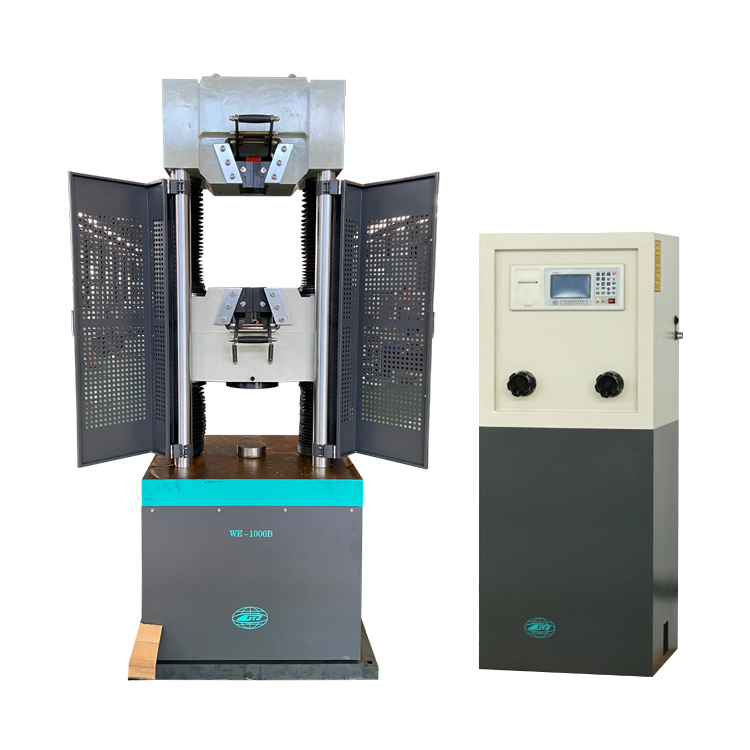

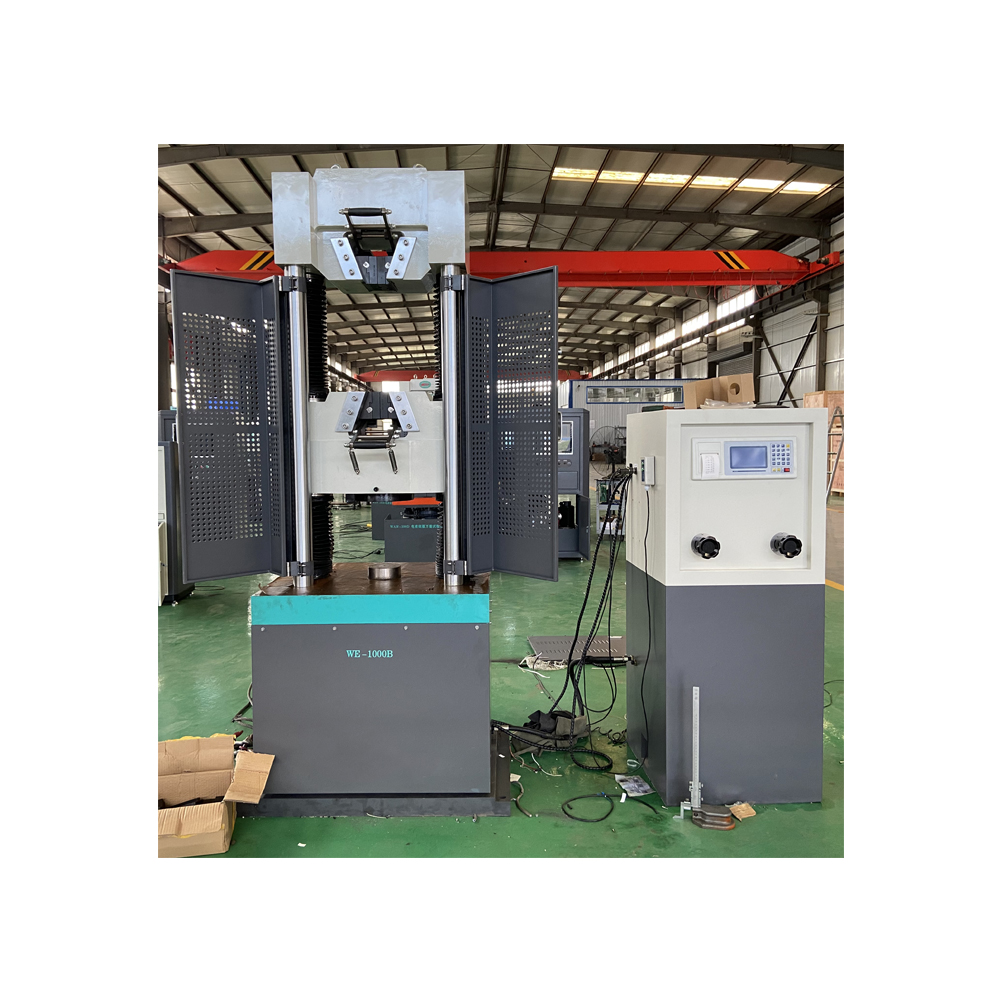

Product Display
Products Description
Product Function

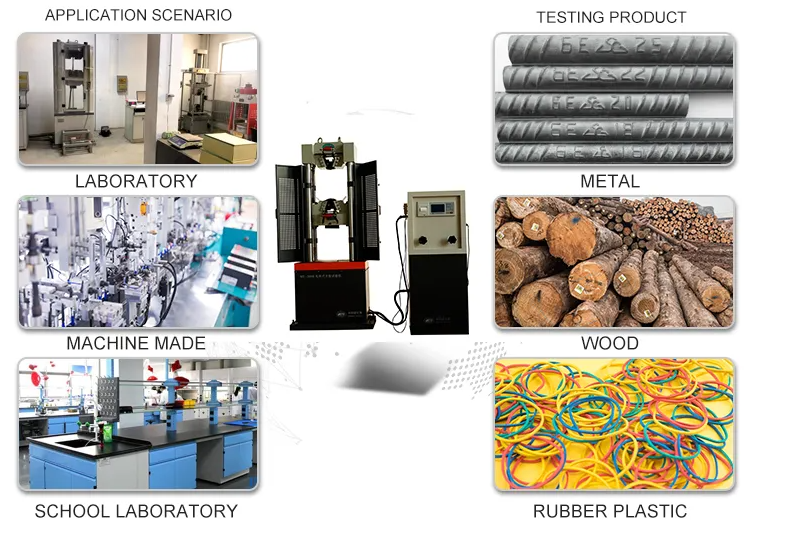

This series of testing machine is loaded by hydraulic pressure, and the manual control technology is used to test the stretching,
compression, bending and shearing of metallic and non-metallic materials, showing various curves, forces, deformation,
displacement and other closed-loop control methods, which can be switched freely in the test.Automatic recording of stored data.
Can meet GB, 1S0, ASTM, DIN, JIS and other standards.
Products Parameters
WE-B Manual Universal Testing Machine
model
WE-300B
WE-600B
WE-1000B
Maximum test force (kN)
300
600
1000
Testing accuracy level
Level 1
Piston stroke (mm)
200
supporting way
Manual/hydraulic
Compression test space (mm)
600
Tensile test space (mm)
700
Power (kW)
1.5
Compression disc (mm)
Φ148
Φ198
Φ225
Clamping range of round sample (mm)
Φ10-30
Φ13-40
Φ13-40
Clamping range of flat sample (mm)
0-10
0-15
0-20
Span of bending fulcrum (mm)
50-300
Bending center/rod diameter (mm)
50/50
Number of upright posts (lead screws)
6column
Overall dimension of main engine (mm)
810*560*1910
880*570*2050
940*640*2250
Weight of main engine (kg)
1620
2000
2600
Size of control cabinet (mm)
550*550*1370
Weight of control cabinet (kg)
100

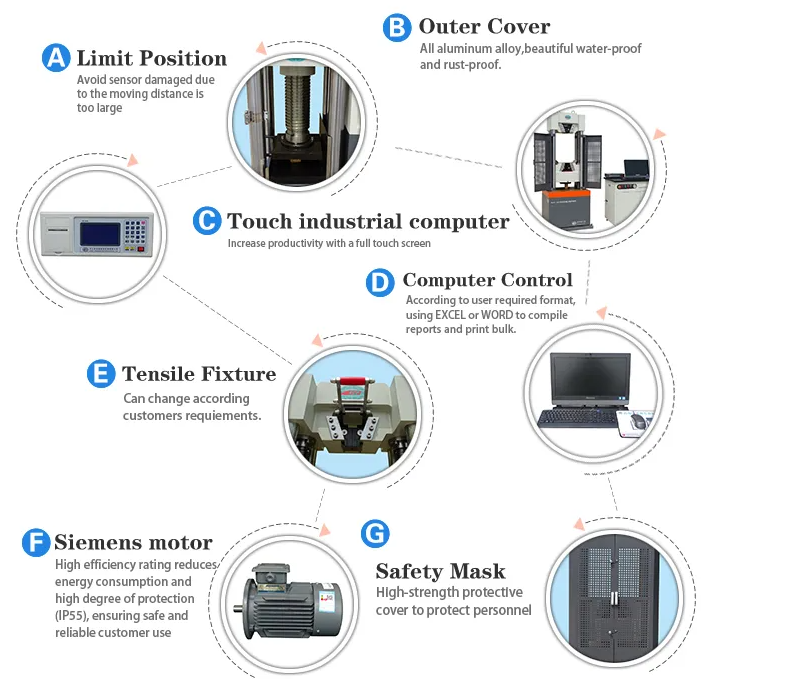

Our Advantages

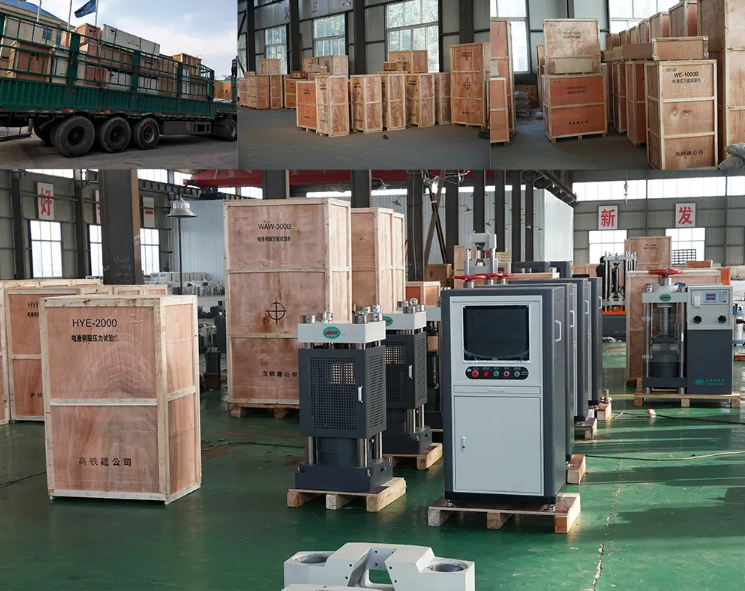

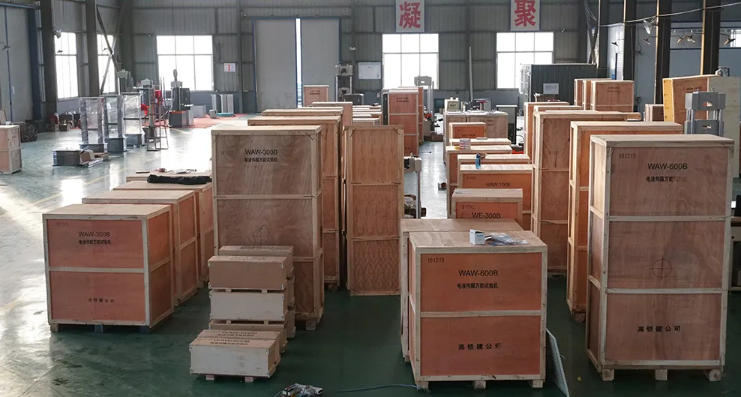

Packing & Delivery
Our service

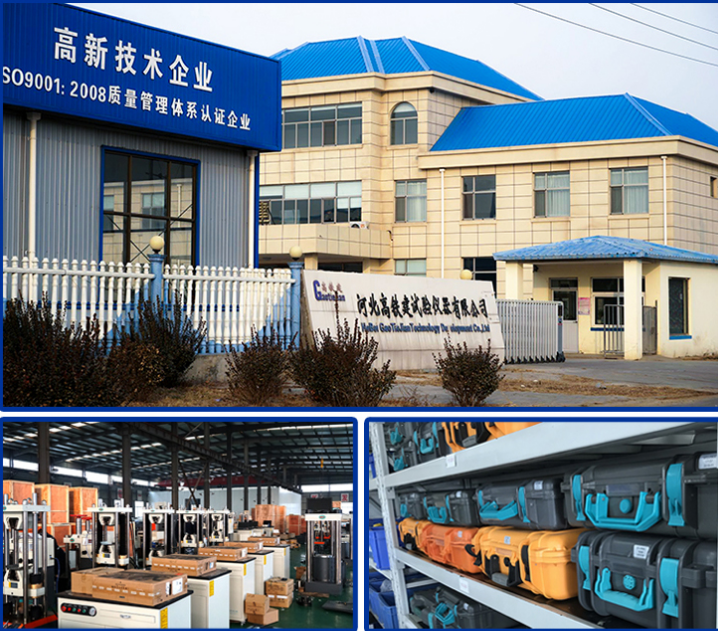

Wintesting is a high-tech enterprise focusing on the research and development, production and sales of engineering quality test and testing instruments.The company serves in the construction, the railroad, the highway, the water conservancy, the electric power, the university and the scientific laboratory.To provide quality products, services and solutions for the industry,and establish a good long-term cooperative relationship with it. Our company's entire line of products passed: ISO9001 quality management system certification,The entire line of products has independent intellectual property rights,A number of products have applied for national patents.The main products include metal, pile, concrete, soil, cement, asphalt testing equipment. Hot sale in Southeast Asia, Middle East, South America, Europe and other areas. Our company always abides by the business philosophy of "customer first, quality first" for doing good customer services.To ensure the interests of customers, product maintenance and upgrades for life, and tailor-made services according to customer needs, to solve customer worries.Strive to achieve the engineering testing instrument enterprise: the company with the best product, the good quality and the good service."Build a craftsman's spirit and build a century-old enterprise" is the development concept we have been pursuing.Iwintesting equipment company welcomes all units and friends to visit our company for inspection and guidance.

Our advantage

1. who are we?
We are based in Tianjin, China, start from 2023,sell to North America(35.00%),Africa(20.00%),Mid East(15.00%),Eastern Asia(10.00%),South America(5.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),South Asia(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Compression testing machine,Universal testing machine,pile testing equipment,concrete testing equipment,soil testing equipment

4. why should you buy from us not from other suppliers?
10 years of export experience, mainly in South America, the Middle East, Southeast Asia, and Africa, with a dedicated after-sales team. Support product customization

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish
