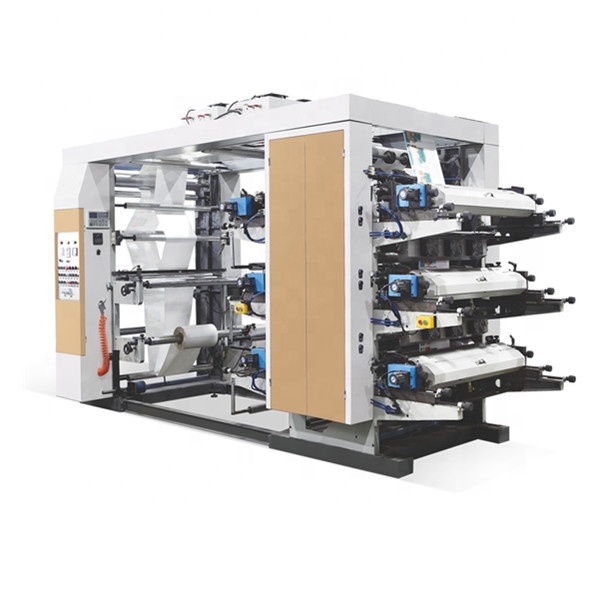

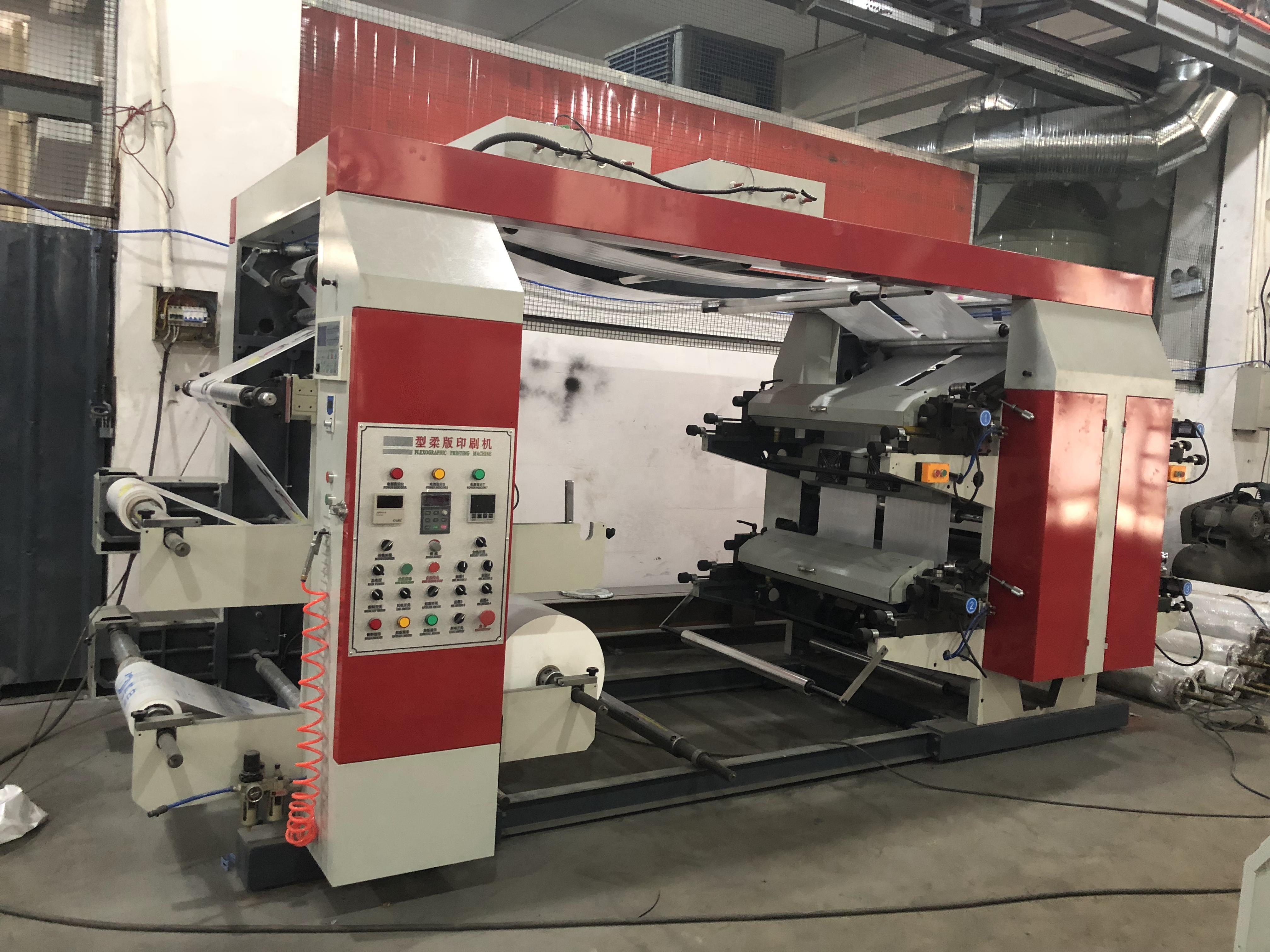

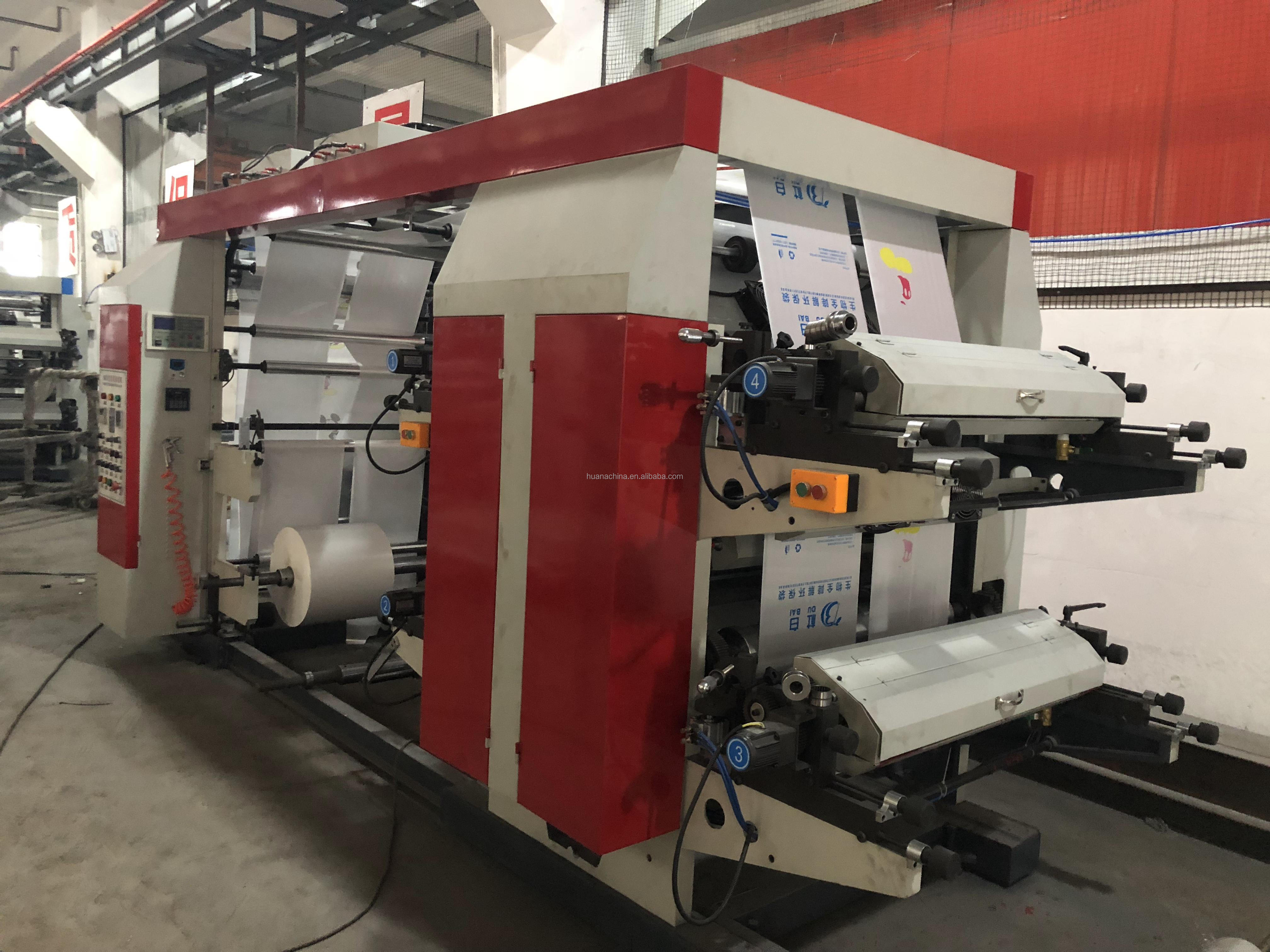

High-Quality Automatic Fast Flexo Printing Machines

$7999.00

≥1 set
$7799.00

≥5 set

Options:

HN-6600/6800/6100

Get Latest Price

You might also like

6 Colors Semi Automatic Polyethylene Fast Speed Flexo Printing Machines

1 set (MOQ)

PE Plastic Film Extrusion and Printing Machine

1 set (MOQ)

High-Quality Automatic Fast Flexo Printing Machines

1 set (MOQ)

Fast Automatic Flexographic Printing Machines

1 set (MOQ)

Full Automatic Biodegradable Vest, T-Shirt & Shopping Bag Making Machine with Printing - SHXJ-C

1 set (MOQ)

High Speed 2 Colors Flexo Printing Machine for Paper/Non Woven/PE Film (4/6/8 Stack)

1 set (MOQ)

Basic Info

Model No.
Brand Name
Type	Flexographic Printer
Condition	New
Plate Type	Screen Printer
Place Of Origin	Zhejiang, China
Brand Name	Huana
Usage	Paper Printer, Plastic Bag, Non Woven Bag
Automatic Grade	Semi-Automatic
Color & Page	6 Colors
Voltage	380v,50hz three phase
Dimensions(LWH)	4.52.81.6m
Weight	5000 kg
Print Dimension	800mm
Print Speed	80m/Min
Warranty	1 Year
Structure	Stack
Marketing Type	New Product
Model	HN-6600/6800/61000
Anilox Roller	Ceramic Anilox Roller
Doctor blade	Single dotor blade
unwinder	EPC control
Suitable material	Plastic film ,paper ,non-woven
Unwinder and rewinder station	auto tension control
Max Printing Length	191-1000mm
Max printing width	560/760/960mm
Max printing speed	80M/MIN
Applicable Industries	Printing Shops
Key Selling Points	Motor, ceramic anilox roller, single doctor blade, inverter
Machinery Test Report	Provided
Video Outgoing-inspection	Provided
Warranty Of Core Components	1 Year
Core components	Motor

Product description

PRODUCT SPECIFICATIONS

Usage

1> Use sensitization resin as flexible printing plate.
2> This printer is suitable for printing packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc.
3> It is an ideal printing machine for paper bag, supermarket t-shirt handle bag and carrier handle bag etc.
<1> Easy operation, flexible starting, accurate color register.
<2> The meter counter can set printing quantity according to the requirements.Stop the machine automatically at the quantity or
when the material is cut off.
<3> Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.

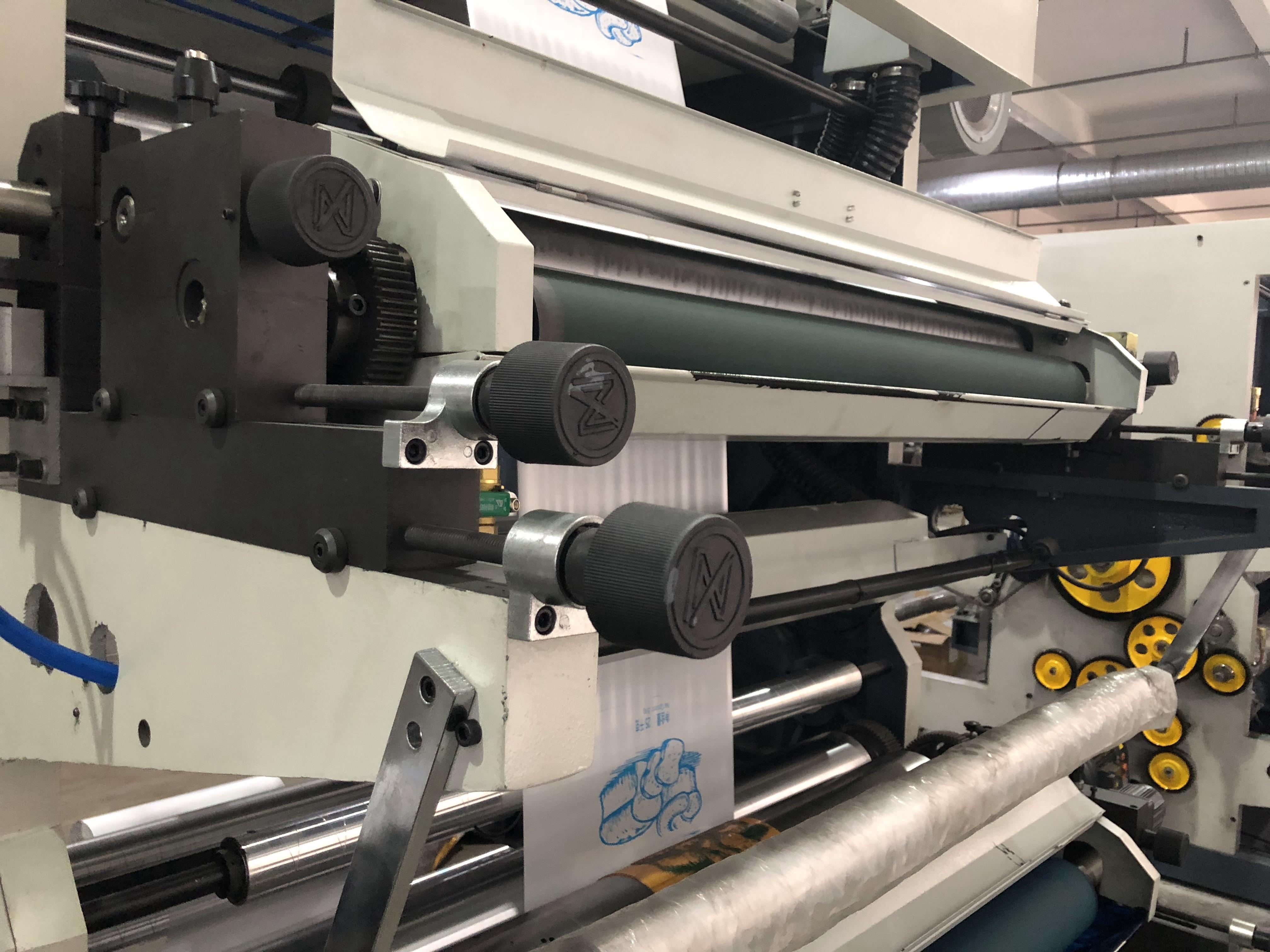

<4> The printing ink is spread by the anilox cylinder with even ink color.
<5> Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
<6> 360°continuous and adjustable longitudinal register device.
<7> The frequency control of motor speed adapts to different printing speeds.
<8> There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the
machine when the plate is installed.

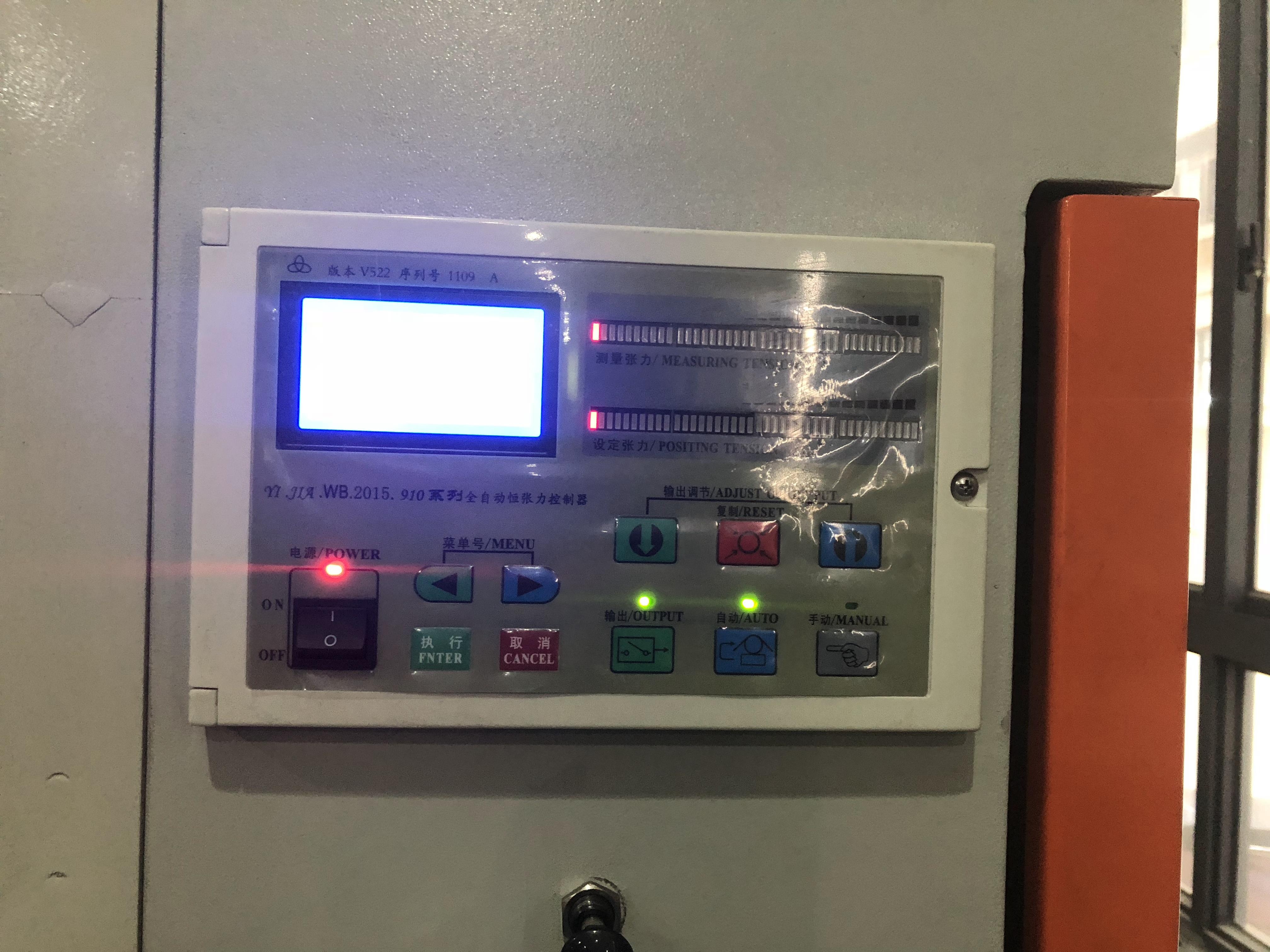

<9> Magnetic powder brake for unwinding tension control,magnetic powder clutch for rewinding tension control.

Model	Printing width	Printing length	Printing speed	Plate thickness
YT-2600	600	180-1200	60	2.38MM
YT-2800	800	180-1200	60	2.38MM
YT-21000	1000	180-1200	60	2.38MM
YT-4600	600	180-1200	60	2.38MM
YT-4800	800	180-1200	60	2.38MM
YT-41000	1000	180-1200	60	2.38MM
YT-6600	600	180-990	60	2.38MM
YT-6800	800	180-990	60	2.38MM
YT-61000	1000	180-990	60	2.38MM
