High Quality BT40 Face Mill Tool Holders 22 Pilot Dia.60 Projection
$19.20
≥1 Piece/Pieces
Basic Info
| Model No. | BT40-FMB22-60L |
|---|---|
| Brand Name | CHONGDE |
| place of origin | China |
| status | New |
Product description

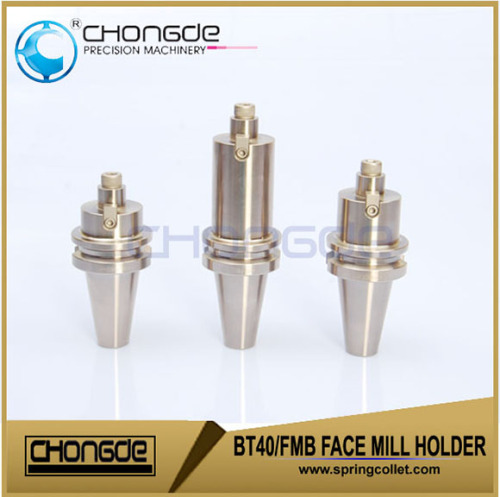

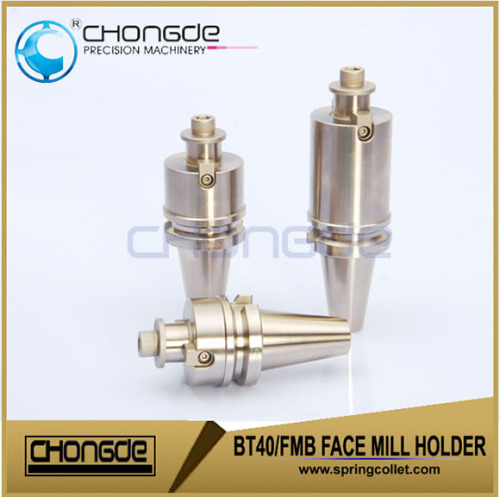

BT40-FMB22-60L Face Milling Holder Tool Holder

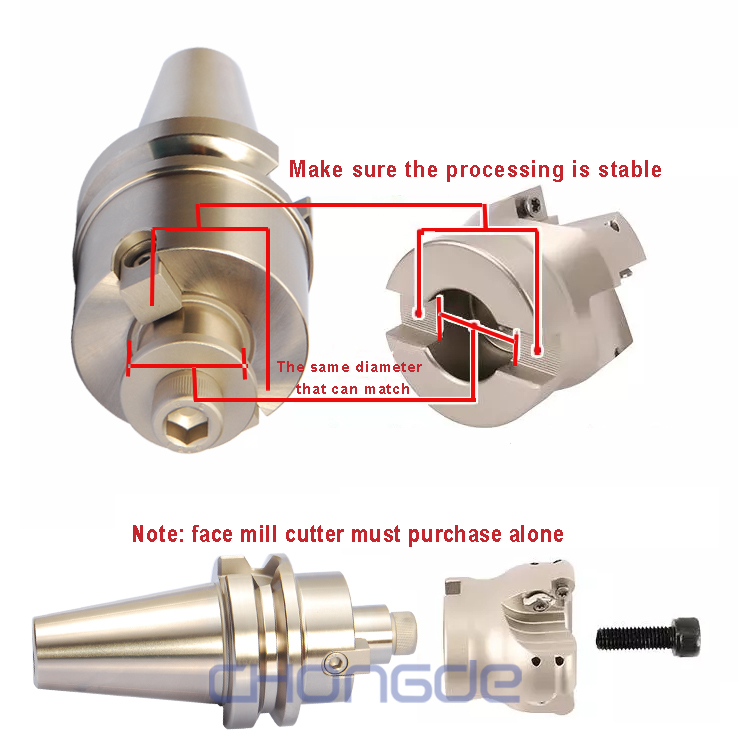

BT FMB Face Milling Arbors Cnc Milling Tool Holders , used in the clamping of the cutter with the radial drive groove, such as the face milling cutter, the vertical disc cutter, the set type end mill, high speed and high precision machining .Mechanical spindle and cutting tools and other accessories.High Precision BT shank Tool Holder ,balanced G6.3 or G2.5 For choose.
ChongDe is a manufacture in R&D,production,sales and services with ISO9001 certificate.The main products are precision tool holder,clamping collet,pull stud,nut,spanner and other machine tool accessories with the standards of ISO,DIN,ANSI/ASME,JIS and local GB,etc.Now,our products have exported to more than 30 countries and regions.
Attaching importance to the research and products, we employs many experienced and skilled
technicians, so that precision machining can be made according to samples or drawings.

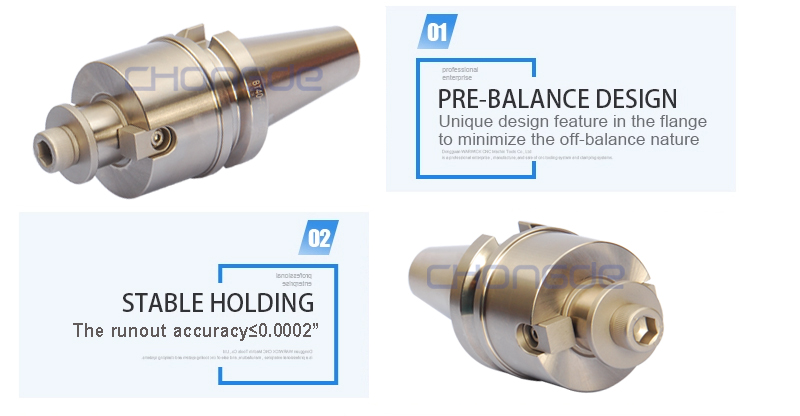

1. TIR: ≤ 0.0002"
2. Material: 20 CrMnTi
3. Works on all BT40 Machines
4. Rear thread for pull stud is M16*2.0P
5. Constructed of alloy steel hardened to 56 – 60 HRC for long, durable service life

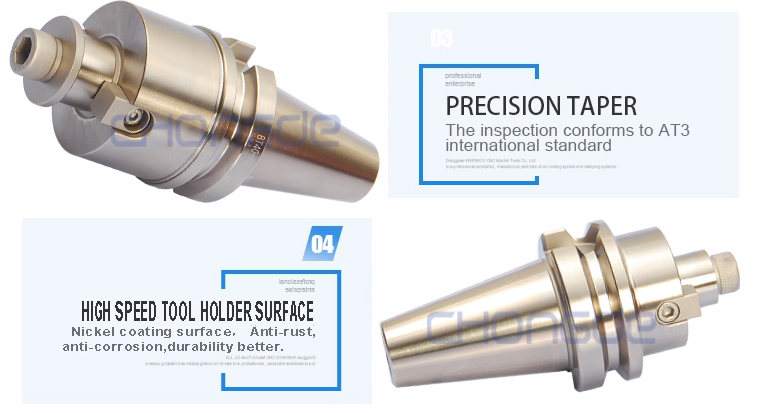

6. AT3 or better accuracy standard taper specification for maximum contact with spindle.
7. Nickel coating surface, Anti-rust, anti-corrosion, durability better.
Why Buy A Balanced Tool holder?
Tool holders make the all-important connection between the cutting tool and the spindle. With the hard-earned money you invest in cutting tools, it only makes sense to do everything possible to increase tool life. One of the easiest ways to do this is to use balanced tool holders.
Tool holders can greatly influence the difference in tool life.
The use of a balanced tool holder can result in increased accuracy and repeat ability due to less vibration and chatter. They can help to improve spindle bearing life and improve surface finish. They can save your time by allowing for faster speed and feed rates. All of these benefits mean that you save time and money.
Product Information

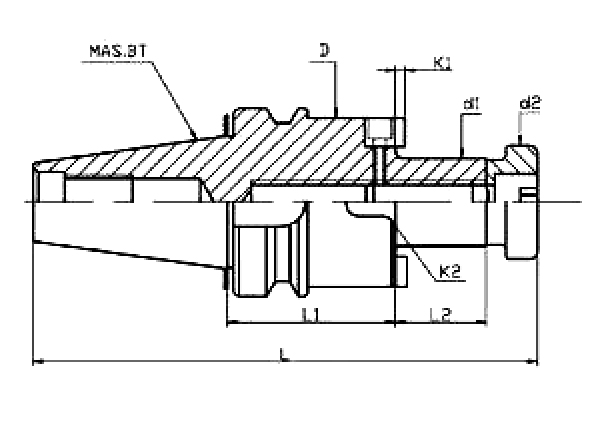

Technical Details Additional Information
| Brand Name | chongde | Size | BT40 |
|
TIR |
≤ 0.0002" |
Pilot Diameter(d1) |
22 |
| Drawbar Thread Size | M16*2.0P |
Nose Diameter(D) |
48 |
| Projection (L1) |
60 |
Overall Length(L) | 143.4 |
bt40 face milling chuck BT40 FMB type chuck BT40 Face Mill type holder
1.Package: plastic boxes and also can pack according to your requests.
2.Delivery time:Sample within 7 days and others 35 days.
I Fast reply
II Favourable price
III High quality products
IV Fast delivery
V Good after-sales service
1.Are you factory or Trade Company?
We are industry and trade integration.
2.Could you supply samples?
Yes ,free samples for some products.
3.Where do you export?
The whole world.
4.Could you produce non-standard products?
Yes ,we can .Please supply samples or drawing.
5.What are the shipping ways?
By intemational express,by air ,by sea are all OK.
6.Do you have minimum order quantity?
Conventional Products don't have.The minimum order quantity of non-standard products is 50pcs.
7.What's your delivery time?
Less than 25 days after order confirmed.
