High Quality Motorcycle Sprocket with 3 Months Warranty

High Quality Motorcycle Sprocket Kit 525-45t for S1000rr ISO9001 Certified

Basic Info

Model No.	Sprocket
Brand Name
warranty period	3 Years
Certification	Csa, Pcoc
Applicable industry	Manufacturing Plant, Machinery Repair Shops, Retail, Food Shop, Energy &Amp; Mining, Construction Works, Food &Amp; Beverage Factory, Building Material Shops, Farms
Support customization	Oem, Odm
Material	Plastic Teeth / Metal Insert, Stainless Steel, Steel
place of origin	China

Product description

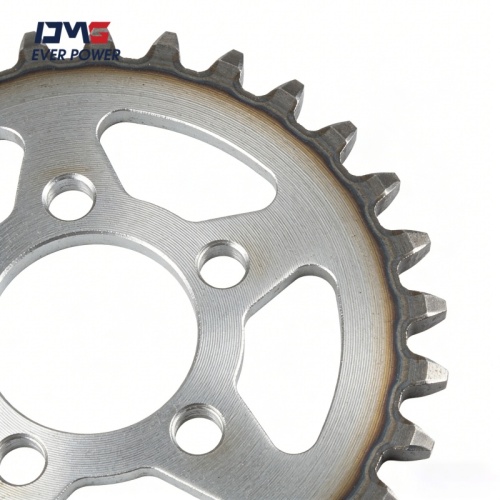

The motorcycle sprocket is a core component of the motorcycle transmission system. It needs to work with the chain to transmit engine power, and at the same time, the vehicle's power output characteristics can be adjusted through the combination of sprocket teeth numbers. It is compatible with 420/428/520/525/530 model chains. Made of alloy steel, the key dimensions matching the chain are a pitch of 12.7mm, a width of 7.85mm, and a tensile strength of 20.6 kilonewtons, which balances strength and transmission stability.

Product Name	Motorcycle Gear and Chain Kit 420 428 520 525 530
Material	Alloy Steel
Chain No	420 428 520 525 530
Pitch (mm)	12.7
Bushing Type	Rigid
Width (mm)	7.85
Pin Diameter (mm)	4.45
Pin Length (mm)	19.05
Roller Diameter (mm)	8.51
Inner Plate Thickness (mm)	1.96
Outer Plate Thickness (mm)	1.96
Tensile Strength (kN)	20.6
Weight (kg/m)	0.85
Advantages	Quality first, service first, competitive price, fast delivery
Delivery Time	Samples take 20 days, and formal orders take 45 days.
Main export markets	Europe, North America and South America, Southeast Asia, Oceania, the Middle East, Africa
