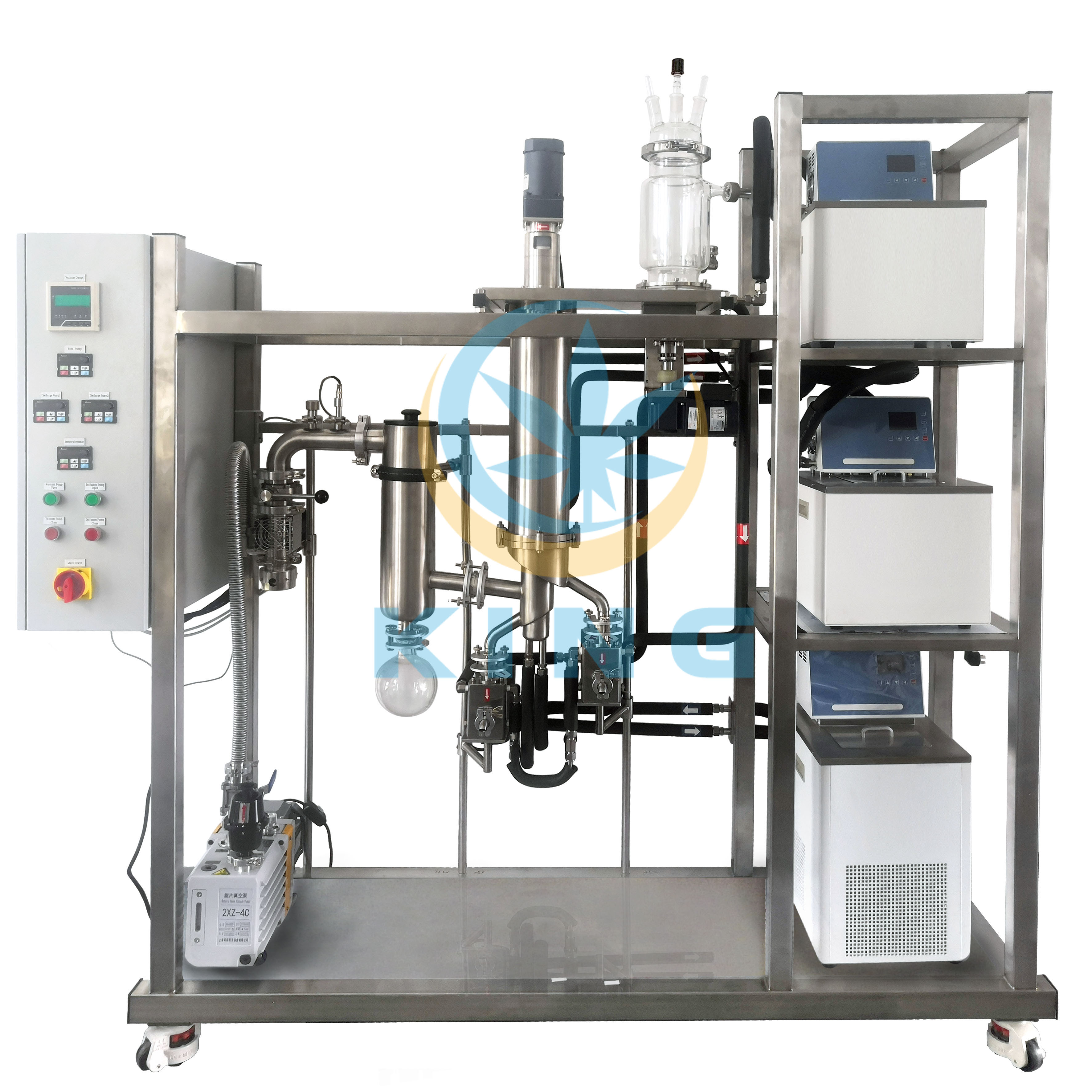

High-Quality Short Path Molecular Distillation Systems

$26000.00

≥1 set
$25500.00

≥2 set

Options:

Distillation
Food Processing
KMD-150

Get Latest Price

You might also like

Molecular Distillation Industrial Spinning Band Distillation GMD-150 Machine For Oil

1 set (MOQ)

High-Quality Short Path Molecular Distillation Systems

1 set (MOQ)

Short Path Molecular Distillation for High Free Fatty Acid Crude Palm Oil Purification

1 set (MOQ)

Hemp Oil Extraction: Short Path Molecular Wiped Film Distillation 12.5kg/h

1 set (MOQ)

Hemp Oil Distillation Kit: Professional Continuous Feed & Collection Wiped Film Short Path Distillation System

1 set (MOQ)

Hemp Oil Extraction Machine: CBD Centrifuge Ethanol Extraction with Jacket Molecular Distillation

1 set (MOQ)

Hemp Oil Extraction Machine: CBD Centrifuge Ethanol Extraction with Jacket Molecular Distillation

1 set (MOQ)

Basic Info

Model No.
Brand Name
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Core Components	Motor, Gear, Pump
Power Source	Electric
Process	Wiped Film
Place Of Origin	Shanghai, China
Brand Name	Kingqi
Voltage	220V
Power(W)	9kw
Dimension(LWH)	21106502200mm
Warranty	1 Year
Key Selling Points	Easy to Operate
Effective evaporation area (m2)	0.25
Barrel diameter (mm)	150
Feeding funnel volume(L)	2
Feed rate(Kg/hr)	2~5
Maximum Speed (rpm)	450
Distillate receiving flask (L)	5L
Recycle receiving flask (L)	3L
Operation temperature	Up to 300C
Vacuum	Batter than 1pa
Certification	CE/ISO
Showroom Location	None
Warranty of core components	1 Year
Condition	New
Applicable Industries	Manufacturing Plant, Food & Beverage Factory, Energy & Mining, Hemp processing plant
Weight	500 KG

Product description

Introduction:

Molecular distillation short path is a special liquid-liquid separation technology, which is carried out under high vacuum
environment. It uses the differences in the free path of molecular motion of different substances to achieve separation. Our short path molecular distillation system is very suitable for distillation/purification of heat sensitive material or high boiling point material. Short path distillation is widely used in chemical, pharmaceutical, petrochemical, spices, plastics, oil and other fields.
