high-speed automatic winder transformer winder

Name: high-speed automatic winder transformer winder
Brand: SUZHOU DEGU MACHINERY CO.,LTD
Rating: 4.1 (1 reviews)

Get Latest Price

Basic Info

Model No.
Brand Name
place of origin	China
status	New
Video factory inspection	Provided
Mechanical test report	Not Available
Marketing type	New Product 2020

Product description

Product Description

Check the transformer winding machine before starting 1, before powering on and before starting. You need to check the winding machine to ensure that no major problems are found, and do the work for 5 seconds. 2. Turn on the heat engine. After the power is turned on, a warm-up operation is required. Then, the winding machine enters the normal energization and ventilation state, all parts are operating normally, and then proceed to the next step. 3. Set the parameters, find the corresponding material specifications and models according to the latest processing requirements, and set the corresponding parameters in the winding machine. 4. Debugging. After setting the parameters, it does not mean that you can directly produce. You must also debug to ensure that the parameters of the winding machine and the coordinated operation of the parts, and the quality of the products produced meet the standards. 5. Small batch production, if it is a transformer model that has never been produced before, a small batch trial production must be carried out first to ensure that no major problems will occur. 6. Formal production. If there are no small batches, large batches will be put into production. At the beginning, engineering and technical personnel must be on duty to ensure good operation, and then hand it over to the operator!

Product characteristics:

1. data storage segment 0~999 step.

2. high speed reverse rotation.

3. turns is accurate.

4. automatically save the problem data in use.

5.CNC can monitor and display production status.

6. simple setting and easy operation.

Technical parameters
Item	Model	DG-404
1	Line diameter	φ0.03~ 0.6mm
2	spreading width	φ100mm
3	rotational diameter	φ100mm
4	Maximum rotation speed of winding	6000 rpm
5	Spindle motor	370W
6	Spreading Motor	9V Stepping Motor
7	The weight of machine	about 75KG
8	Power supply	220VAC 50HZ ; 110VAC 60HZ

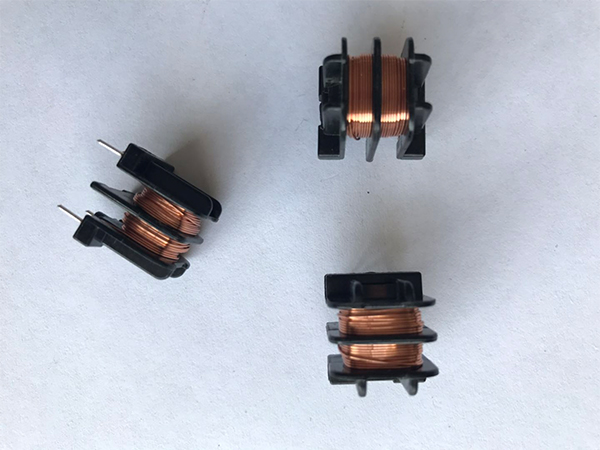

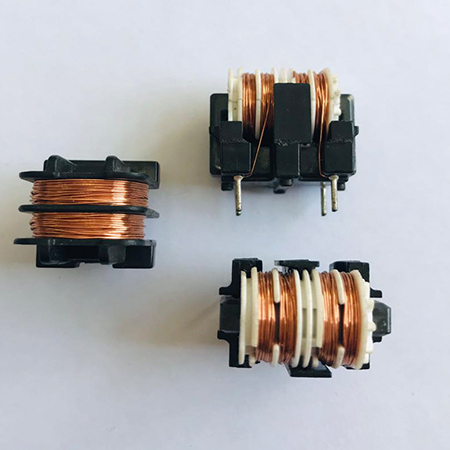

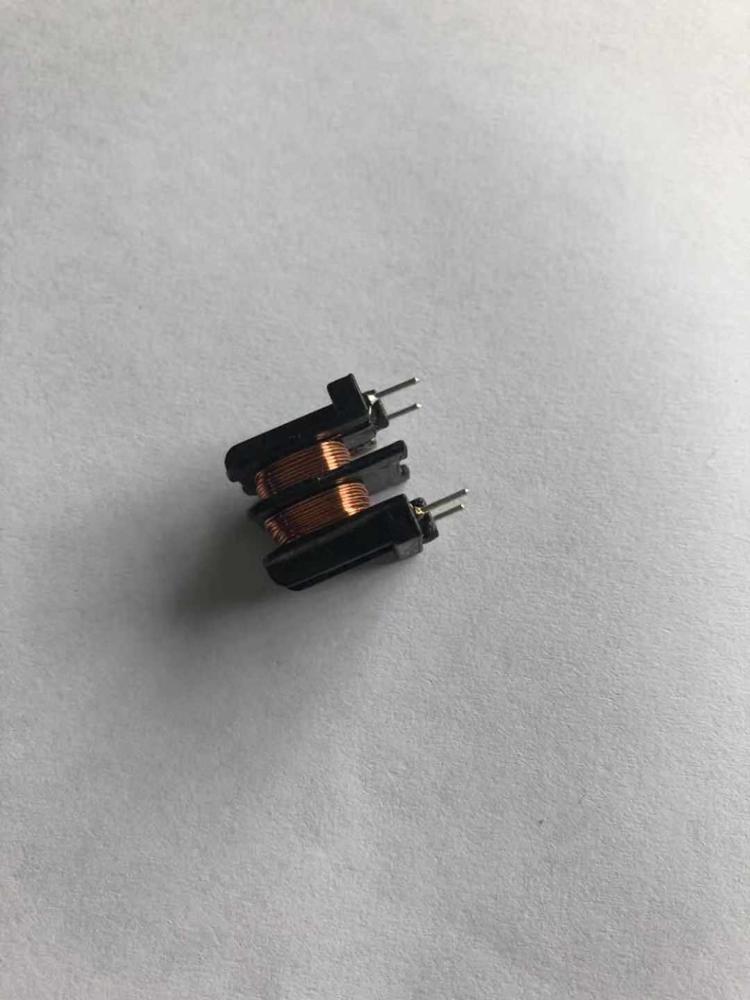

9	Application: Suitable for all kinds of ring type inductors, transformers, inductors, relay coils and so on.

Packaging & Shipping

We packaged with plastic film and wooden case.

We select difference ship way based on your requirement

Our Services

We can design and develop special machine based on your request.

We can train customer how to operate and repair equipment.

We supply full and quickly services when you use our products.

Company Information

Suzhou Degu Machinery Co., Ltd. was established in August 2008. The company mainly develops, produces and sells winding machines, we can make the automatic winding machine and semi-automatic winding machine, we are good at the toroid winding machine, strong R&D level and enough manufacturing capacity, competitive price, stable quality, and short lead time. After 10 years of development, we have gathered many experienced professionals and won the trust of many companies and established long-term strategic partnerships with honesty, pragmatic and enthusiastic service. Excellence, continuous innovation, and better meeting customer needs are the pursuit and cultural essence of each DG person.

DG-404 four-axis high-speed automatic winder transformer winder
