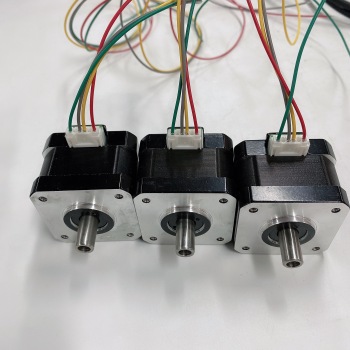

Hollow Shaft NEMA17 Stepper Motor
$14.90
≥3 piece
$13.50
≥100 piece
$9.90
≥10000 piece
Holding torque:
- 260mN.m
Options:
- 1.8°
Basic Info
| Warranty | 3months-1year |
|---|---|
| place of origin | China |
| Brand Name | Jkongmotor |
| Model Number | JK42HS34-1504-15SK5 |
| Phase | 2 |
Product description
CE ISO ROSH Customized Nema 17 Hollow shaft motor 42mm Stepper Motor | ||||||||
HYBRID STEPPER MOTOR JK42HS34-1504-15SK5 | ||
項目(Item) | 性能(Specifications) | |
步距角(Step Angle) | 1.8° | |
相數 (Number Of Phase) | 2 | |
絕緣電阻(Insulation Resistance) | 100 MΩ Min. ,500VDC | |
絕緣等級（Insulation Class） | Class B | |
轉動慣量(Rotor Inertia) | 38g.cm2 | |
凈重（Weight） | 0.2kg | |
額定電壓（Rated Voltage) | 2.34V | |
額定電流（Rated Current） | 1.5A | |
相電阻（Resistance） | 1.56Ω±10% | |
相電感（Inductance） | 2.4mH±20% | |
保持轉矩（Holding Torque） | 260mN.m | |
定位轉矩（Detent Torqque） | 12mN.m | |
Video

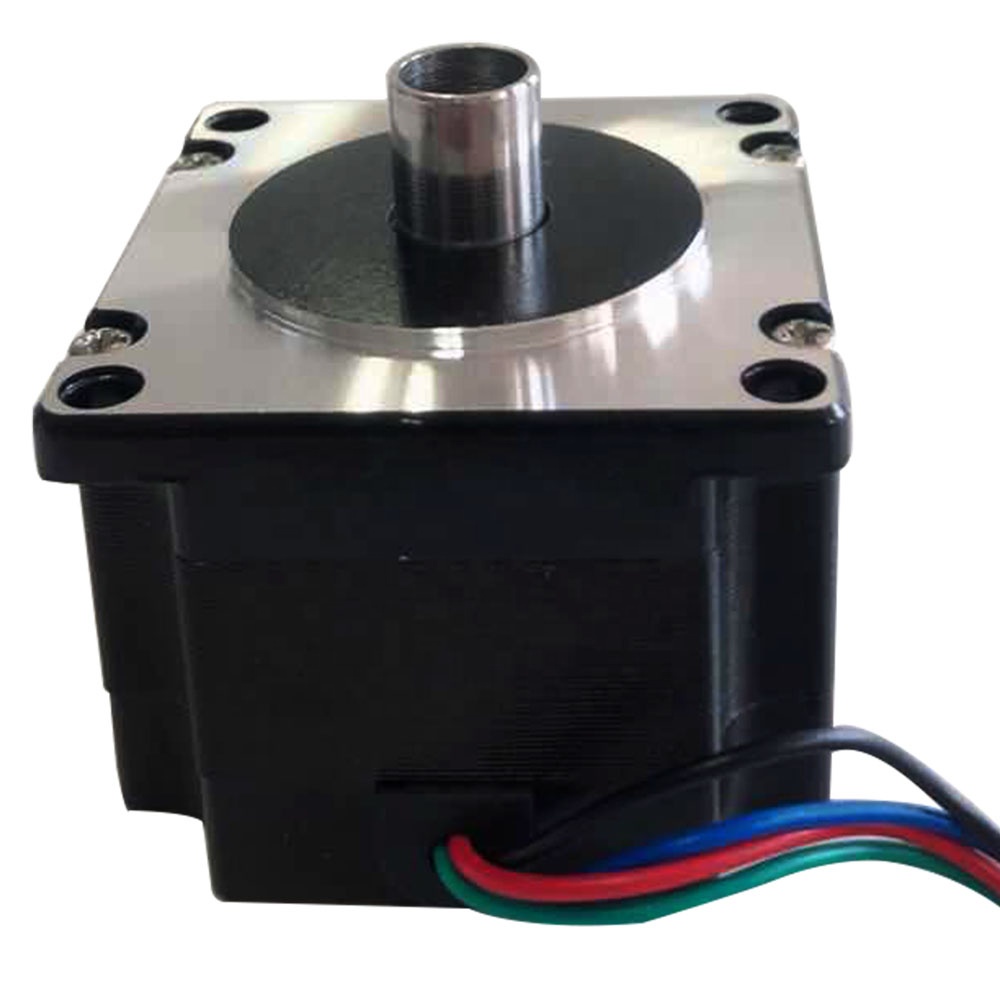

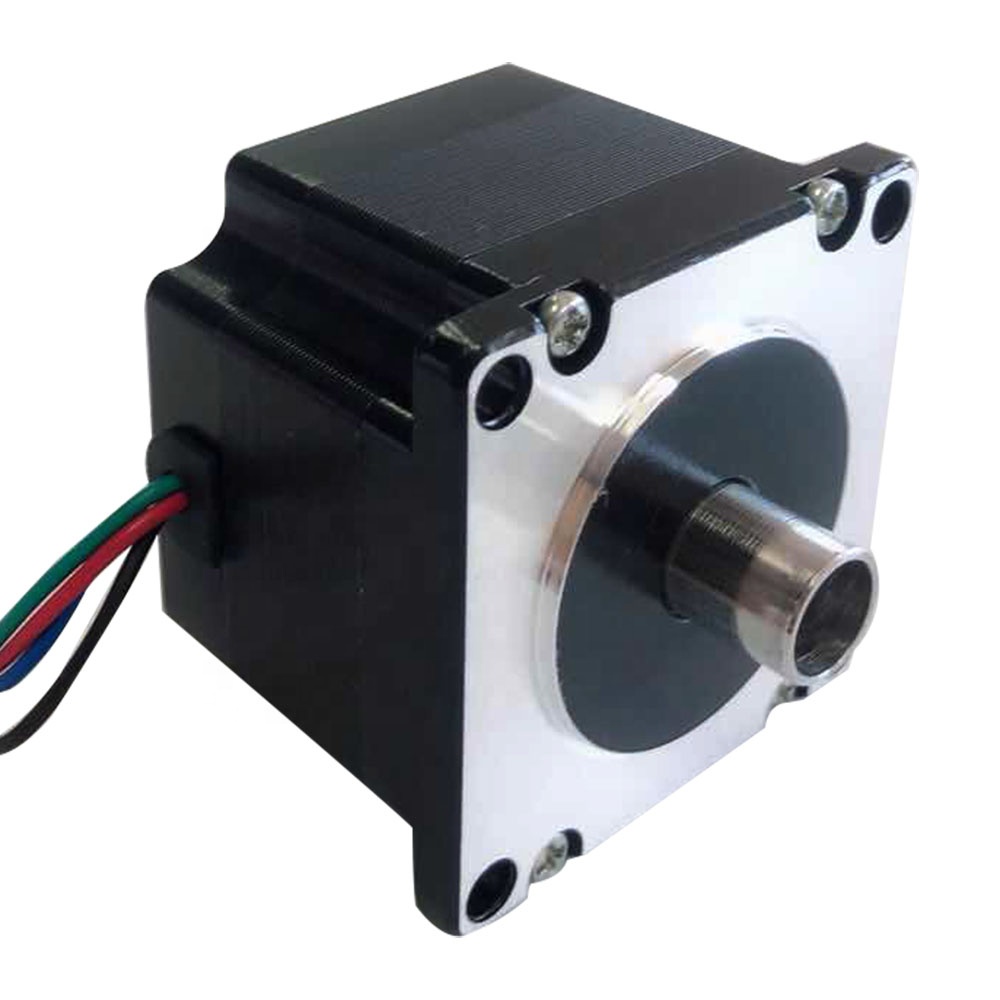

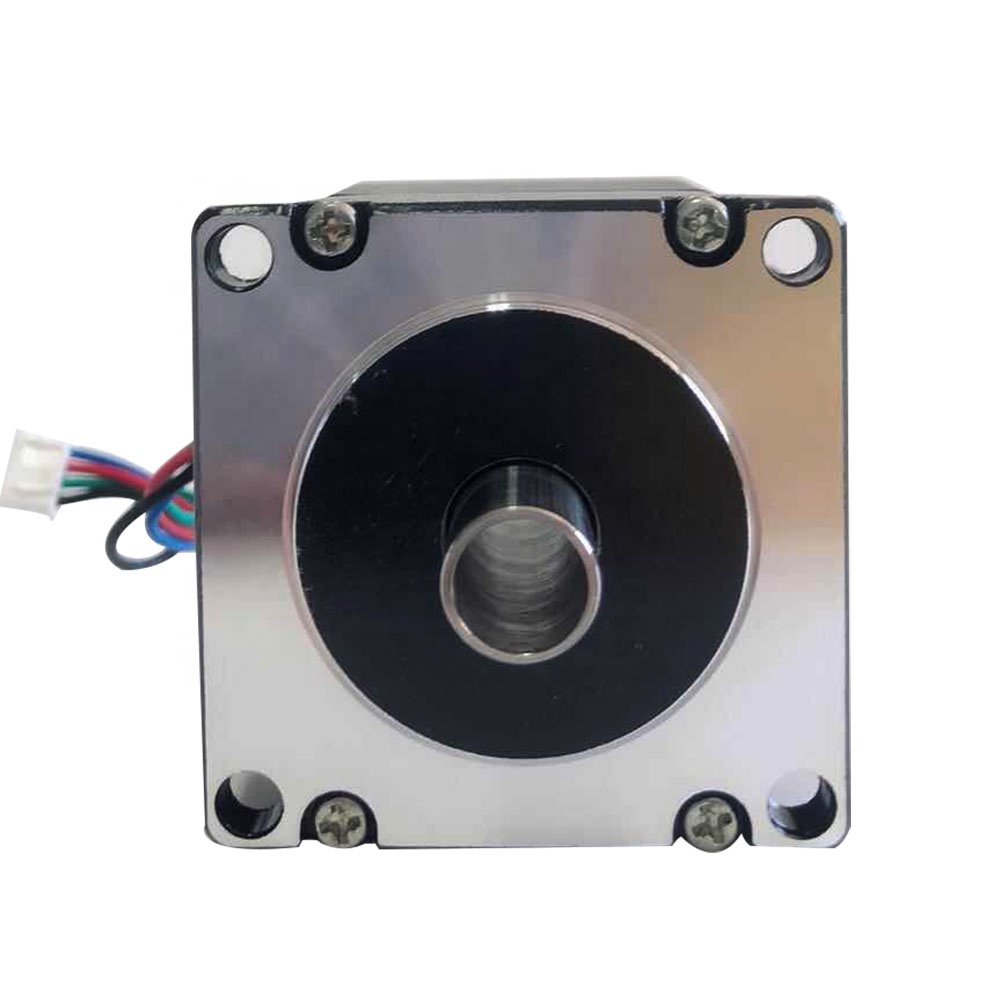

Jkongmotor 2 Phase 57mm NEMA23 Hollow Shaft Stepper Motor 1.8° 1N.m 4.2A1
