Hot Sale High Low Temperature Thermal Shock Test Machine
$20000.00
~ $50000.00
/ set
use:
- thermal shock test chamber
Get Latest Price
You might also like
$20000.00
1 unit (MOQ)
Basic Info
| Warranty | 14 months |
|---|---|
| Customized Support | Oem, Odm, Obm |
| Place Of Origin | Guangdong, China |
| Brand Name | OTS |
| Model Number | XB-OTS-225 |
Show More
Product description

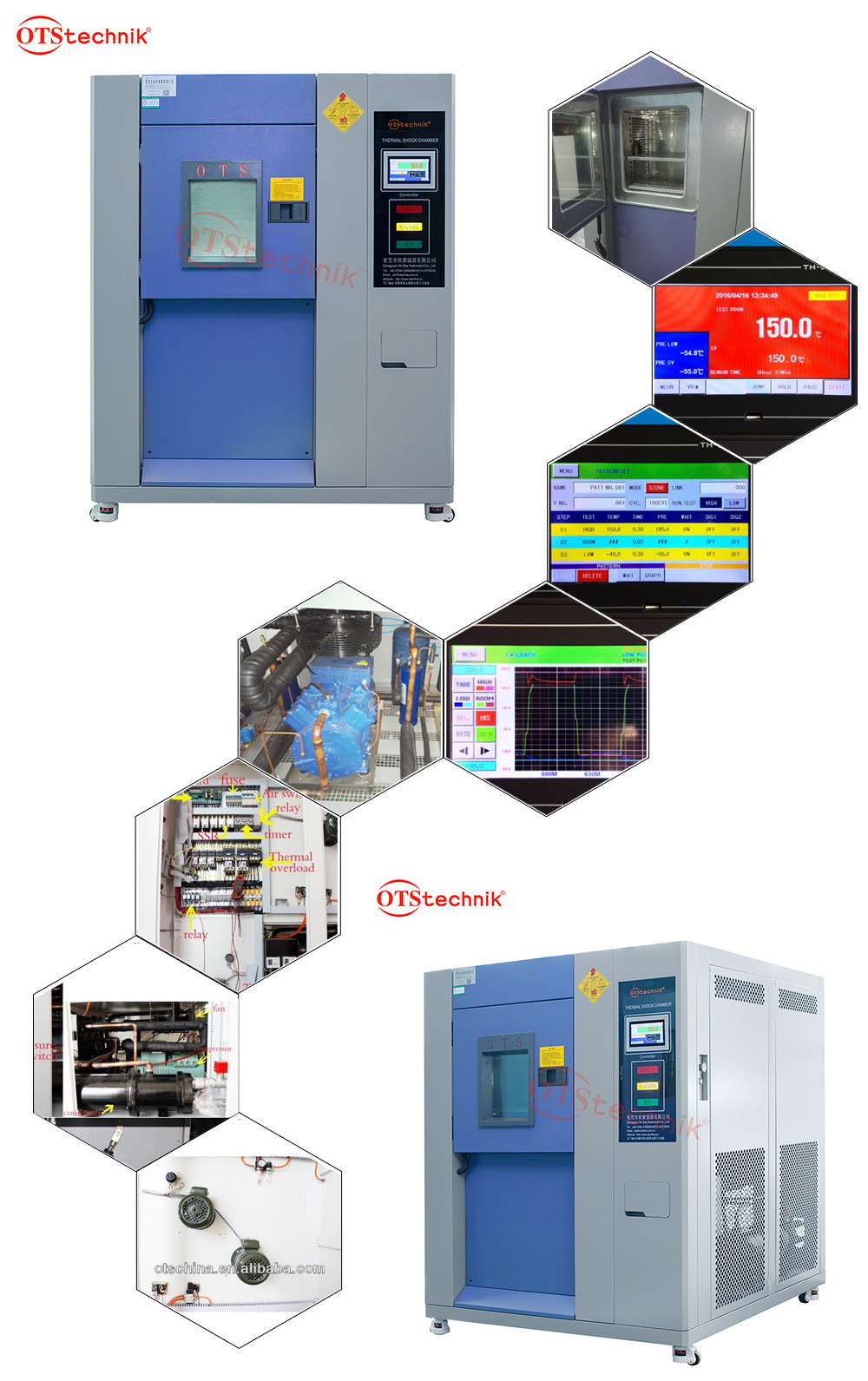

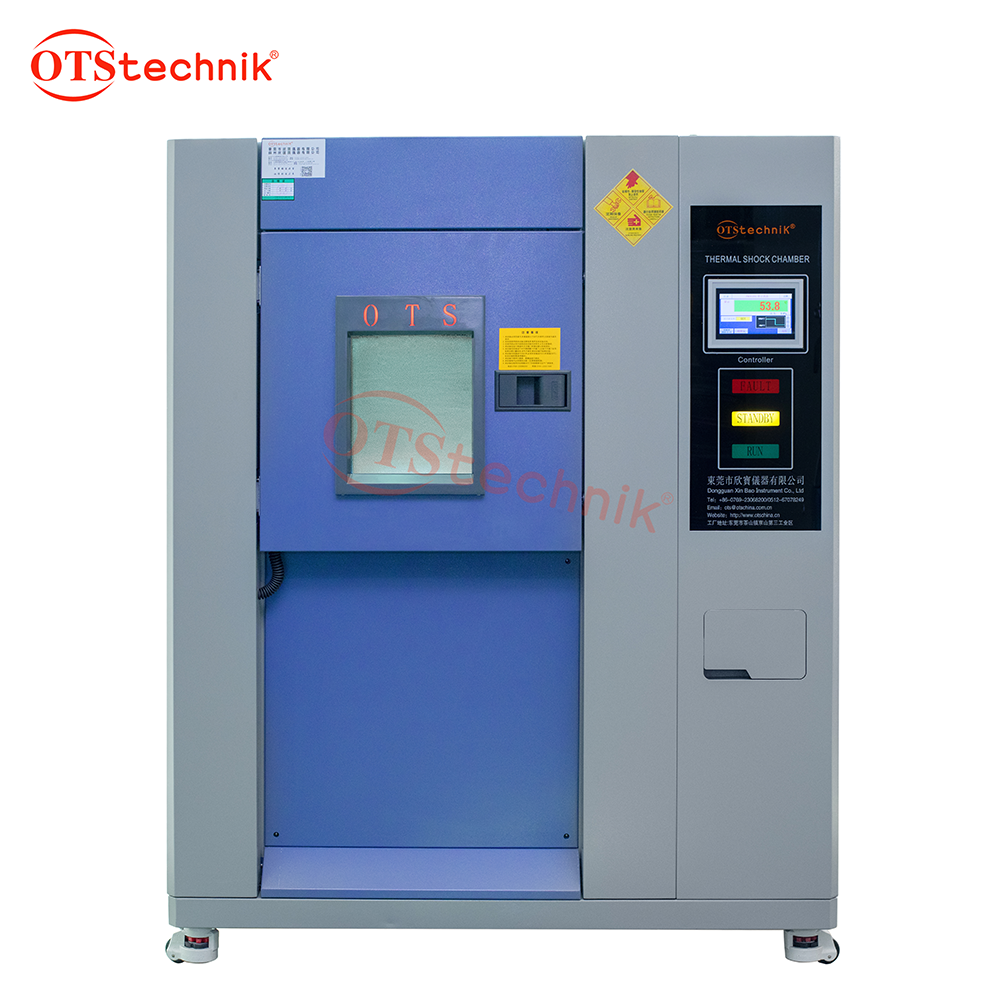

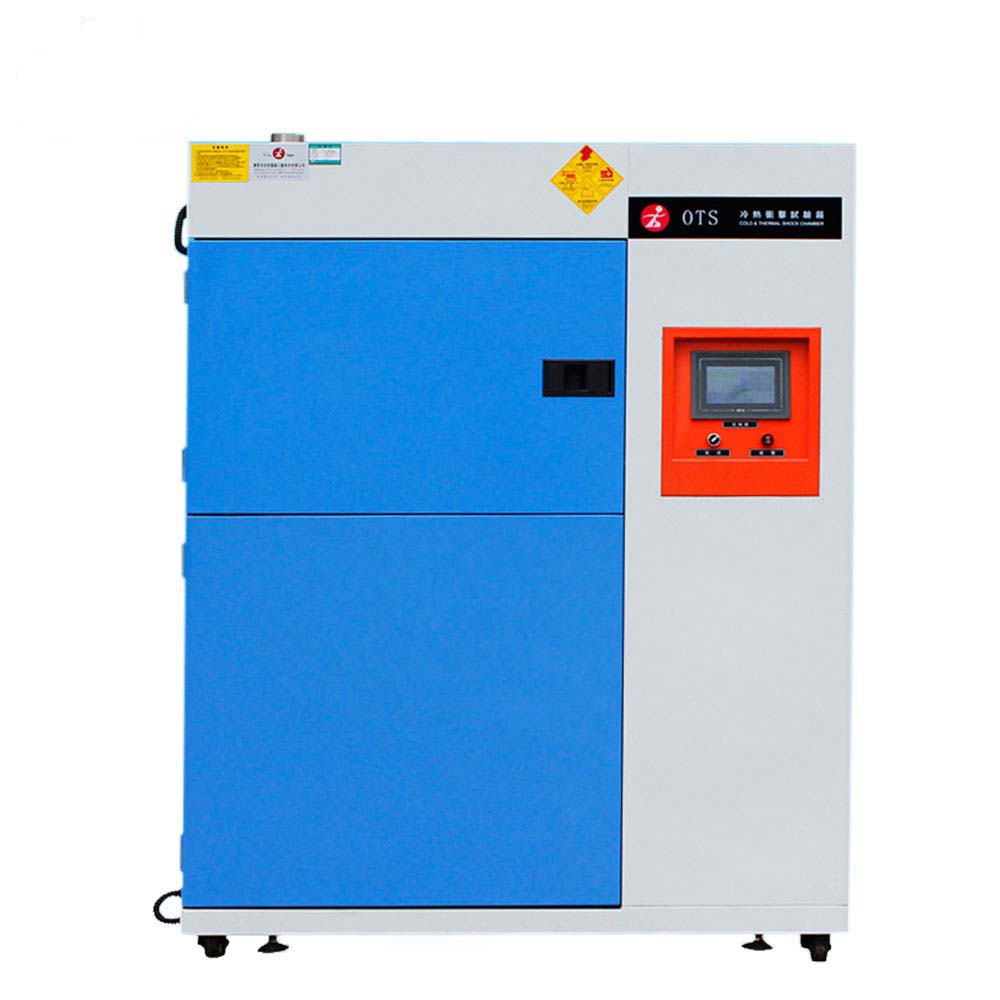

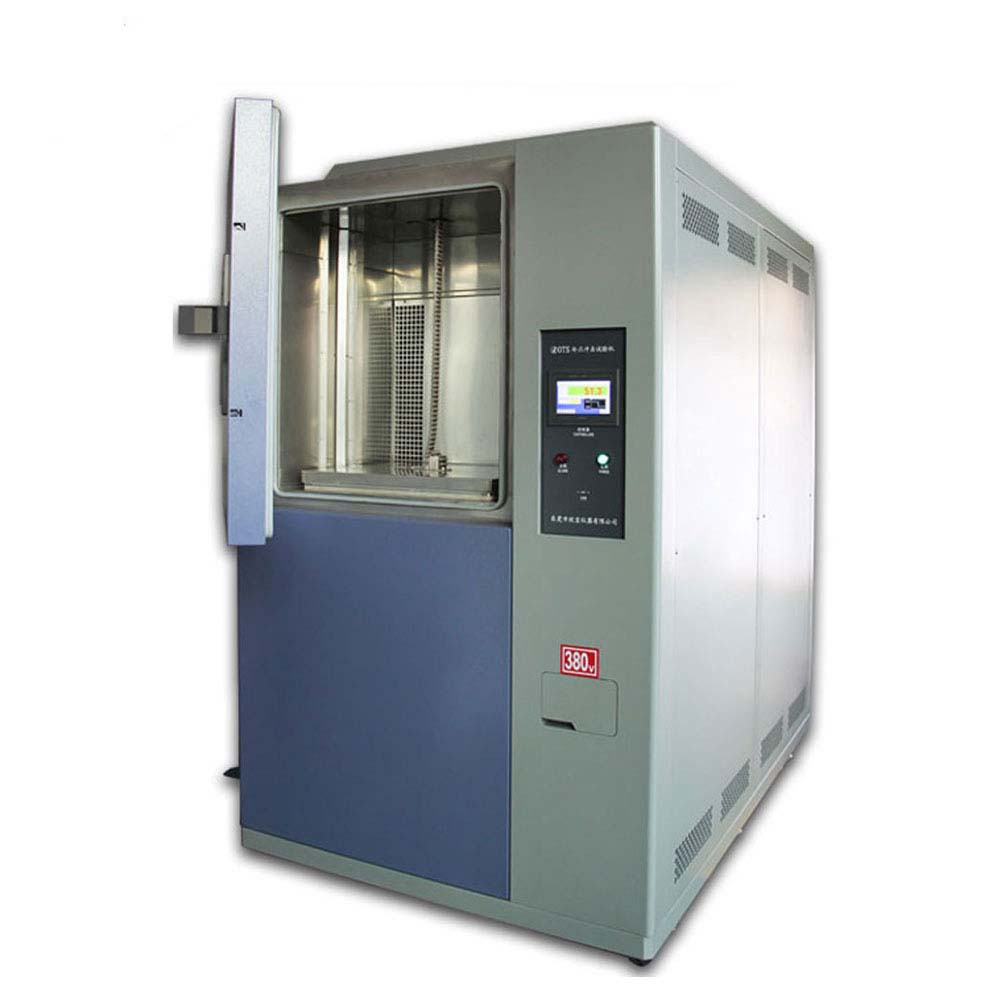

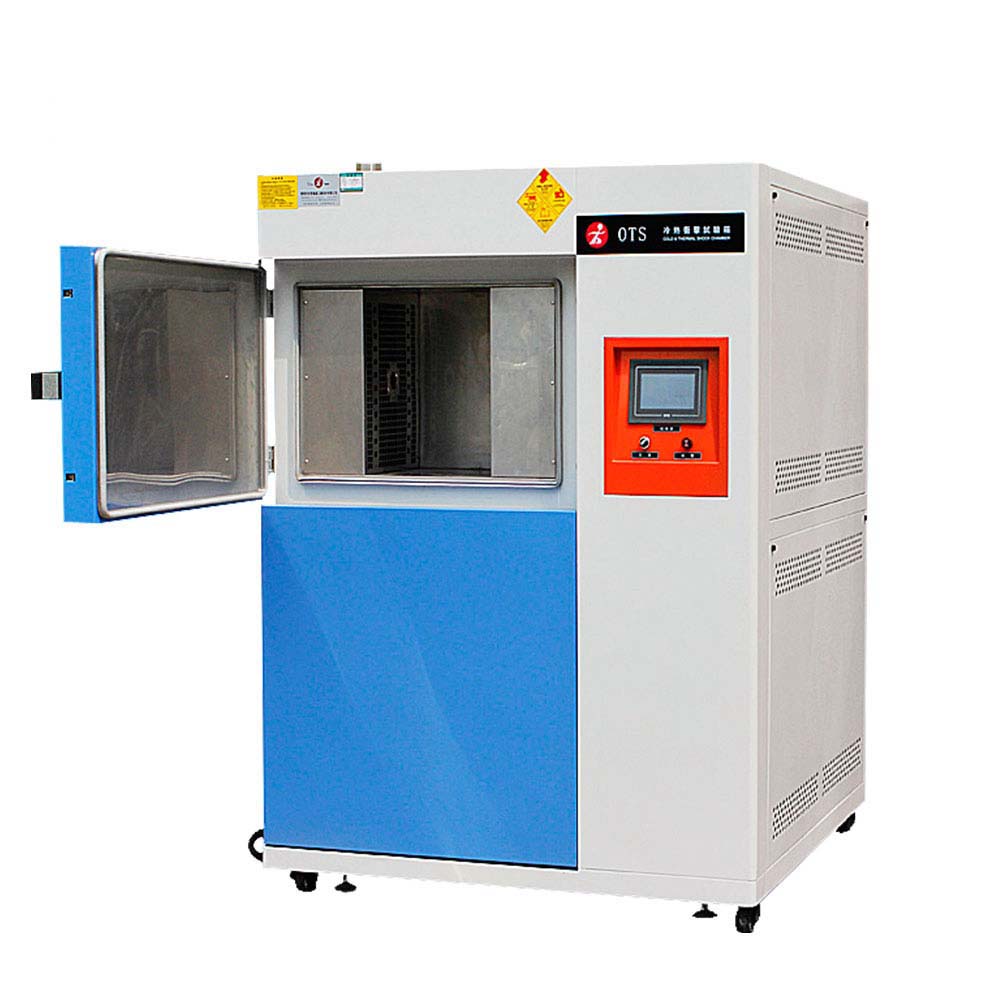

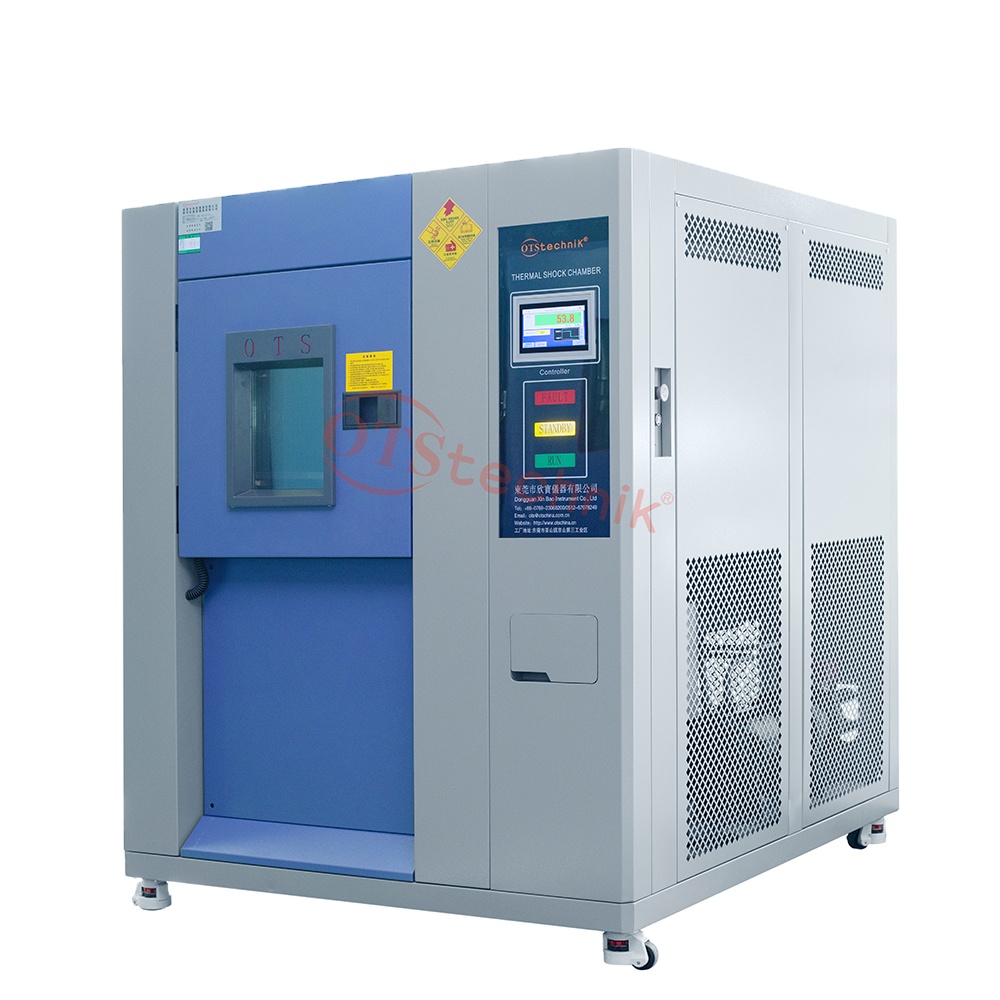

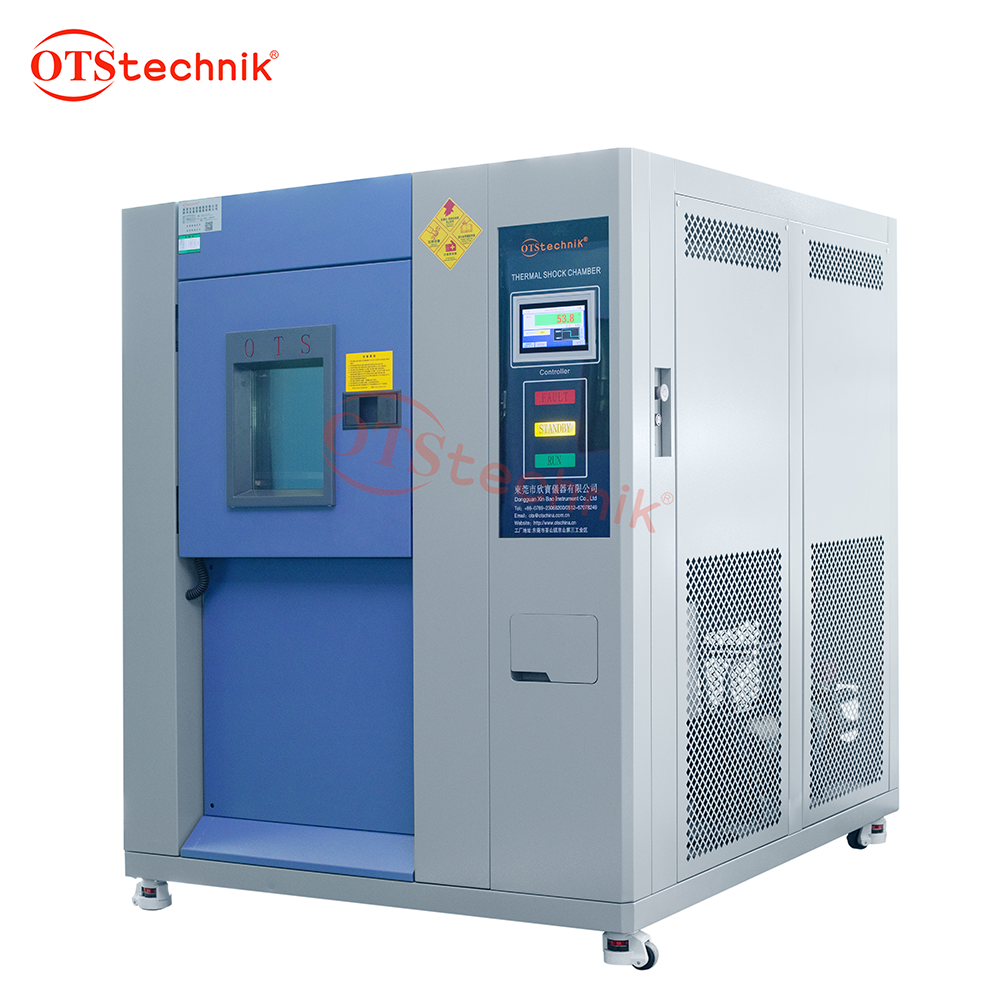

Thermal Shock Chamber (Three-Box Type)
Three box-type of hot and cold impact test chamber is to test thermal expansion and contraction of products caused by chemical changes or physical harm, to put the material structure or composite material in an industry under conditions like extremely high temperatures and very low temperature. It is an ideal test machines in detecting electronic components, metal, chemical materials, national defense industry, aerospace industry, BGA, PCB board, IC, semi - conductive ceramics, etc.
Refrigerant | 1.Relative high temperature machine: R404A (OL:0)? 2.Relative low temperature machine: R23 (OL:0) | ||||
⑴ Heat chamber：nickel-chromium alloy heater ⑵ Cooling chamber：nickel-chromium alloy heater? ⑶ Control of heaters：SSR（solid-state relay） | |||||
1.Material of inner chamber: SUS304 stainless plate. Thickness: 2.0mm 2.Material of bucket: SUS304 stainless 3.Insulation material: Rigid Polyurethane Foam + glass fiber | |||||

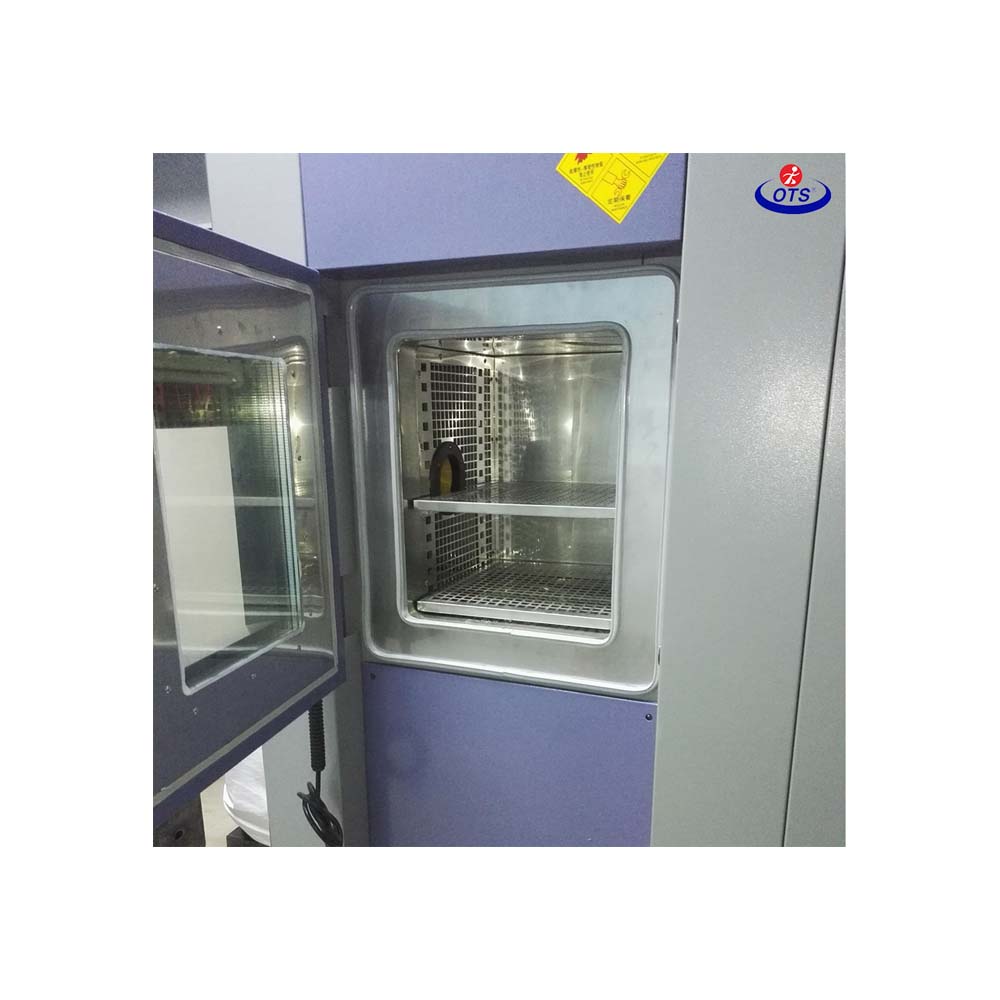

There are 3 testing areas: High temp area, low temp area and sample area. Sample will be put in the sample area and high, low temp impact into the area. | |||||
Type | Wind-cool / Water cool | ||||
High temperature zone | +60℃～+150℃ | ||||
Impact of high temperature | +150℃ | ||||
Low temperature zone | -40℃～-10℃/ -65℃～-10℃/ -75℃～-10℃ | ||||
Impact of low temperature | -40℃ / -55℃/ -65℃ | ||||
Range of impact temperature | -40℃～+150℃ / -55℃～+150℃/ -65℃～+150℃ | ||||
Temp Shock Time | ≤ 5min | ||||
Conversed time from heating and cooling | ≤±3℃ | ||||
Recovery time of temperature | 30mins | ||||
Compressor | □FRANCE*TELUMSEH / □ GERMANY* BITZER （Select） | ||||
Flow of temperature | ±0.5℃ | ||||
Deviation of temperature | ≦±2℃ | ||||
Uniformity of temperature | ≦±2℃ | ||||
Dimension(Support OEM) | External (WxHxD) | External (WxHxD) | Internal (WxHxD) | ||
Volume(50L)(Support OEM) | 146x175x150cm | 146x175x150cm | 46x60x45cm | ||
Power | 17.5KW | ||||
Net weight | 850Kg | ||||
Voltage | AC380V 50Hz Three-phase （Customized） | ||||
Test temperature:+28℃、Relative humidity≤85%、 There’s no specimen in the test chamber, but special requirements are not included. | |||||
Features:
(1) With magnetic USB recorder, an extra record is not necessary.
(2) Refrigerant Servo Valve Flow Calculation Control----energy saving 30%
(3)?OTS is ahead of peers for its unique technology: no condensation?under high heat and high humidity test.
(4)?The heater is no need to work at temperatures approaching absolute zero. The temperature in test chamber is thermostatic?by PWM ---- a technology that adjusts the flow of cooling pipe, cold bypass pipe, hot bypass pipe under control in the flow and direction of chiller.
(5) Temperature Slope Controls in IEC68-2-56,68-2-30, and no condensation?happens.
(6) Comparison: ???The traditional refrigerant compressor?has a problems of big fluctuation in temperature--- an obsolete technology, and it shortens service life of the compressors. The?heating?adopts?PID?temperature?adjustment--- The cooling capacity is offset from the heating to achieve dynamic equilibrium, which is a waste of electricity.??The new developed one, PWM refrigerator, can save energy under low temperature operation.
Advantage
? 24 hours online
? 35 years experiences
? Sample chamber of each model
? Best price, fast delivery
? OEM,ODM
? Oversea offices
? Own import and export business license
?ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
? 35 years experiences
? Sample chamber of each model
? Best price, fast delivery
? OEM,ODM
? Oversea offices
? Own import and export business license
?ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Customer Support Services
? Installation
? Training (Training customer employees)
? Calibration
? Preventative maintenance
? Replacement parts
? Assistance via phone or internet
? On-site diagnosis and repair/online diagnosis and repair
? Training (Training customer employees)
? Calibration
? Preventative maintenance
? Replacement parts
? Assistance via phone or internet
? On-site diagnosis and repair/online diagnosis and repair
Recommend Products
VR
Dongguan Xinbao Instrument Co.,?Ltd,?with its own brand--OTS,?has been dedicating in providing professional testing equipment with top quality since its establishment in 1978. It owns sophisticated and advanced technology in producing environmental test chambers?and mechanical test machines like?temp humidity chamber, thermal shock test chambers, rain and dust test chambers, salt spray chambers ,walk in /drive in test chambers, tensile testing machine, vibration test machine, other customized test chambers?and so on. Products made by OTS reach international standards: ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, IEC. Also they are widely used in different area: R&D Institutions, Quality?inspection institutions,?universities,electronics,?communications,?instrumentation,?automobile,?plastic,?metal, building materials, aviation, etc.

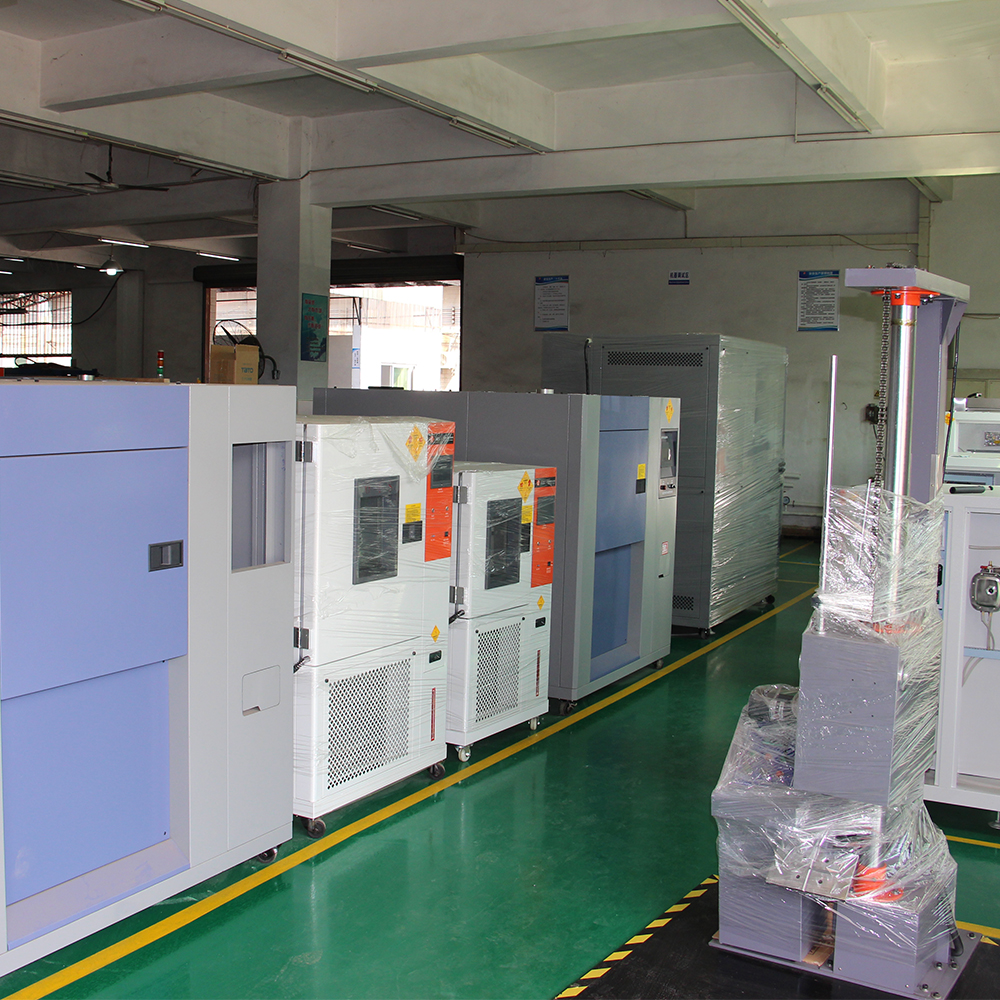

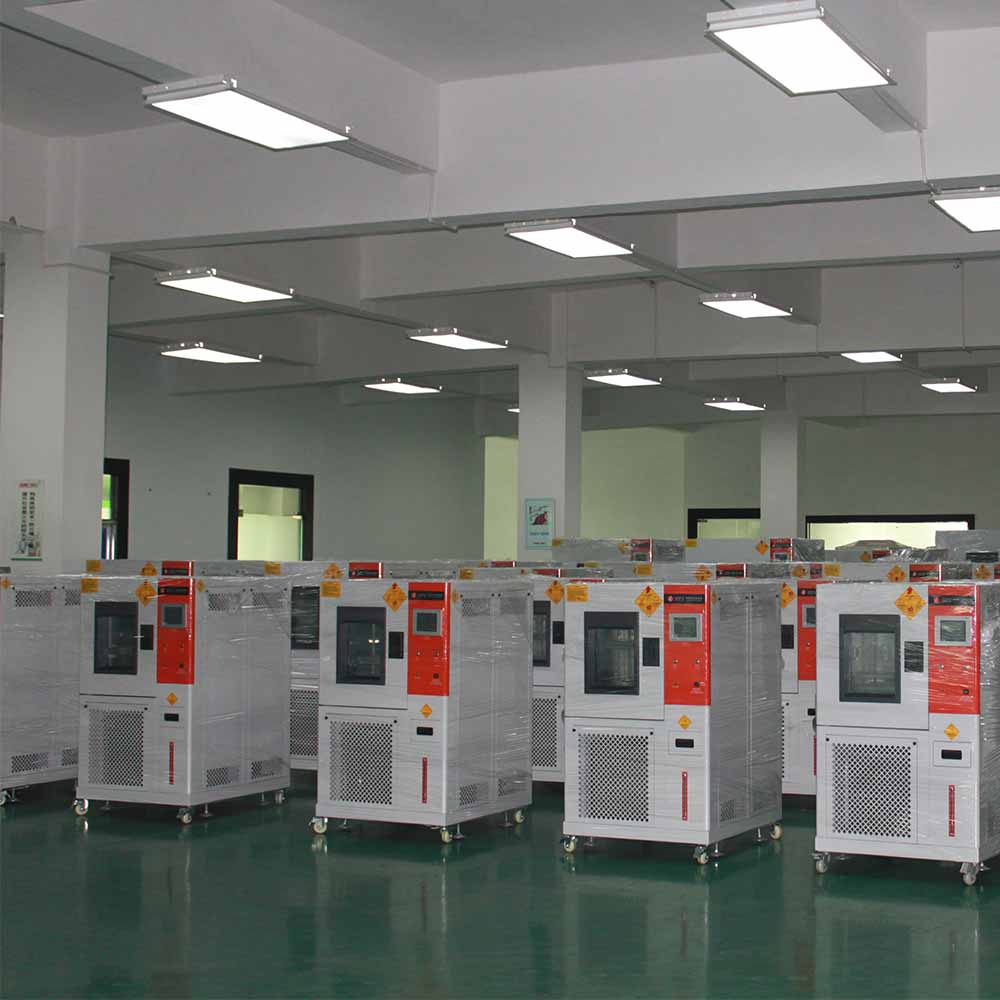

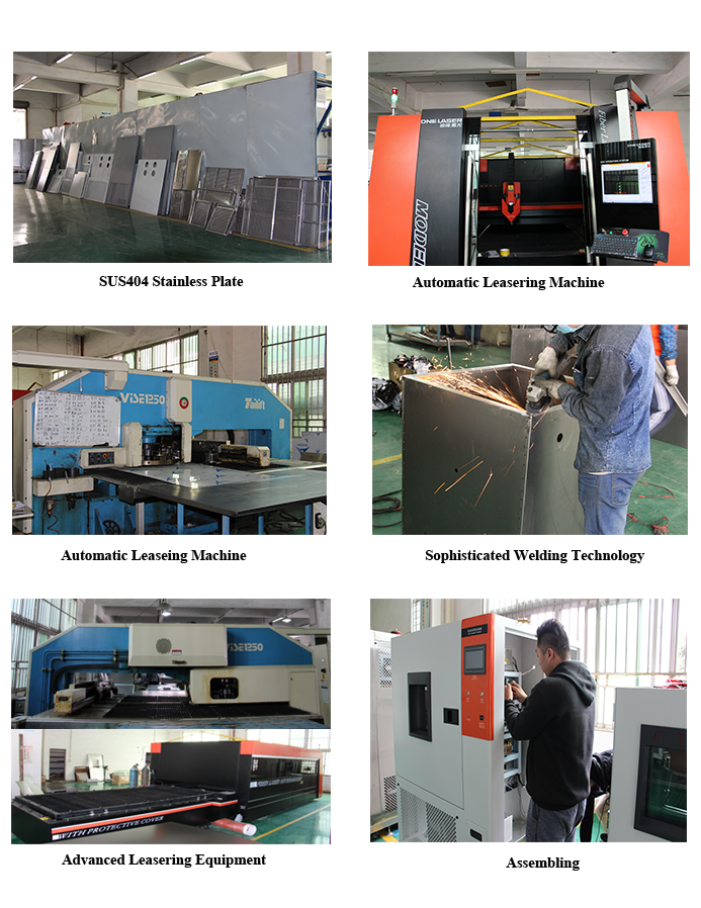

Manufacturing Technique
Customer Photos
Now OTS has its?main production base?in Dongguan, a branch?in Suzhou and offices in South Asia, Europe, USA. OTS also owns?an?independent laboratory which exhibits all currently produced machines?under CNAS calibration,?so customers can check the function and quality immediately.?Equipped with over 30 workers in a metal plate department, OTS is capable to produce customized shells; What’s more,?OTS has?enough stock to satisfy customers need in time. In the meanwhile, every machine?must be examined for 3~days before shipment and with lifetime maintenance service.
Packing&Shiping
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.
?
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
?
2. What’s?the?delivery?term?
At?most?of?time,?we?have?stock?in?the?factory.?If?there?is?no?stock,?normally,?the?delivery?time?is?15-20?working?days?after?deposit?receipt.?If?you?are?in?urgent?need,?we?can?consider?making?a special?arrangement?for?you.
3. Do?you?accept?customization?service? Can I have my logo on the machine?
Yes,?of?course.?We?can?not?only?offer?standard?machines,?but?also?customized?
machines?according?to?your?requirements. And we can also put your logo on the machine.??
4.?How?to?install?and?use?the?product?
We will send you?operating?instructions, English??video?by Email. Or you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. ?And if possible, we can also install your machine at site.
