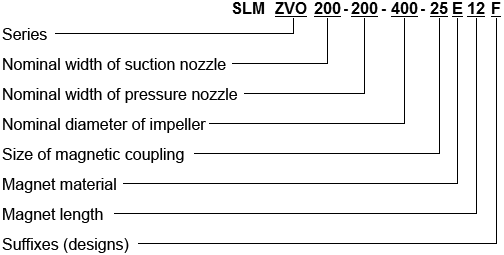

Suffixes (designs):

?

Design variants

Heated pump H2
This pump's bearing lantern (H2) integrates a heat jacket, which in the standard construction allows for operating pressure of 16 bar at 200 ?°C (steam) or 6 bar at 350 ?°C. The heat jacket can also be used for cooling.

S or W thermal barrier and secondary seal
The thermal barrier acts as a structural element between the bearing carrier (in the bearing carrier model) or drive motor (in the close coupled model), whereas the hydraulic system allows for heat transfer. This reduces ball bearing temperatures in the gearing when hot liquids are being transported. A radial shaft sealing ring can also be integrated into the thermal barrier for purposes of sealing the magnet driver. The sealing ring acts as a secondary seal that prevents the product from leaking into the environment through a leak in the isolation shell. In order for this secondary seal to be used, the magnet driver chamber must be monitored so that leaks can be detected in good time.

Internal filter F
When solids-containing liquids are being transported, the internal filter prevents inadmissibly large particles from entering the flow channels, and from there the magnetic coupling and internal bearings.

External feed and flushing connections E1 and E2
These external connections allow for external flushing, feeding and/or venting. Connection E1 is used in situations where a continuous feed into the magnet drive is desired. Connection E2 is used suitable for short-term flushing, or for external venting of the magnetic coupling.Modern industries rely on advanced fluid handling technologies to ensure efficient operations. Pumps, such as centrifugal pumps and propeller pumps, are essential for liquid transportation, offering high flow rates and reliability. Mixers and agitators are crucial for blending and homogenizing liquids in chemical, food, and pharmaceutical processes. Additionall,valves play a key role in controlling flow, pressure, and direction within pipelines. Together, these technologies enhance productivity and precision in industries like water treatment, oil? gas, and manufacturing. Selecting the right equipment—whether pumps, mixers, or valves—ensures optimal performance and cost-effectiveness in fluid management systems.?
