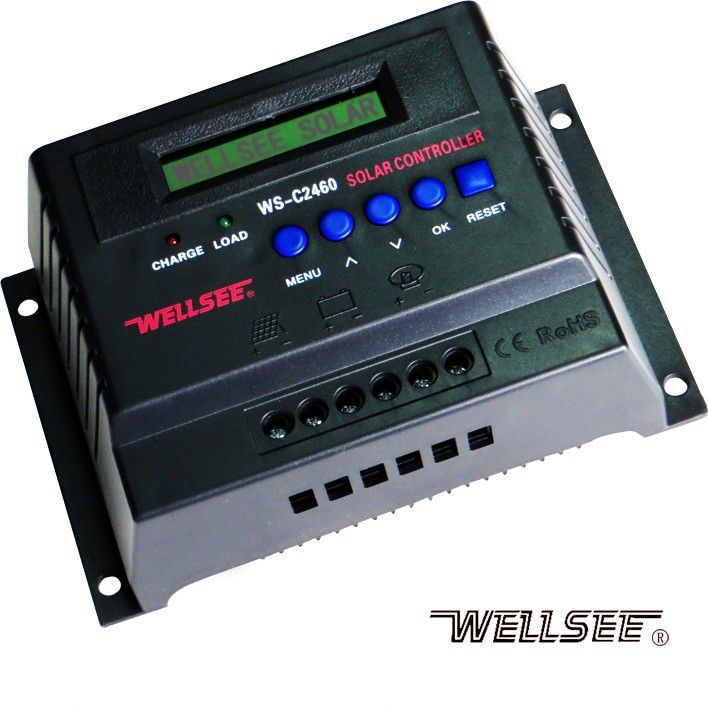

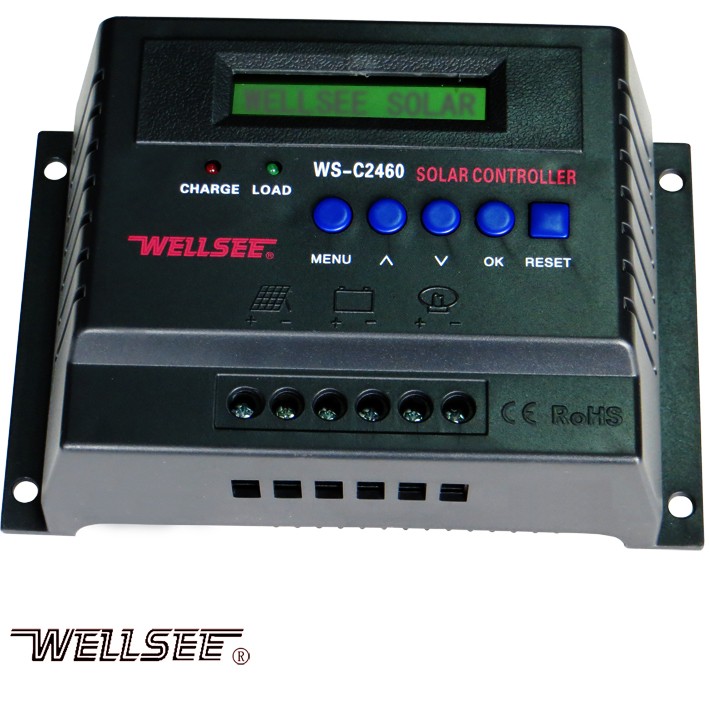

Power controller device Wellsee WS-C2460 12v/24v 60A solar charge controller electronic power control protection

?

?

?

BRAND:	?WELLSEE	DIMENSION:?	183*120*68?mm
COMMODITY:	?PWM??Solar?charge??controller	?WEIGHT:	940g
?MODEL:	?WS-C2460	?SPECIFICATION:	?18PCS/CARTON

?

?

? ? ? ? ? WS-C2460??Solar battery controllerare of stable quality and high reliability, and can be applied under various worse geological conditions.? Depending on the types and actual charging situation of the battery,WS-C controller series can provide the fast and best charging voltage and electricity from the PV panel. WELLSEE solar charge controllers are equipped with advanced man-machine interactive function, so the user can adjust the charging voltage.

?

Function:

1. Overload protection

2. Short circuit protection

3. Converse discharge protection

4. Reverse polarity connection protection

5. Thunder protection

6. Low voltage protection

7. Overcharge protection

8. Batteries stop and charge voltage HVD sets up

9. Charge and low voltage LCD sets up

10. Display the capability of the battery SOC

11. Loads and comeback setups.

12. Intellectualized temperature compensation

13.Record, calculate and display the charged AH on the LCD screen.

14.Record, calculate and display the discharged AH on the LCD screen.

15. CPU control and LCD display

?

Technical index:

Model	WS-C2460 40A	WS-C2460 50A	WS-C2460 60A
Rated voltage	12V/24V?? Automatic voltage recognition
Max Load current	40A	50A	60A
Input current range	12V~17V/24V~34V
Length≤1m ?Charge loop drop	0.25V
Length≤1m Discharge loop drop	0.05V
Over voltage protection	17V/34V
Full charge cut	13.7V/27.4V
Low voltage cut	10.5~11V/21V~22V
Temperature compensation	-3mv/°C/cell
No load loss	30mA
Max wire area	6mm2
Ambient temperature	-25°C——55°C

?

Our? products already through the CE and ROHS authentication. Welcome to be our agent!

?

?

?

?

?
