Basic Info

Model No.	HT14V
Brand Name	HT

Product description

HT14V Piezoresistive Silicon Pressure Sensor

Description

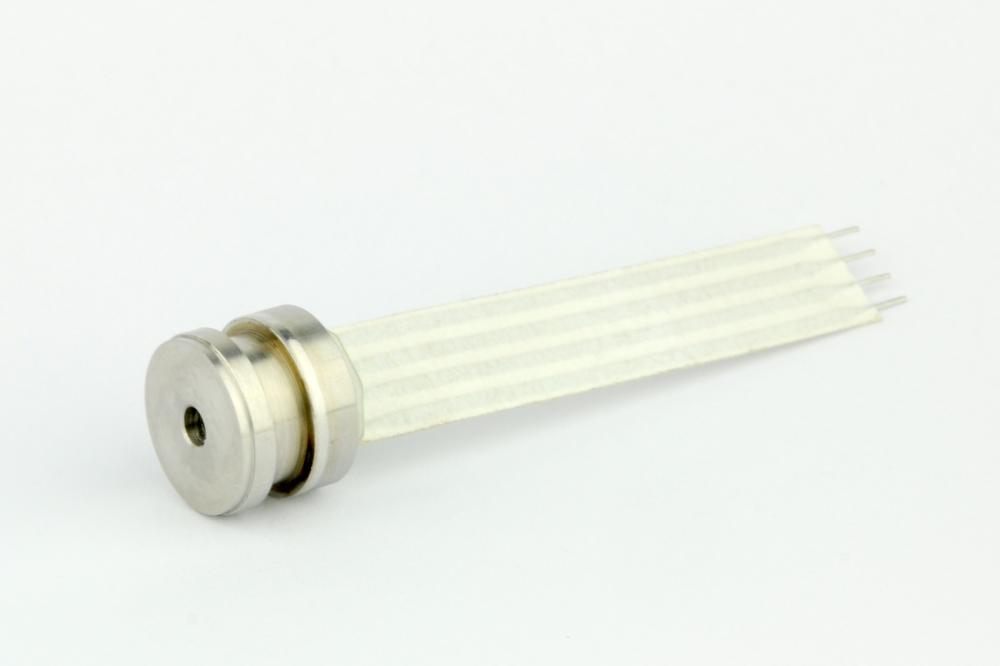

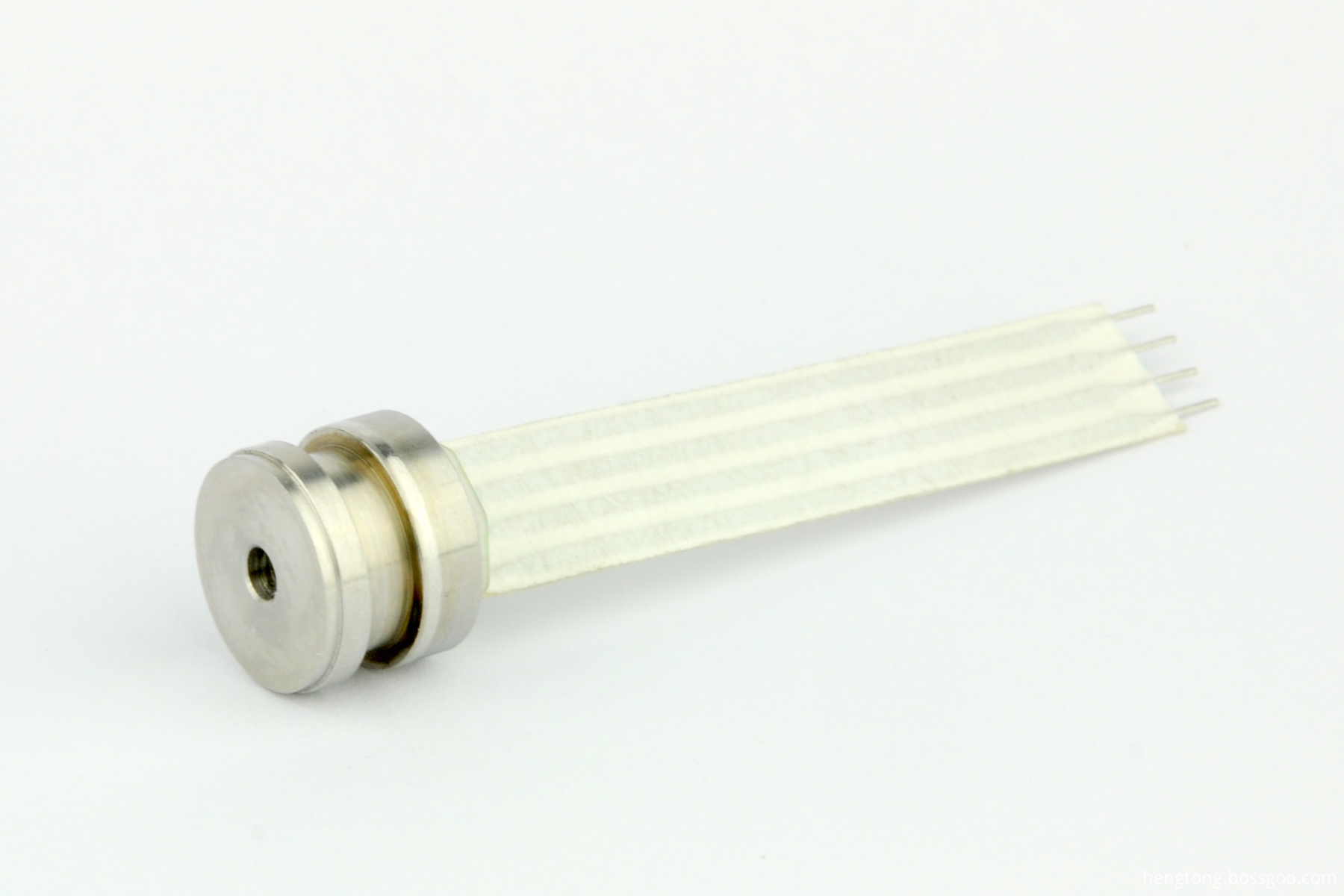

HT14V diffuse silicon sensor is a 14mm High Quality Oil-filled Pressure Sensor . It uses imported chip to manufacture, having stable & reliable performance and design one type special for negative pressure measurement.

Feature

2 Small profile

2 Piezoresistive silicon pressure cell

2 Full 316LSS

2 Constant voltage supply

Application:

2 Gas pressure measurement

2 Hydraulic control

2 Industry process control

2 Medical instrument

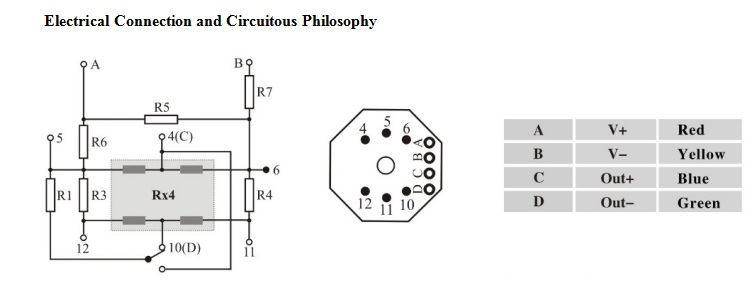

Electrical Data

Supply: 10VDC 10VDC Diffuse Silicon Sensor

Input Impedance: 6KΩ~20KΩ

Output Impedance: 2.5KΩ~6KΩ

Insulation Resistance:≥100MΩ/50VDC

Insulation Voltage:500VAC between the case and electrical connections will not cause damage

Medium Compatible:Liquids, gases which are compatible with 316LSS

Performance Specification

Parameter	Range : -100KPa~0. 0~100 KPa .200 KPa .350 KPa .700 KPa .1 MPa .2MPa.3.5MPa. 7MPa. 10MPa
Parameter	Typical	Max.	Unit
Nonlinearity	±0.15	±0.3	%F.S
Repeatability &Hysteresis	0.05	0.1	%F.S
Zero Output	0±1	0±2	mV
Span Output	100±1	100±2	mV
Temperature Error- Zero	±1	±2	%F.S
Temperature Error -Span	±1	±2	%F.S
Proof Pressure	3X		Rated range
Burst Pressure	5X		Rated range
Operating Temperature Range	-20~80		℃
Compensated Temperature Range	0~70		℃
Storage Temperature Range	-40~125		℃
