Hydraulic Automatic Belt Correction Device

?

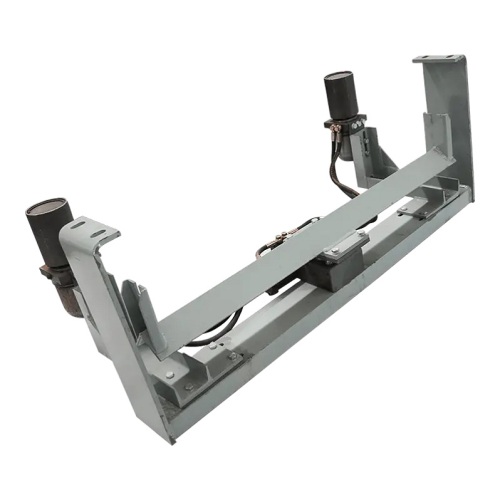

Introduction: The hydraulic belt correction device mainly consists of a detection wheel, oil pump, oil tank, hydraulic circuit integration block, oil cylinder, oil pipe assembly, and fixed frame. The hydraulic correction device acts on the upper and lower self-aligning idlers. When the belt runs off-track, it actively adjusts the angle of the correction rollers to correct the belt. This not only eliminates the need for vertical rollers to protect the belt edges from friction damage, but also quickly corrects the belt, automatically detects and corrects belt deviation, ensuring the belt always operates in a proper state. It has a good adjusting effect on belt deviation caused by improper installation, malfunction, material impact, load changes, and uneven elongation between belt sections.

?

The device is powered by the hydraulic power generated by the friction and rotation of the belt and the detection wheel, therefore no power supply is required. It automatically adjusts and corrects, featuring simple structure, reliable performance, and convenient installation. The device adopts a fully enclosed structure, allowing it to operate normally in any harsh environment.
