Hydraulic Compressive Strength Testing Equipment

Video

1 / 7

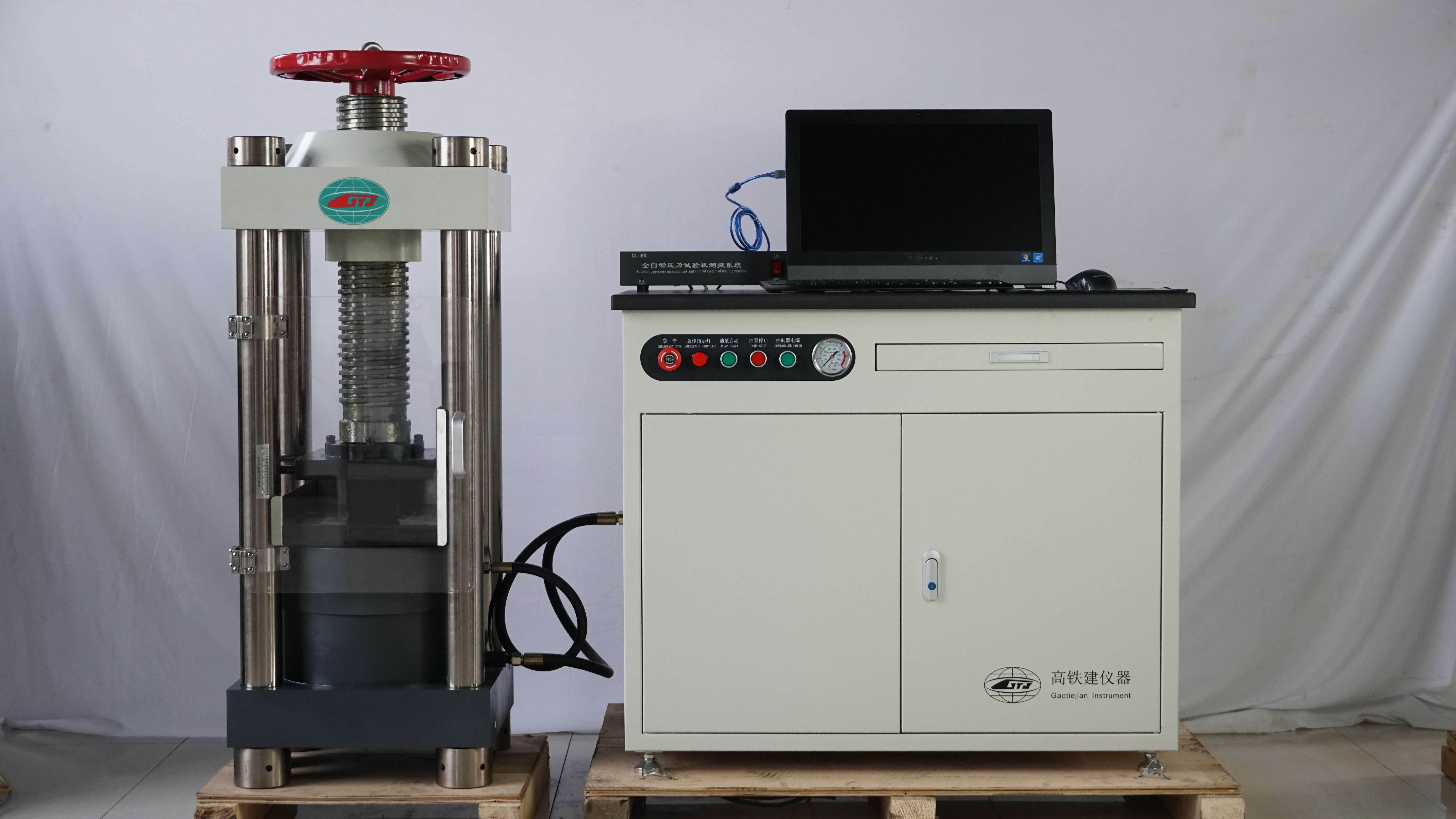

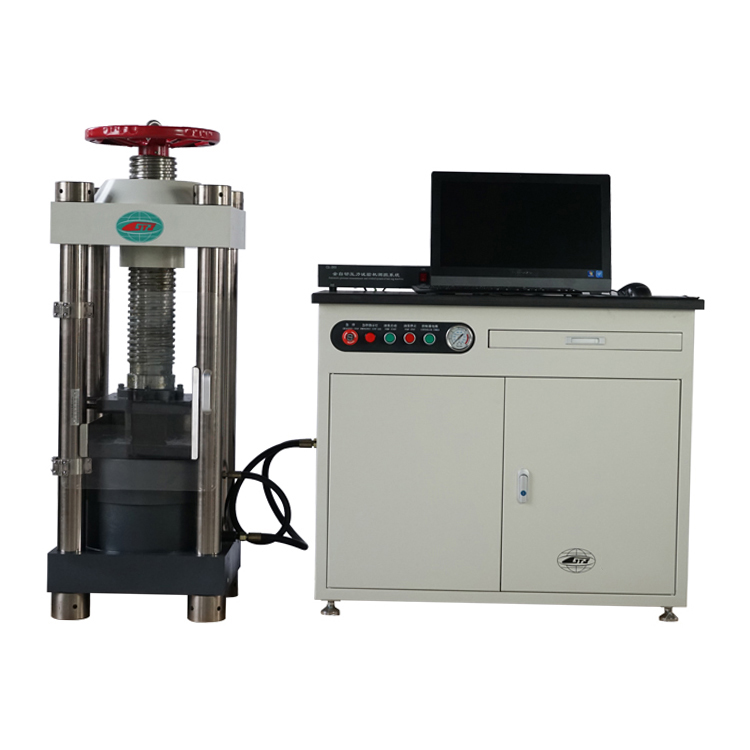

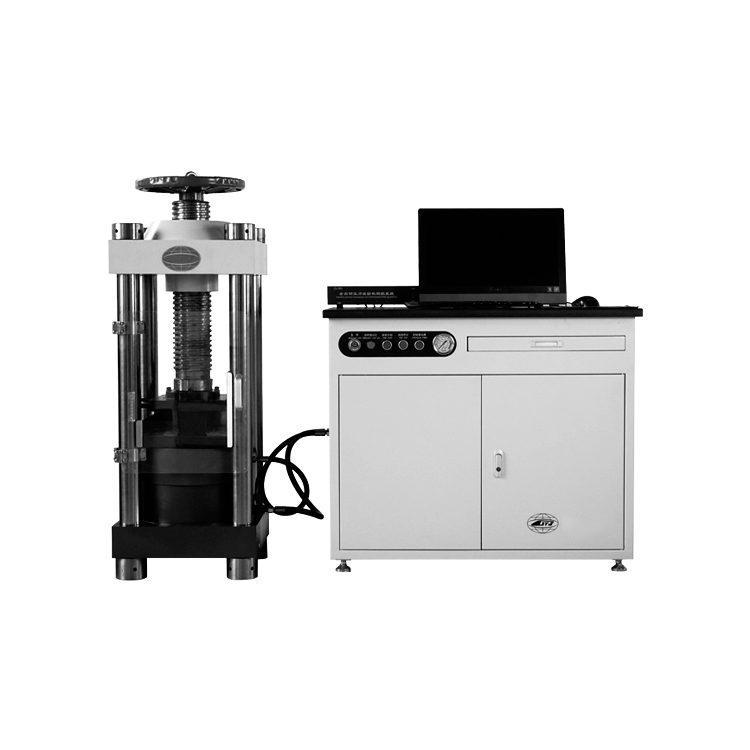

Hydraulic Compressive Strength Testing Equipment

$3930.00

≥1 set
$3730.00

≥3 set

use:

Compression Testing Machine

Get Latest Price

You might also like

300kN Digital Hydraulic Compressive Strength Machine Suppliers

1 set (MOQ)

300kN Digital Compression Testing Machine - Hydraulic Compressive Strength Machine Suppliers

1 set (MOQ)

Electro-Hydraulic Computer Controlled Universal Testing Machine Search Engine

1 set (MOQ)

Hydraulic Compressive Strength Testing Equipment

1 set (MOQ)

Concrete Cube Compression Testing Machine CTM with Software for Civil Engineering

1 set (MOQ)

Electro-hydraulic Servo Universal Testing Machine: Tensile Tester Usage

1 set (MOQ)

Automatic Magnification Tensile Testing Machine

1 set (MOQ)

HYE-2000 Concrete Hydraulic Compression Testing Machine

1 set (MOQ)

Compression Tensile Strength Tester Machine

1 set (MOQ)

Robust Hydraulic Compression Strength Machine with 1-Year Warranty

1 set (MOQ)

Basic Info

Model No.
Brand Name
Warranty	1 Year
Customized Support	Oem, Odm
place of origin	China
Brand Name	IWIN
Model Number	HYE-2000A
power	Hydraulic
Product name	Hydraulic Compressive Strength Testing Equipment
Test accuracy	Level 1
Space adjustment method	Pad adjustment
Application	Construction Industry
Function	compressive strength testing machine
Weight	900KG
Host size	5104601500 mm
Control cabinet size	6504501250 mm
Sensor Type	Oil pressure

Product description

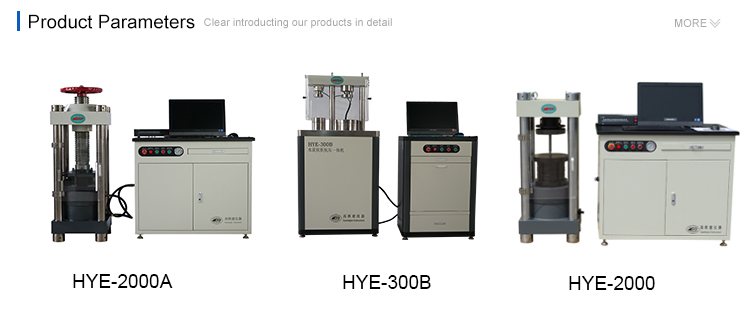

Product Parameters

Concrete Compressive Strength Testing Machine Price for Sale

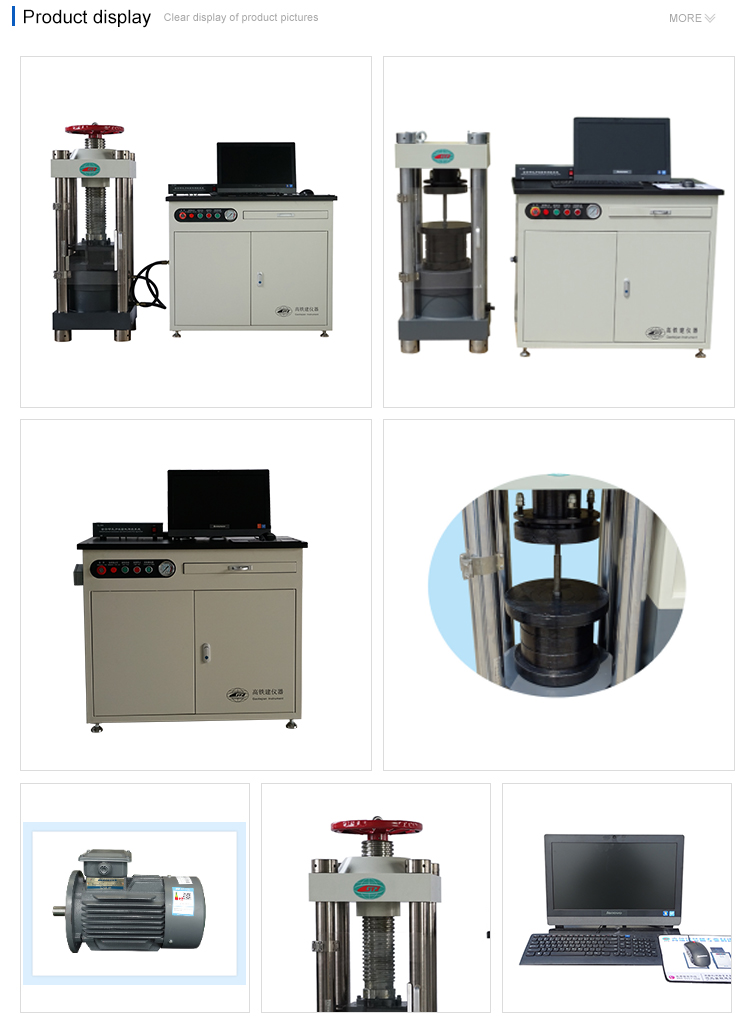

Hydraulic Compressive Strength Testing Equipment for Assessing Materials

This series of testing machine takes hydraulic pressure as power, USES electro-hydraulic servo control technology to test the compressive mechanical properties of cement, mortar, brick, concrete and other building materials, and shows the loading force value, loading speed and loading curve. Test data is processed, stored and printed automatically.

Maximum test force(KN):	HYE-?2000	HYE-2000A	HYE-2000B
Test accuracy:	Level1	Level1	Level1
Space adjustment mode:	Block adjustment	Manual lead screw adjustment	Electric lead screw adjustment
travel of piston(mm):	80	80	80
Sensor type:	oil pressure	oil pressure	oil pressure
Maximum distance between two pressure plates(mm):	350	350	350
Size of upper platen(mm):??	φ225	240×240	240×240
Lower platen size(mm):	φ295	350×260	350×260
motor power(KW):	0.75	0.75	0.75
Main engine dimensions(mm):	900×400×1250	985×600×800	985×600×800
total weight (kg):	920	900	910
