Luxury cab: Wind shield rain, dust, work easy;

Engineering loader chassis, smooth walking, strong practicability;

The front and rear bridge uses the hinge connection, in-situ turning radius is small;

Brand-name engine, front, rear axle drive-double-bridge drive, strong power;

Improved hydraulic filtration system to ensure reliable operation of oil circuit;

Rear-mounted diesel engine, hydraulic steering, simple and flexible operation;

Super bright LED light, strong warning effect; The machine uses diesel power, full hydraulic mechanical transmission, with high efficiency, easy to shift, high precision, durable, time-saving labor and other characteristics, especially suitable for highway field project construction.

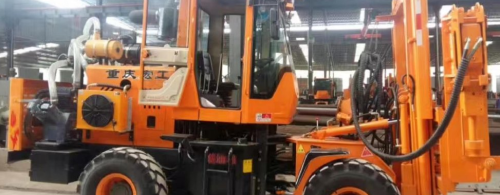

Product model: WP100                   Diesel Engine Model: all diesel 490

Diesel engine power (KW): 38           Hydraulic system Flow (ML∕R): 42-63

System rated Pressure (MPa): 16         Walking device: four-wheel drive

Maximum turning radius: 20°                    Maximum Climbing degree: 35°

Driving Building configuration: Standard          Tyre type: 20.5∕70-16

Brake configuration: Butterfly Brake                Weight of hydraulic Hammer (kg): 220

Hydraulic Hammer Shock frequency (Hz): 500-900             Hydraulic Hammer working Flow (l∕min): 60-100

Hydraulic Hammer Working Pressure (MPa): 13-16

Overall Dimensions (L * w * h) (mm): 4230*2480*2930 Overall weight (kg): 3200
