Hydraulic Mobile Loading Platform with Better Price
$1999.00
≥1 set
$1699.00
≥5 set
$1499.00
≥10 set
Options:
- YDQ2-1.5
- 2 ton
- 1.5m
- 1m
Basic Info
| Condition | New |
|---|---|
| Applicable Industries | hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works?, Energy & Mining, Food & Beverage Shops |
| Place Of Origin | Shandong, China |
| Brand Name | YILU |
| power | 2.2kW |
Product description
Hydraulic Mobile Truck Loading Unloading Platform Lifts
?
Container Loading Mobile Lift Platform is operated by electric control box and manual control. Easy and convenient operation make it widely use in warehouse, port, factory for container loading & unloading.
It is the perfect option for small size materials loading and unloading as well as limited work sites.
1. Data-Sheet:
| Model?Type | YDQ2-1.5 |
| Lifting?Height | 1.5 |
| Load?Capacity | 2000kg |
| Platform?Size | 2000*1600mm(L*W) |
| Diemension | 2250*2260*2450mm |
| Platform | 4mm?checkered?plate |
| Platform?Support | 40*80*3mmrectangular?tubes |
| Support |
60*120*3.5mm?rectangular?tubes? +50*100*3.5mmrectangular?tubes |
| Lip | 6mm?checkered?plate |
| Guiderail | 5.5mm?C?Type?Steel |
| Lifting | 14mm?Steel?Plate |
| Cylinder | φ?63/45*?2 |
| Oil?Tube | 2-10-43MPa???Double?steel?mesh?high?pressure?tube |
| Pump?Station | Special?type?for?lift?platform |
| Motor?Power | 3.0kw/380V?or??2.2kw/220V |
| Wheels |
High?strength?polyurethane?solid?Korean?wheel,? casting?fixed?wheel.? 2?directional?+2?universal?wheel?φ120mm |
| Outrigger | 30mm?Screw?rod |
| Electric?box | Customized |
| Control | Control?box?+?remote |
| Move | Manual |
| Lifting?Power | 380Vor220V |
| Travel?Switch | Chint |
| Axle | 45#?Round?Steel |
| Cover | 1.2mm?steel?board |
| HydraulicOil | 32#?or?according?to?local?need |
| Speed | 4-6m/min,Lowering?speed?adjustable |
| Derusting?treatment |
Shot?blasting,?sand?blasting?and?rust?removal?treatment;? Removing?the?corrosion?and?spatter?on?the?surface?of?the? steel?structure?members?can?produce?a?certain?degree?of? uneven?effect?on?the?surface?of?the?steel?members?and?increase?the? adhesion?of?the?powder |
| spraying?treatment |
Use?electrostatic?powder?spraying;? The?coating?has?excellent?appearance?quality,? strong?adhesion?and?mechanical?strength,? high?brightness?and?color,?and?is?durable |
| Weight | 740kg |

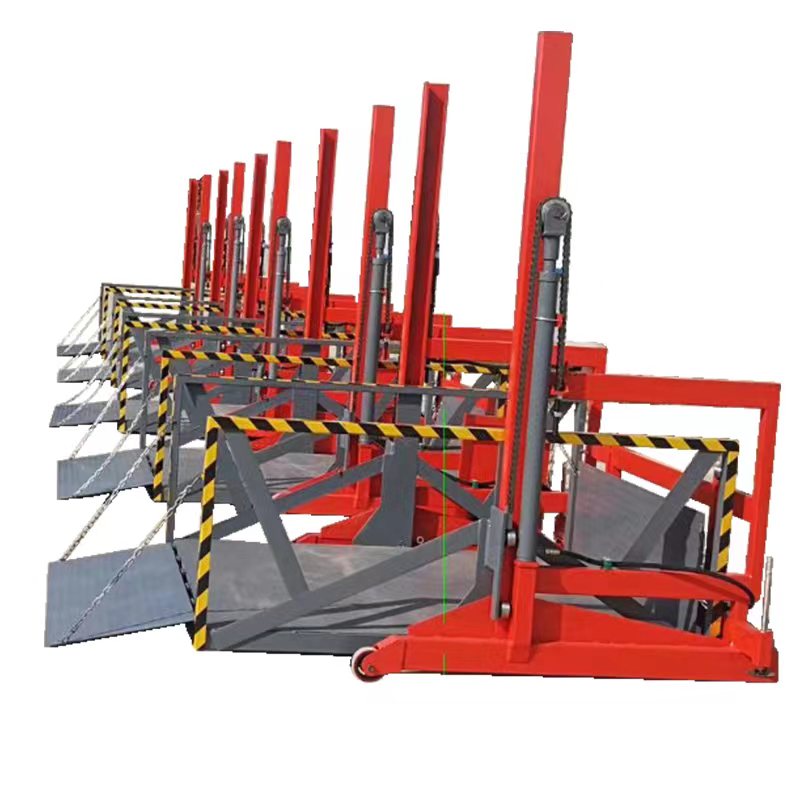

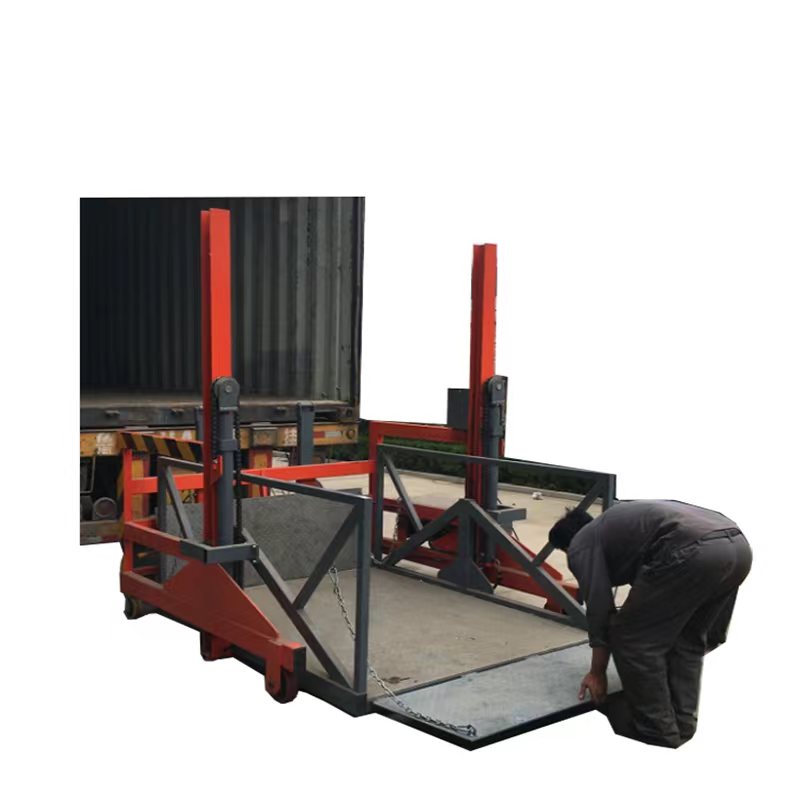

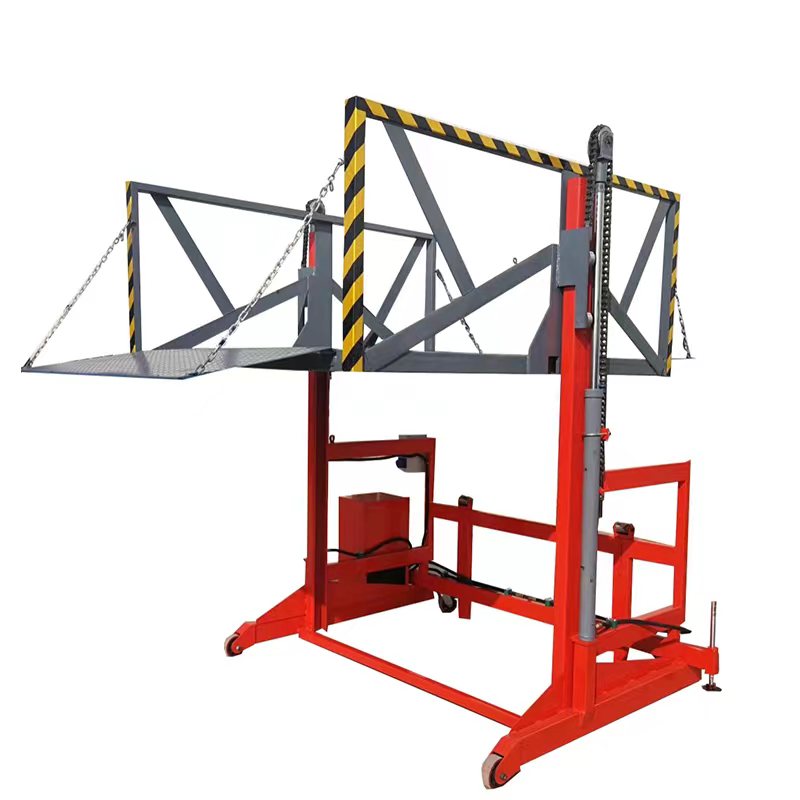

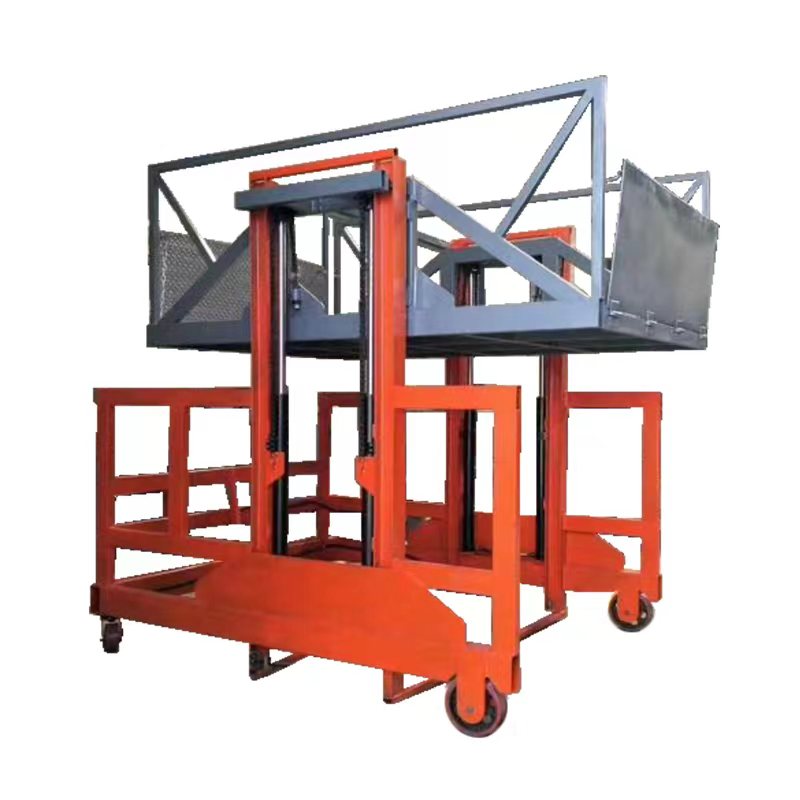

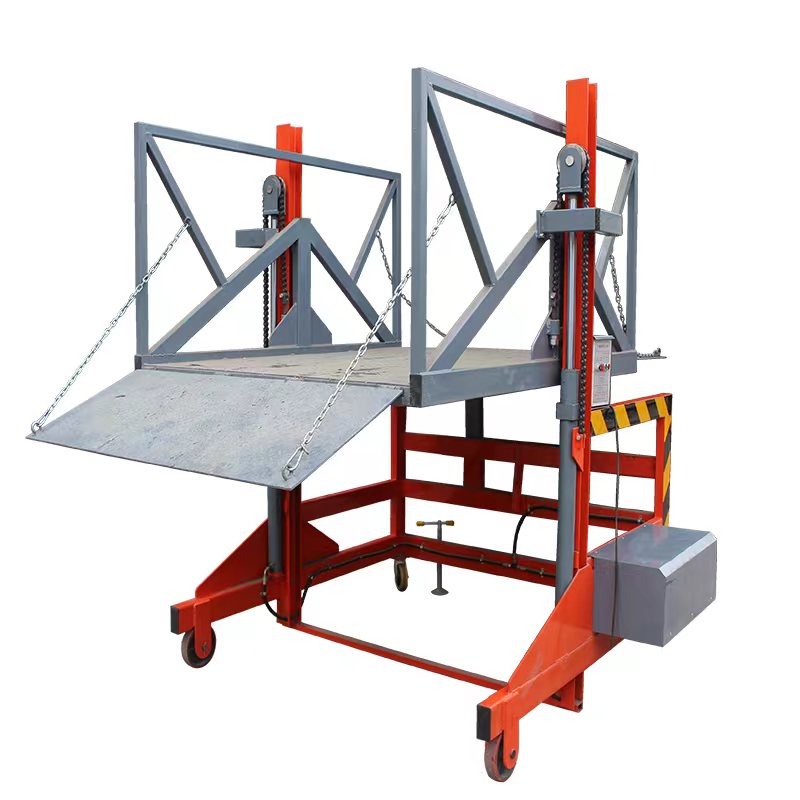

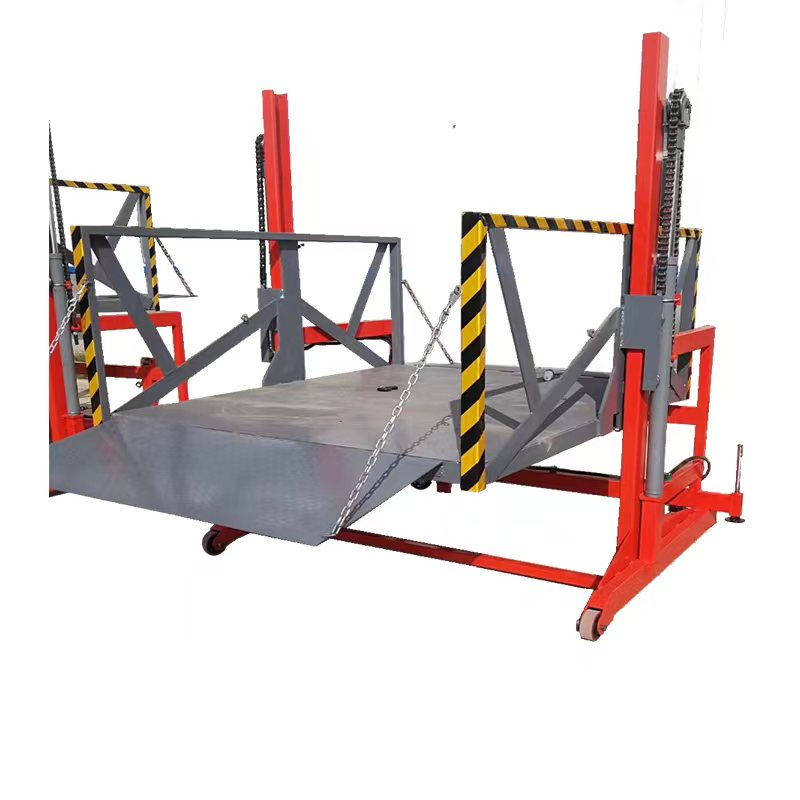

2. Product Photos:
3. Features &?Advantages:
- User-friendly wire-controlled handle
- AC 110V/220V/380V Electric hydraulic motor
- Adjustable support screws for extra safety
- Anti-skid steel?checkered?plate platform
- Foldable front / rear lips
- Controllable lowering speed
- Double anti-rust primer before painting for protection
?
5.?Real orders

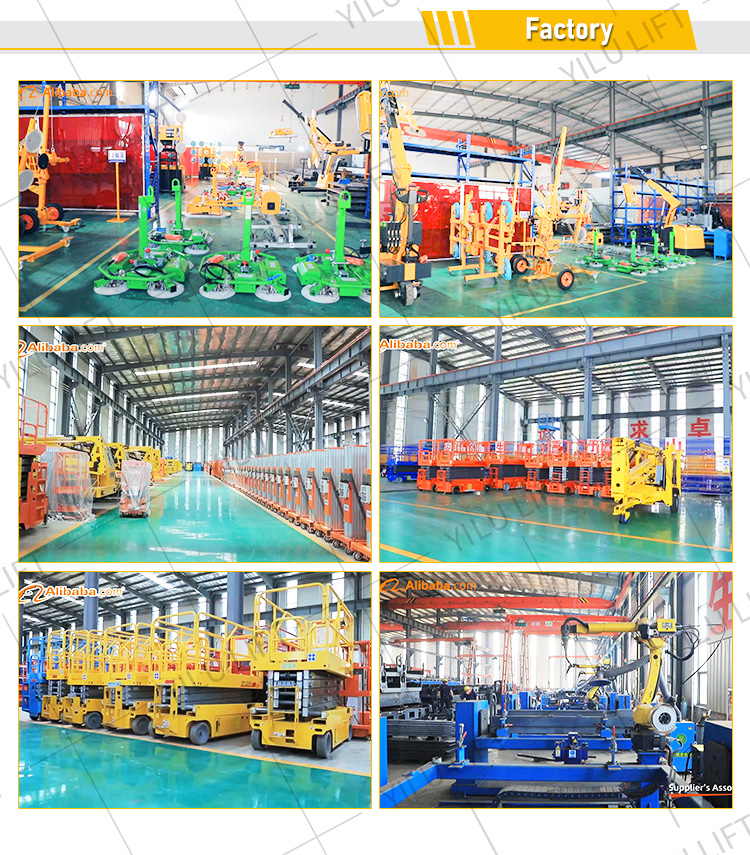

6.?Factory
?
