Triangular Support Drop Testing Device

Standards:

GB4706.14 (IEC60335-2-9): "Particular Requirements for Grills, Toasters, and Similar Portable Cooking Appliances" Section 21.101

Application:

Used for pressure resistance testing of surfaces made of glass-ceramic or similar materials on fixed stovetops and portable induction cookers during normal use.

Technical Parameters:

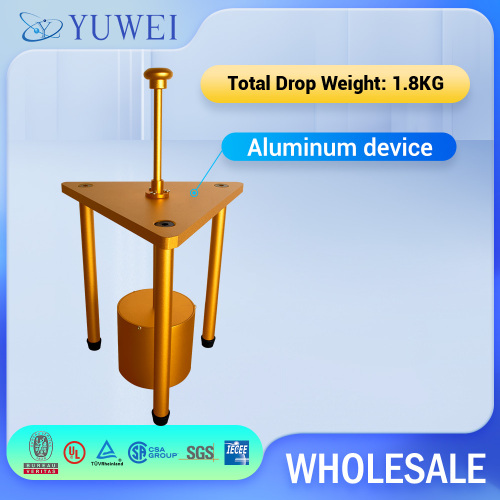

1. Material: Aluminum device

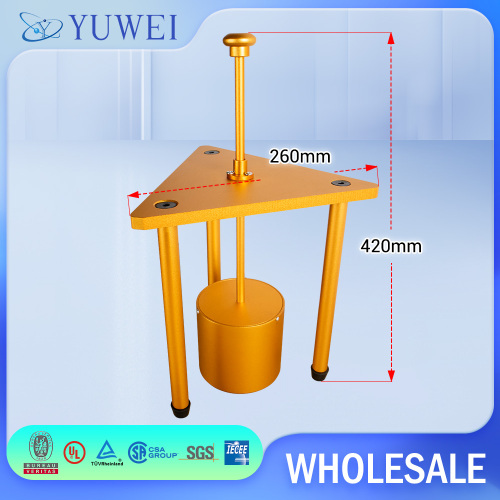

2. Equilateral Triangle Cover Plate Dimensions: 260mm

3. Support Height: 420mm

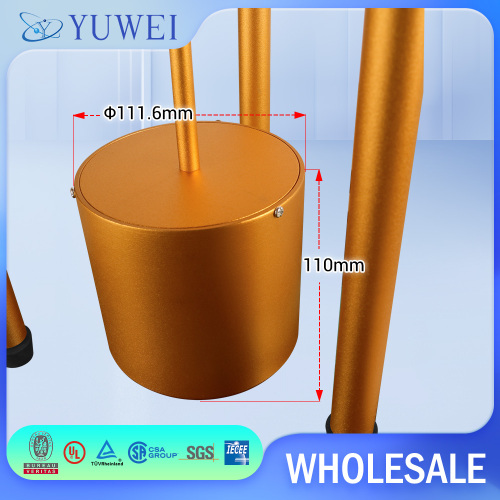

4. Impact Hammer Height: 110mm

5. Impact Cylinder Diameter: φ111.6mm

6. Total Drop Weight: 1.8KG
