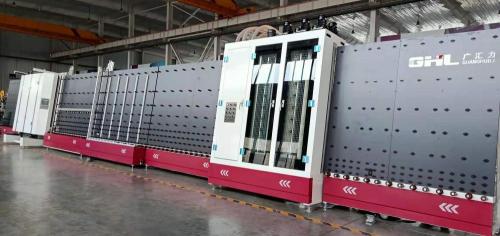

Inside And Outside Assembly Flat Press Production Line

01 section：:

1. Automatic recognition LOW-E glass and coated glass, automatic warning if the glass is reversed.

02 section：

2. Each brush drove with one electric motor separately, high density brush,wash clean.

3. The bearings equipped with three seals including two oil seals and a waterproof so that can avoid water and dust into the bearings

4. Universal water spray nozzle, clean glass completely.

5. Special octopus air knife, blowing wind with three sections parallelly, ensure the effect of drying glass. There is a dam-board nearby the air knife, ensure the wind even and powerful. Equipped with stainless steel chain.

6. Mechanical identification glass thickness, keep the best distance between air knife and glass.

7. Large fan power. Equipped with sound-absorbing cotton in the fan crate, reduce the noise pollution.

8. Wind close automatically when there is glass , avoid water stain.

9. The water tank is gradient, outfall at bottom, cleaning sediment completely.

10. The hosepipe connect motor and machine has drop, avoid freeze in winter.

03 section：

11. This section with speed up sensor, transporting quickly and improving efficiency.

04 section：

12. Hand-operated positioning, easy to adjust, accurate positioning. The censor can perception the height of glass in advance to make the beam on the fifth section come down ahead, save time, improve efficiency.

06 section：

14. The pressing section adopts long stroke length, convenient to maintenance. The stiffener distributed evenly,small interval, avoid horn mouth and breaking glass when pressing .

15. This part adopts hydraulic transmission, stable and efficient.

16. All chains with protective cover, safety

17. PLC and 7 sets frequency converter adopt Germany Siemens.

18. Low voltage electrical apparatus adopt Germany Siemens ,relays adopt France Schneider

19. Adopt aviation plug, safe and convenient, reduce labor cost.

20. Ethernet transmission, fast speed, high precision

Technical parameters：

Model	LBJ2025	LBJ2030	LBJ2536
Input Voltage	380V 50HZ	380v 50Hz	380v 50Hz
Total Power	30 KW	30 KW	34 kw
Max. Glass Size	2000*2500mm	2000*3000mm	2500×3500mm
Min.Glass Size	300*500mm	300*500mm	450×280mm
Washing  glass  thickness	3-12mm	3-12mm	3—12mm
Working  speed	8~45m/min	8~45m/min	8—45m/min
Overall  dimension	19000*1800*3100mm	22000*1800*3100mm	26000×1800×3600mm
Total  weight	5500 kg	6000 kg	7000 kg

MAIN COMPONENTS

Name	Brand	Place of origin
Programmable PLC	SIEMENS	GERMANY
Frequency converter	SIEMENS	GERMANY
Touch Screen	KINCO	CHINA
Relays	SCHNEIDER	FRANCE
Buttons	SCHNEIDER	FRANCE
Light	SCHNEIDER	FRANCE
Proximity switch	OMRON	JAPAN
Motor	MAILI	CHINA
Photoelectric switch	Autonics	KOREA
Pneumatic components	AIRTAC	TAIWAN
Washing system	GHL	CHINA
Transport system	GHL	CHINA
Pressing system	GHL	CHINA
Hydraulic station	GHL	CHINA
