Industrial computerized programmable sewing machine
$9800.00
≥1 Set/Sets
Basic Info
| Model No. | CC-3020-02A-ZD |
|---|---|
| Brand Name | Chache |
| Applicable industry | Manufacturing Plant, Other |
| Out-of-warranty service | Video Technical Support, Online Support, Spare Parts |
| Where to provide local services (in which countries are there overseas service outlets) | Turkey, Viet Nam |
| Showroom location (in which countries are there sample rooms overseas) | Turkey |
| Video factory inspection | Provided |
Product description

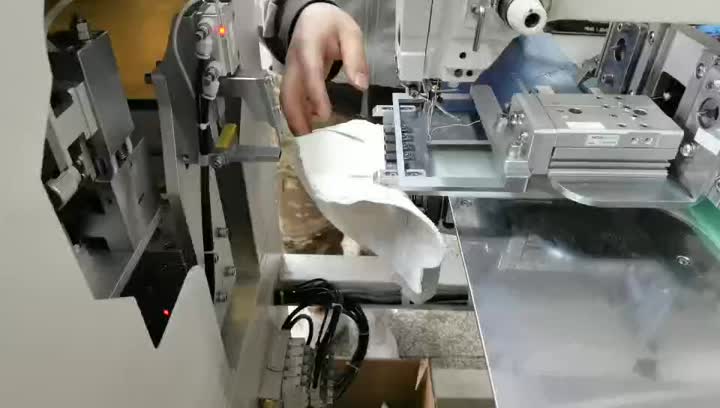

Automatic shoe sewing machine good at shoe lace loop sewing ,with automatic punching the shoe eyelet and feeding the shoe lace loop function, one machine can finished 3 working process.
- Footwear sewing machine, Computerized sewing machine with Servo motor control to improve th feeding device for high-speed and heavy fabric, prevent from the NG stitch and deviation problem.
- industrial sewing machine compatible with Brother system, with large sewing area.
- Pneumatic foot presser driving mode.
- Computerized pattern edit, shoe sewing machine
- High efficient sewing, and perfect sewing quality make this model the best selling in Chache sewing machines
- Beefed-up needle penetration force.
| Model | CC-3020G-01A | ||
| Sewing area | Max.30×20cm | ||
| Line | single needle sewing | ||
| Highest sewing speed | 2700rpm | ||
| Feeding device | Intermittent feeding (pulse motor driven mechanism) | ||
| Stitch length | 0.05-12.7mm | ||
| Max.stitches | 20,000 stitches/pattern | ||
| Work clamp lifter | pnuematic (height:max.30mm) | ||
| Clamp lifter | divided | ||
| Clamp lifter ascensional range | 22mm | ||
| Hook | double shuttle hook | ||
| Tension device | electric tension device | ||
| Data storage | USB or Memory card(CF card can save and edit any sewing patterns) | ||
| Motor | AC servo motor 550W | ||
| Air pressure | 0.5Mpa 1.8L/min | ||
| Net weight | 220kg | ||
| Gross weight | 290kg | ||
| Packing | 126*126*135cm | ||
| CBM | 2.14m3 | ||
- 6yrs
- Manufacturer
- OEM service
Video
shoe sewing machine.mp4
shoe sewing machine.mp4
CC－3020－02A-ZD.mp4
shoe sewing machine.mp4
CC－3020－02A-ZD.mp4
Industrial computerized programmable sewing machine
$9800.00
≥1 Set/Sets
