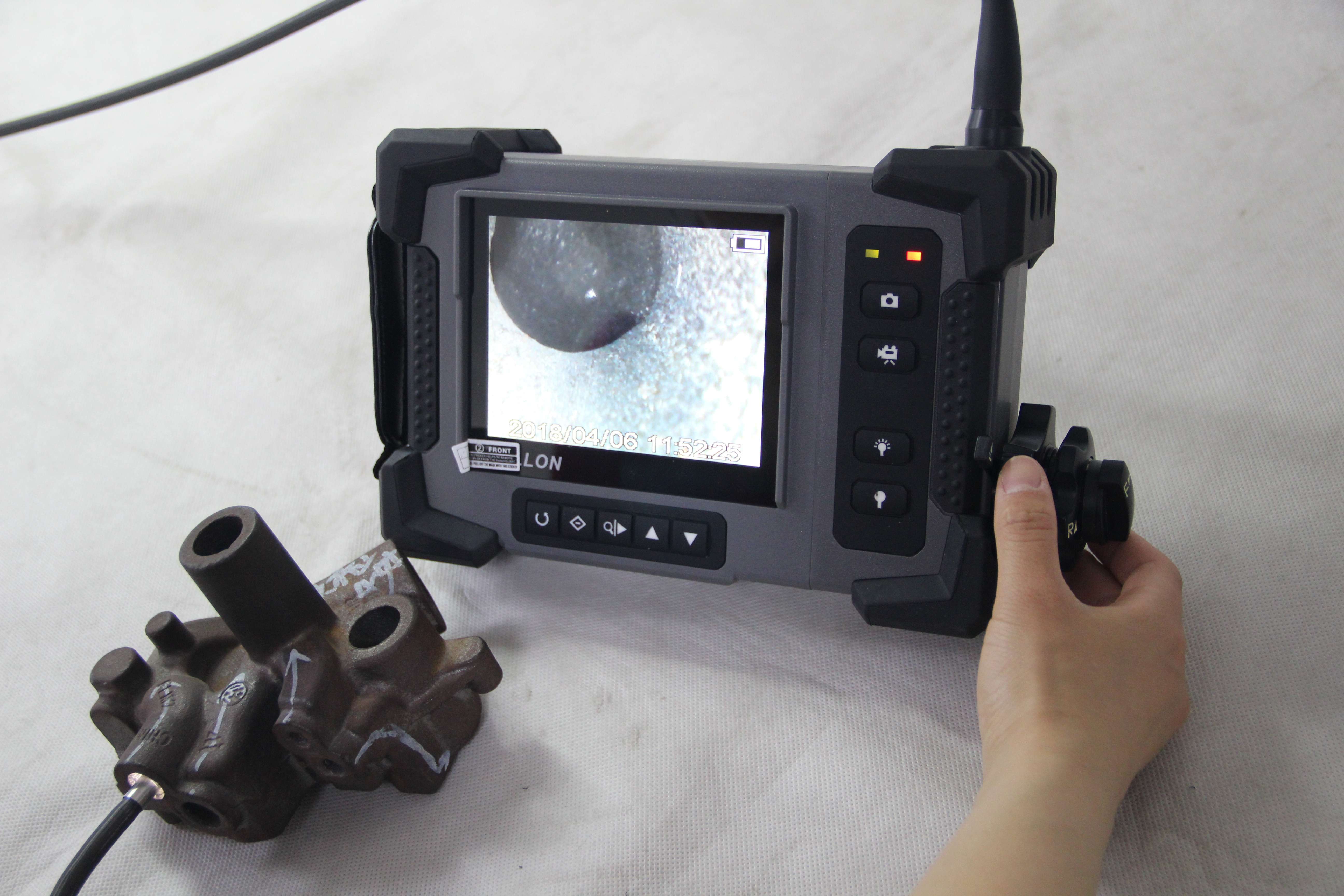

Industrial pipe inspection borescope

This industrial pipe inspection borescope use high brightness color LCD and ultra small CMOS camera.Video signal after amplification could clearly display the test results on 5.7inches color LCD.High definition,high reliability,high stability proved its excellent on-site detection ability.

This pipe borescope is an economy,portable,stable system,please do not hesitate to contact us if this unit fit your needs.We are also searching cooperators from all over the world,so we will appreciate if you can contact us.

Model: D6150/D6300 Industrial pipe inspection borescope

Industrial pipe inspection borescope Features:

High resolution camera,360 ° Articulation.
Highly Durable and Flexible Tungsten Insertion cable.

Removable handles:to choose the corresponding handle according to the diameter of the pipe you detected.
High brightness LCD.

High sensitiveness CCD/CMOS image sensor.

Replaceable polymer lithium battery,working time is more than 4 hours.

Tungsten braid cable,corrosion resistance.

Industrial pipe inspection borescope Specification

Operating Unit:
Display:5.7 inches LCD

Interface:Video output(NTSC/PAL),SD,USB and charging port

Power Supply:12V Lithium battery or AC Adapter

Working Time:≥4 hours

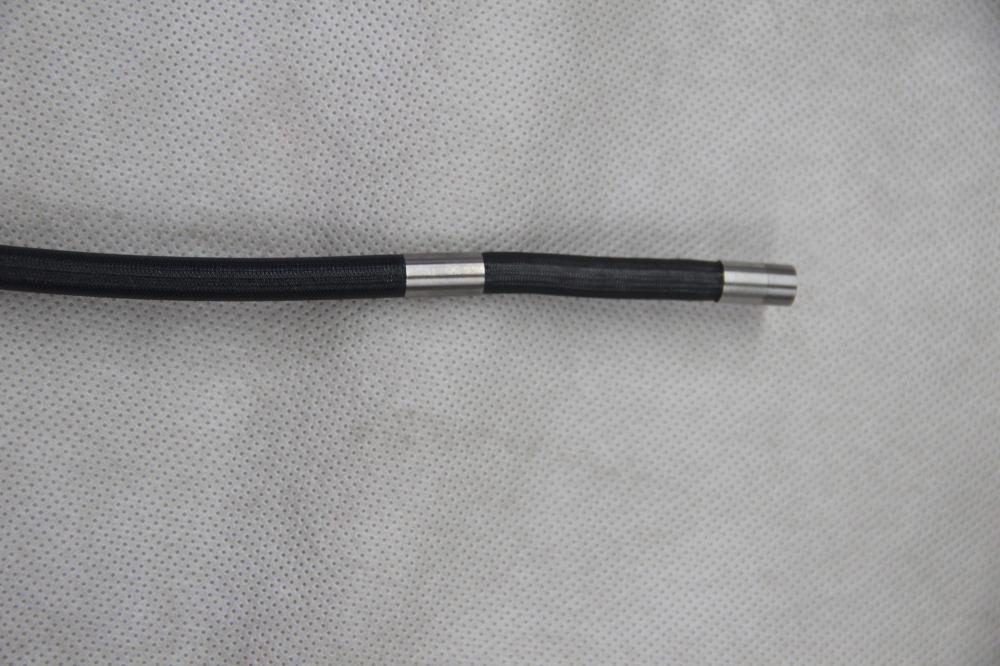

Probe:
Probe Diameter:6.2mm

Camera Pixel:700,000

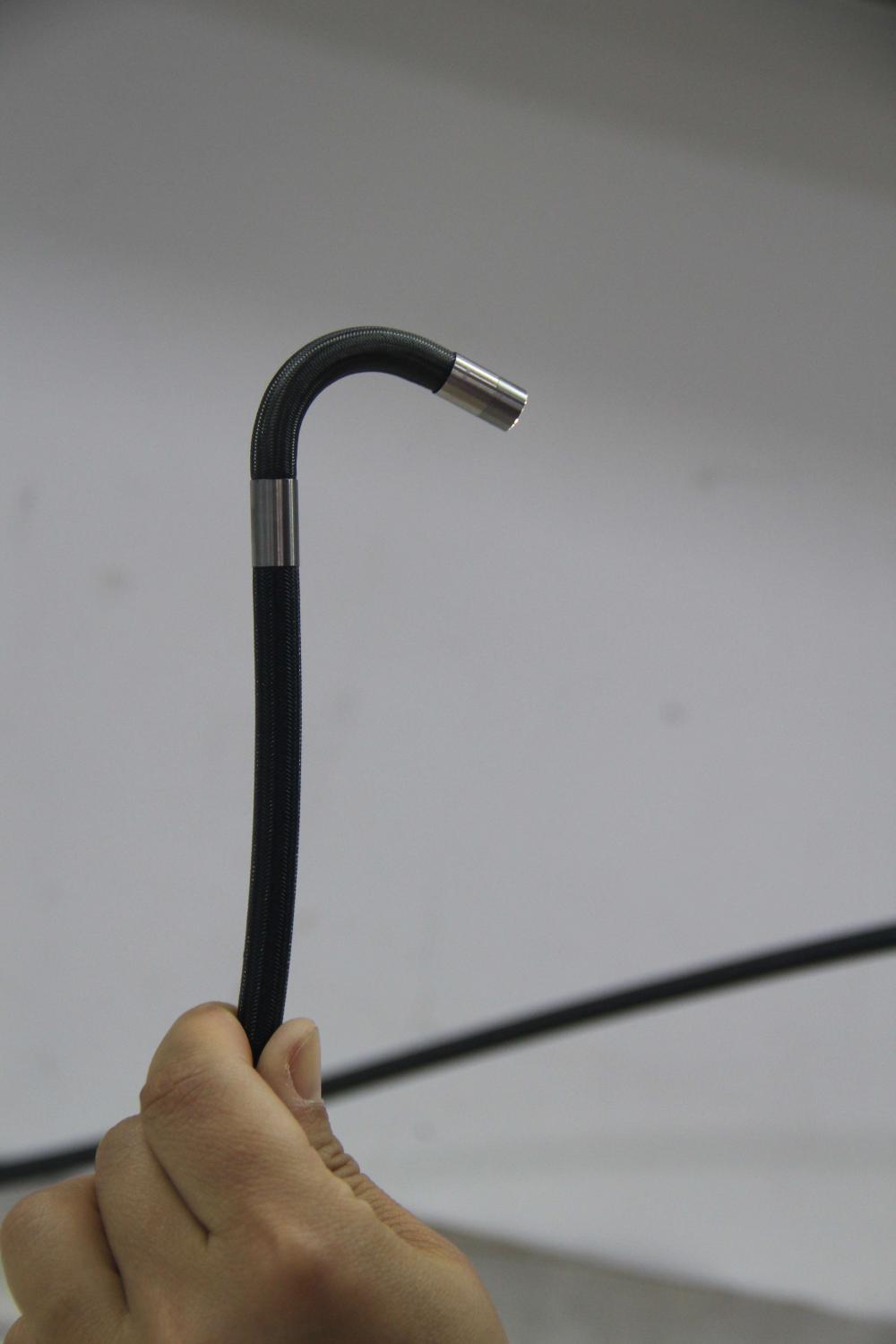

Articulation:360° all-way
Tube Length:1.5m-3m

Material of Tube:Tungsten cable
Depth of Field:15mm-infinity
Viewing Angle:90°
Bending Angle:≥120°

Illumination:
Type:Highlight LED

Brightness adjustment:0-5 levels

Others:

Zoom:5X
Memory:32GSD card
Waterproof Level:IP65/IP67(Optional)
System weight:2.1Kg

Dimensions:570*180*470(mm)
