Description:

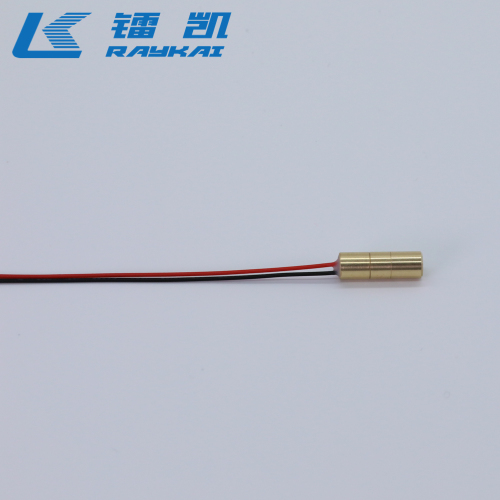

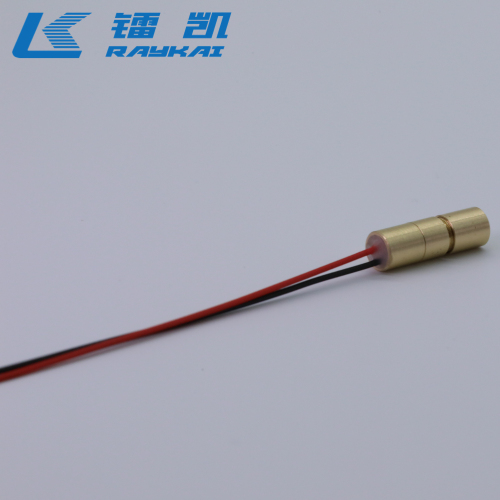

The Infrared laser diode module is compact in size measuring 6.5mm long x 10mm diameter. offers a cost effective solution, to many industrial applications such as alignment and positioning.

Min laser diode module provides a precise dot light, it can be of green, red, and infrared wavelengths.

Other parameters can also be customized according to customer requirements, which are laser module size, working voltage, output power, and electrical connection.

Feature:

1/ Alignment Laser Module

2/ Manually Focusing the Dot

3/ Compact Size Design

4/ Brass Material For Better Heat Dissipation

5/ This Min laser diode module complies with European standards CE and FDA regulations.

Specification:

Model	DS
Beam Shape	Dot
Wavelength	980nm
Wavelength Error	±5nm
Laser Power	200mW
Focusable	Yes
Power Supply	3-5V
Drive Mode	CW/TTL
Shell Material	Copper
Operation Temperature	-10~50℃
Dimension(D*L)	Φ6mm*18mm
Weight	2.2g

Package included:

1 X laser diode module

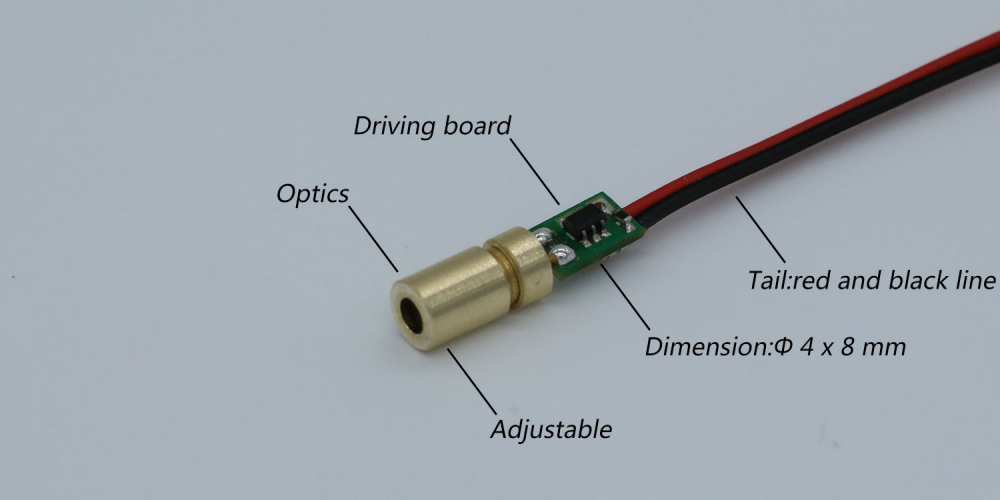

Details:

Field Application:

Industrial inspection

Laser targeting devices and so on...
