Ink Badge Dispensing Machine with Customizable Features
Ink Badge Dispensing Machine with Customizable Features
Ink Badge Dispensing Machine with Customizable Features
Ink Badge Dispensing Machine with Customizable Features
Ink Badge Dispensing Machine with Customizable Features
Ink Badge Dispensing Machine with Customizable Features

Video

1 / 6

Ink Badge Dispensing Machine with Customizable Features

Get Latest Price

Basic Info

Model No. WD-VF4
Brand Name
place of origin China
status New
Video factory inspection Provided
Mechanical test report Provided
Core component warranty period 1 Year
Core components Pump, Motor, Engine
warranty period 1 Year
Out-of-warranty service Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where to provide local services (in which countries are there overseas service outlets) Turkey, Brazil, Mexico
Applicable industry Machinery Repair Shops, Manufacturing Plant, Home Use, Other
Showroom location (in which countries are there sample rooms overseas) Turkey, Brazil, Mexico
Marketing type Ordinary Product
Running Distance X:400mm, Y:300mm,Z:60mm
Camera working size X:400mm, Y:300mm
Standard single worktable size X:400, Y:300mm
Size of machine 108*135*190cm
CCD resolution 20 million pi
Show More

Product description

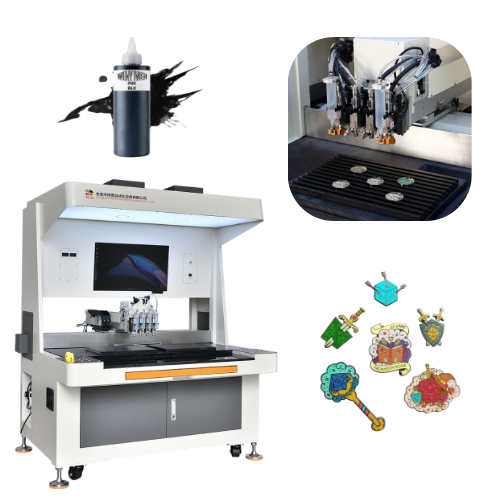

Advanced Ink Badge Dispensing Machine with Customizable Features
-- Where Intelligent Vision Meets Flawless Dispensing
?
Product description

Introducing the?Ink Badge Dispensing Machine with Customizable Features, a state-of-the-art?precision dispenser?engineered for unmatched accuracy. This versatile?ink dispensing machine?expertly handles both specialized inks and?hot melt dispensing systems?for diverse adhesives and coatings.

Constructed from robust stainless steel and industrial polymers, this?dispensing equipment?is built for durability across demanding applications. It is perfect for marking and decorating poly badges, garment accessories, luggage trims, footwear components, kitchenware, automobile parts, and even detailed items like jewellery, coins, and keychains.

The machine’s core advantage lies in its fully programmable?precision dispenser?controls, ensuring consistent, high-quality output. By integrating advanced?ink dispenser machine?technology with adaptable?hot melt dispensing systems, it streamlines production, reduces waste, and offers a cost-effective, all-in-one?dispensing equipment?solution for customized manufacturing.

?
Technical Parameter
Model: WD600-VF4
Colors: 4-color process
Standard platen dimensions: 400 mm (X) x 300 mm (Y)
CCD camera resolution: 20 Megapixels
Camera field of view: 400 mm (X) x 300 mm (Y)
Travel range / Axis stroke: X:400mm, Y:300mm, Z:60mm
Maximum load capacity: 100 Kilograms
Power supply / Electrical requirements: 220V AC, 50/60 Hz, 3 Kilowatts
Machine footprint / Overall dimensions: 108 cm (W) x 135 cm (D) x 190 cm (H)
Preheat zone temperature range: 0 to 50° Celsius
?
Product Work Method
8visual dispensing machine
?
?
