Inline Filter - Cast Version

Get Latest Price

Basic Info

Model No. SDRFLD ON 661 DAS 20 A 1.0/-KB
Brand Name Shengda
status New
Applicable industry Manufacturing Plant, Energy &Amp; Mining, Construction Works, Other
Out-of-warranty service Video Technical Support, Spare Parts, Field Maintenance And Repair Service, Online Support
Where to provide local services (in which countries are there overseas service outlets) Russia, Malaysia
Showroom location (in which countries are there sample rooms overseas) Saudi Arabia, Russia, Kazakhstan, Malaysia
Video factory inspection Provided
Mechanical test report Provided
Marketing type Ordinary Product
Core component warranty period 3 Months
place of origin China
warranty period 1 Year
Service system Online Support
Connection G1 to SAE/DIN DN100
Qmax 1300L/min
Pmax 64bar
Housing Material Steel
Filter Element Material Glass fiber & SS wire mesh & SS fiber & Paper
Temperature -10℃ to +100℃
Filtration Rating 3 to 200 micron
Flow Direction from top to bottom
Package Seaworthy cartons and plywood cases
Show More

Product description

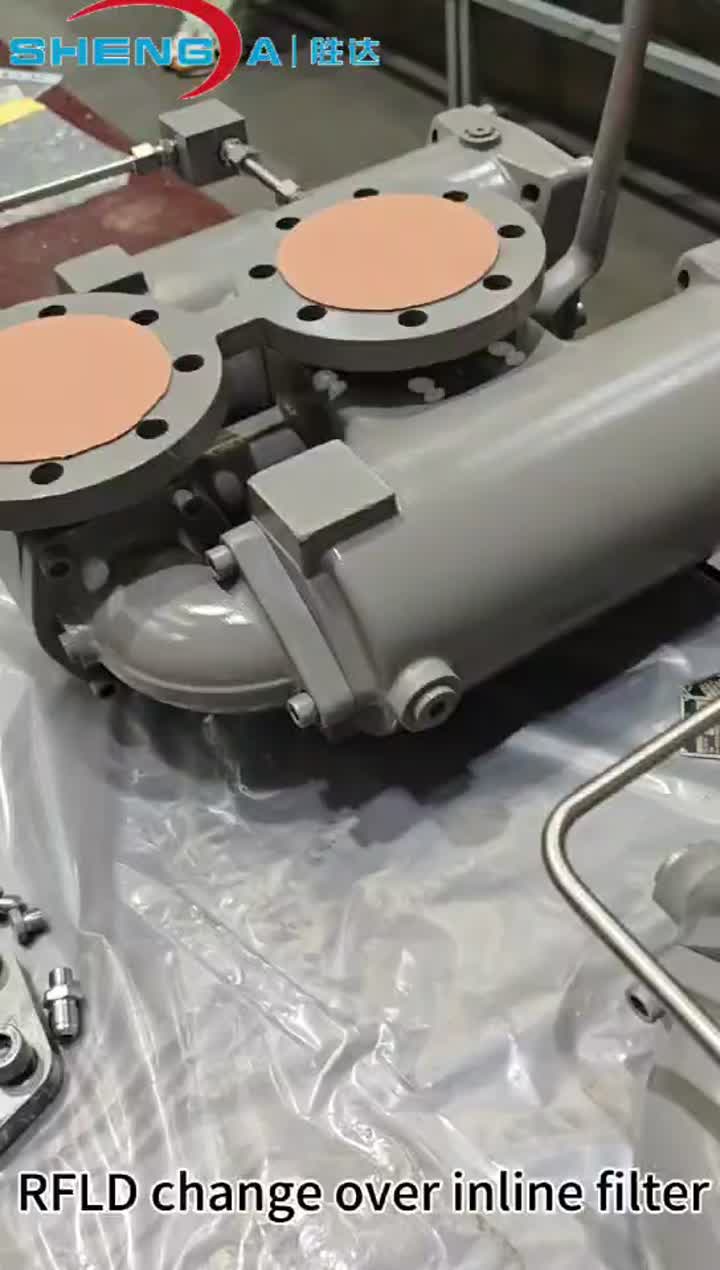

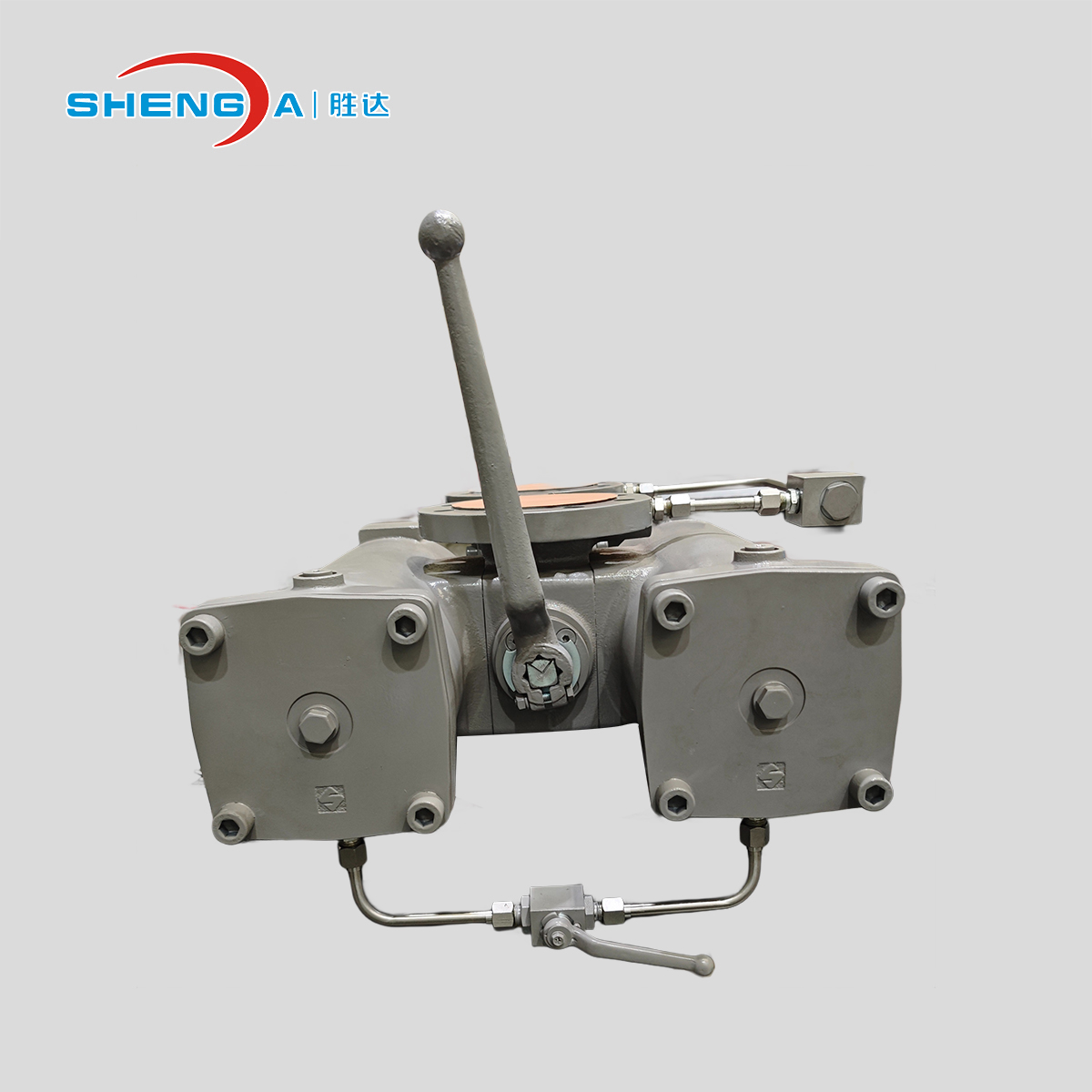

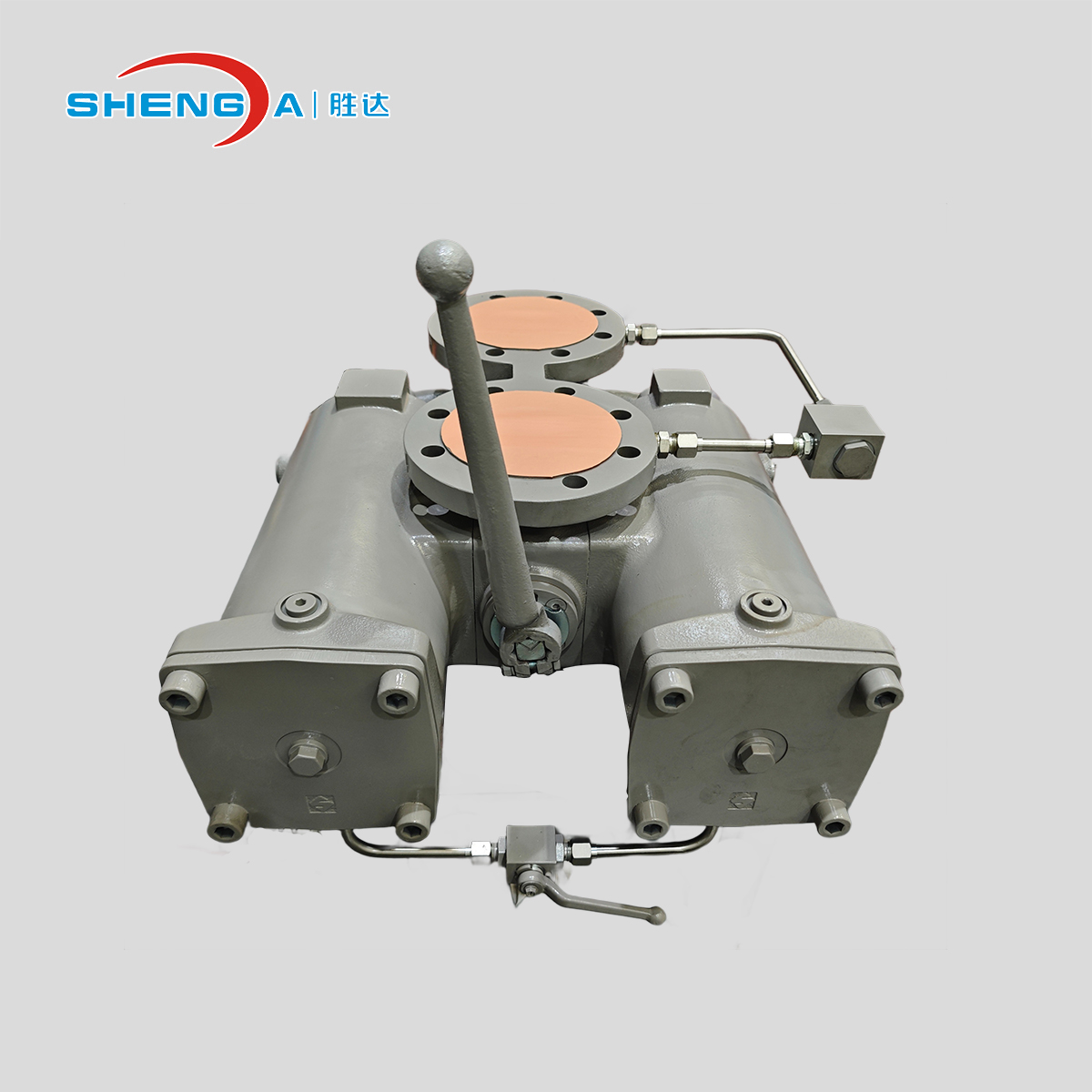

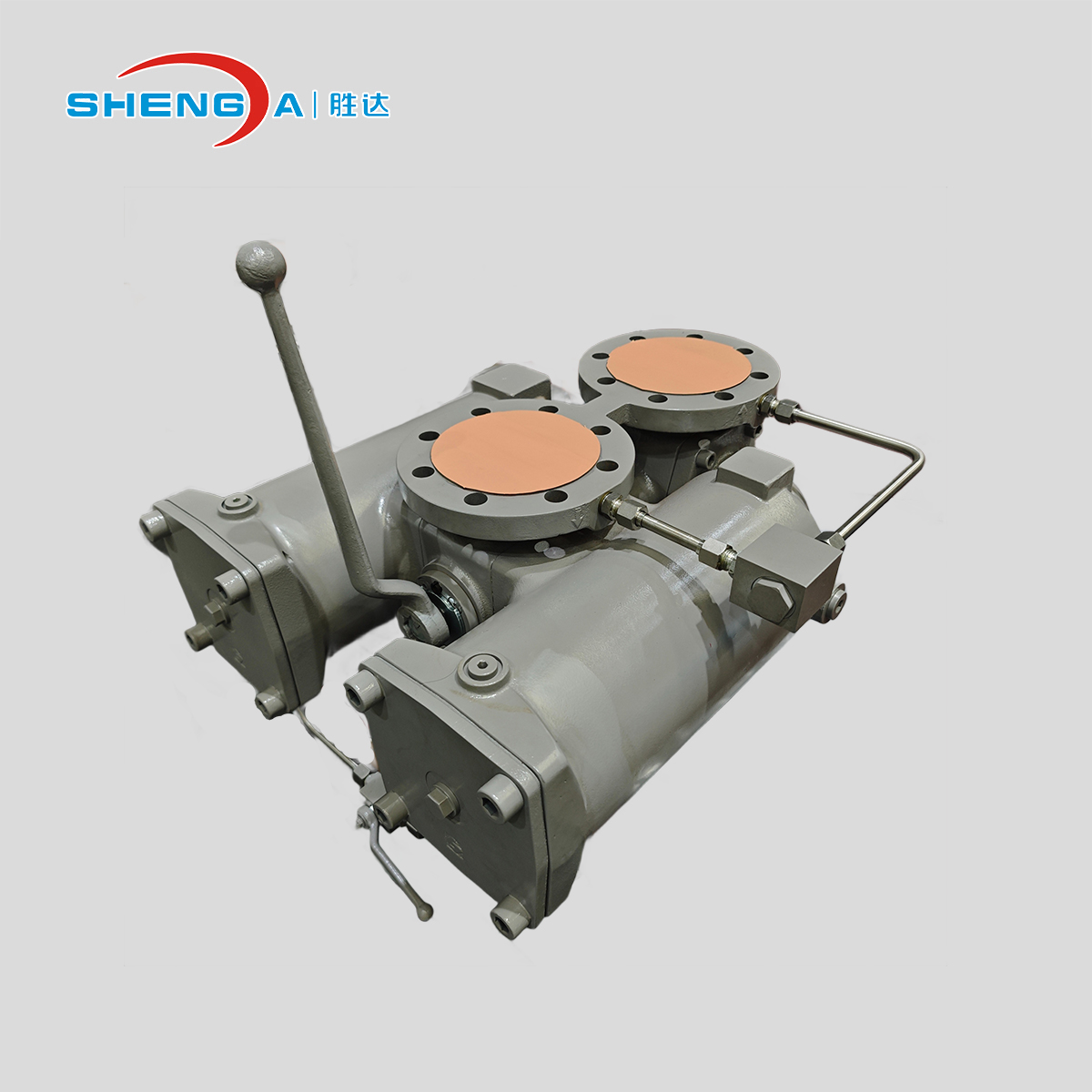

The RFLD ON 661 DAS 20 A 1.0/-KB is a duplex high-pressure inline filter manufactured by Shengda Filtration. Designed for hydraulic systems requiring continuous operation and high-precision filtration, it is widely used in industries such as metallurgy, petrochemicals, engineering machinery, and marine engineering.

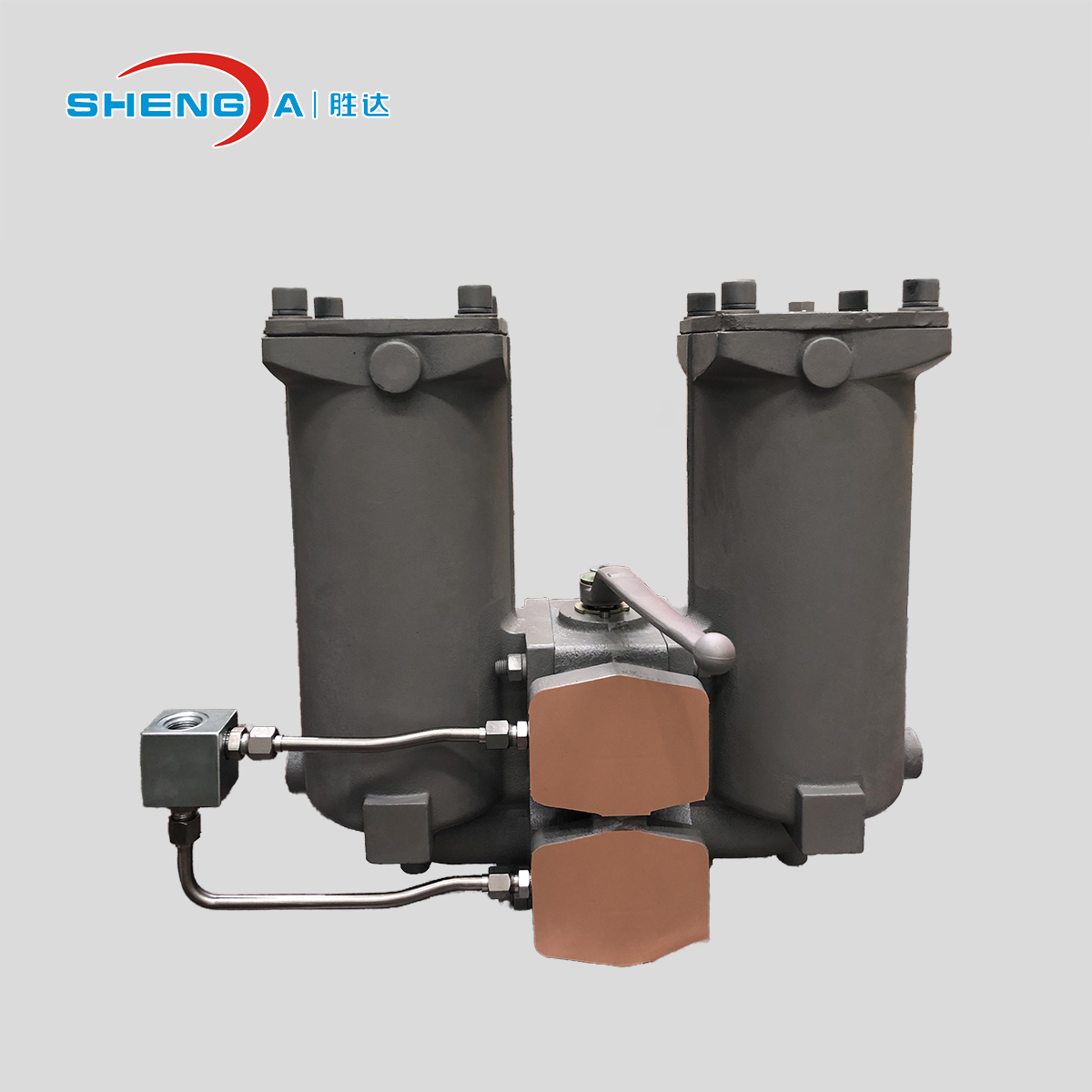

SDRFLD 661
?
?
Key Features
?
Duplex Design: Two independent filter cartridges with a switching valve enable online filter element replacement without system shutdown.
High-Pressure Resistance: Rated for maximum operating pressures up to 64 bar.
High Filtration Precision: Available with glass fiber or stainless steel mesh filter elements, offering filtration ratings from 3μm to 200μm to capture solid particles and colloidal contaminants.
Smart Monitoring: Equipped with a differential pressure indicator that triggers a replacement signal when the pressure drop reaches a preset threshold (e.g., 0.35MPa).
Safety Mechanism: Includes a bypass valve that automatically opens if the pressure differential exceeds safe limits, preventing system damage.
?
?
Applications
?
Return line filtration in hydraulic systems to protect pumps, valves, and other components.
Hydraulic systems in metallurgical equipment (e.g., rolling mills, continuous casters).
Liquid purification in petrochemical refining and chemical production.
Hydraulic and lubrication systems in construction machinery (e.g., excavators, cranes).
Fossil-fuel Power StationEnergy Storage Power StationWind Power
