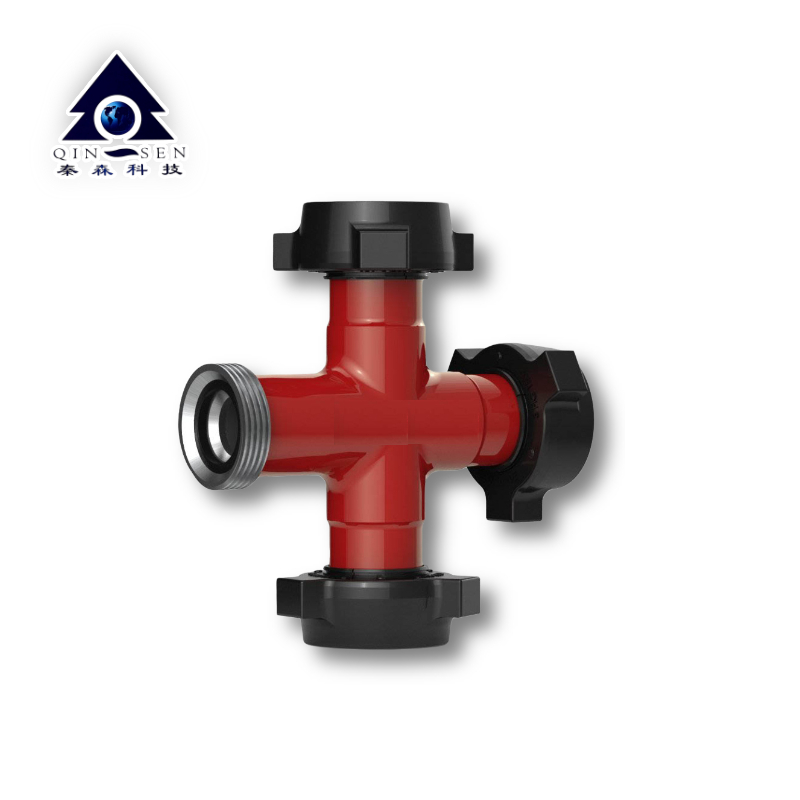

Integral fitting cross MMF*M 2in.

Options:

2 inches
35CrMo
AISI4130
F*F*F*M

Get Latest Price

You might also like

fig602 integral union crosses

$308.00

1 Set/Sets (MOQ)

FIG1502 integral fitting crosses

$308.00

1 Set/Sets (MOQ)

3 inches integral fitting cross FIG1502

1 Set/Sets (MOQ)

Integral fitting cross M*M*F*M 2in.

1 Set/Sets (MOQ)

Fig1502 Hammer Union with 15000psi working pressure

$348.00

1 Set/Sets (MOQ)

Basic Info

Model No.	Integral fitting cross MMF*M 2in.
Brand Name	Qinsen
place of origin	China
status	New
warranty period	1 Year
Service system	No Overseas Service Provided
Applicable industry	Energy &Amp; Mining, Machinery Repair Shops, Manufacturing Plant, Other
Out-of-warranty service	Video Technical Support, Online Support, Spare Parts
Where to provide local services (in which countries are there overseas service outlets)	None
Showroom location (in which countries are there sample rooms overseas)	None
Video factory inspection	Provided
Mechanical test report	Provided
Marketing type	Ordinary Product
Core component warranty period	1 Year
Core components	Gear
color	red
working pressure	15000PSI
hammer union connector type	FFF*M

Company Overview Company Photos

Product description

產品描述
管件包括 Y 型三通、彎頭、三通、十字、側管和魚尾管，尺寸范圍從 2“ 到 3”，壓力從 6000psi 到 15000psi。整體連接采用高強度合金鋼，均經過熱處理，增強承載能力，延長使用壽命。它們可能具有活接端，以便于與各種固井或壓裂設備連接，。除了 Hammer Union Crosses，我們還生產和供應高壓流線整體配件，例如 Hammer Union 彎頭、Union Tées、Union Wyes、Union Laterals、Union Crossovers、Pup Joints、Swivel Joints、Steel Hose Loops。
產品規格/型號

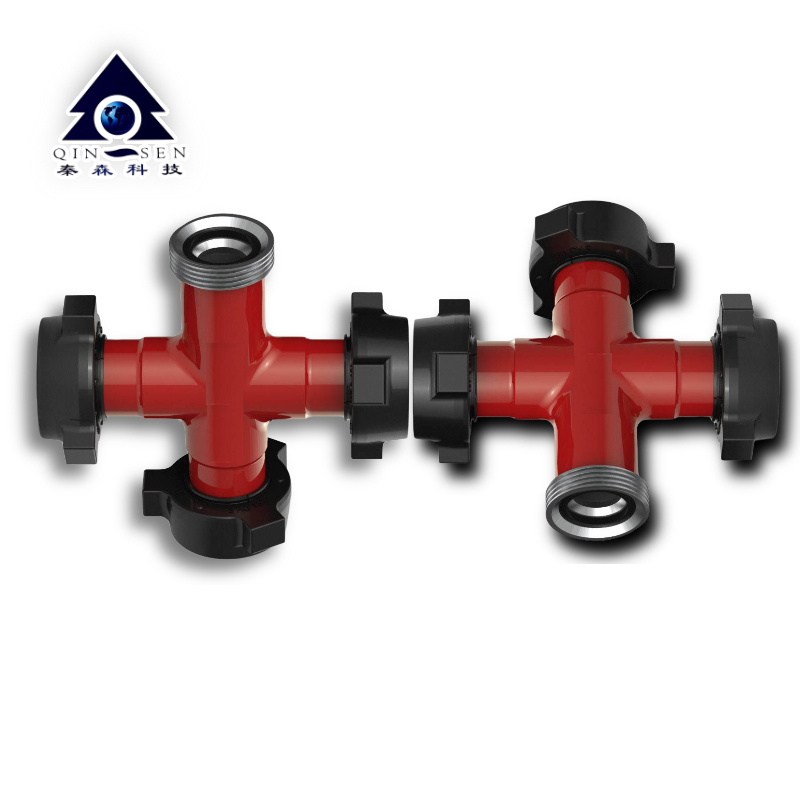

產品名稱：十字架、高壓錘接頭十字架、整體配件
（2）DN：2“--3”
（3）工作服務：油氣井標準服務，H2S服務，酸服務
（4）工作壓力：6000psi--15000psi
（5）工作溫度：-29°C-121°C
（PU）
（6）材質：35CrMo/AISI4130

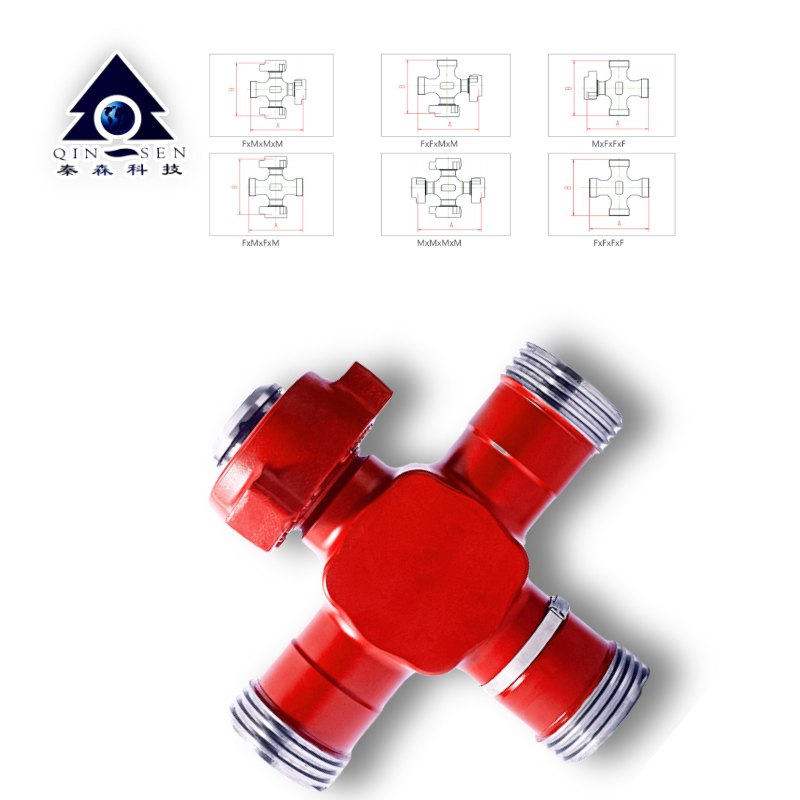

（7）交叉配置：母x母x公x母（F x F x M x F），母x母x公x公（F x F x M x M），母x公x公x母（F x M x M x F），母x公（F x M x M x 公），母x x 公 x 公（ F x M x M x M），男 x 男 x 男 x 男（ M x M x M x M），女 x 女 x 女 x 女（ F x F x F x F）

(8)端部連接：錘接頭圖602，圖1502，螺紋。
