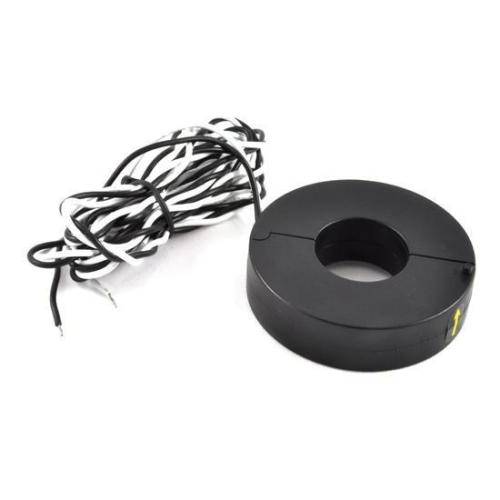

Energy management intelligent detection solar split split core current transformer

Features

These 25mm Split Core CTs are easy to install: simply snap these current transformers around the wires being read. They are very compact and can measure the current used in the majority of residential electrical systems. These CTs are designed to be used for any load from 1/4 amp to 200 amps.

Applications

Measures AC current flow to electric motors,lighting, air condition equipment, etc. Compatible with HVAC temperature control, power management, building automation systems.

Specifications

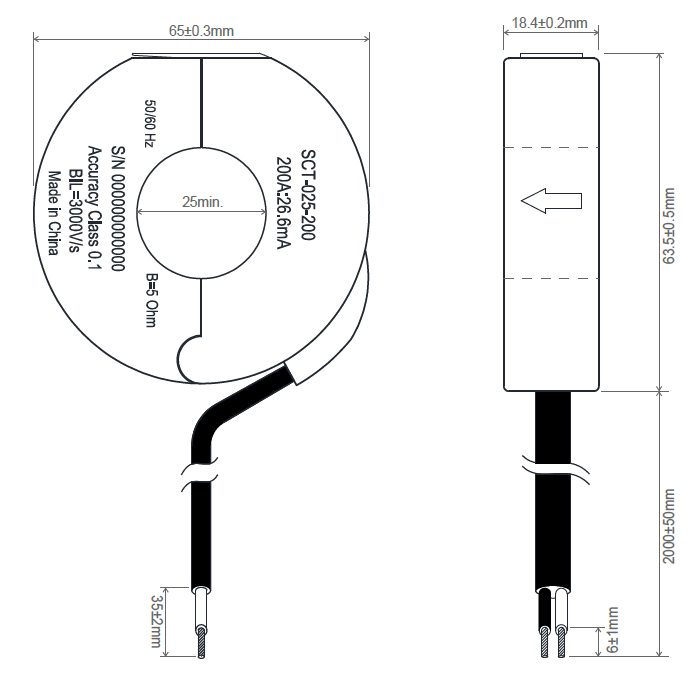

? Model: SCT-025-200
? Type: Split Core
? Rated Input: 0-200 Amps AC Inside Diameter: 25mm Outside Diameter: 65mm Output: 26.6mA
? Accuracy: ± 0.1% accurate.
? When used in conjunction with our Omnimeters, the installation will have an accuracy of ± 0.5%.
? Leads: 6 feet, 22AWG, UL10155
? Internal windings: 7,518
? Frequency: 50–60Hz
? Operating Temperature: -40oF–158oF
? Storage Temperature: -49oF–185oF ? The arrow points towards the load

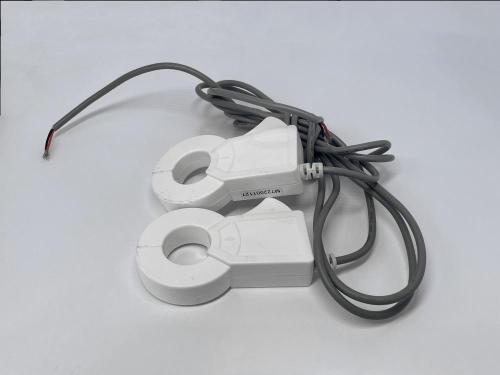

333mV Split-Core Current Transformer

Compact, lightweight hinged spilt-core current transformers are designed for installation on branch circuits within an electrical panel where space is at a premium. The PowCT Higned series is simple to install and quick to deploy in retrofit applications where 333mV rated output is needed.
