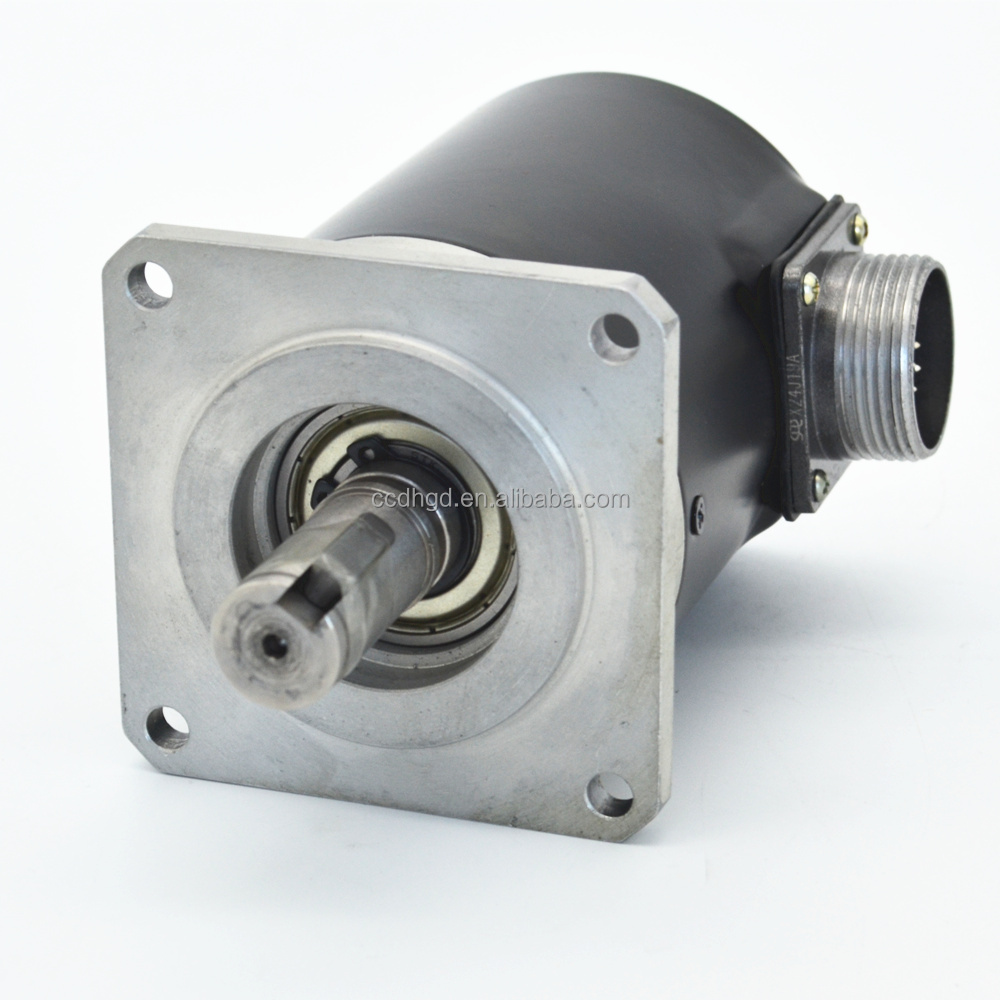

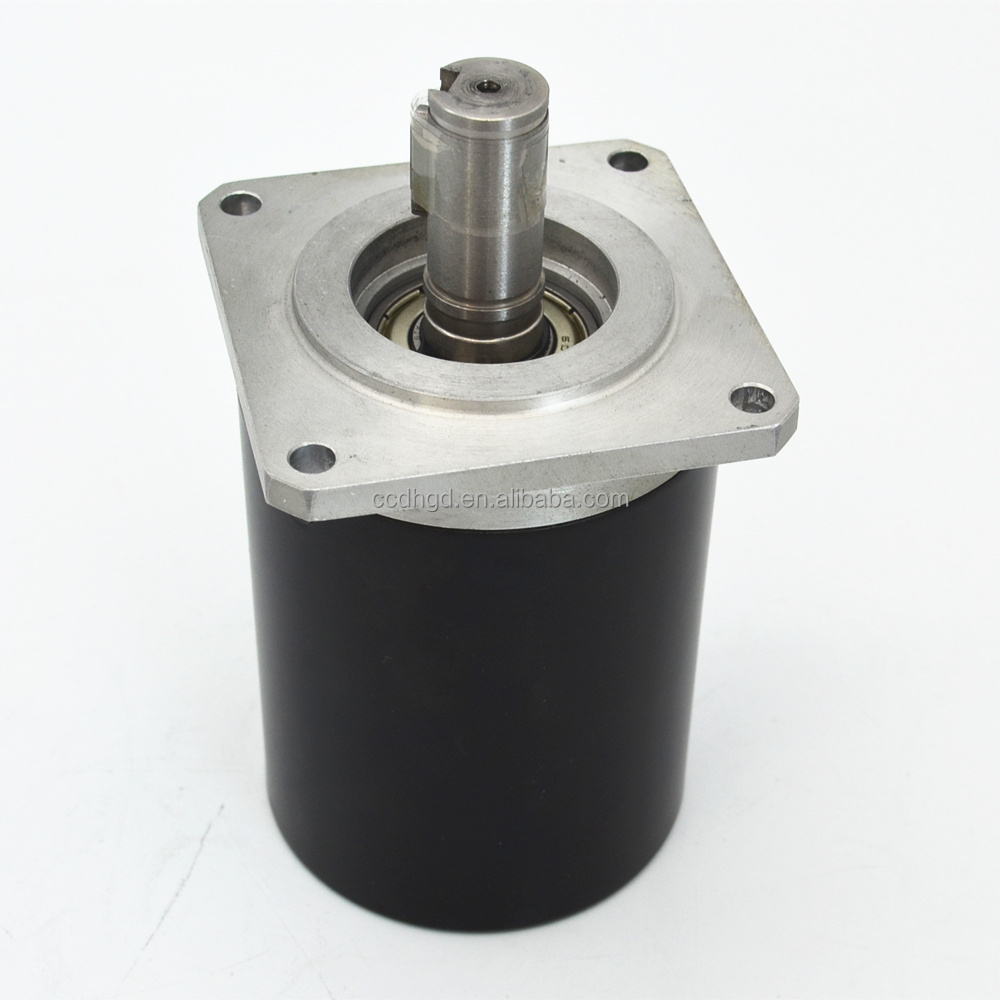

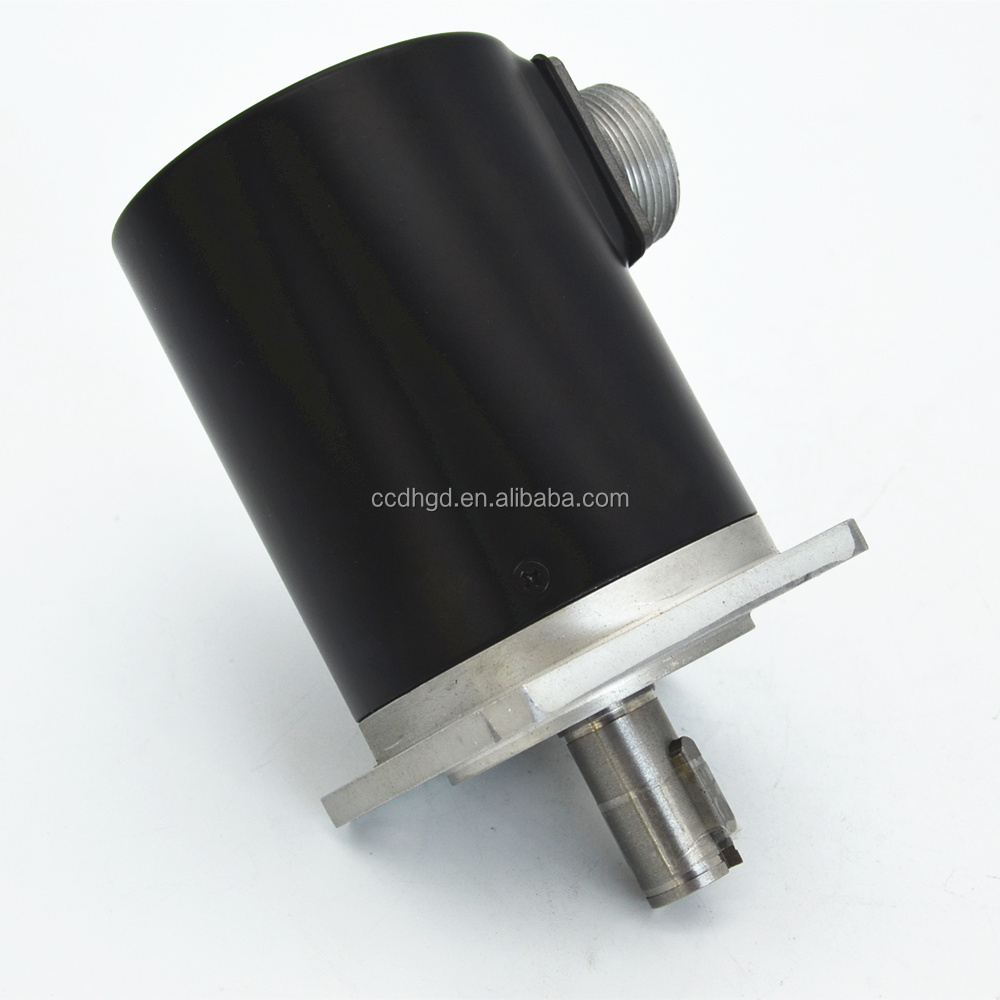

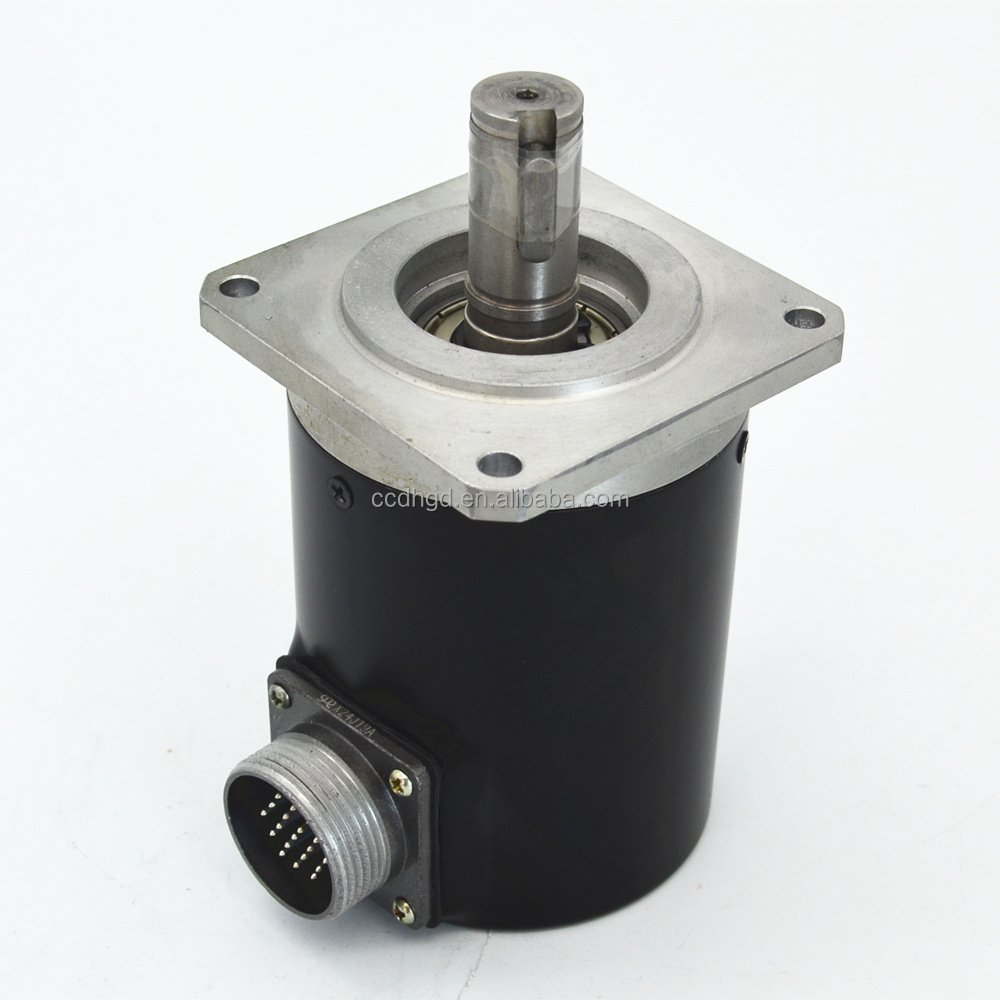

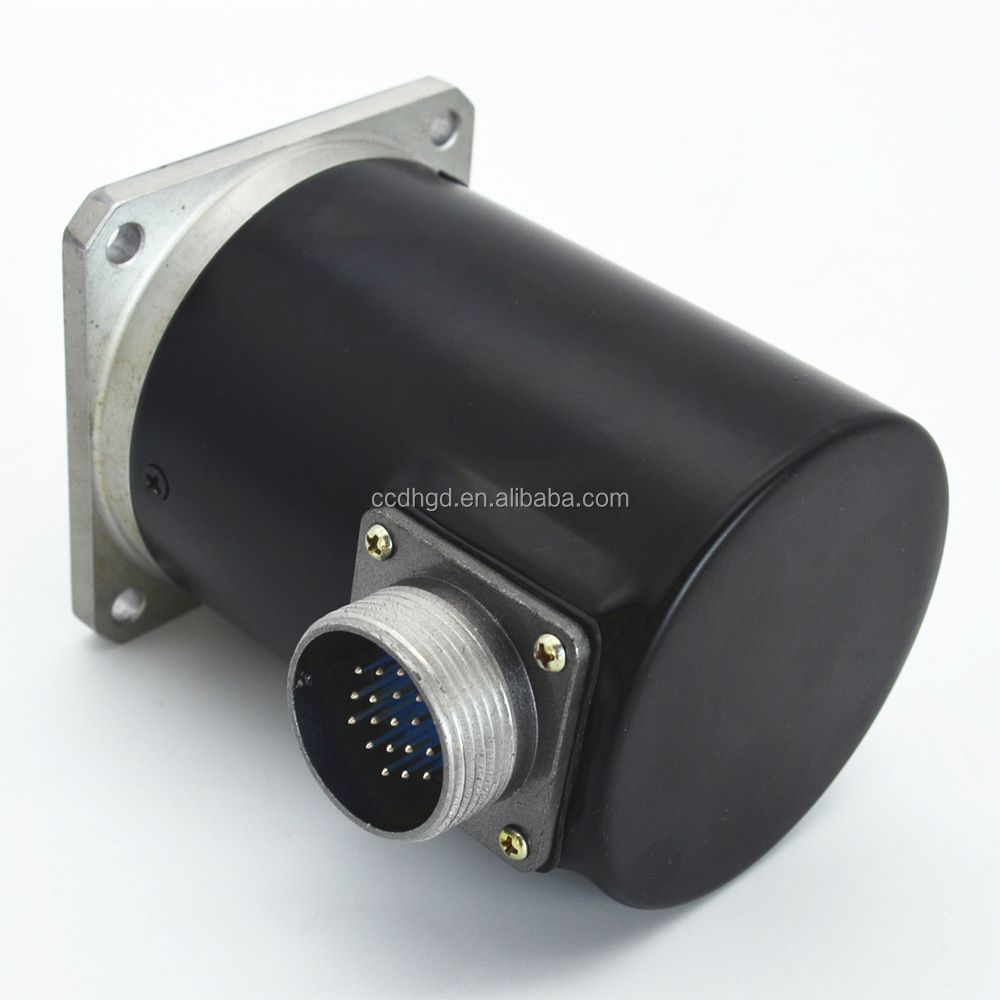

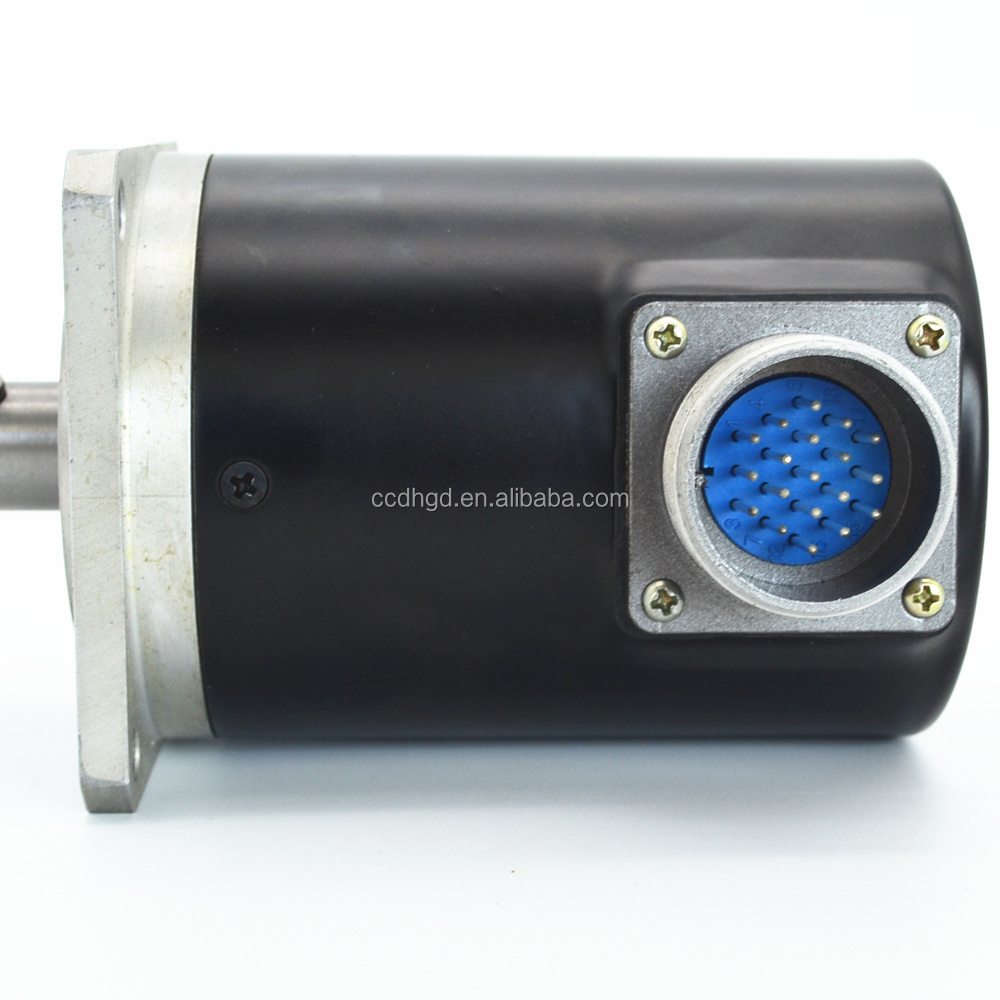

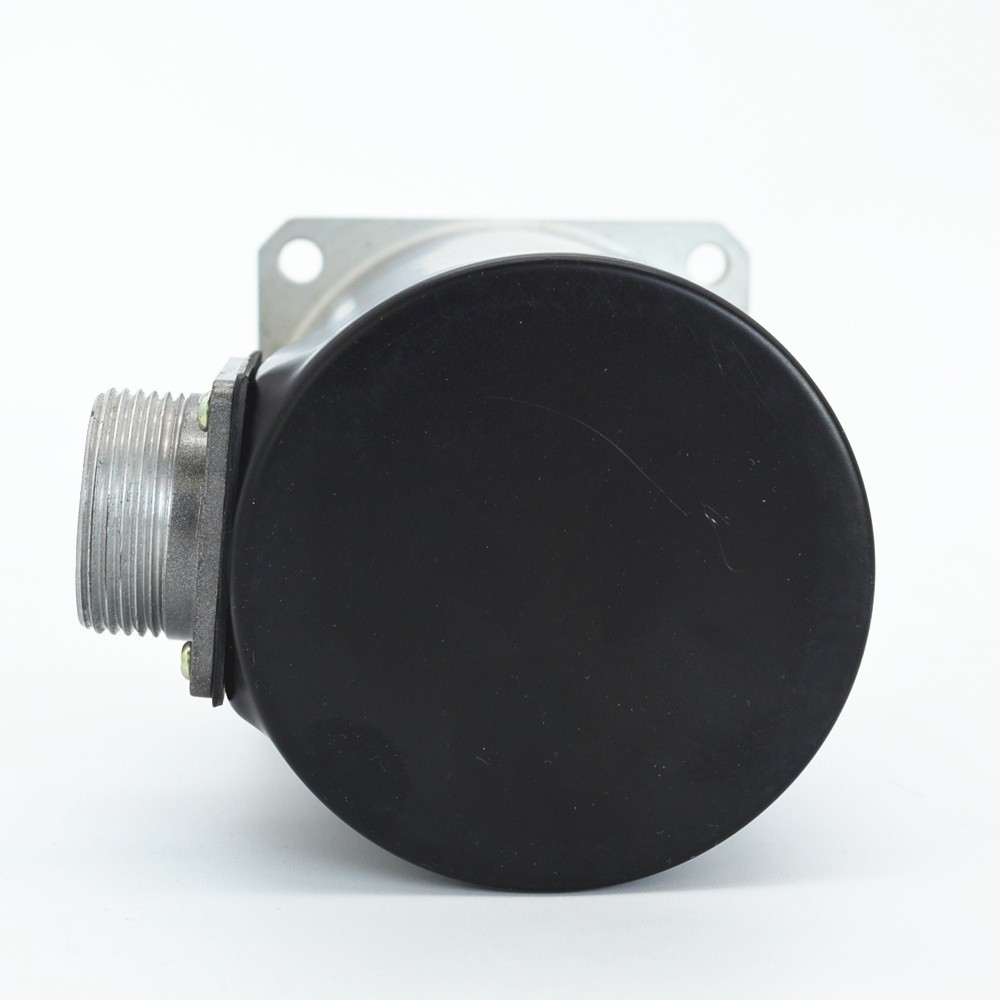

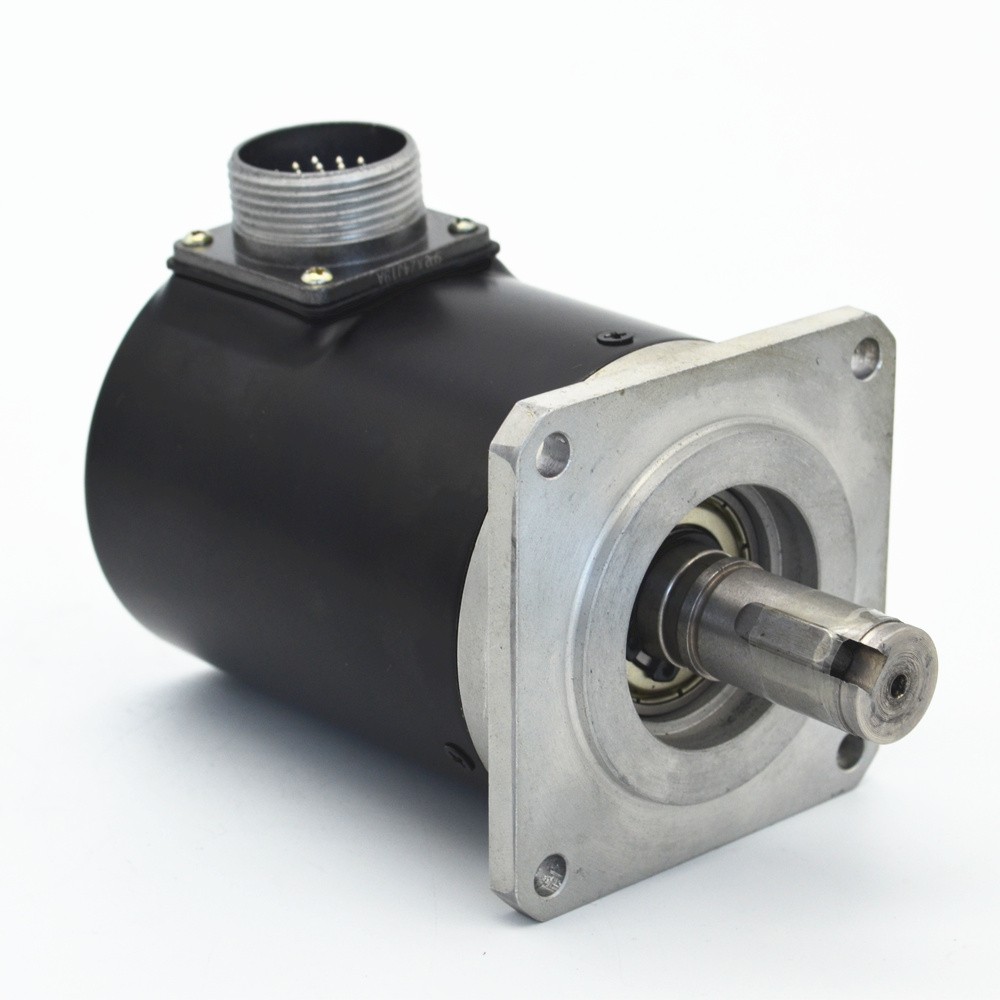

IP65 Binary Encoding Absolute Position Encoder for Donghe 6 8 12 16 Station CNC Lathe Machine Tool Turret
$50.00
1 piece (MOQ)
$10.00
1 piece (MOQ)
Basic Info
| Mounting Type | cnc encoder |
|---|---|
| Description | CNC lathe encoder |
| Model Number | PIF-1024-C24E |
| Type | Mechanical Encoder |
| Place Of Origin | Jilin, China |
Product description
Protection class | IP54(Standard) | Output frequency | 0-100KHz |
Rise/Fall time | ≤1μS | Starting torque | 5×10-2N·m (25°C) |
Working temperature | -10°C~+70°C | Max.shaft load radial | 50N |
Supply voltage | DC5V-24V | Max.shaft load axial | 50N |
Storage temperature | -20°C~+70°C | Max.speed | 6000r/min |
Current consumption | 100mA | Weight | 0.65kg(without cable) |
Shock resistance | 980m/S2 | Cable Length | Optional |
Vibration resistance | 50m/S2 | Warranty | 12 month |
Video
PIF-1024-C05D Series Encoder Replacement - LF Sumtak Rotary Encoder 1024PPR DC 5V1
PIF-1024-C05D Series Encoder Replacement - LF Sumtak Rotary Encoder 1024PPR DC 5V1
PIF-1024-C05D Series Encoder Replacement - LF Sumtak Rotary Encoder 1024PPR DC 5V1
IP65 Binary Encoding Absolute Position Encoder for Donghe 6 8 12 16 Station CNC Lathe Machine Tool Turret
