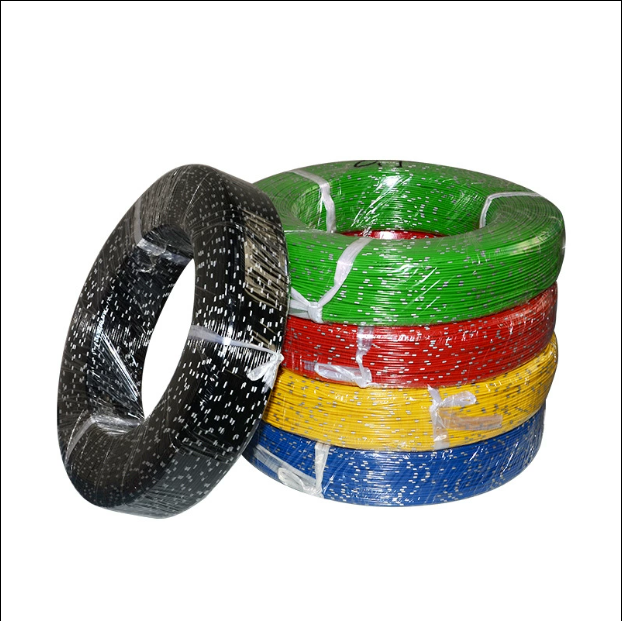

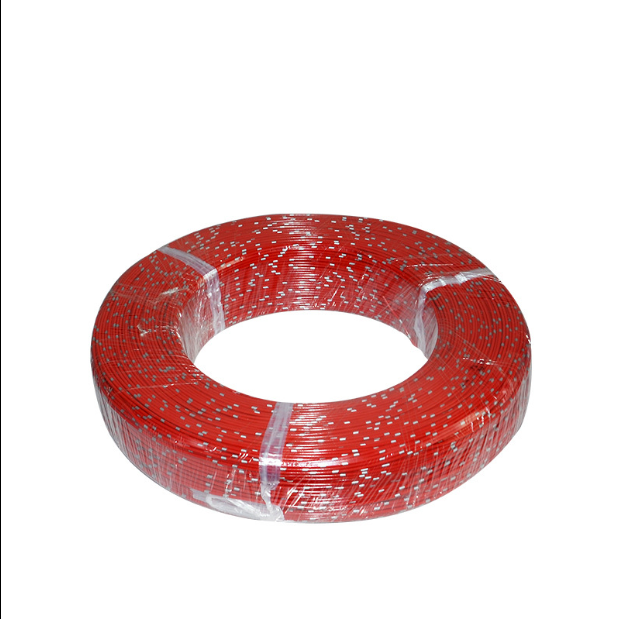

Japanese Standard Auto Wires: Sizes 0.3mm, 0.5mm, 0.85mm, 1.25mm, 2mm - Low Voltage AVSS Cable
Japanese Standard Auto Wires: Sizes 0.3mm, 0.5mm, 0.85mm, 1.25mm, 2mm - Low Voltage AVSS Cable
Japanese Standard Auto Wires: Sizes 0.3mm, 0.5mm, 0.85mm, 1.25mm, 2mm - Low Voltage AVSS Cable
Japanese Standard Auto Wires: Sizes 0.3mm, 0.5mm, 0.85mm, 1.25mm, 2mm - Low Voltage AVSS Cable
Japanese Standard Auto Wires: Sizes 0.3mm, 0.5mm, 0.85mm, 1.25mm, 2mm - Low Voltage AVSS Cable
Japanese Standard Auto Wires: Sizes 0.3mm, 0.5mm, 0.85mm, 1.25mm, 2mm - Low Voltage AVSS Cable
Japanese Standard Auto Wires: Sizes 0.3mm, 0.5mm, 0.85mm, 1.25mm, 2mm - Low Voltage AVSS Cable

Video

1 / 7

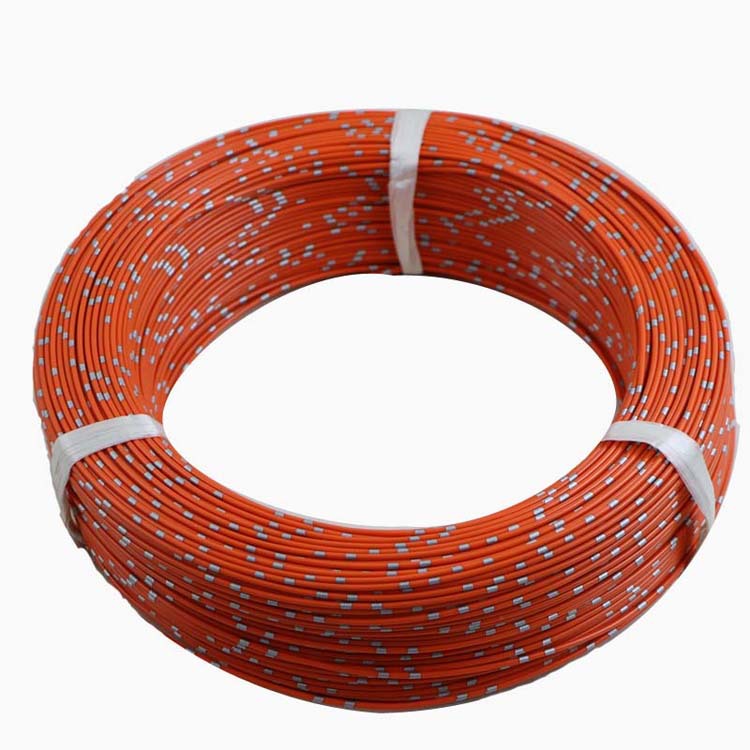

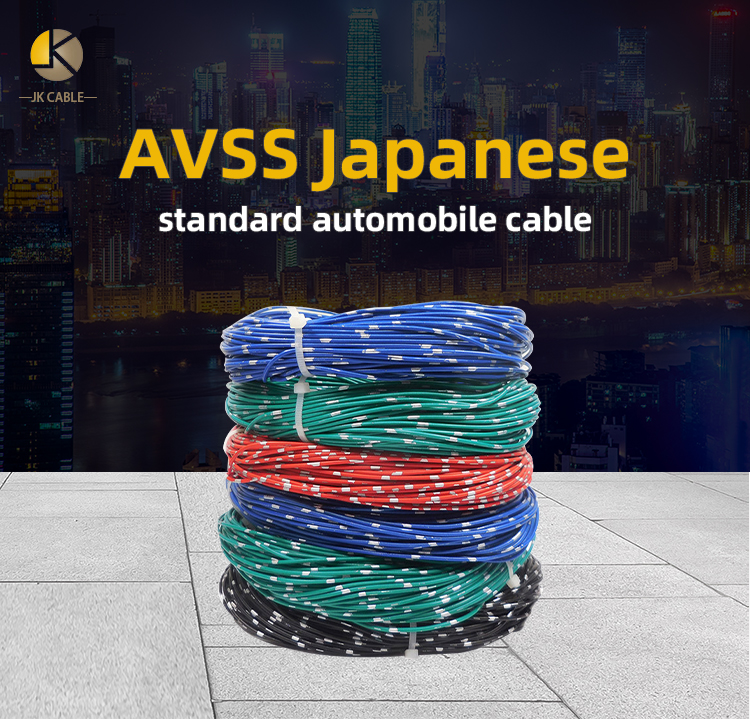

Japanese Standard Auto Wires: Sizes 0.3mm, 0.5mm, 0.85mm, 1.25mm, 2mm - Low Voltage AVSS Cable

$0.02 ~ $0.12 / meter
Get Latest Price

Basic Info

Model No.
Brand Name
Place Of Origin Jiangsu, China
Brand Name jinkai
Model Number AVSS car wire
Insulation material Pvc
Type Low Voltage
Application car
Conductor material Copper
jacket Pvc
Product Name car wire

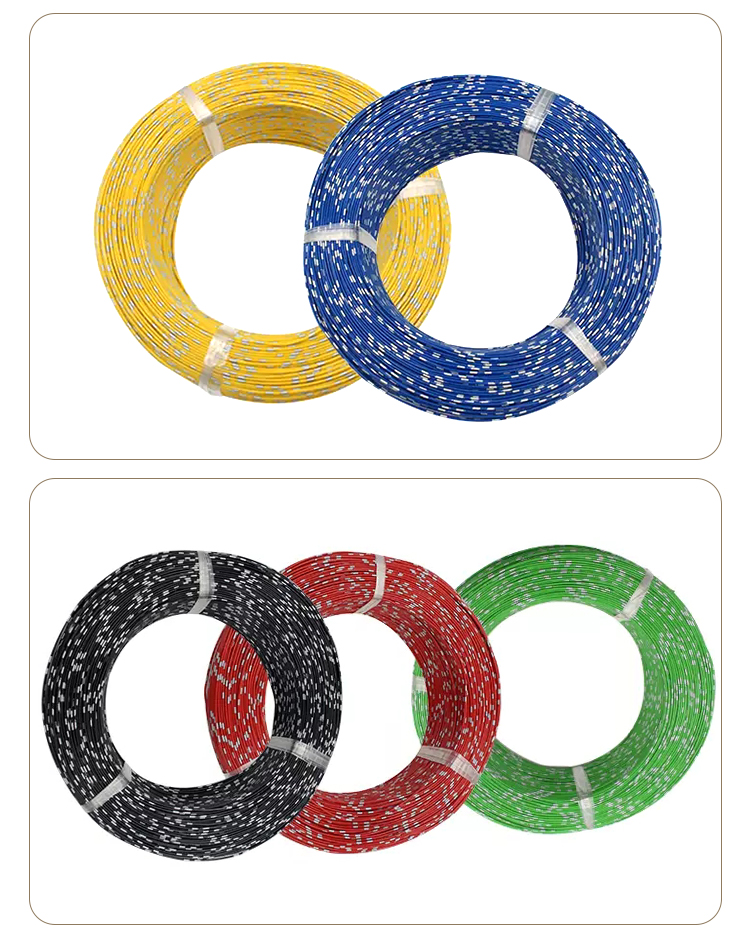

Color Black,red,yellow,blue,green,etc
conductor Copper
Insulation Pvc
Core 1 Core
Working Temperature -40 --+85
Show More

Product description

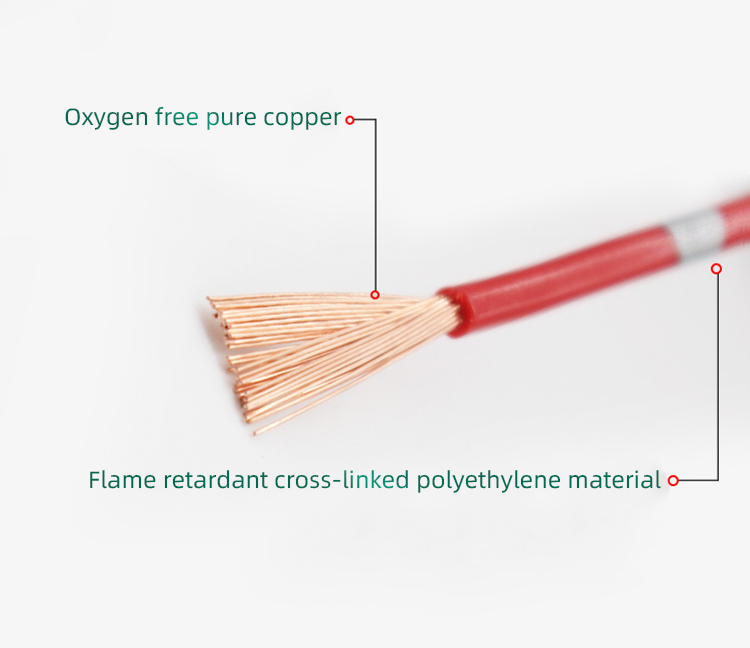

Product Structure

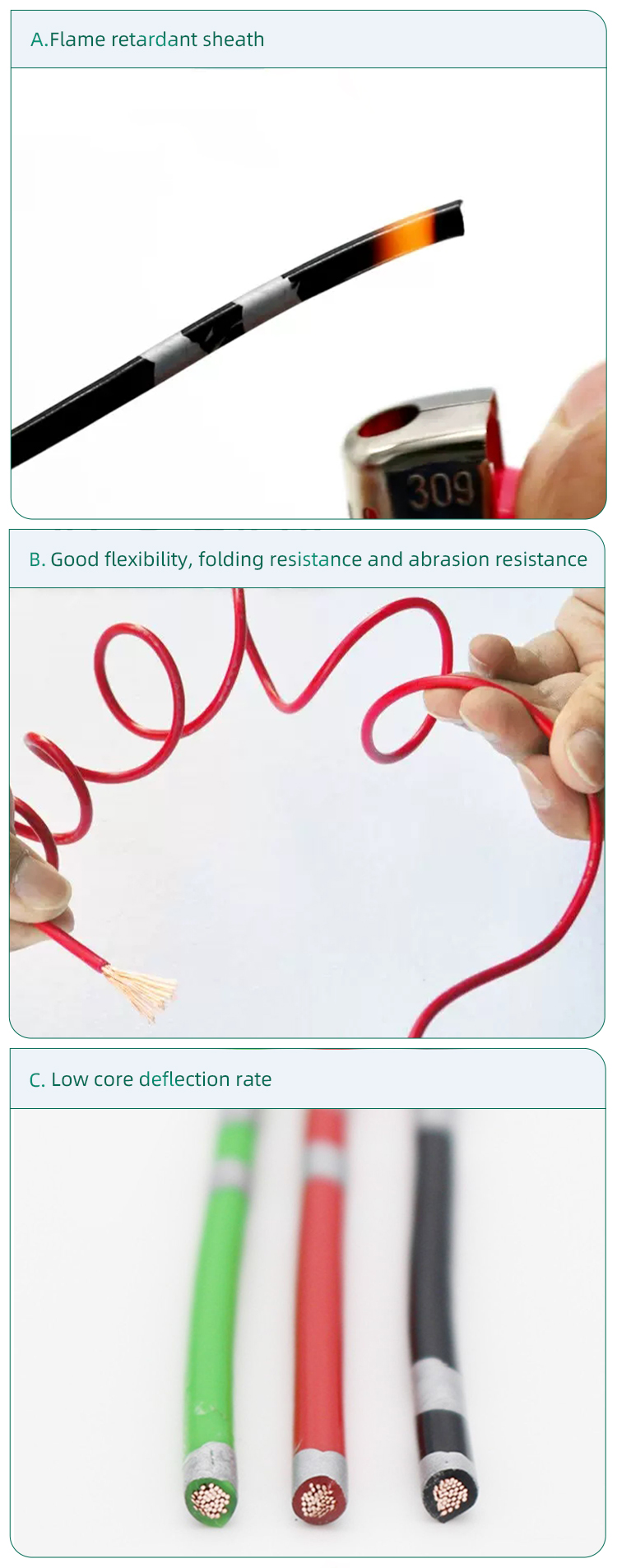

Product Advantages
Product Paramenters
conductor
Cu-ETP1 bare copper conforms to JIS 3120 standard
insulation
PVC
standard
ISO 6722 Class B
technical parameter
–40 °C - 85 °C
conductor
Insulation
Cabling
Nominal conductor cross-sectional area
Number of strands
/diameter
Maximum diameter
Maximum resistance at 20 ° C
Insulation thickness
Minimum outside diameter
Maximum outside diameter
weight
MM2
NO./MM
(MM)
MΩ/M
(MM)
MM
MM
KG/KM
1 x 0.30
7/0.26
0.8
50.2
0.3
1.4
1.5
5
1 x 0.50
7/0.32
1
32.7
0.3
1.6
1.7
7
1 x 0.85
19/0.24
1.2
21.7
0.3
1.8
1.9
10
1 x 1.25
19/0.29
1.5
14.9
0.3
2.1
2.2
14
1 x 0.3f
19/0.16
0.8
48.8
0.3
1.4
1.5
5
1 x 0.5f
19/0.19
1
34.6
0.3
1.6
1.7
7
1 x 0.75f
19/0.23
1.2
23.6
0.3
1.8
1.9
10
1 x 1.25f
37/0.21
1.5
14.6
0.3
2.1
2.2
14
1 x 2f
37/0.26
1.8
9.5
0.4
2.6
2.7
22

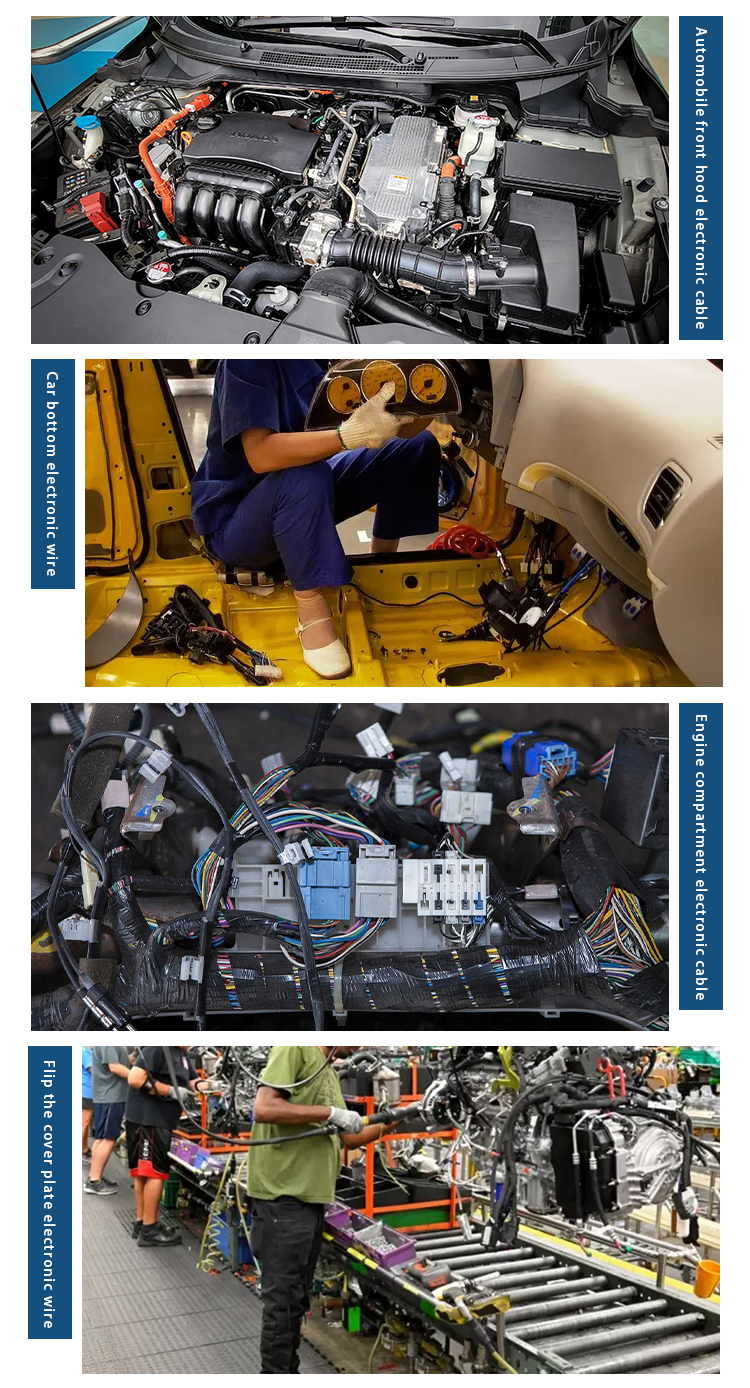

Application

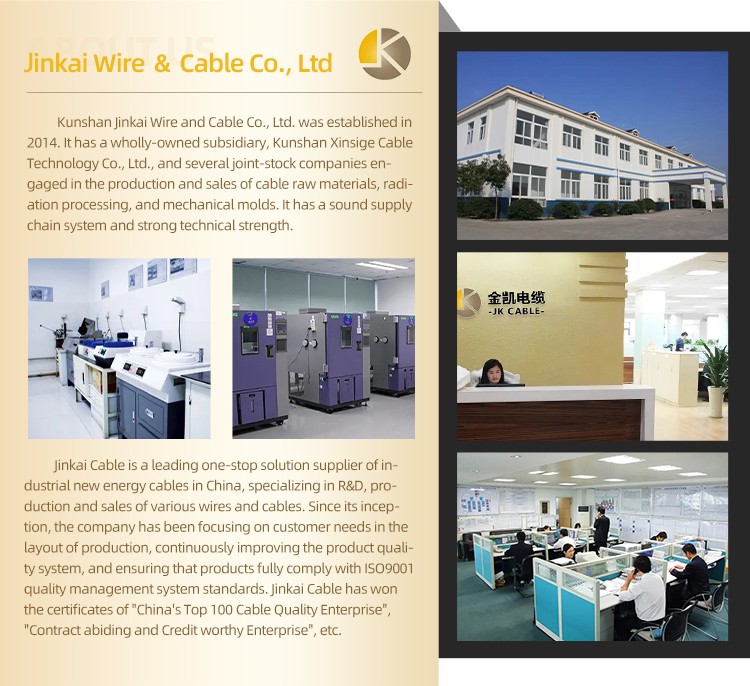

Company Profile

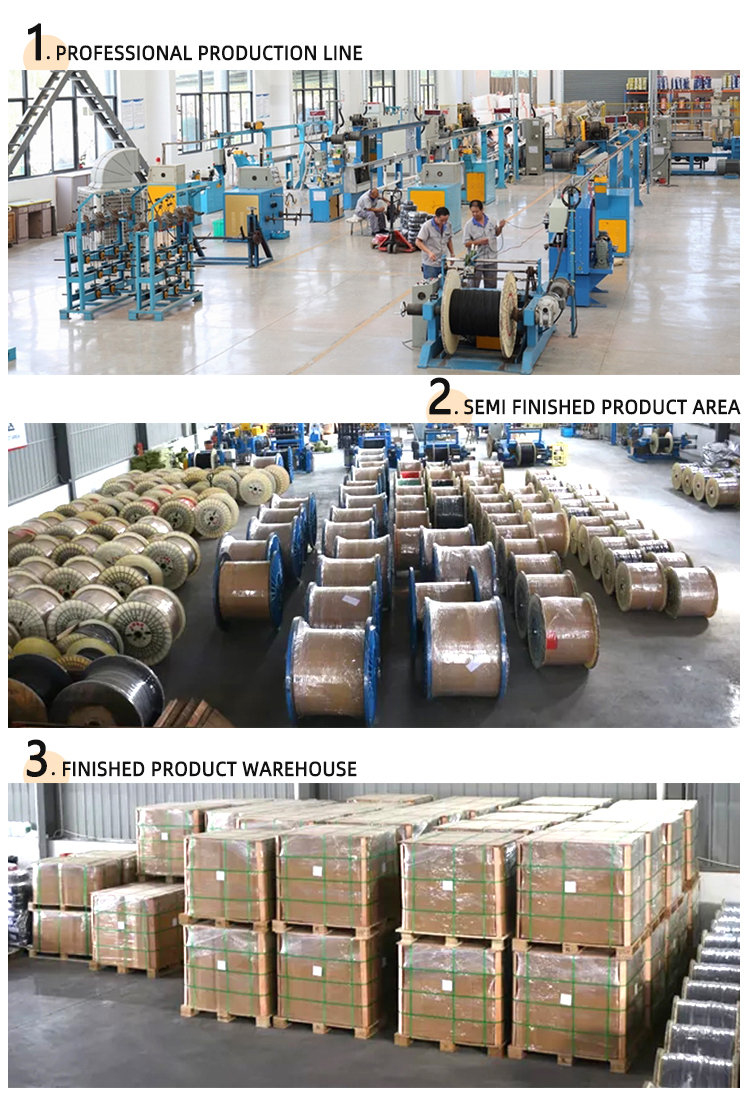

Manufacturing Factory
FAQ
1. Are you a manufacturer or trading company? We are a professional manufacturer. We can control your order from the first begining to the last. Welcome to visit us. We'll pick you up in Suzhou. 2. How can I get a sample to test your quality? The samples are free for you. New clients are expected to pay for the courier cost. 3. What’s your Minimum Order Quantity? Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option. 4. Does your company accept OEM production? Yes, could print your company name,we accept OEM.

5. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
