Jet Mill for Processing Cathode Materials in Chemical Industry, China
$70000.00
≥1 set
$69000.00
≥3 set
$68000.00
≥5 set
Get Latest Price
You might also like
Basic Info
| Output (kg/h) | 1 - 4000 kg/h |
|---|---|
| Feeding Size (mm) | 0 - 5 mm |
| Power (kW) | 20 |
| material | Sus304 |
| application | Chemicals Processing |
Show More
Product description
Products Description

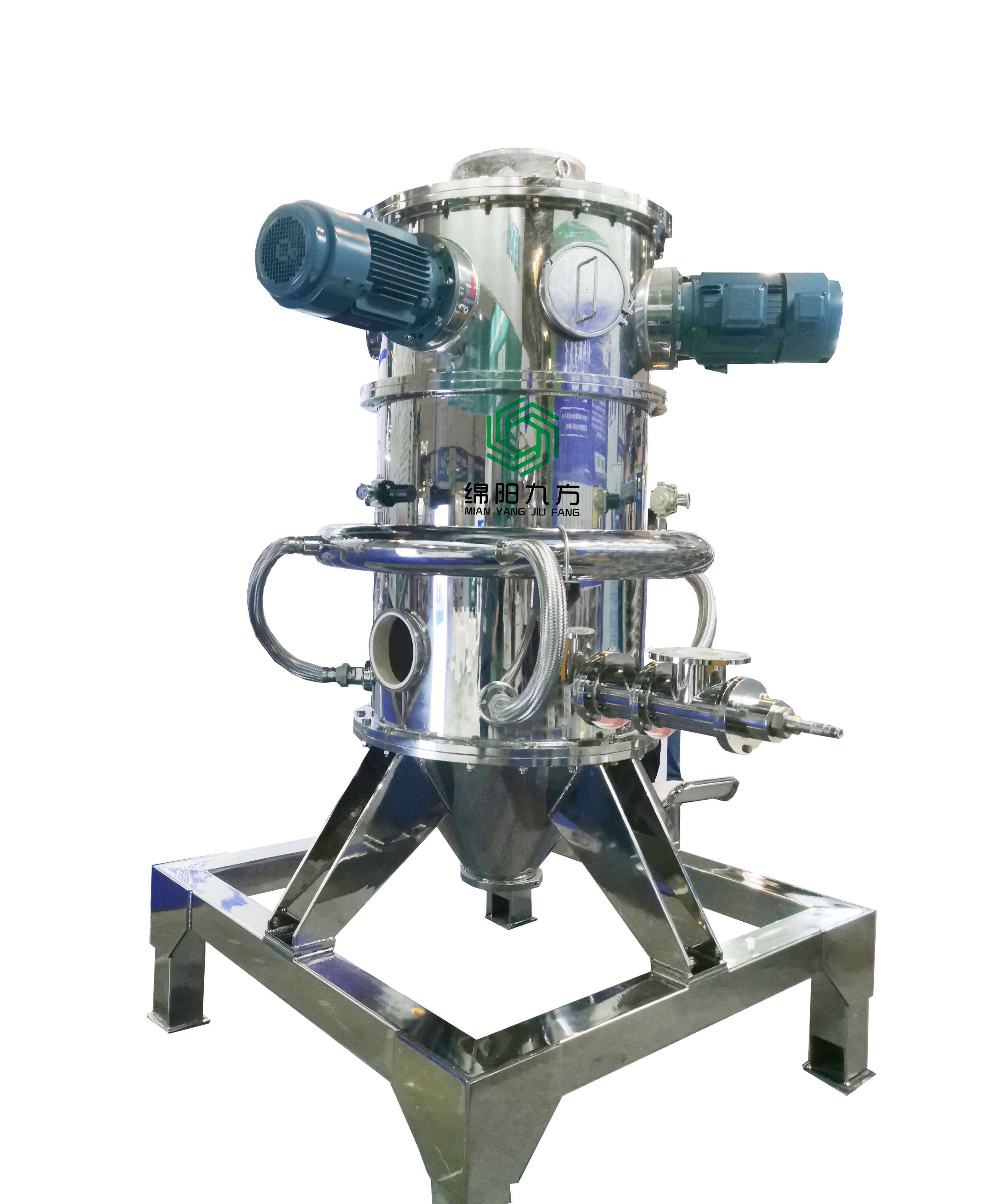

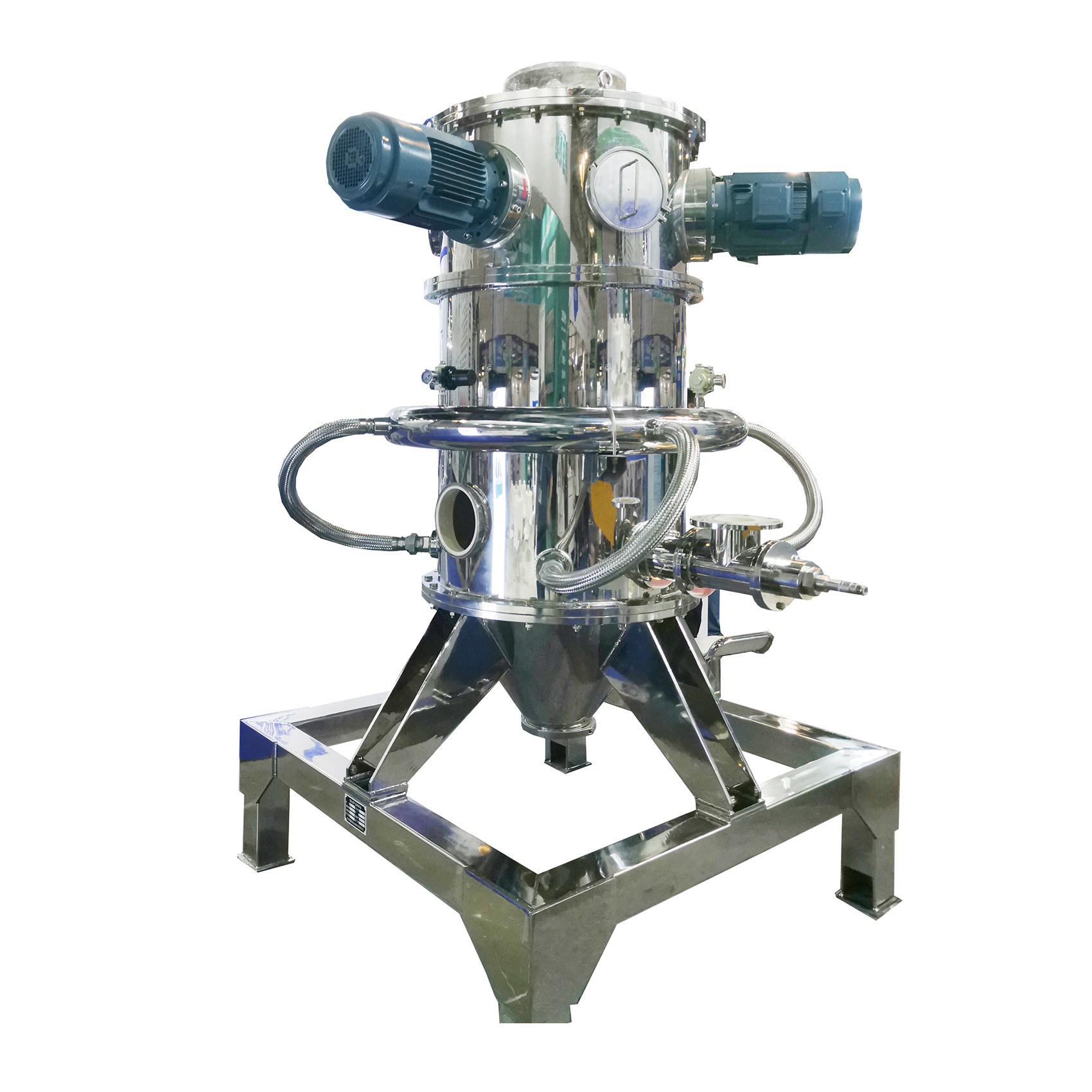

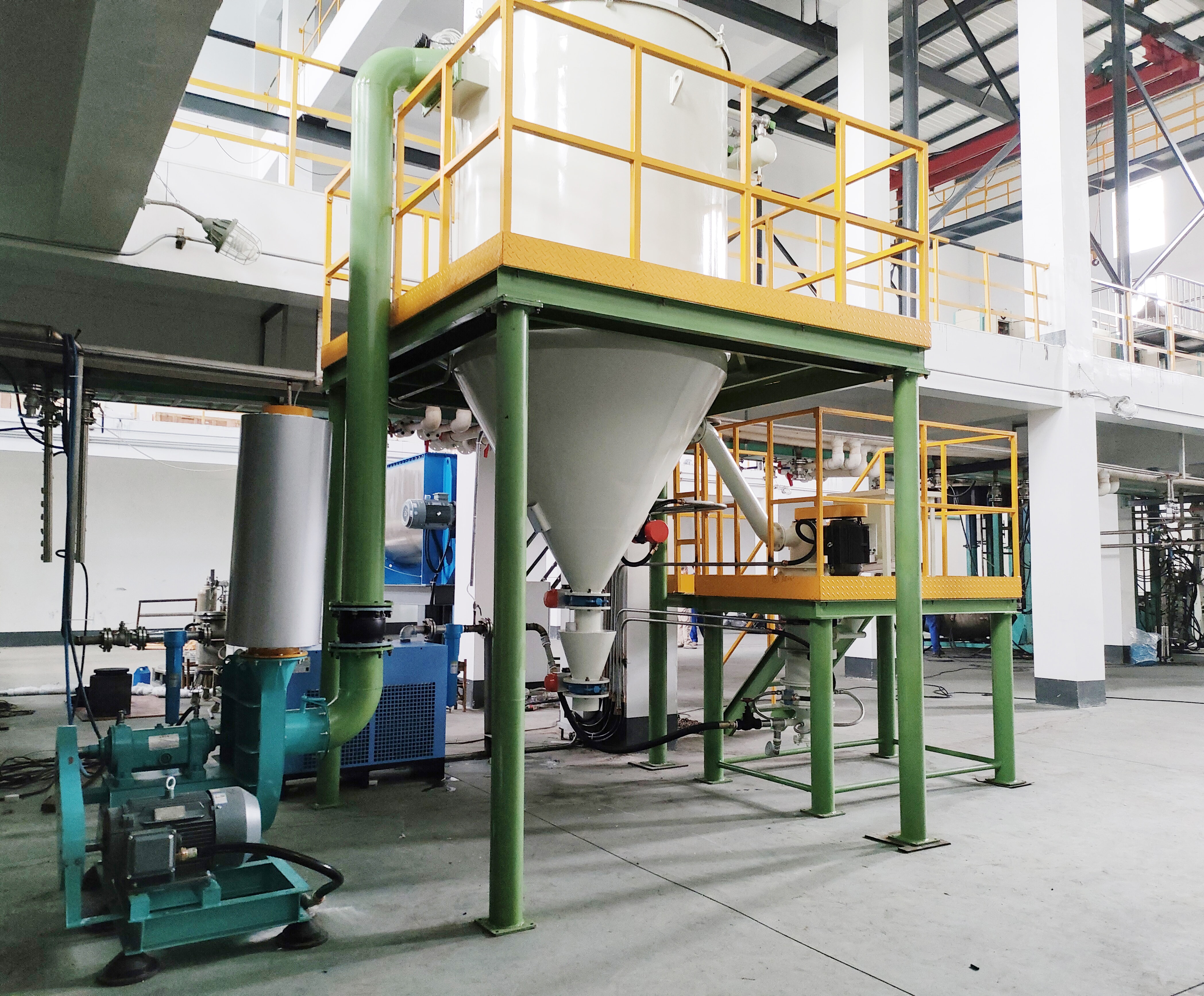

Special Jet Mill For Cathode Materials

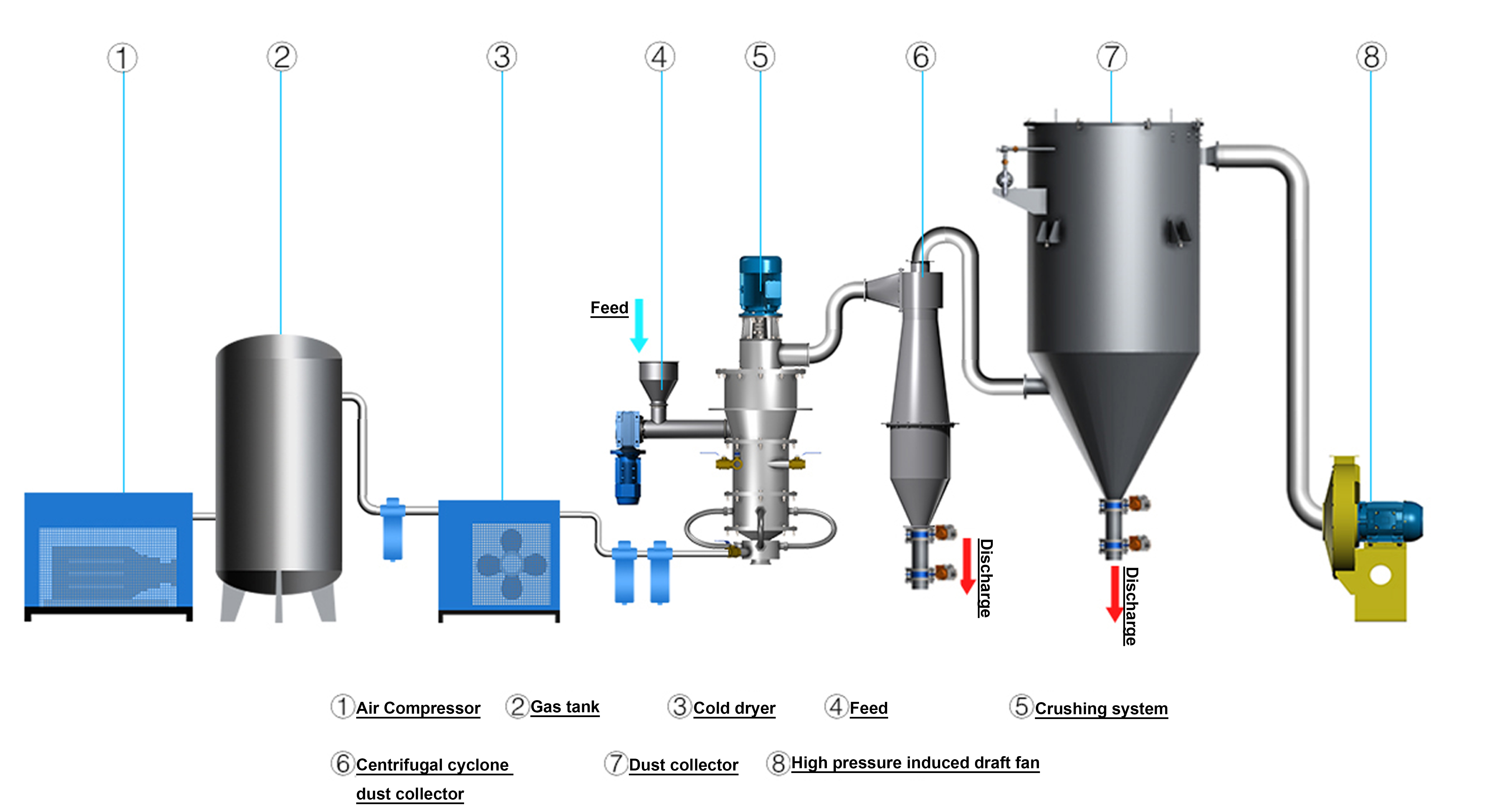

?The positive electrode materials are fed into the milling machine through a uniform feeding device. Under the action of high-speed airflow, the materials collide with each other at high speed and are crushed. The crushed positive electrode materials are then sorted by a high-efficiency centrifugal classifier. The qualified products are discharged from the outlet of the dust collector under the negative pressure of the high-pressure induced draft fan. The unqualified positive electrode materials are recycled back to the milling machine for secondary crushing, and the cycle is repeated until the positive electrode materials are crushed to the required particle size. This equipment has the characteristics of high efficiency, stability, and reliability, which can meet the high requirements of the lithium-ion battery industry for crushing equipment.
Features
?Highly efficient:?JFQ jet mill and grading device uses high-speed airflow to drive positive electrode materials to collide at high speed, which can quickly crush positive electrode materials to the required particle size, with high efficiency.
?Uniform particle size:?JFQ jet mill and grading device can adopt multi-stage grading devices, which can divide the crushed positive electrode materials into particles of different particle sizes, and the particle size of each particle size is evenly distributed, meeting the requirements of production processes.
?Low pollution:?jet mill equipment is a low-pollution milling equipment. There is no mechanical crushing process during the crushing process, which can avoid the pollution caused by mechanical wear. jet mill equipment also has the following low-pollution characteristics:
*No metal pollution
*No dust pollution
*No static electricity pollution
*No chemical pollution
*Low noise
*Strong controllability
?Using JFQ jet mill and grading device to crush lithium-ion battery positive electrode materials has the advantages of high efficiency, uniform particle size, low energy consumption, low noise, and strong controllability.
Product Paramenters

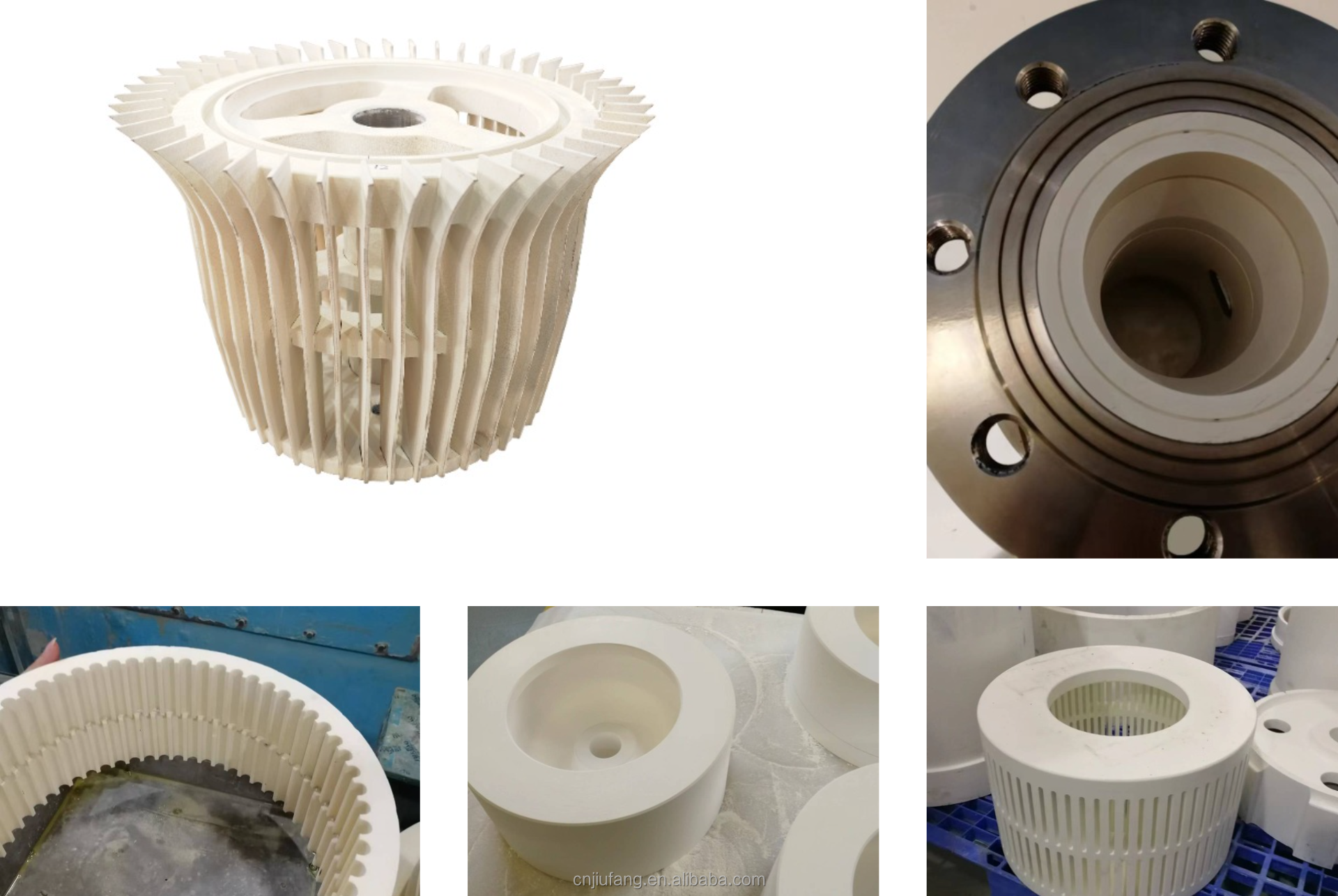

Ceramic Accessories Display
Model | JFQ-50 | JFQ-100 | JFQ-200 | JFQ-300 | JFQ-400 | JFQ-600 | JFQ-800 | JFQ-1000 |
Air consumption (m3/min) | 1.7 | 3.6 | 10 | 16 | 22 | 40 | 60 | 90 |
Air Pressure (Mpa) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
Feed Size (mm) | ≤1 | ≤1 | ≤2 | ≤2 | ≤5 | ≤5 | ≤5 | ≤5 |
Output Size（D97 μm） | 3～74 | 3～74 | 3～74 | 3～74 | 3～74 | 3～74 | 3～74 | 3～74 |
Production Capacity(kg/h) | 1～3 | 1～5 | 15～30 | 30～80 | 80～200 | 200～500 | 500～1000 | 1000～1500 |
Installed Power（kw） | ≤20 | ≤35 | ≤75 | ≤120 | ≤168 | ≤320 | ≤600 | ≤850 |

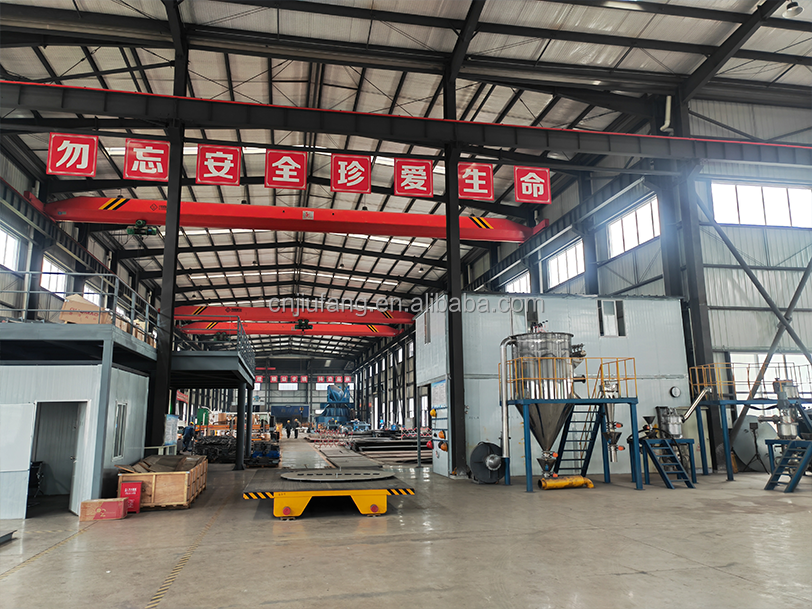

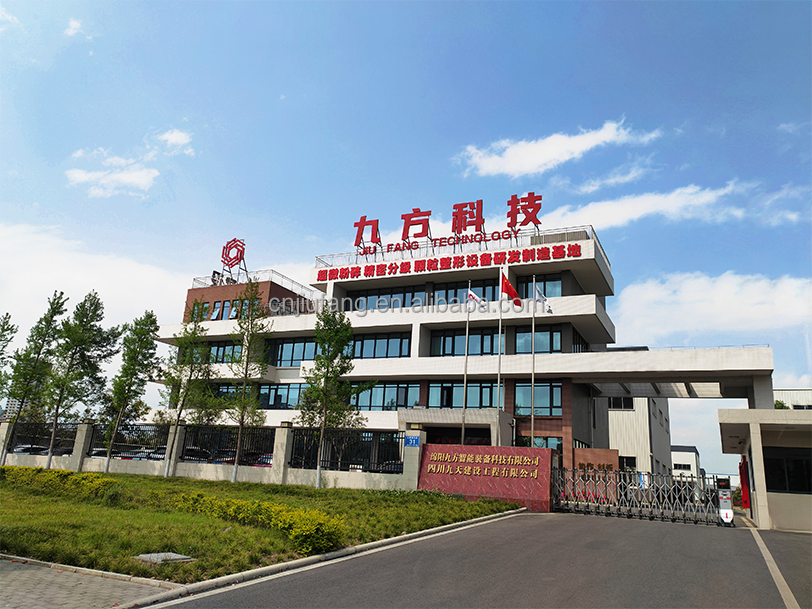

Company Profile
Mianyang Jiufang Intelligent Equipment Technology Co., Ltd
Our product portfolio includes a wide range of powder processing equipment, including:
* Superfine grinding
* Precision classification
* Particle morphology shaping
* Special powder grinding and classification for flammable and explosive materials
OFFLINE EXHIBITION

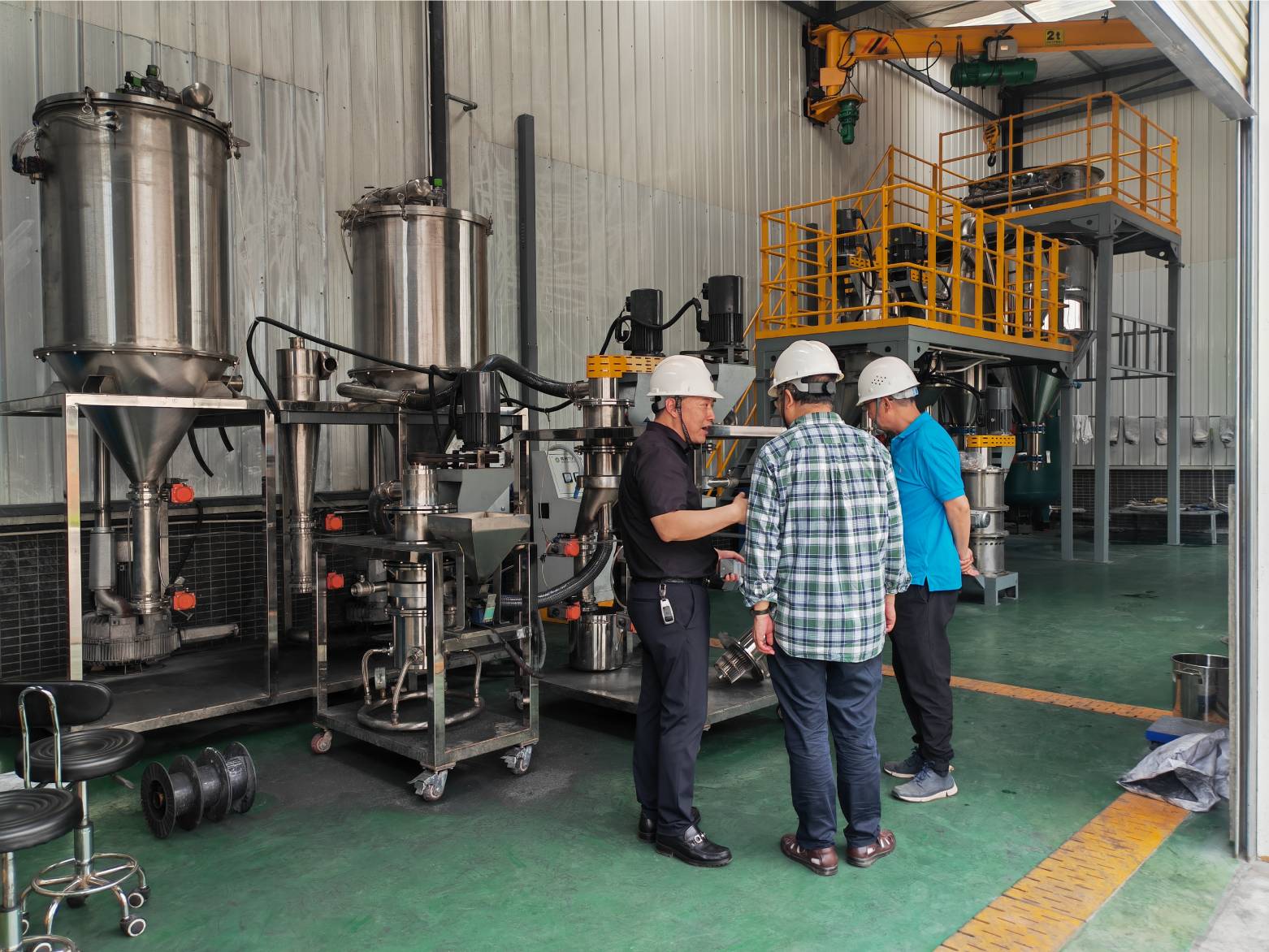

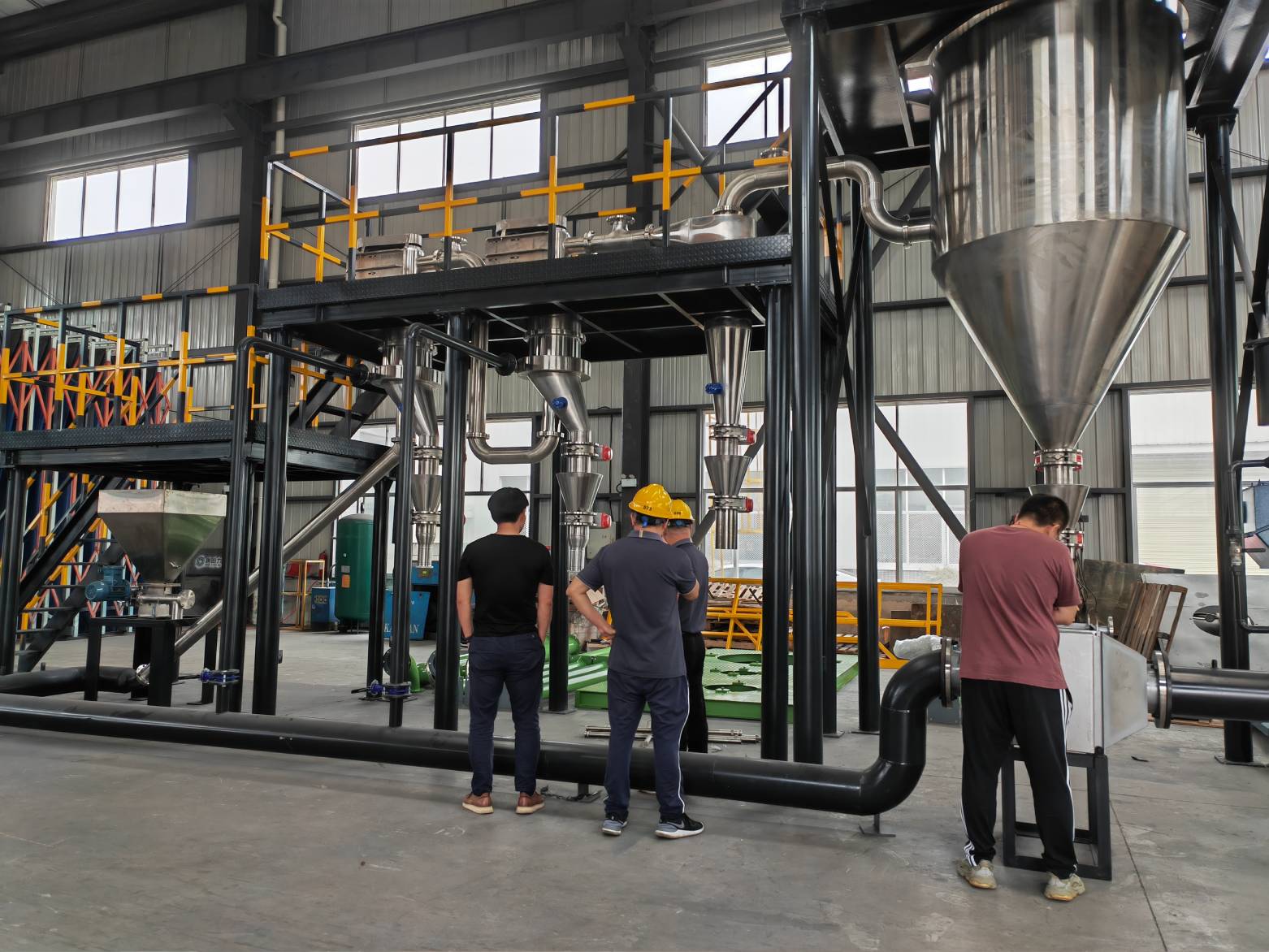

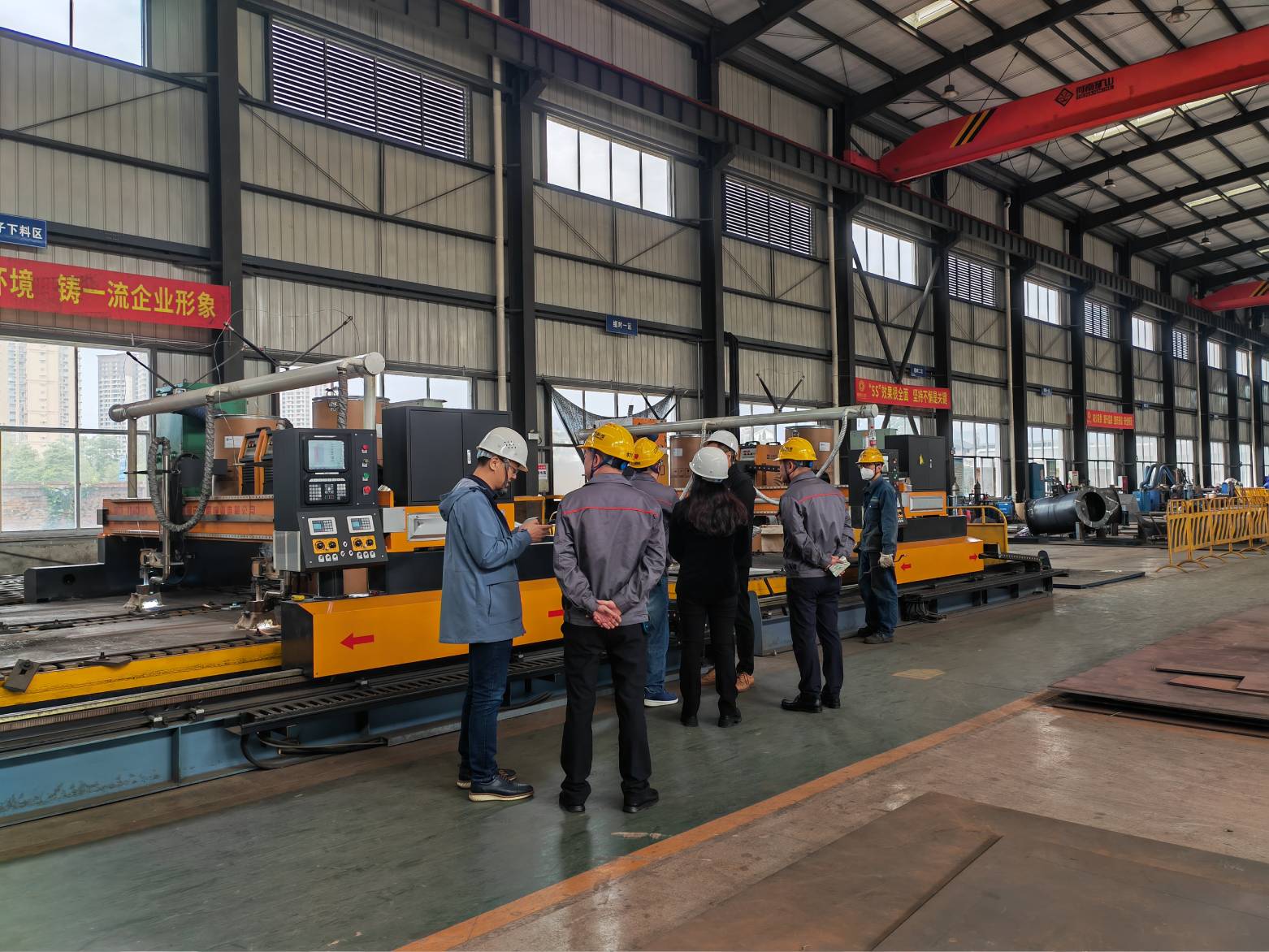

CUSTOMER VISIT
They Choose Us
?Jiufang is a leading global Powder provider with a network of over 30 countries and regions. We are trusted by over 3,000+ customers, including Fortune 500 companies, leading universities，government agencies, and small businesses.
FAQ
Q: What services do you offer?
A: We're your one-stop shop for complete equipment and project support. We offer:
* Feasibility studies and planning: We assess project viability, define process flows, and create preliminary layouts and budgets.
* Equipment testing and comparison: Test your materials on our diverse range of machines in our well-equipped test station to find the perfect match.
* Comprehensive engineering services: Our experts handle project, automation, and civil engineering, ensuring a seamless project flow.
* On-site installation and support: Our experienced engineers travel to your site to guide installation, commissioning, and test runs, ensuring smooth operation.

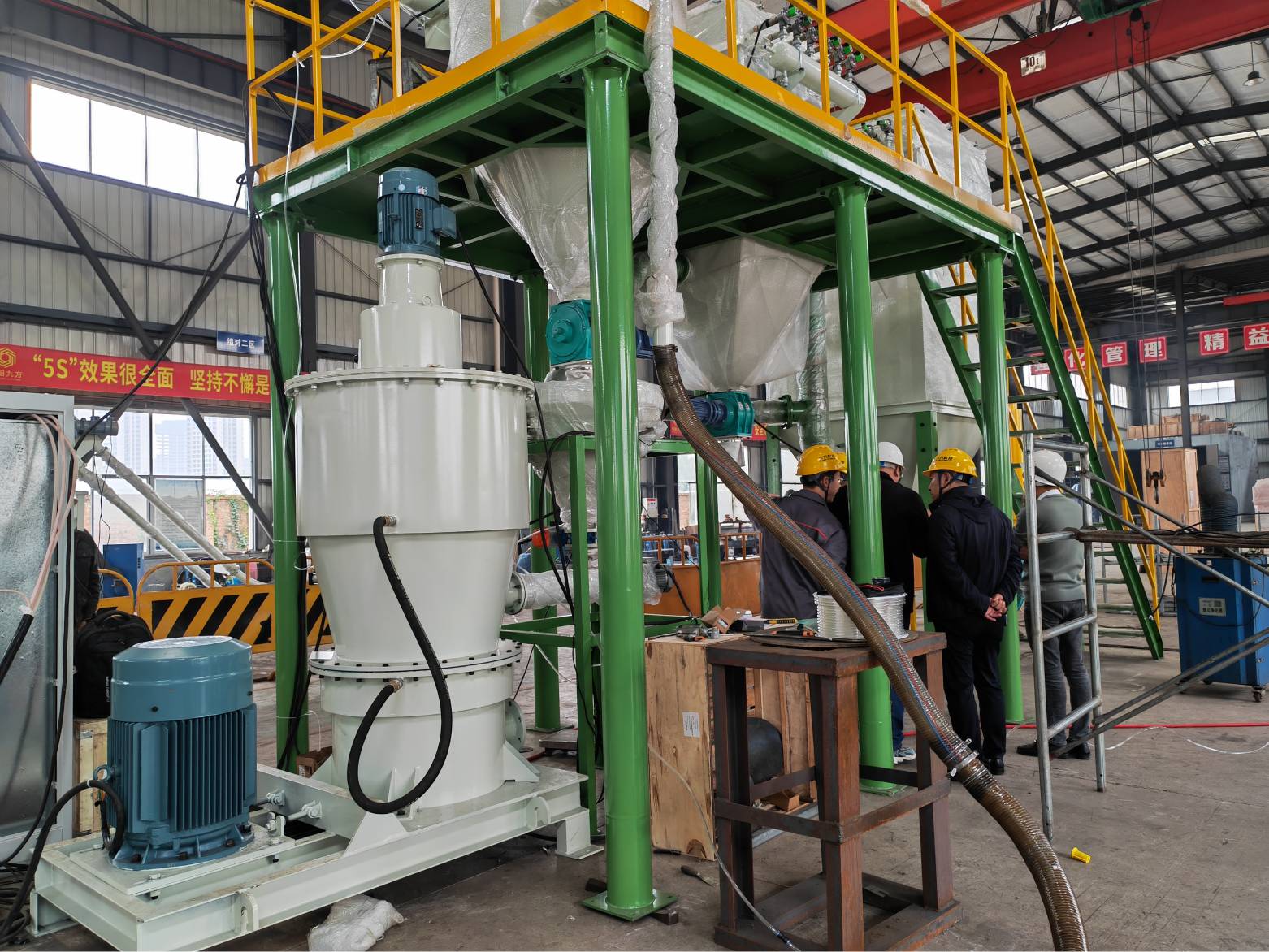

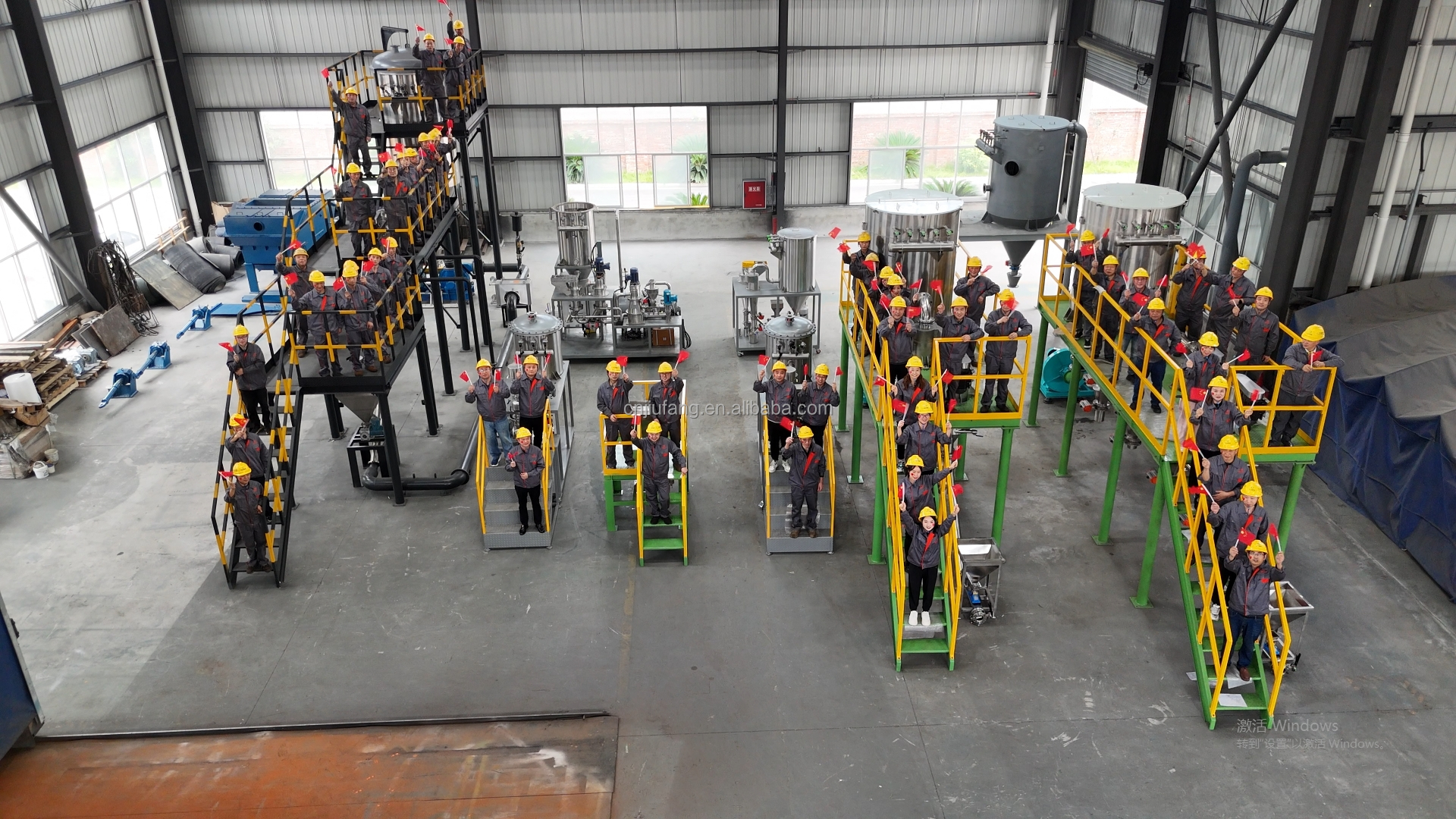

Check the equipment in the handover process ↓↓↓
A: We're your one-stop shop for complete equipment and project support. We offer:
* Feasibility studies and planning: We assess project viability, define process flows, and create preliminary layouts and budgets.
* Equipment testing and comparison: Test your materials on our diverse range of machines in our well-equipped test station to find the perfect match.
* Comprehensive engineering services: Our experts handle project, automation, and civil engineering, ensuring a seamless project flow.
* On-site installation and support: Our experienced engineers travel to your site to guide installation, commissioning, and test runs, ensuring smooth operation.
Check the equipment in the handover process ↓↓↓
Q: How can I be sure of your equipment quality?
A: We prioritize quality and reliability:
* Rigorous testing: Every machine undergoes thorough testing in our workshop before leaving our doors.
* Warranty and after-sales support: We offer a one-year warranty on all equipment and lifelong after-sales service for your peace of mind.
* Pre-order material testing: Send us your materials, and we'll test them on our equipment to ensure compatibility before you order.
* Expert installation and training: Our engineers stay on-site until your equipment produces perfect results, training your staff along the way.
Q: Do you offer international engineer dispatches?
A: Absolutely! We provide dispatched engineers to assist with your project anywhere in the world. We also offer free on-site training for your staff.
Q: How do you train our staff on operation and maintenance?
A: We make training easy and efficient:
* Detailed instructional materials: We provide clear, step-by-step guides with pictures for both operation and maintenance.
* On-site expert guidance: Our engineers provide hands-on training during assembly and installation, ensuring your team is fully prepared.
A: We prioritize quality and reliability:
* Rigorous testing: Every machine undergoes thorough testing in our workshop before leaving our doors.
* Warranty and after-sales support: We offer a one-year warranty on all equipment and lifelong after-sales service for your peace of mind.
* Pre-order material testing: Send us your materials, and we'll test them on our equipment to ensure compatibility before you order.
* Expert installation and training: Our engineers stay on-site until your equipment produces perfect results, training your staff along the way.
Q: Do you offer international engineer dispatches?
A: Absolutely! We provide dispatched engineers to assist with your project anywhere in the world. We also offer free on-site training for your staff.
Q: How do you train our staff on operation and maintenance?
A: We make training easy and efficient:
* Detailed instructional materials: We provide clear, step-by-step guides with pictures for both operation and maintenance.
* On-site expert guidance: Our engineers provide hands-on training during assembly and installation, ensuring your team is fully prepared.
