Jigging Machine For Mining Diamond Processing Panning Equipment On Sale

Product Description

Jigging Machine uses water as mineral media, belong to deep tank separation process, which can separate mineral ore from gangue according to difference of wight proportion. Diaphragm, stroke and frequency of stroke can adjust flexibly, and it is used for tungsten, tin, sand gold, hematite, magnetite, manganese, titanium, antimony, lead, niobium gravity process.

Advantages of?Jigging Machine

1.Stroke and jig frequency are easy to adjust, the advanced frequency conversion speed control technology is convenient to operateand manage.
2.Small cover area, high processing capacity per unit area.
3.Suitable for a wide range of particle size because of large processing capacity.
4.High recovery rate and easy to change spare parts and maintain.

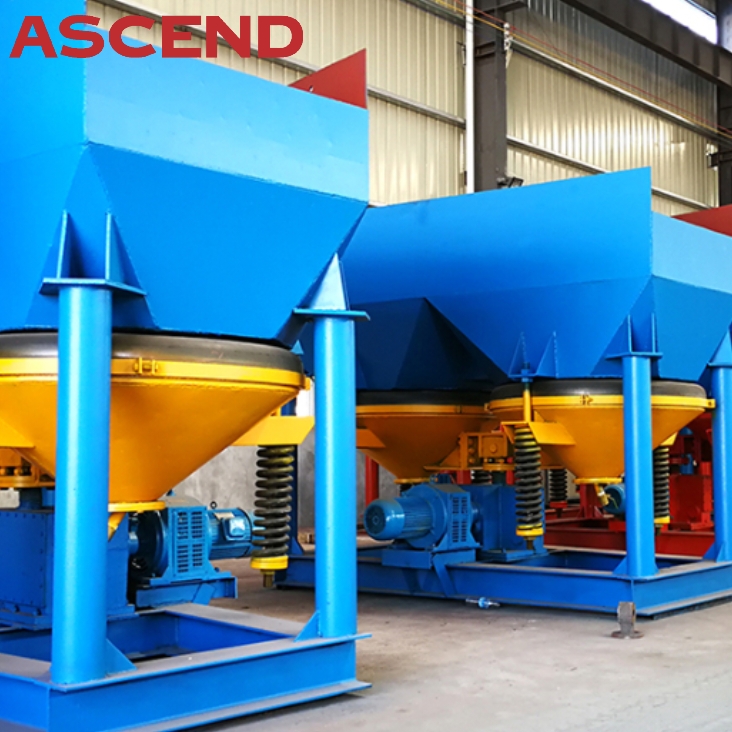

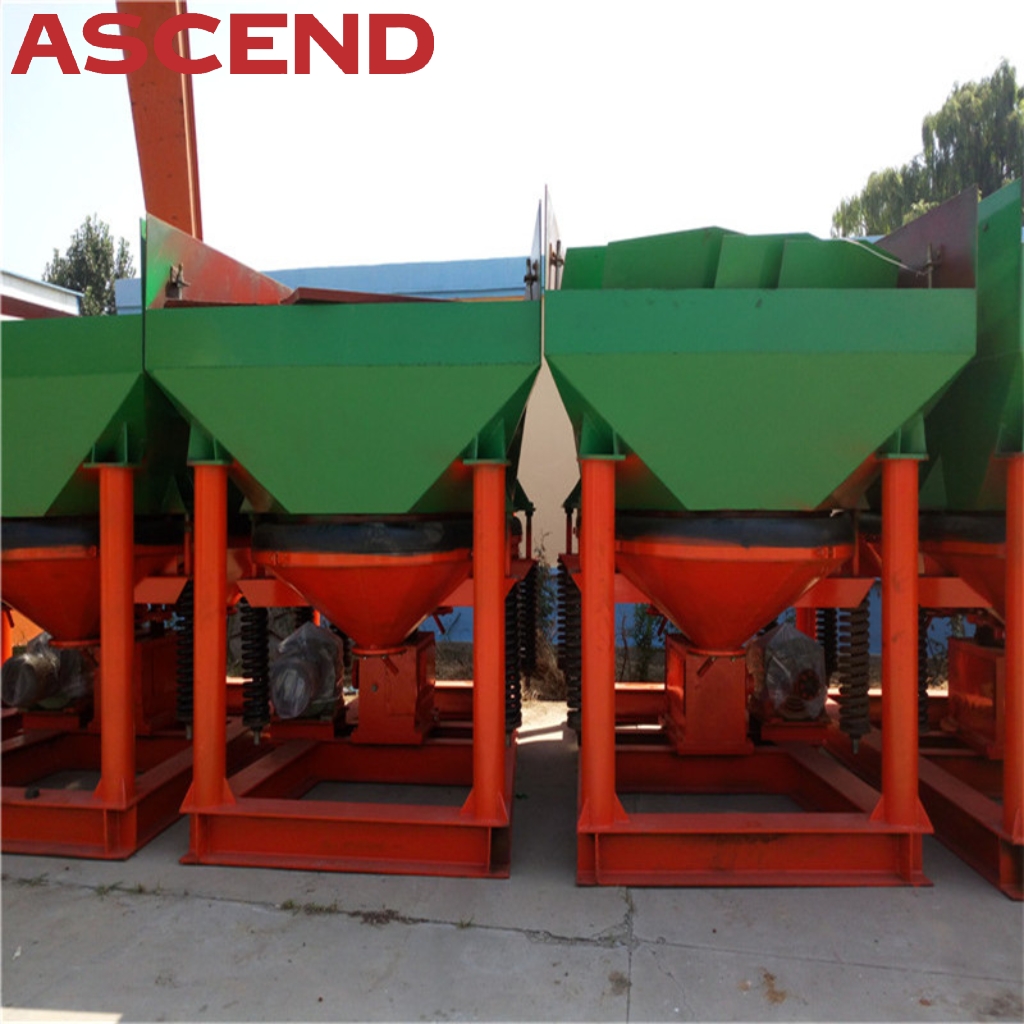

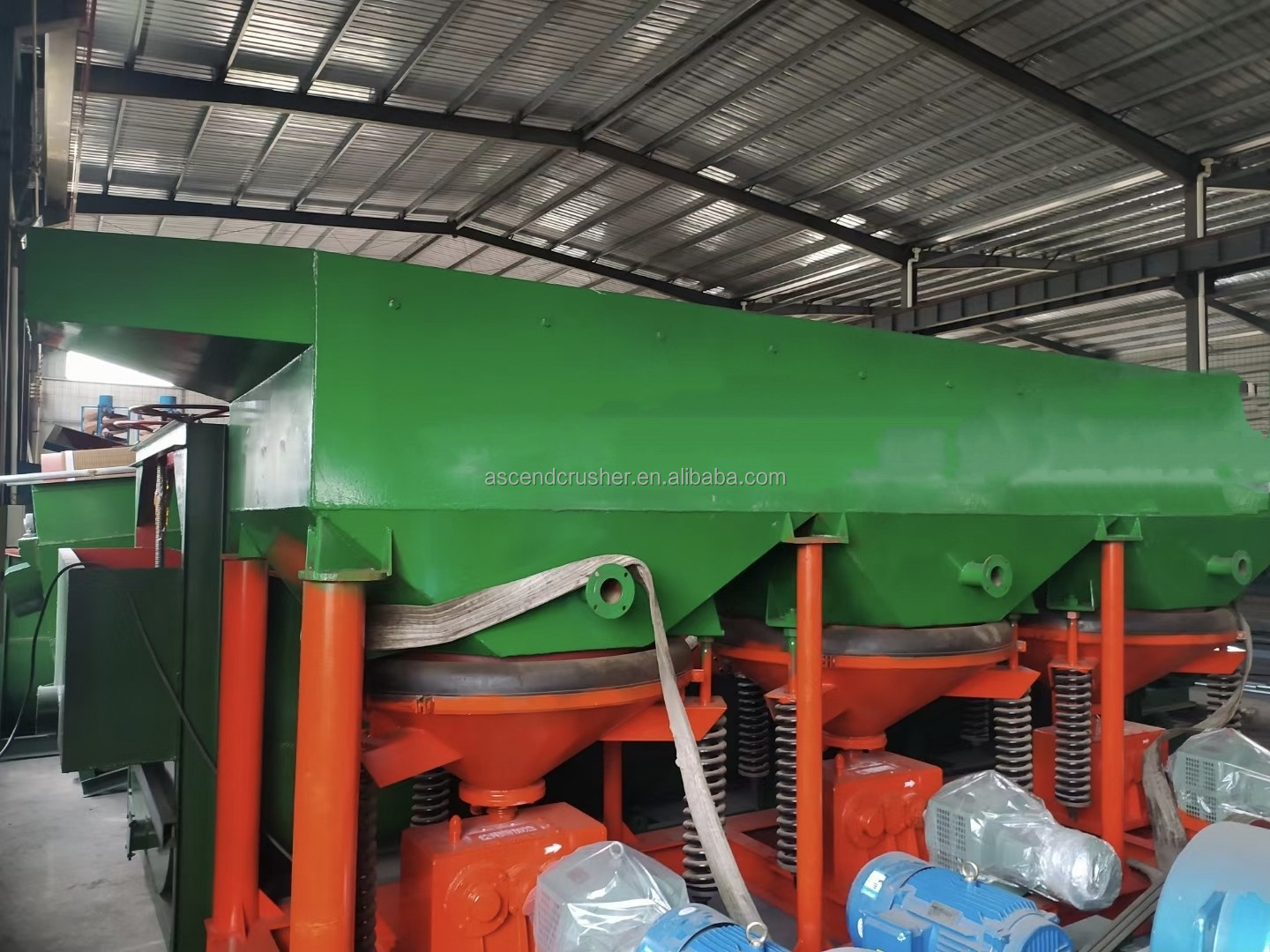

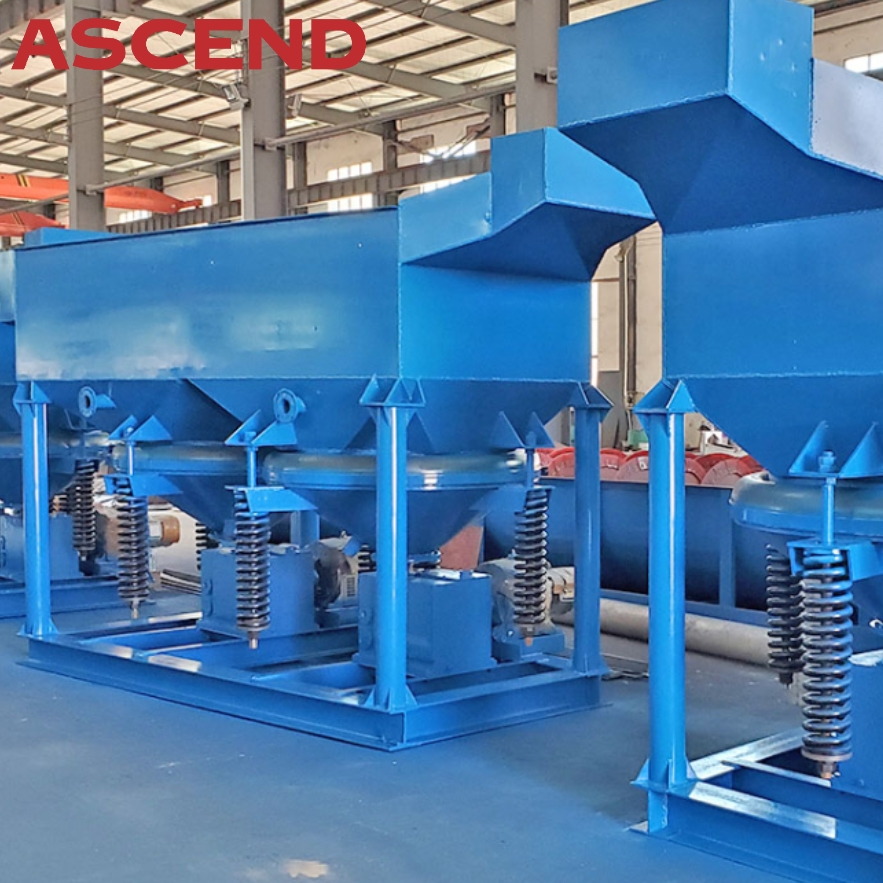

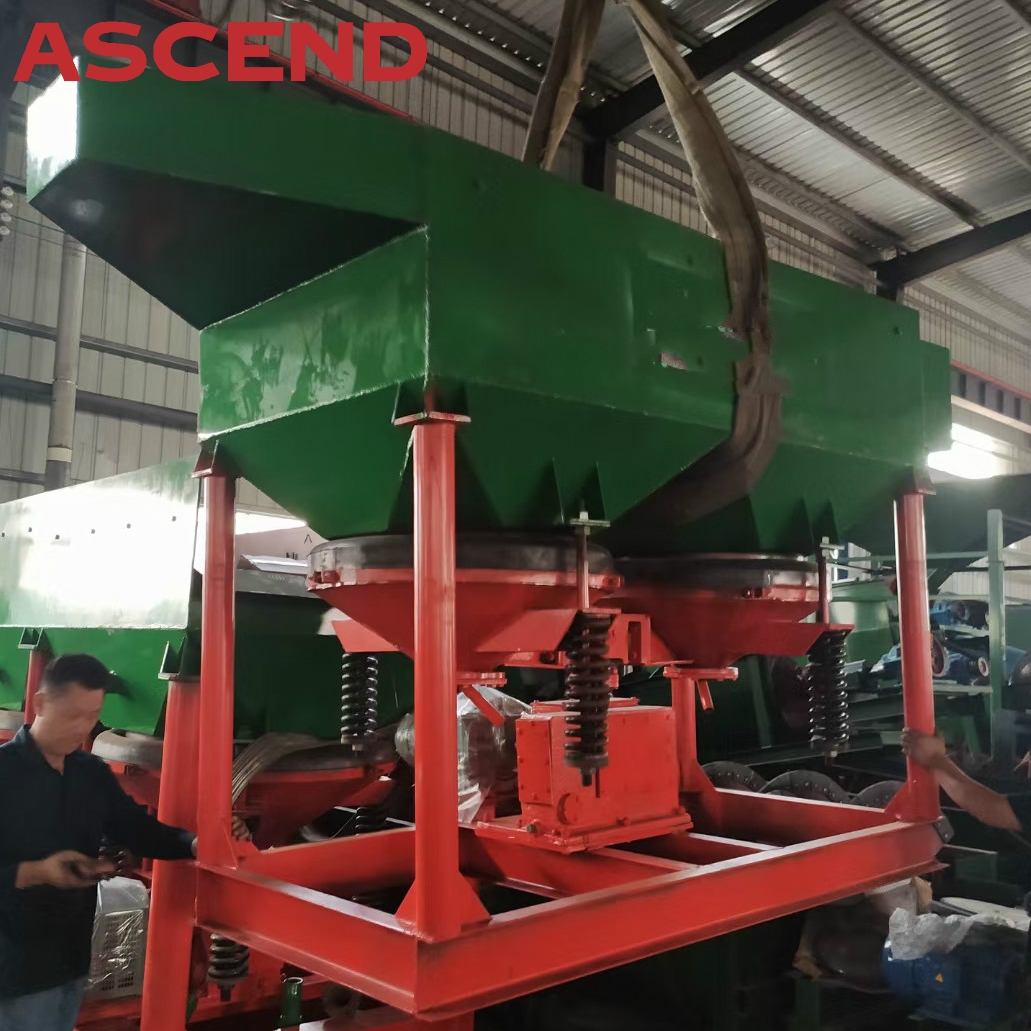

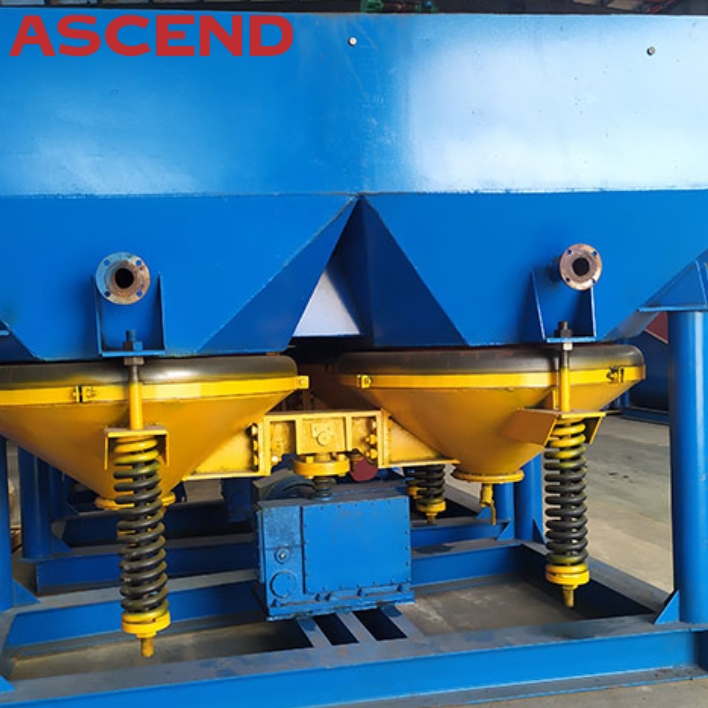

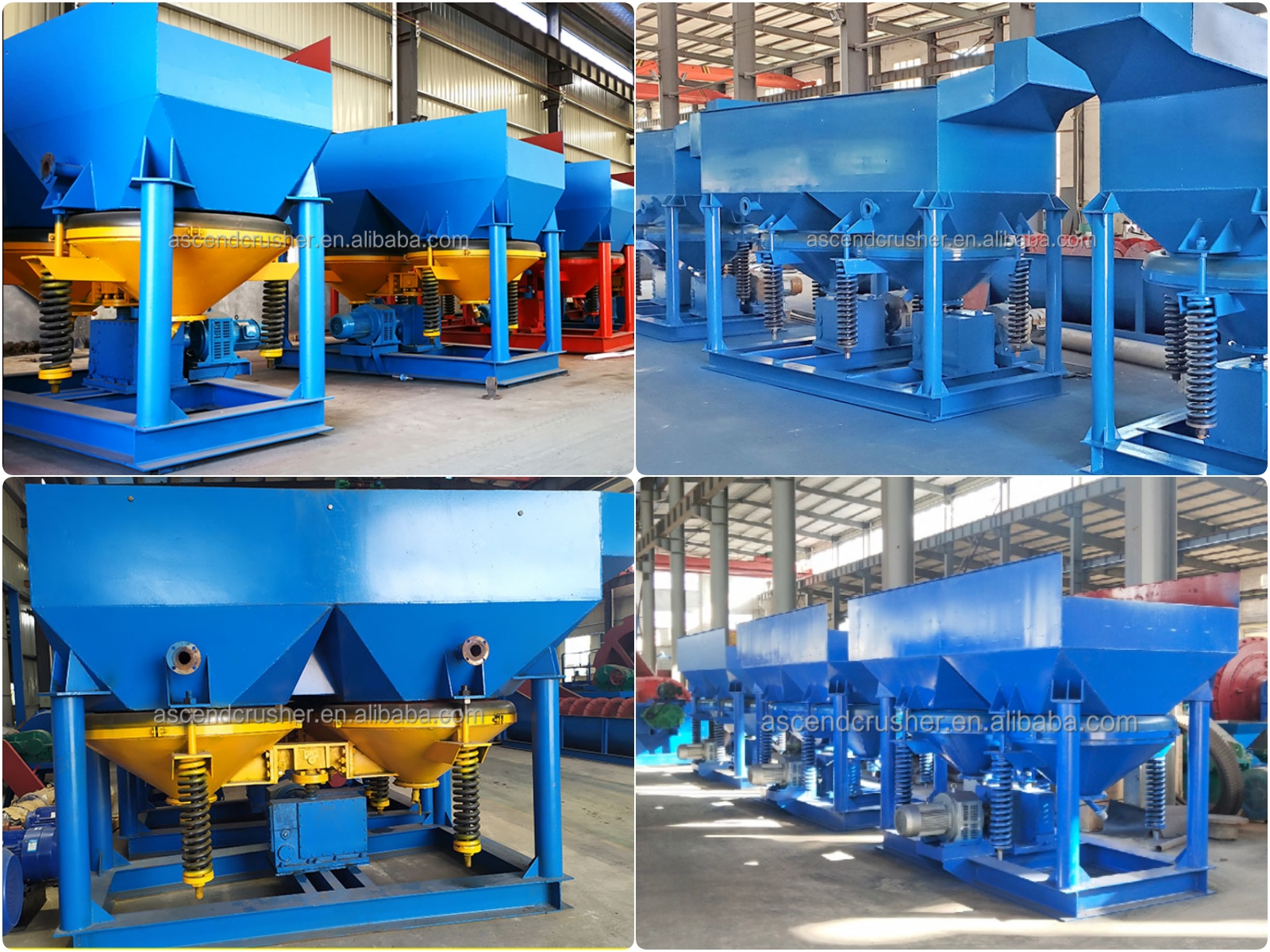

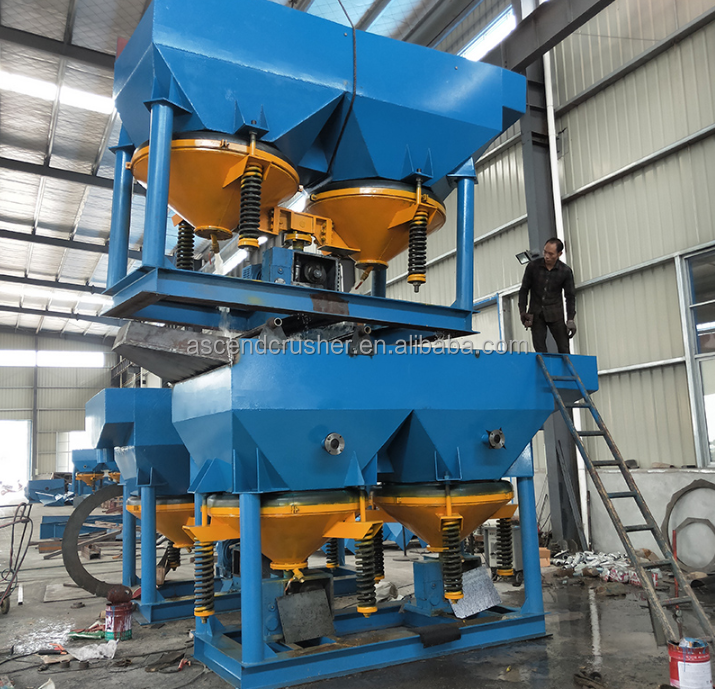

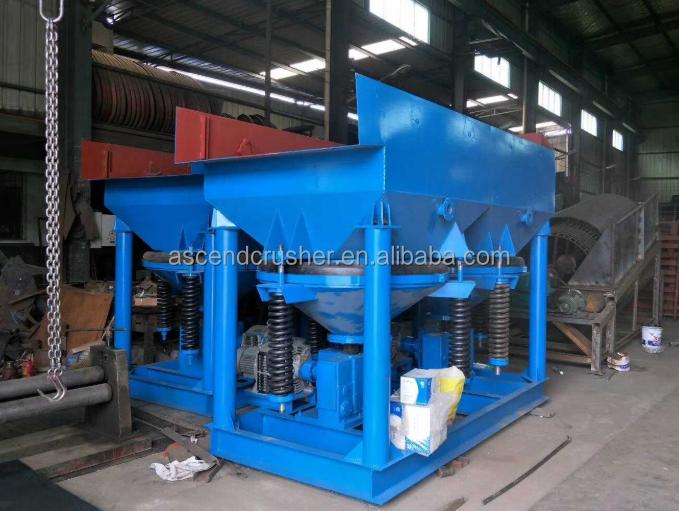

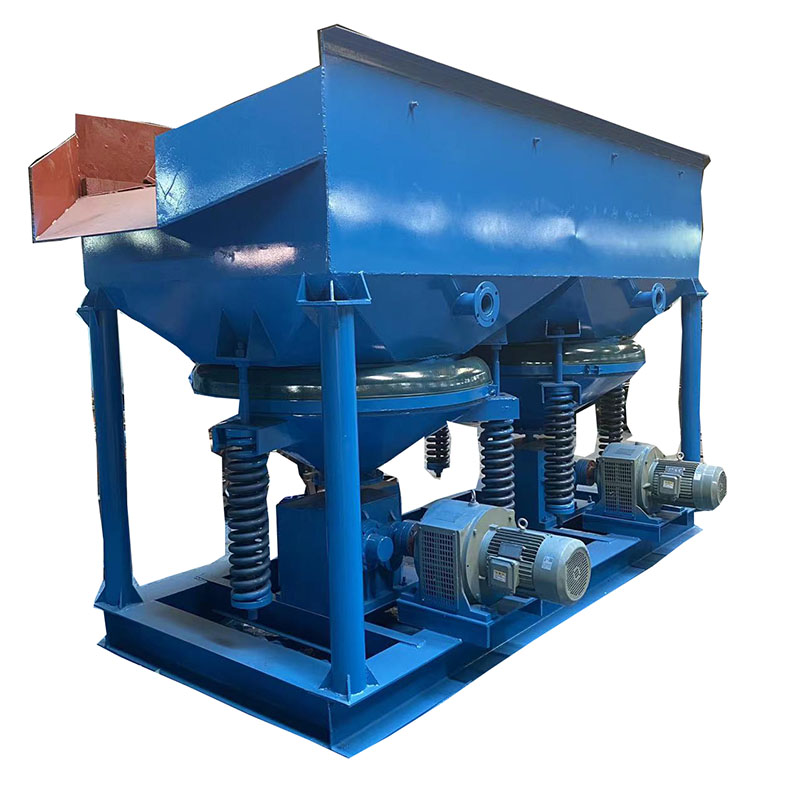

Detailed Images

?

Working Principle

Motor drives reduction gears moving by the transmission. There are eccentric adjusting devices at both output ends of the reduction gears.The eccentric adjusting device drive the connecting rod after adjusting to drive the driving pan to do the alternation motion extruding the liquid in the cell body and promoting waves. The waving water moves through the screen to impact the ore on the screen making the ore in the state of free-failing body in the liquid. The ore grains own different dropping speed in the liquid because of the different density, so the ore will separate naturally. Finally, the heavier ore will be discharged out of the cell body after the adjustment and the lighter ore floats the waste-discharging mouth to be discharged and the whole ore beneficiation process is finished.

Main Technical Parameters

?

Model	Jig Area (M2)	Stroke (R/Min)	Feeding size (mm)	Hutch Water ( T/H)	Pressure Water (kg/cm2)	Capacity (T/H)	Power (KW)	Overall dimensions (mm)	Weight (T)
JT0.57-1	0.57	60-160	<6	1-2	≥0.3	1-2.5	1.5	1560x820x1550	0.612
JT1-1	1.04	60-160	<10	2-3	≥0.3	4-10	2.2	1322x1190x1915	0.9
JT2-2	2.28	60-160	<10	2-4	≥0.3	8-15	3	3225x1550x2150	1.637
JT4-2	4	50-125	<10	4-8	≥0.1	8-16	7.5	4240x1990x2750	4.6
JT4-2A	4	50-125	<10	4-8	≥0.1	8-16	8	4240x1990x2750	4.6
JT5-2	4.86	80-120	<10	4-10	≥0.1	10-20	7.5	3940x2006x2580	4.6

?

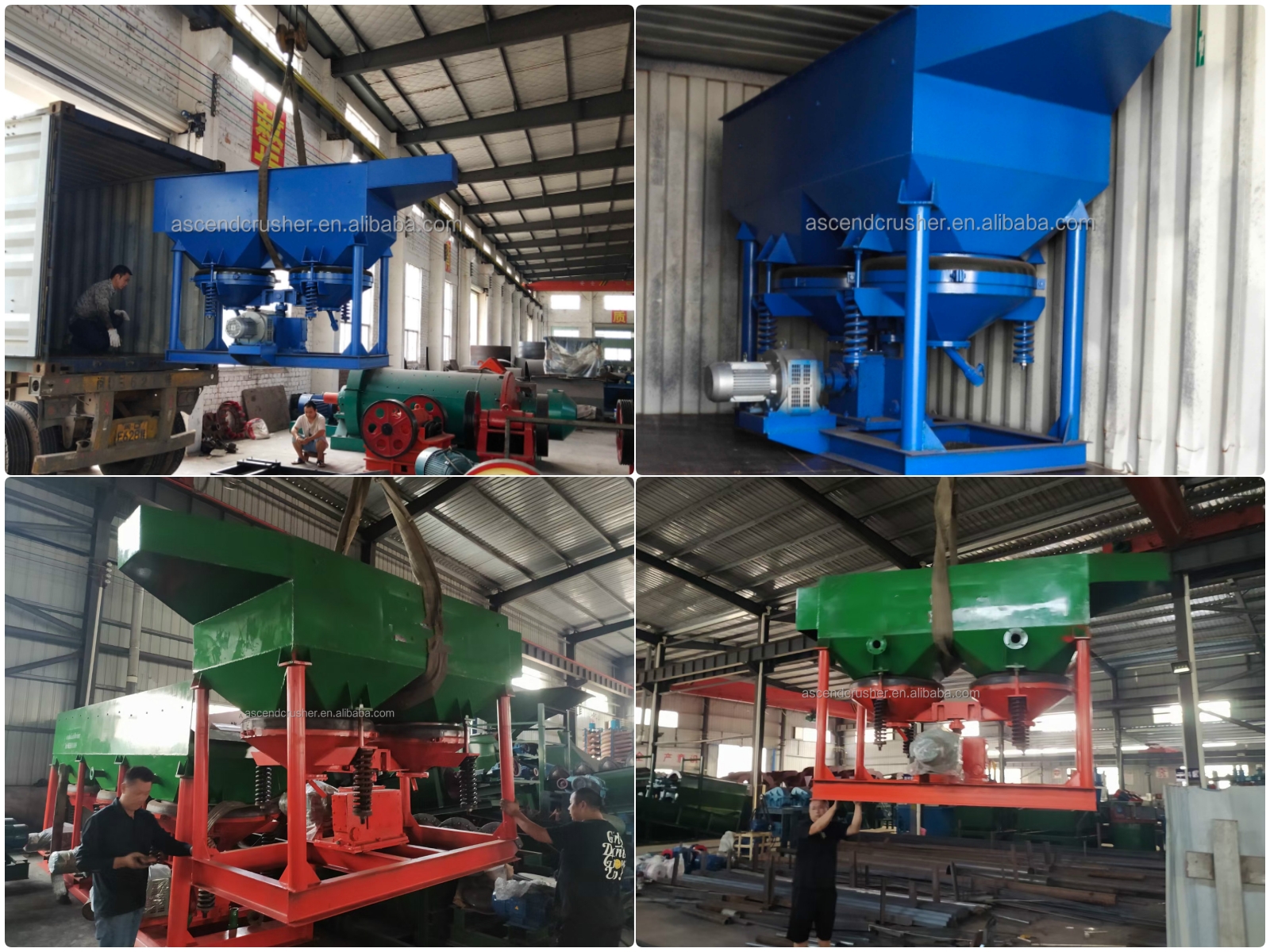

Packing&Delivery

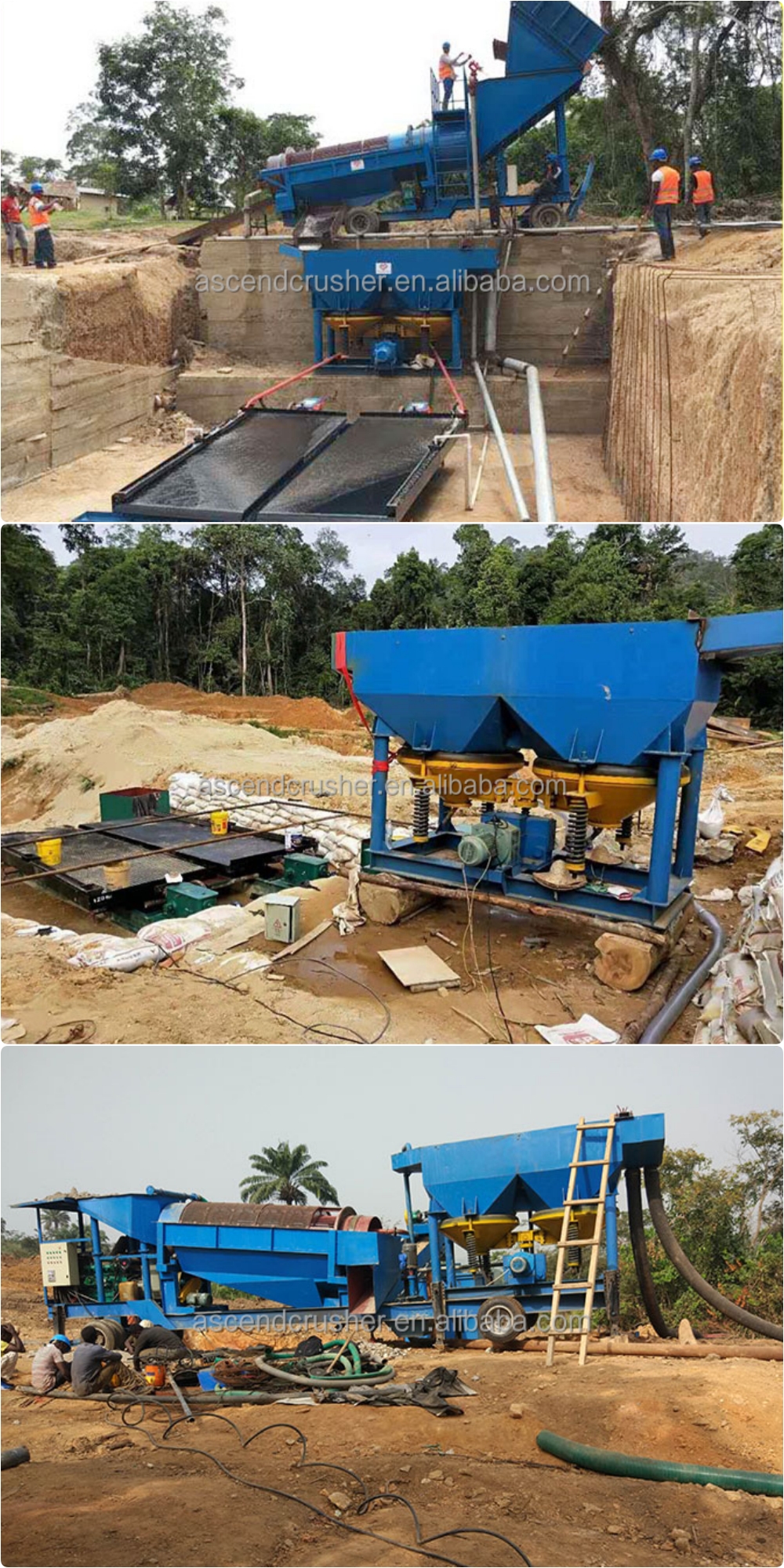

Mining Cases

Company?Profile

• Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
• The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascend machinery expands its business in more than 160 countries and regions.

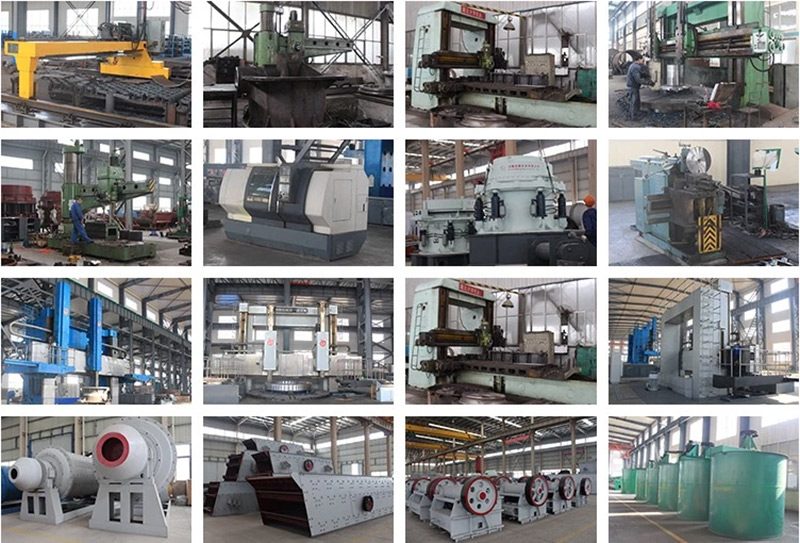

Our Workshop

?

FAQ

Q1. Are you factory or trading company?
We are factory specialized in manufacturing stone crushers, grinding mills, beneficiation equipments and other mining equipments. Our office and factories are based in Zhengzhou, China. Because we are factory, so we can guarantee the machine quality and we can give you very competitive factory price without extra agent cost.
Q2. To which country your products have been exported before?
In Africa, We have exported to Sudan, Kenya, Zambia, Ethiopia, Zimbabwe, Guinea, Nigeria and so on. We also exported South Africa, Chile, Peru, Ecuador, New Zealand, America, Austrilia more than 160 countries. Our equipment and service have won very high reputation in these countries.
Q3. How will you help the customer install the equipment?
We will send our senior engineer to your place to guide the installation and commissioning.
Q4. How about the wear parts supply?
We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place.
Q5.What about the payment method?
T/T, Paypal, Western Union, L/C is available.
Q6.What about after-sale service?
12 months warranty for all kinds of products; and you will get our 7*24h online service.

Related Products

???

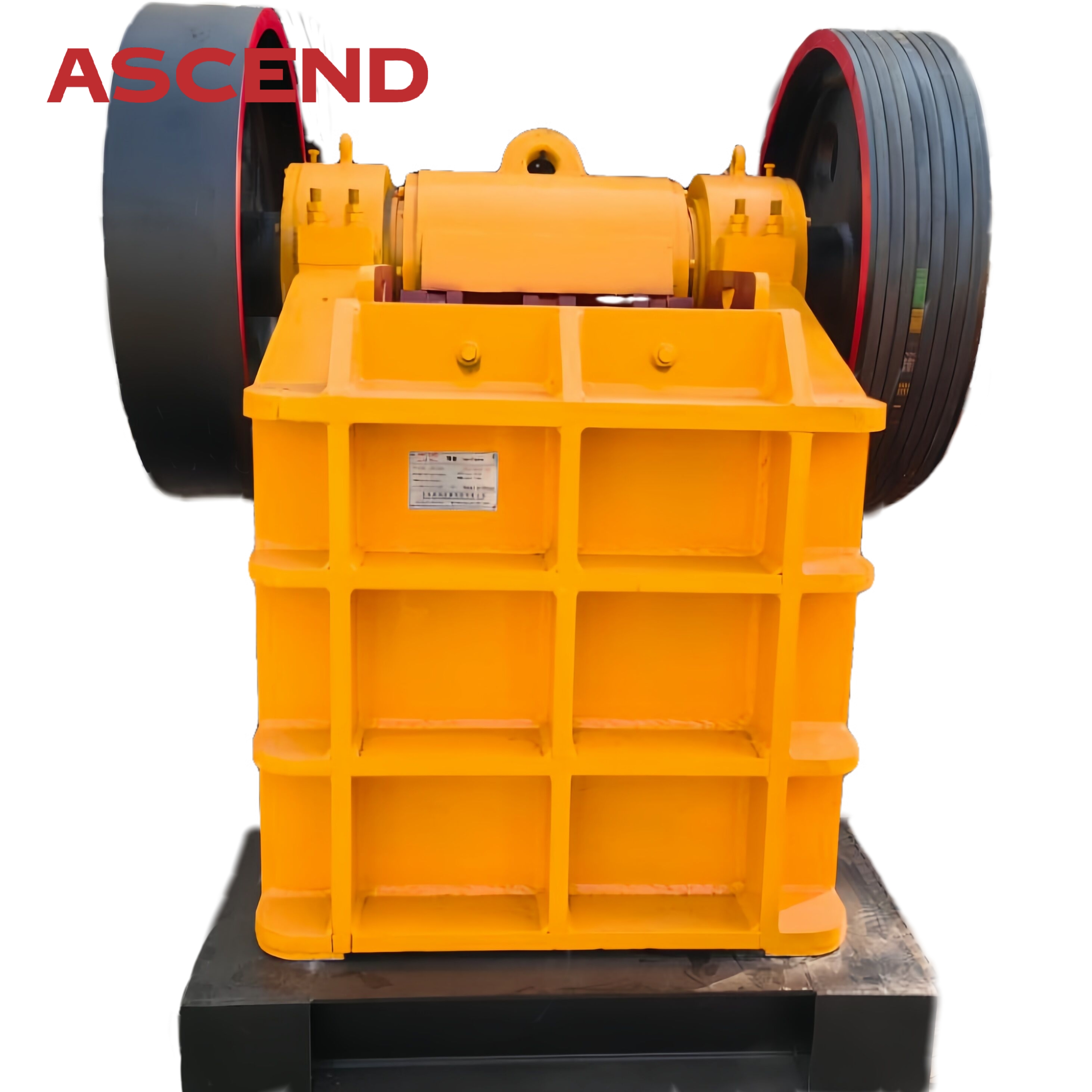

Small And Medium Capacity Stone Breaker Machine PE 200x300 And Different Types Jaw Crusher For Sale

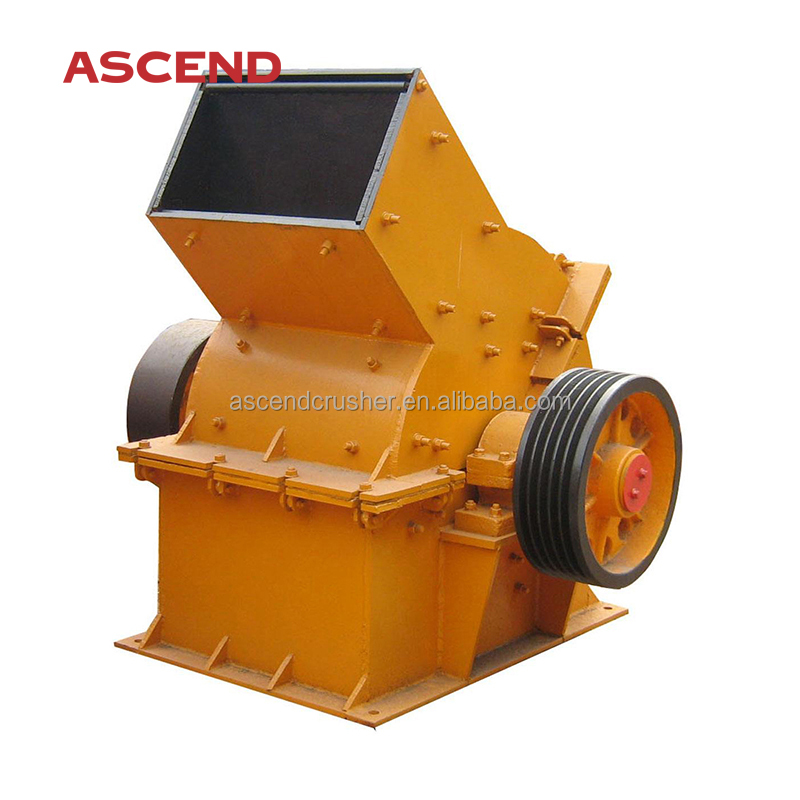

Gold ore quartz rock stone powder making hammer crusher mill PC400x300 PC600x400

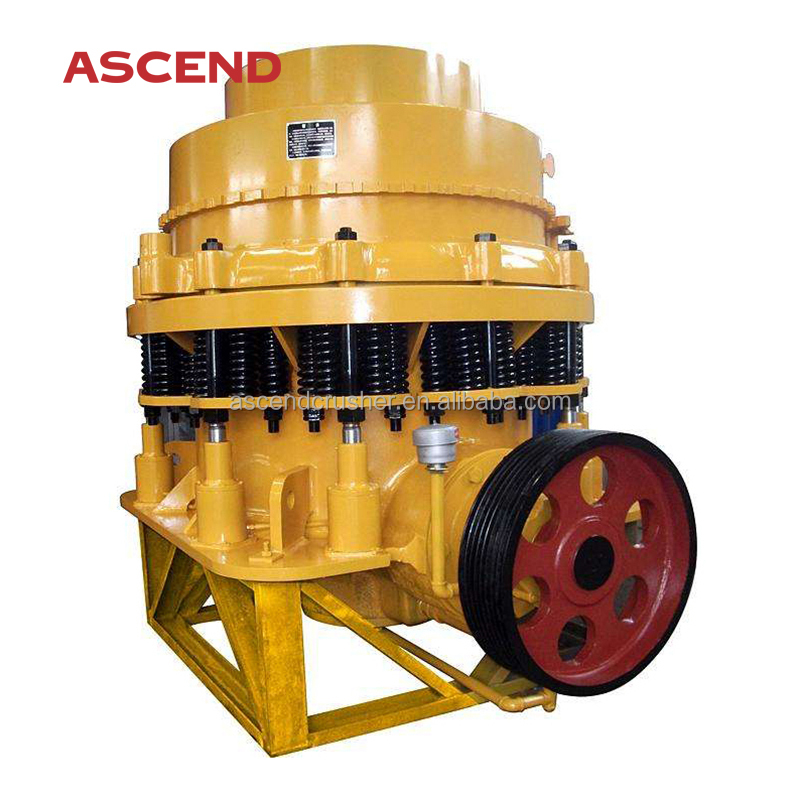

Quarry aggregates and gravel making hydraulic spring PYB900 Cone Crusher Crushing breaker machine

?

?? ?

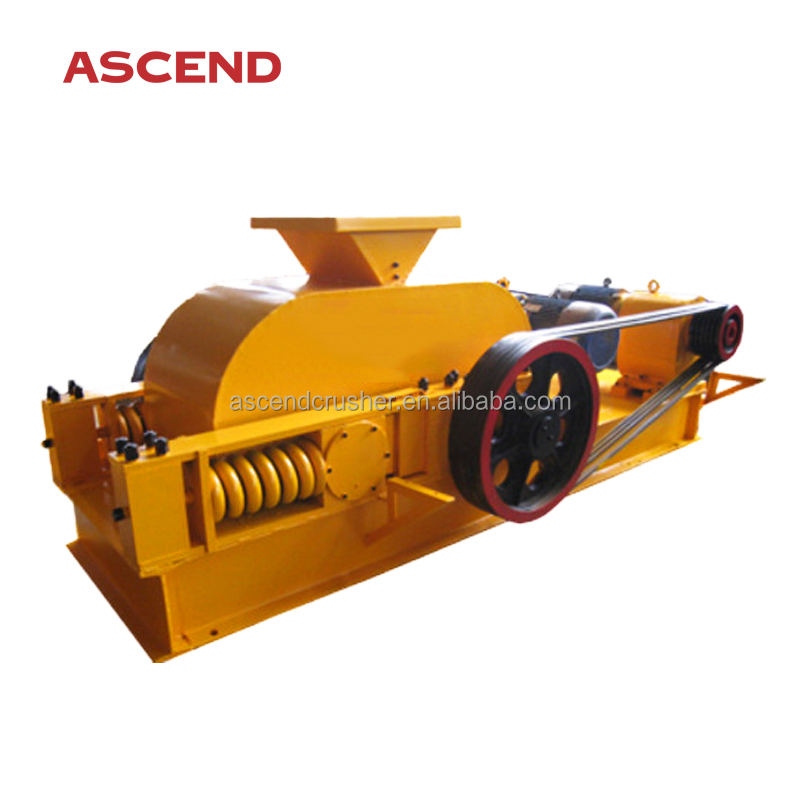

Rock stone Double two roller crusher mill machine for sand making crusher 2PG400x250 2PG610x400 model

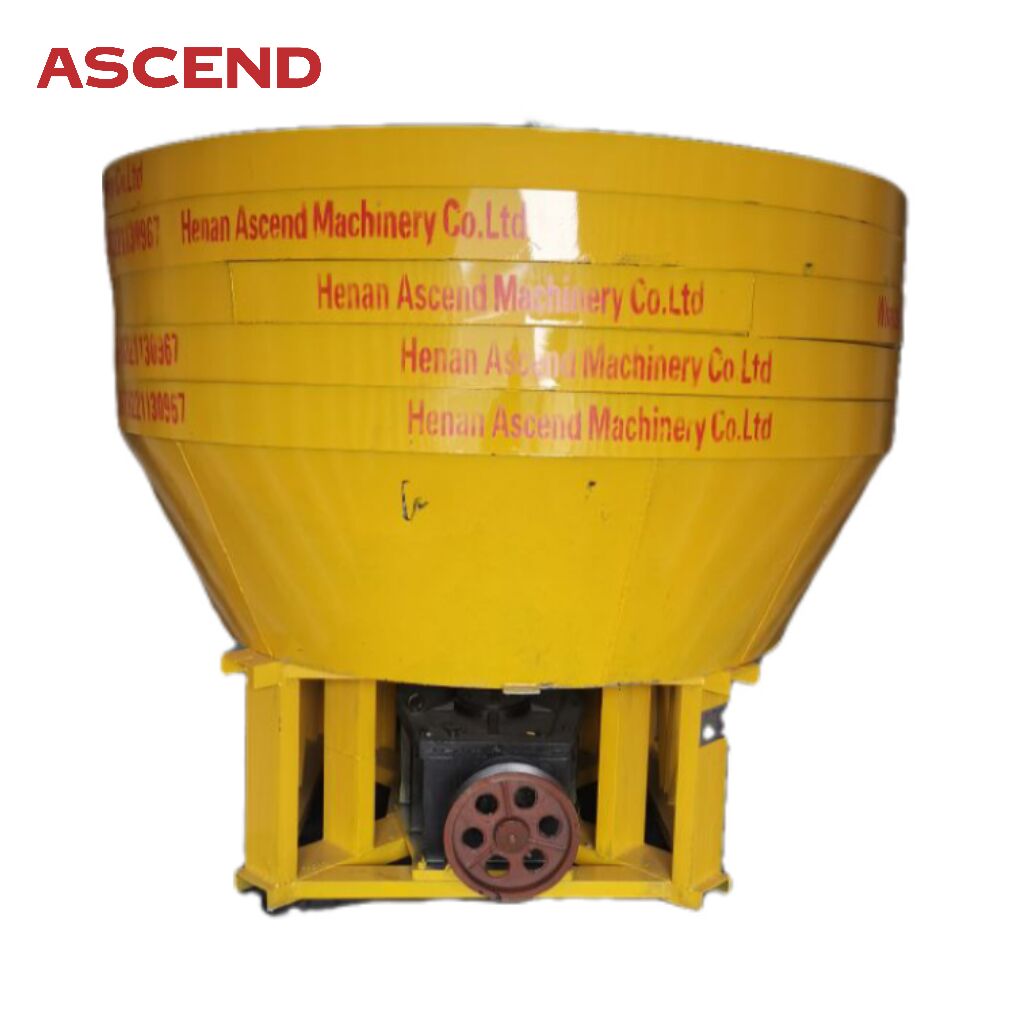

Good quality Sudan Egypt Zimbabwe 1100 1200 1200a 1200b gold wet pan mill grinding mill machine for sale

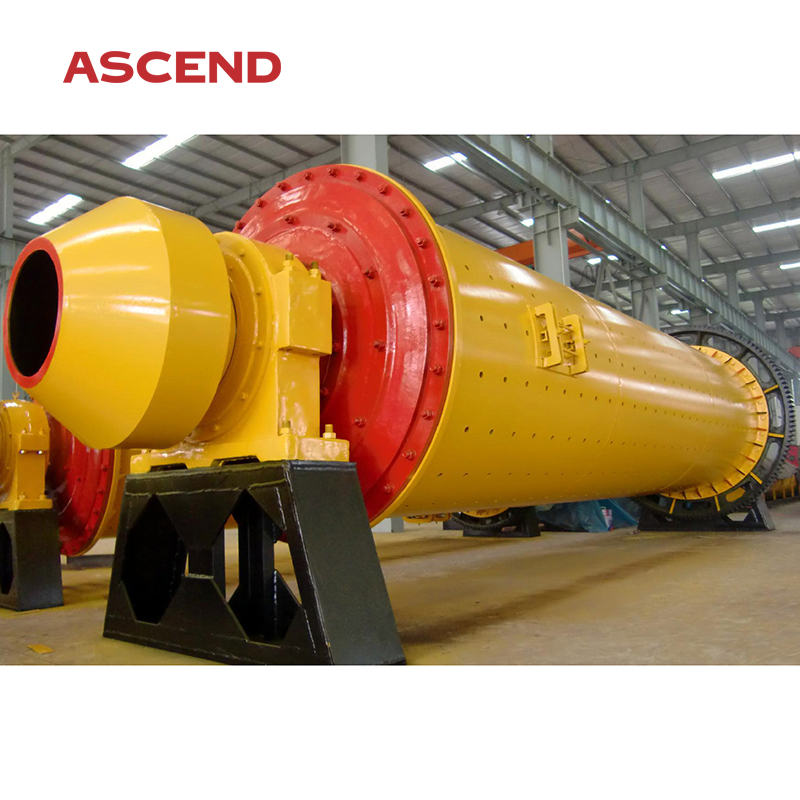

Gold Stone Mining dry wet type small rotary Ball Mill Stone Grinding Mill crusher 900x1800 1200x2400 model

?
