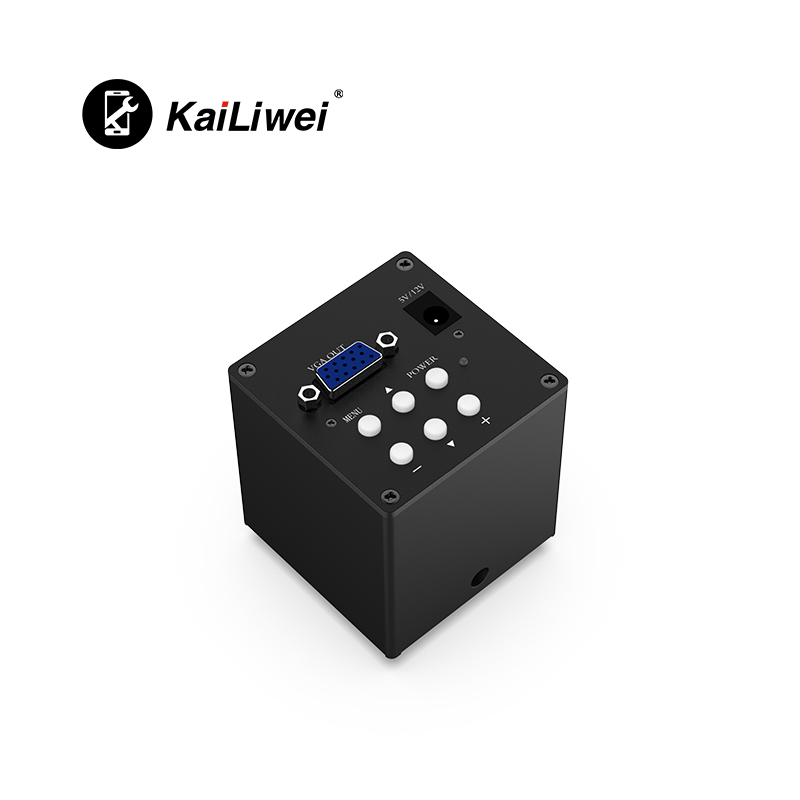

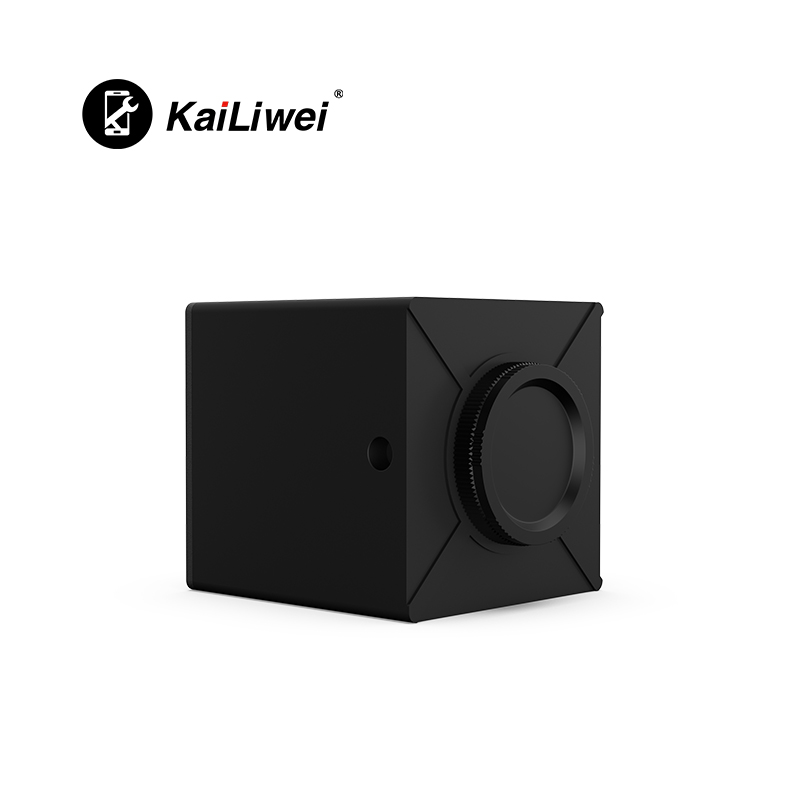

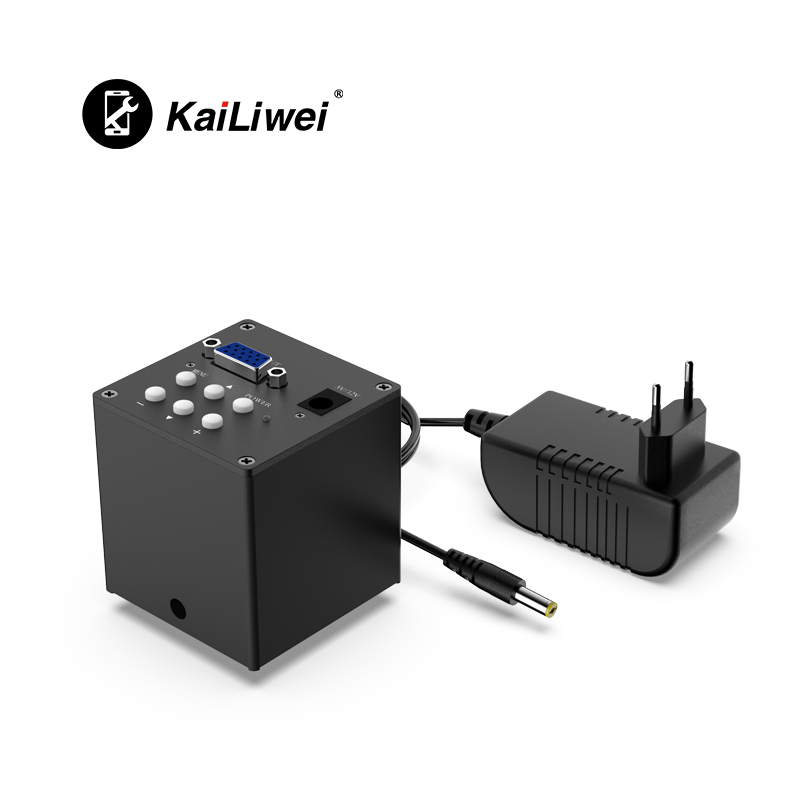

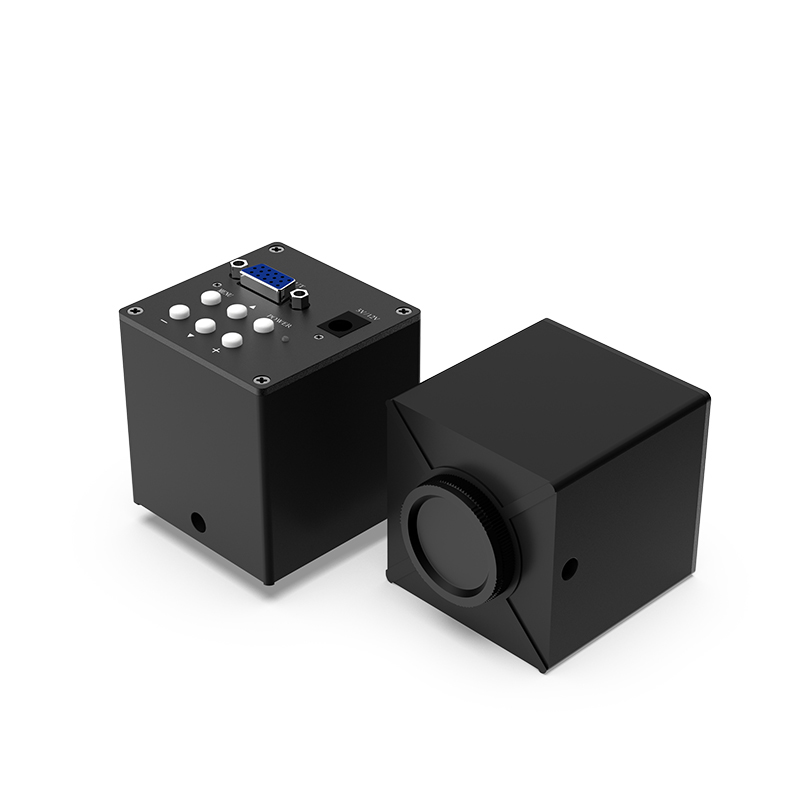

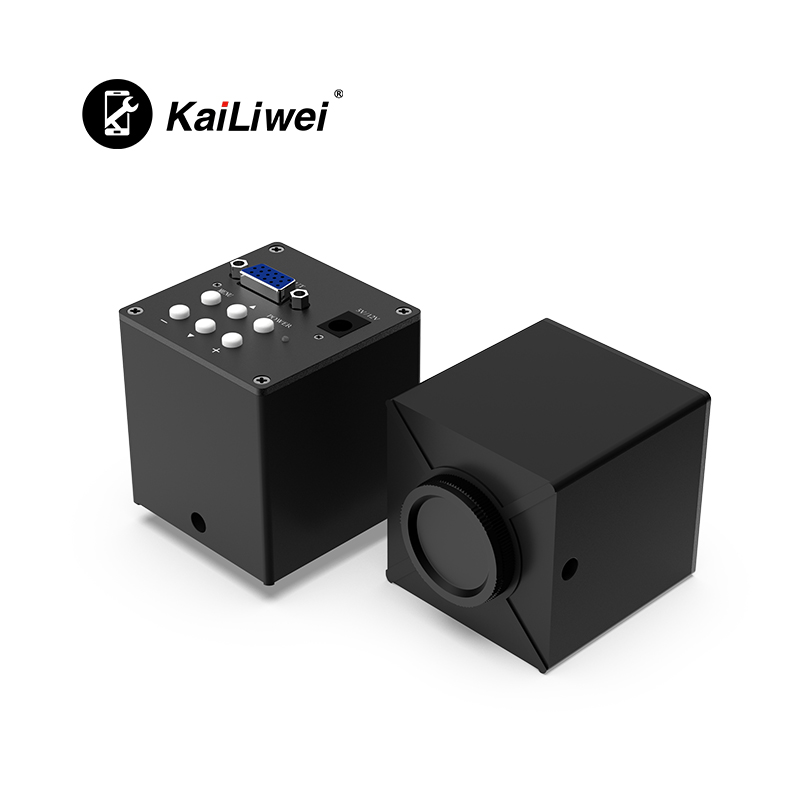

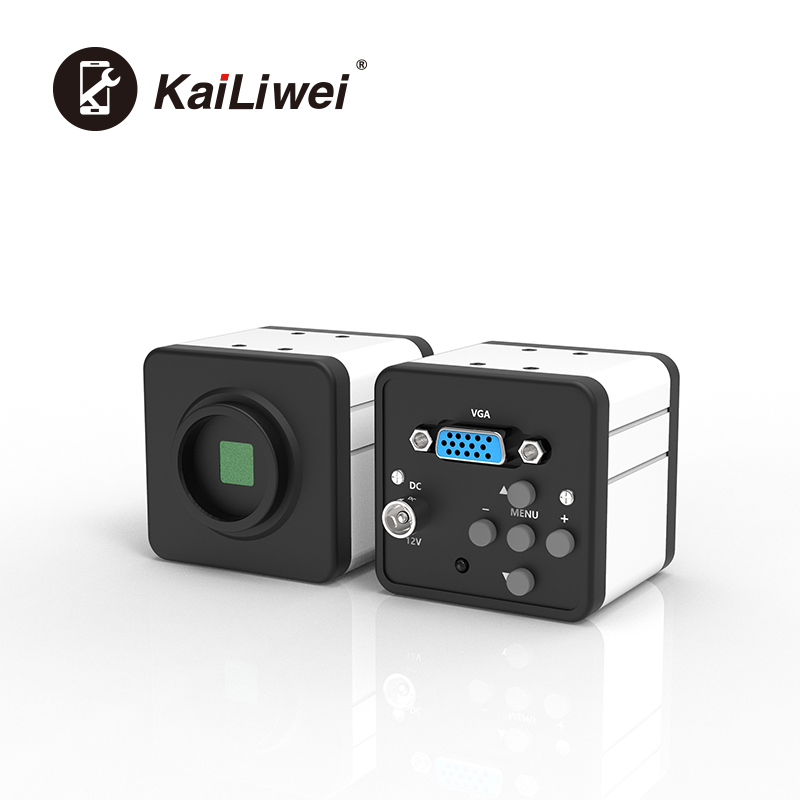

920 VGA Camera Function Description:

1. Sensor type: 2 megapixel 1/3 inch CMOS color

2. Effective pixel: 1920H * 1080V

3. Data bits: 8bit

4. Pixel size: 3.0um * 3.0um

5. Frame rate: 30 frames/second

6. Definition: Above 800TV

7. Scanning method: line by line

8. Shutter type: electronic shutter

9. Dynamic range: 63dB

10. Signal to noise ratio: 44dB

11. Sensitivity: 1.0V/lux-sec (550nm)

12. Exposure time: 10us-60ms, automatic exposure

13. White balance: automatic

14. Lens interface: C/CS

15. Video interface: Standard VGA interface

16. VGA output resolution: 800X600 60Hz, 1024X768 60Hz (default), 1280X1024 60Hz, 1366X768 60Hz, 1440X900 60Hz, 1600X1200 60Hz, 1920X1080 60Hz

17. Menu functions: brightness, contrast, color saturation, Chinese and English, exposure brightness, automatic exposure, vertical mirror, horizontal mirror, negative film, freeze function, same screen comparison, LED light source brightness adjustment, black and white, number of cross hairs (4), line color

18. Working temperature: 0-60 ℃

19. Power supply split: external 5V DC ± 10% deviation allowed

20. Working current: 600mA

21. Power: 3W

22. Packaging list: Standard CS interface host, 5V power supply, user manual

?

?

?

?

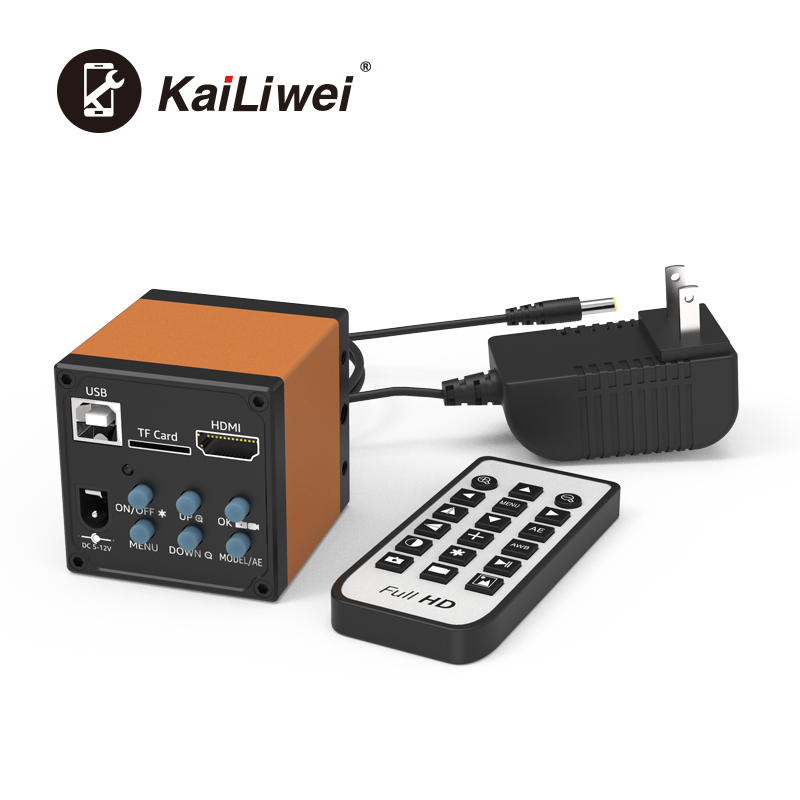

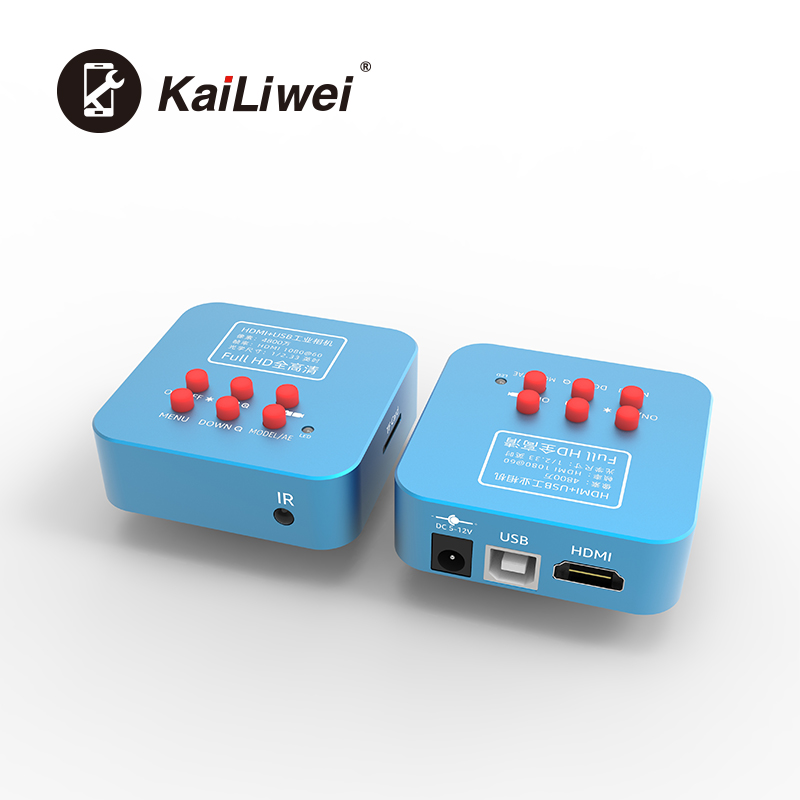

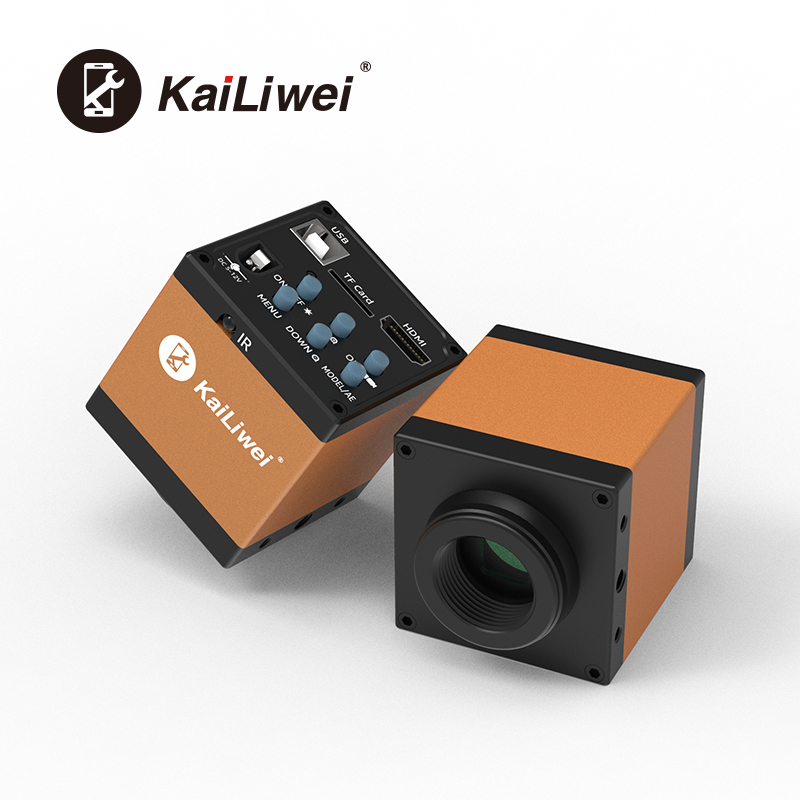

614 CCD Camera Function Description:

1. This product has 14 million pixel camera and 1080p video recording features. Can press the mode key to switch cyclically. Among them, the Mode button is used to switch between modes. The default is the camera mode. Press it once to adjust to video, and press it again to switch to preview mode.
2. The product provides 5.2 times digital zoom; press and hold the up or down key to zoom in or zoom out digitally, long press to zoom in or zoom out quickly, and short press to zoom in or zoom out at a time.
3. This product provides HDMI high-definition video output interface, the output size is 1080p 60hz.
4. This product provides high-definition usb video output of drive-free 1080P 30 frames per second.
5. This product supports one-key image freeze/unfreeze function. Pressing the on/off button after booting, that can realize the freeze and unfreeze function.
6. The product provides a line-drawing function, a total of 8 lines, support line selection and movement. And the color setting and thickness of the displayed line can be adjusted,At the same time,the center cross cursor display is provided as well.
7. The camera can also store information through a TF card, the maximum storage capacity is 32GB.
8.Support multi-language settings such as English, Traditional Chinese, Simplified Chinese, etc.
9. Please put the camera in the place which temperature at 0°C to 50°C and less than 90% humidity when you use it. It is used in an environmental indoor environment to prevent foreign objects from entering the machine.And do not splash liquid on the machine to prevent danger.
10. Please do not disassemble the camera without authorization. There are no parts that can be repaired by the user.
11. When cleaning the camera housing, please wipe it with a dry soft cloth. If the dirt is serious, please wipe it gently with a neutral detergent.
12. If the image has gray shadows, please use a blower to blow off the dust on the filter, and do not wipe it with detergent.

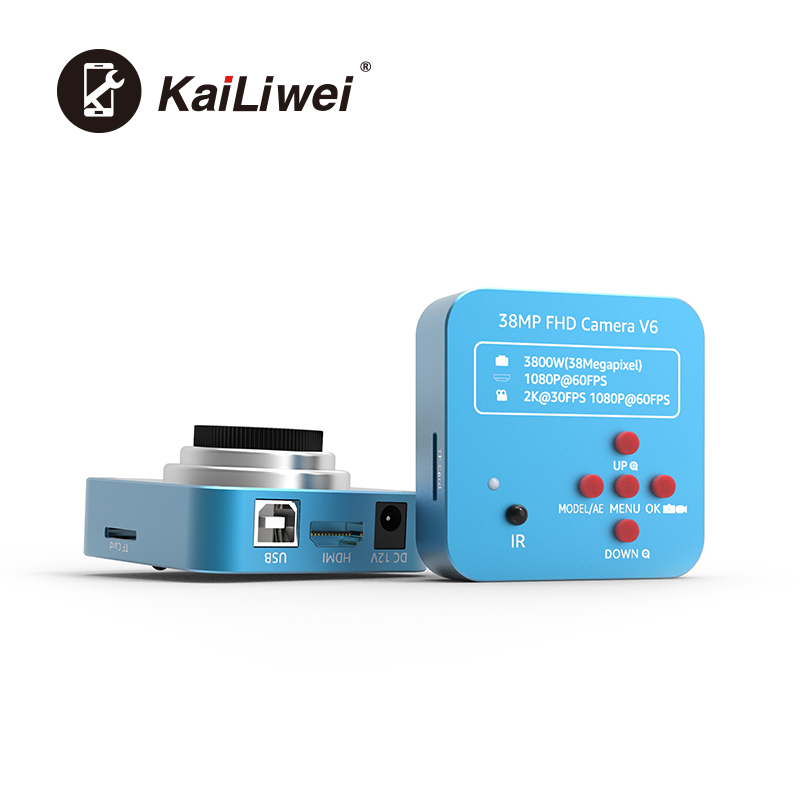

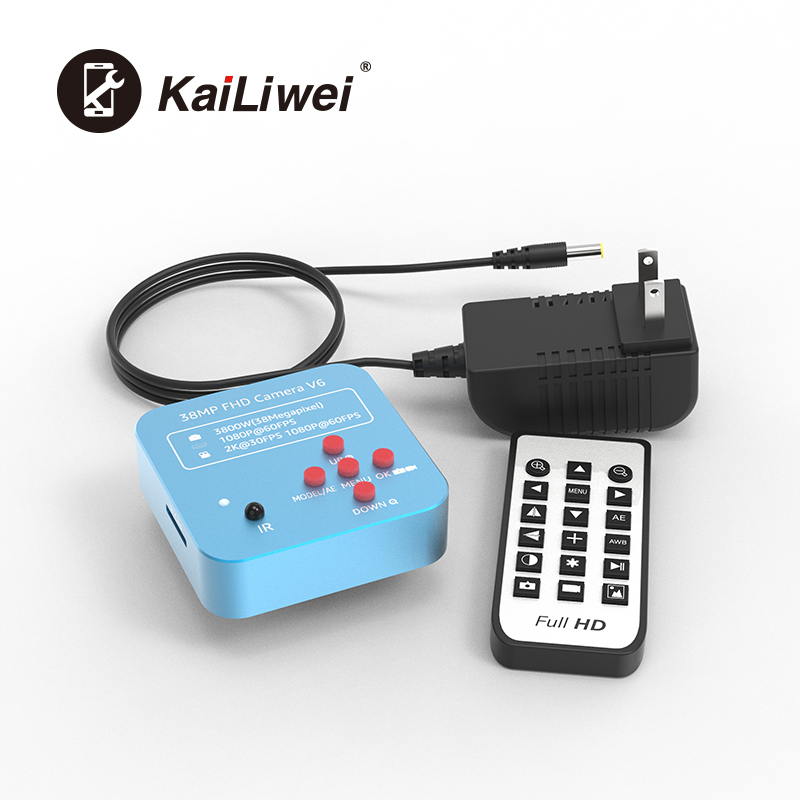

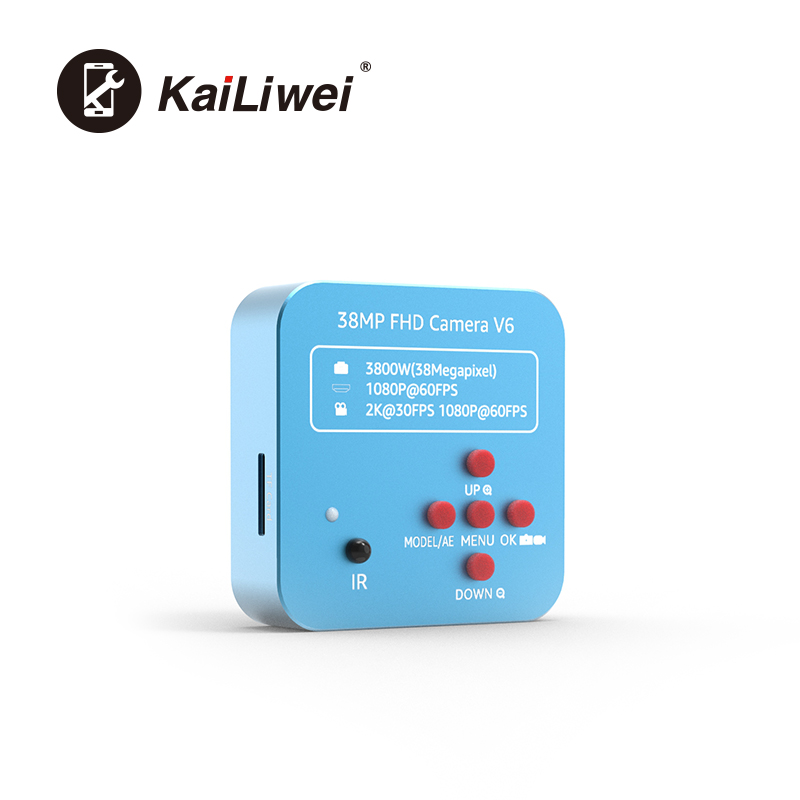

638 CCD Camera Function Description:

1. This product has 38MP?million pixel camera and 1080P video recording function. Can press the mode key to switch cyclically. Among them, the Mode button is used to switch between modes. The default is the camera mode. Press it once to adjust to video, and press it again to switch to preview mode.
2. The product provides 5.2 times digital zoom; press and hold the up or down key to zoom in or zoom out digitally, long press to zoom in or zoom out quickly, and short press to zoom in or zoom out at a time.
3. This product provides HDMI high-definition video output interface, the output size is 1080p 60hz.
4. This product provides high-definition usb video output of drive-free 1080P 30 frames per second.
5. This product supports one-key image freeze/unfreeze function. Pressing the on/off button after booting, that can realize the freeze and unfreeze function.
6. The product provides a line-drawing function, a total of 8 lines, support line selection and movement. And the color setting and thickness of the displayed line can be adjusted,At the same time,the center cross cursor display is provided as well.
7. Support English and Simplified Chinese language setting.
8. The camera can also store information through a TF card, the maximum storage capacity is 64GB
9. The camera supports mirror flip function, which can flip the image horizontally and vertically. In addition, you can control the screen brightness and exposure through the buttons on the camera.
10. Please put the camera in the place which temperature at 0°C to 50°C and less than 90% humidity when you use it. It is used in an environmental indoor environment to prevent foreign objects from entering the machine.And do not splash liquid on the machine to prevent danger.
11. Please do not disassemble the camera without authorization. There are no parts that can be repaired by the user.
12. If there is no video display on the LCD screen or the image flickers, please check whether the LED light of the power supply is on, and press PowerKey to turn it on. Or check the lens cover and increase lighting.
13. If the LCD screen has black bars and the image is distorted, change the resolution of the LCD or the resolution of the camera. Check the camera lens if there are dirty spots.Find the dust, and then clean it with absolute ethanol or detergent.

?

?

648 CCD Camera Function Description:

1. Support manual/automatic exposure/one-button exposure, exposure compensation adjustment;
2. Supports manual/automatic white balance/one-button white balance, red, green and blue adjustable;
3. Support TF card storage, maximum support of 128GB;
4. Support Chinese and English menu language (default English);
5. Support shutdown setting parameters to save
6. Support Measurement software

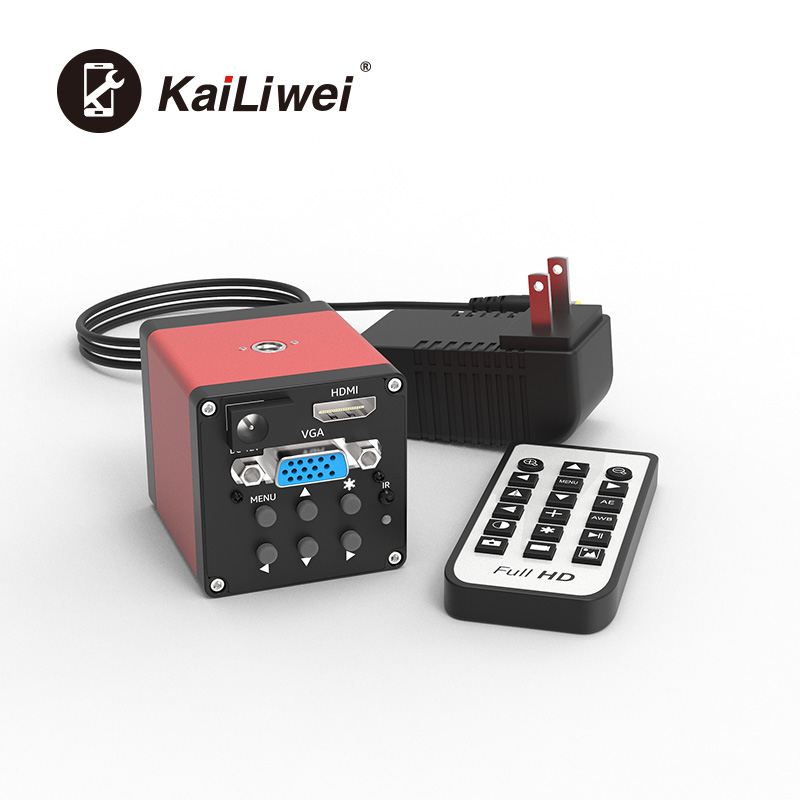

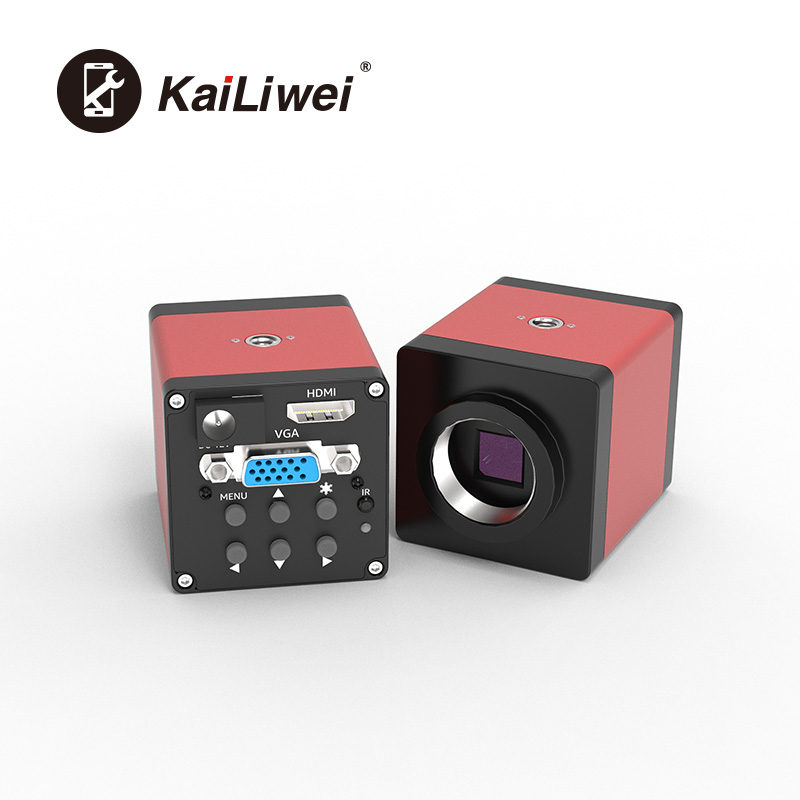

620 CCD Camera Function Description:

Product name:Industry 2MP VGA HDMI-compatible Digital Microscope Camera
Sensor type:Color CMOS
Pixel size:3.0um*3.0um
Effective resolution:1920 * 1080P
Sensor size:1/2.7 Inch?
Measurement function:support
Image output interface:VGA / HDMI-compatible Dual output
Power:DC 5V1A
Control interface:Camera control Via IR
Size:52 * 52 * 59mm
