Kunwei Customized Static Torque Force Sensor RS485 61mm 150Nm

$130.00 ~ $349.00 / piece

Options:

  • 150Nm
  • carton box package
Get Latest Price

Basic Info

Model No.
Brand Name
Series KWR61N150
Mounting Type thread installation
Description resistance strain force sensor, Kunwei
Model Number KWR61N150
Type Load Cell
Place Of Origin Jiangsu, China
Brand Name Kunwei
Use force measurement
Theory Resistance
Output RS485
Material Stainless steel
Diameter 85mm
Repeatability ≤0.05%FS
Linearity ≤±0.2%FS
Creep ≤±0.2%FS
Working Temperature -10~80℃
Safe Overload 200%FS
Limited Overload 300%FS
warranty 1 Year
Supply voltage 9-24VDC
Show More

Product description

Products Description

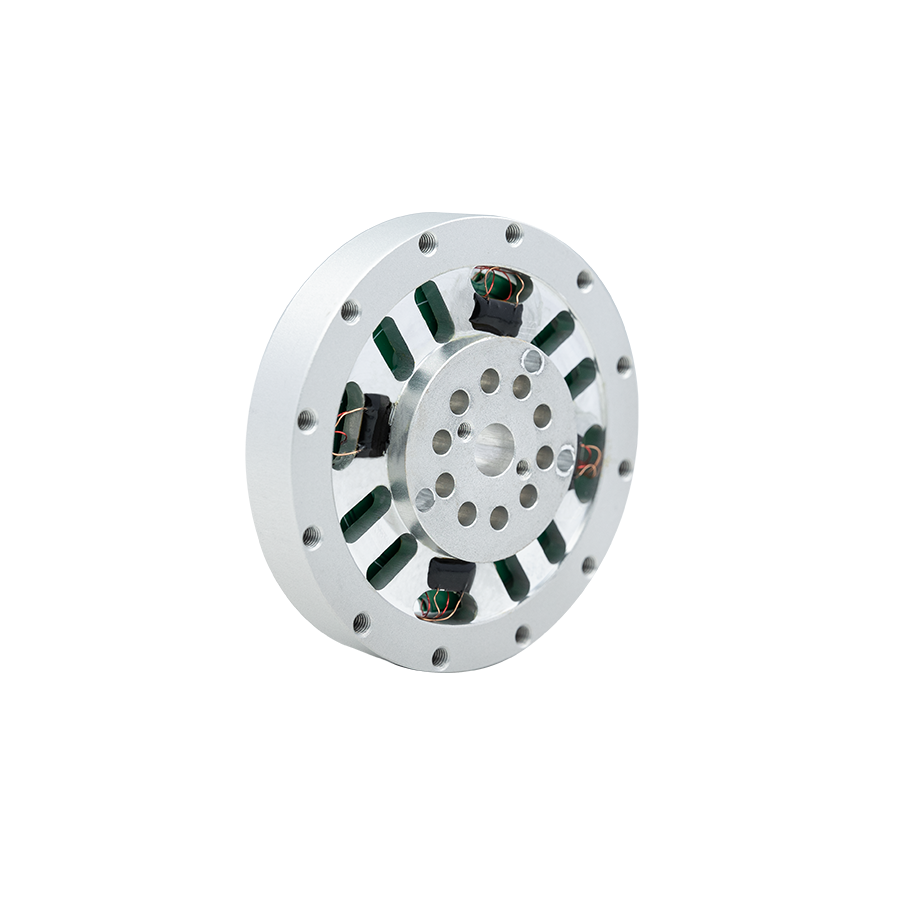

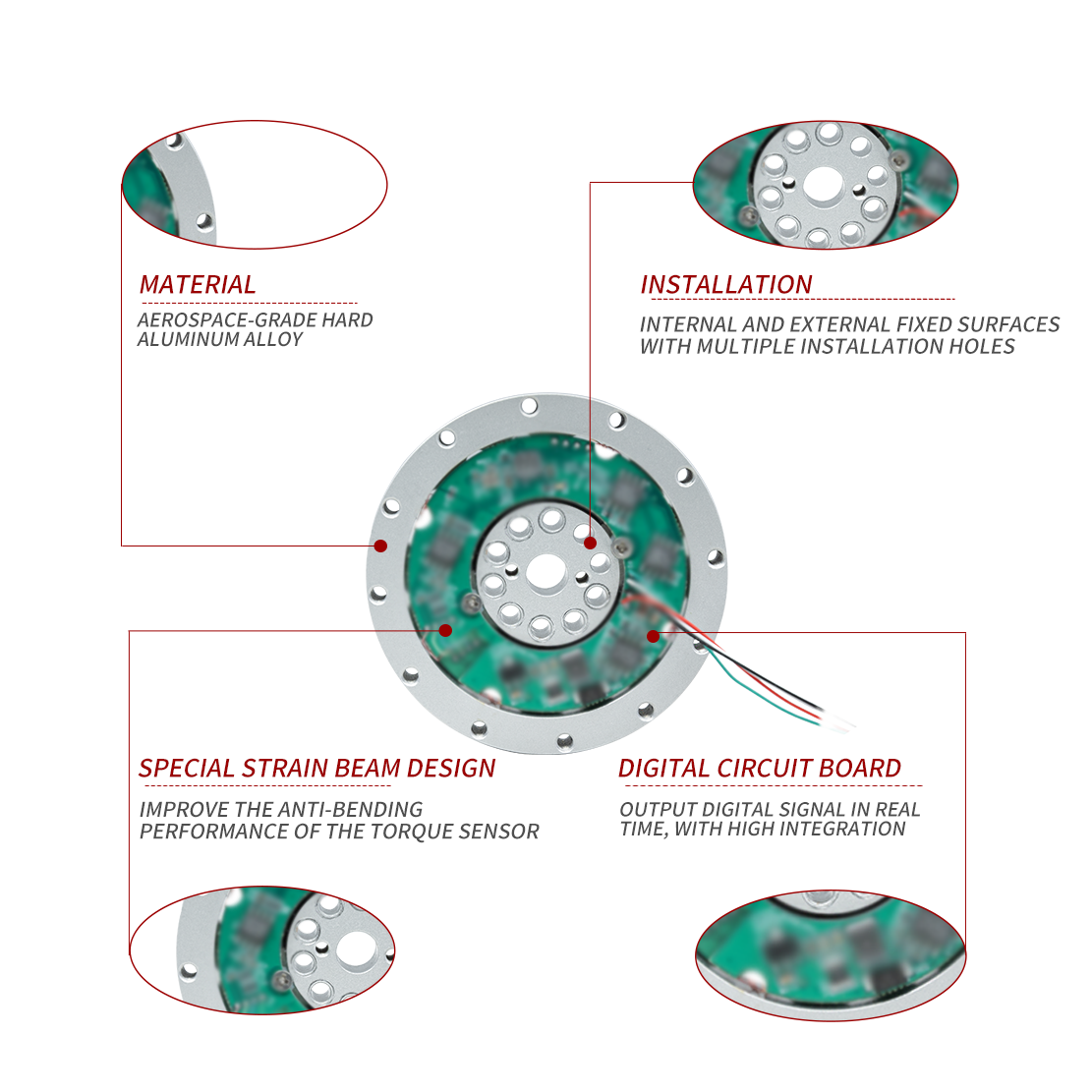

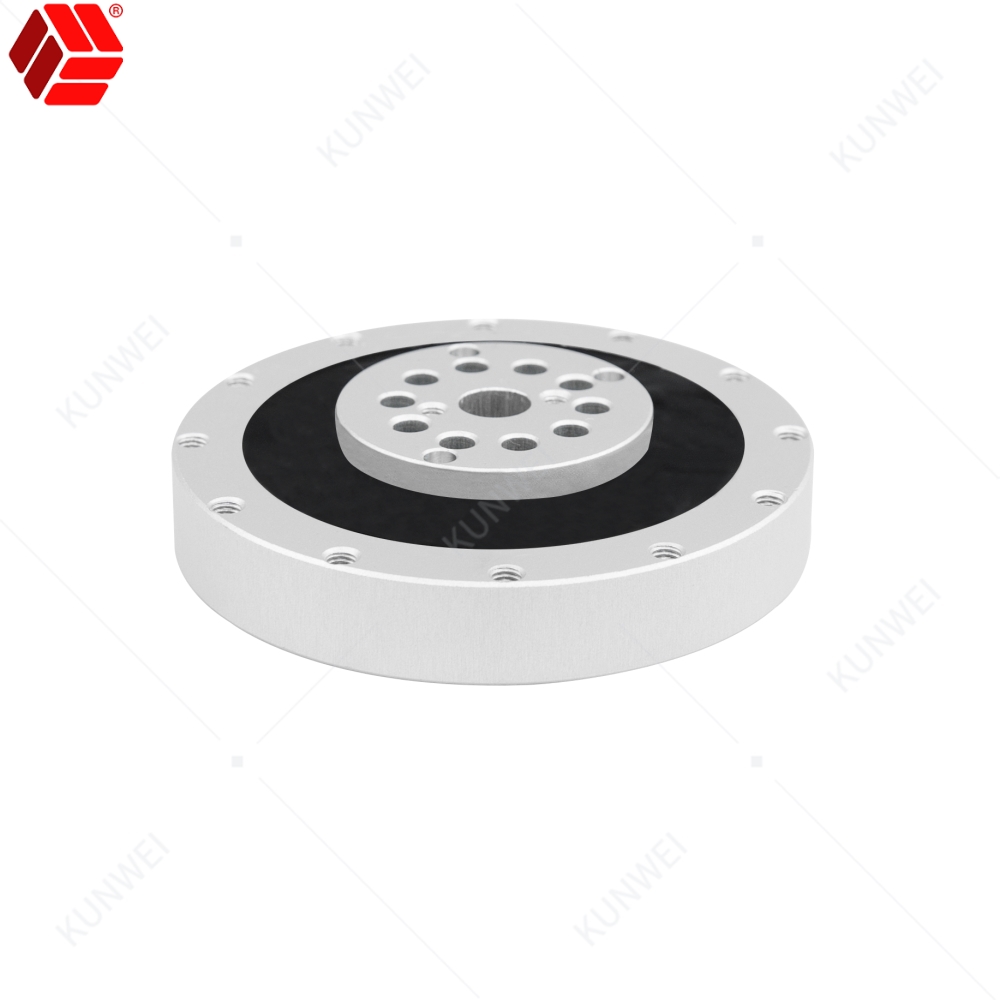

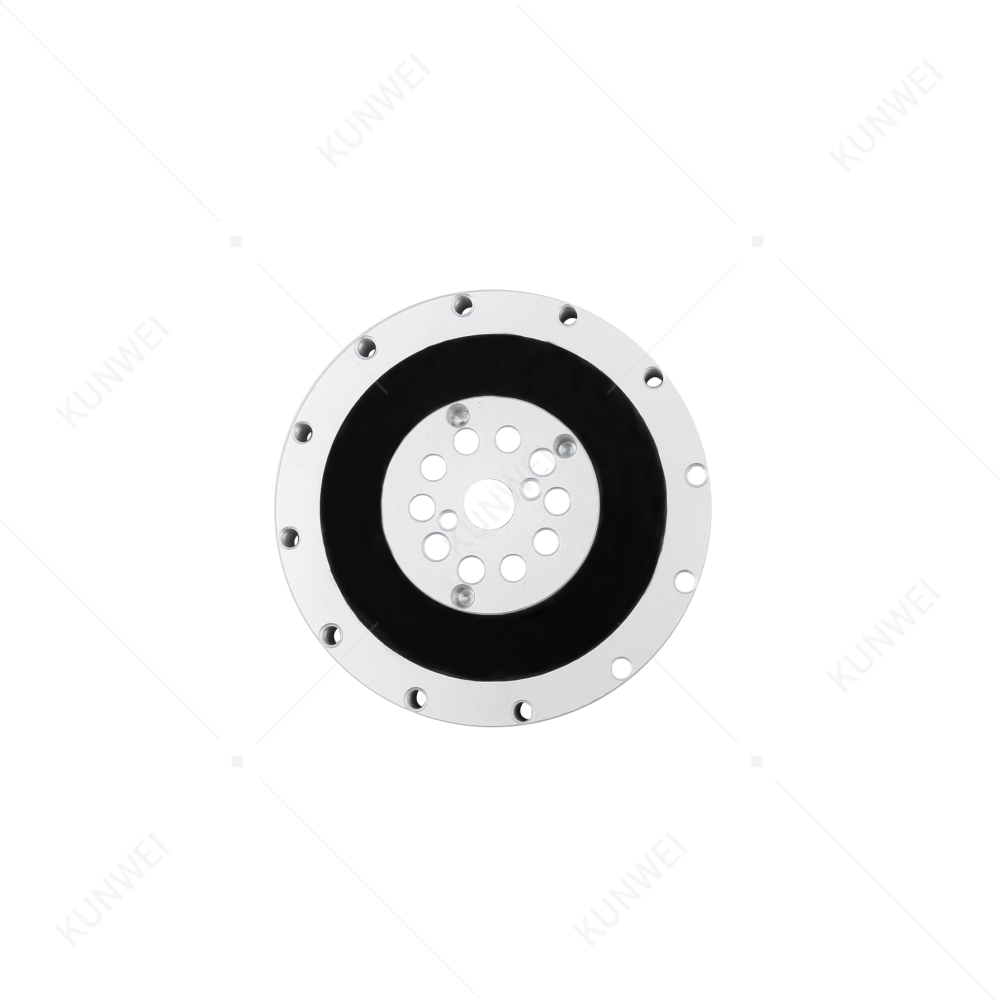

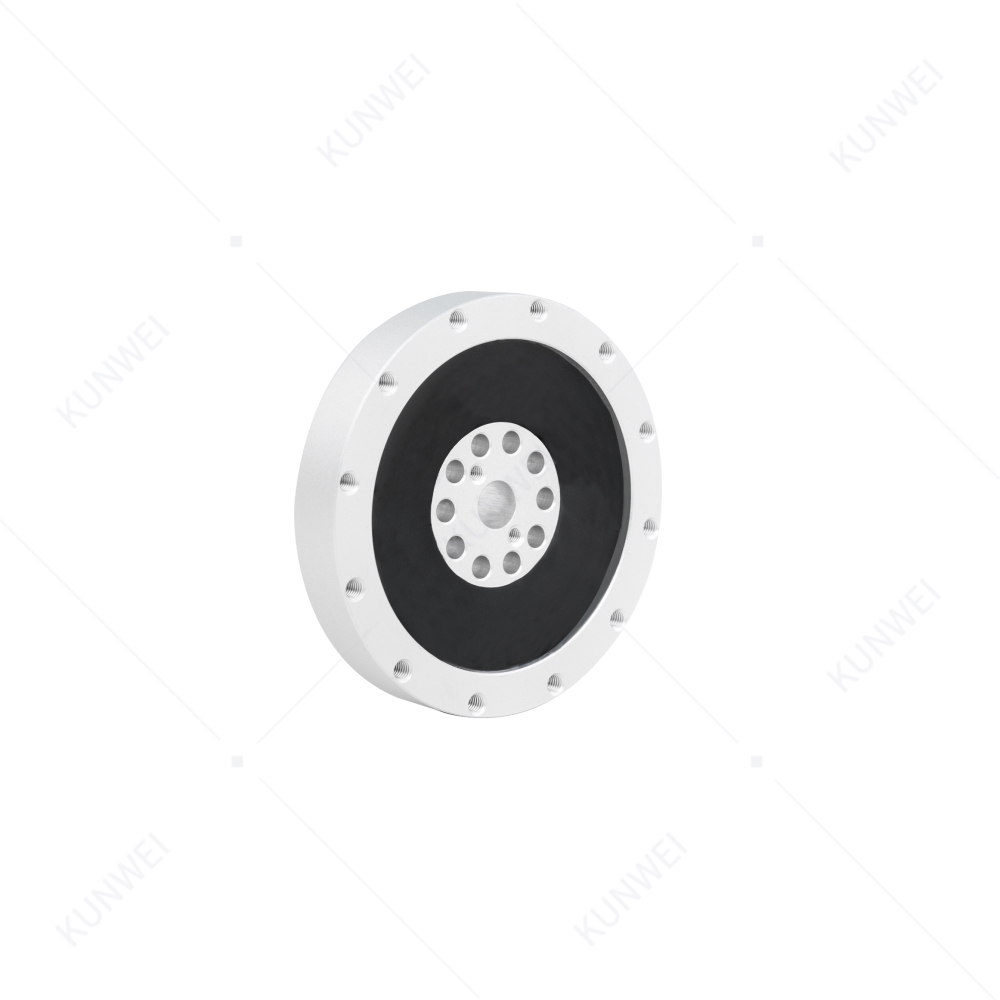

The KWR61N150 series is a small size, large range torque sensor designed with a special structure, specifically designed to measure the torque at the output end of the joint reducer of the robotic arm. It is conducive to decoupling the dynamic model of the robotic arm, performing position control based on dynamics, and achieving force control. Features: The diameter is 61 millimeters, the range is 150Nm, and the sensor structure is internally equipped with a special circuit board that outputs RS485 or analog signal. Excellent performance and anti bias load ability due to the high quality materials and great advanced craftsmanship. The main material is made of aluminum alloy and the inner ring flange of the sensor is specially designed to ensure the stable transmission of torque in the sensor structure.

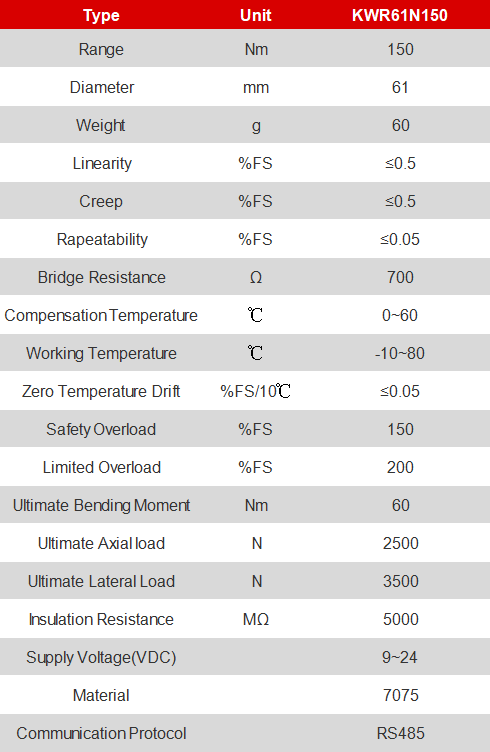

Product Paramenters
Parameter
Unit
KWR61N150
Range
Nm
150
Diameter
mm
61
Weight
g
60
Linearity
%FS
≤0.2
Creep
%FS
≤0.2
Repeatability
%FS
≤0.05
Bridge Resistance?
Ω
700
Compensation Temperature
0~60
Operating Temperature
-10~80
Zero Temperature Drift
%FS/10℃
≤0.05
Safety Overload
%FS
200
Limited Overload
%FS
300
Ultimate Bending Moment
Nm
125
Ultimate Axial Load
N
2500
Ultimate Lateral Load
N
3500
Insulation Resistance
5000
Supply Voltage
VDC
9~24
Material

Stainless Steel (17-4PH)
Communication Protocol

RS485
Wiring Definition
Wiring Definition
Item
Core Colour
Definition
1
Red
Power Supply+
2
Black
Power Supply-
3
Green
RS485 +
4
White
RS485 -
Application Scene
Product packaging
Q1: What detailed information do I need to provide if I want to place an order? We need to know the following information: Capacity, Usage and other related parameters you need. Q2: Can I get samples? Yes, if you have the follower orders, we could offer the samples or free samples for you. Q3: Could you provide me the shortest lead time? If we have it in stock, we can ship it to you within about 5-7 working days. Q4: How long is your warranty period? A: Our warranty period is 12 months. Q5: Can you print our brand on the product? Yes, Of course. It can make customer’s brand logo. Q6: Is there any after-sale service? After you receive our product, if you have any questions or need any assistance, Our R&D team will solve all your problems all the way. Q7: What is the express delivery? DHL, Fedex, TNT ,EMS, UPS etc. We will choose the safe and cheapest way for you to reduce your cost. Economic shipping way: by sea, by air transport . If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice.
