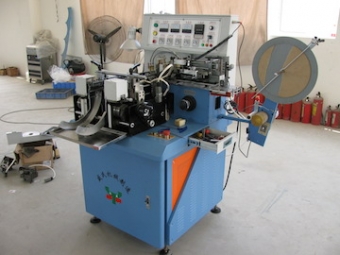

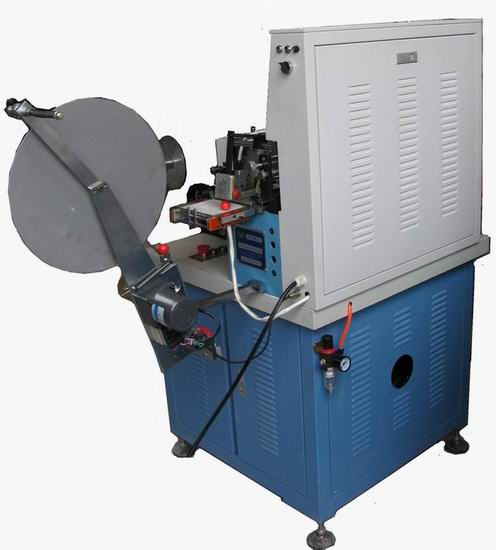

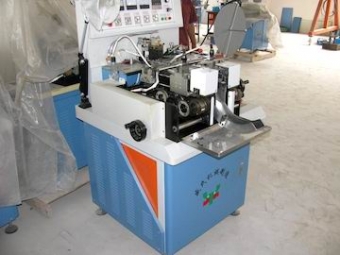

Label Automatic Cut and 2-Function Fold Machine

Get Latest Price

Model No.	YS3002
Brand Name	chino

End Fold and Mitre fold is very common folding method. With fabric label cutting and folding production grown, more and more units machine will be needed. We need not to change different label folding type on one unit machine. We can set different folding tooling on different machine to make production more efficient and fast.
YS3002 is subtype of YS3000 series label fabric automatic cut and folding machine. there are just two type tooling with the machine. It has all the charters of YS3000.

Characters:

* Machine can be cut & fold woven and printed label materials
* Label base material can be woven/printed, satin ribbon tape, cloth tape, nylon label, adhesive tape and etc.
* Label Cutting method can be hot or cold cut. Ultrasonic cutting is optional.
* It is suitable for label fabric end fold, mitre fold.
* It is designed especially for with soft labels
* Fast and smooth operate, speed adjustable
* Equipped with a photo electronic fault eliminator that can reduce defective cutting and folding to the lowest possible.
* Easy to change /adjust tooling according to requirements.

Technical parameters:

Working speed		0~200 /min
Electric	Power	2.4kw
	Voltage	220~240V, 50Hz or 60Hz
Gross weight		420kgs
Dimension		L X W X H=148x108x145cm

Label Cut and Fold Size Range:

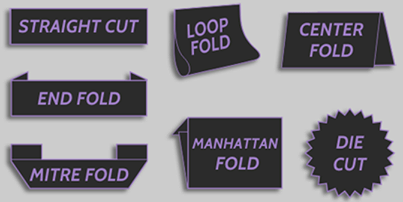

end folding Mitre folding

Automatic label Cutting and Folding Training :
1. Customers are welcome to visit our company and train operators in our workshop;
2. The machine will be shipped completely with exporting wood case; With proper machine quantity, we can arrange engineer to go to customer side for label cutting / folding operation training.

Warranty:
1. Machine warrantee term is 12 month after shipment;
2. With warranty, We will arrange free part replacement by courier to customer. the machine shall be operate under normal procedure and routine maintenance.

Special label Cutting and Folding:
1. Welcome to contact us for special label cut and fold development. Our engineer will try best to give solution based on standard tooling and config.
2. We will develop non-standard tooling for special label cut and fold.

NOTE:
1. Label cutting and folding machine with many mechanic gear and guide. the parts will need machine oil or grease lubrication. Operator shall keep routine lubrication every day, before start the machine.
2. Machine has many heating parts. Operator shall be carefully read operation guide before label cutting and folding.
3. Stop machine for checking if met any abnormal. take pictures and contact us for trouble shooting.
