Large Span Roll Forming Machine
$40000.00
≥1 Set/Sets
Model:
- YY-001
Basic Info
| Model No. | YY--KSM---0001 |
|---|---|
| Brand Name | YY |
| status | New |
| Applicable industry | Advertising Company, Home Use, Food &Amp; Beverage Factory, Other |
| Out-of-warranty service | Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts |
| Where to provide local services (in which countries are there overseas service outlets) | None |
| Showroom location (in which countries are there sample rooms overseas) | None |
Product description

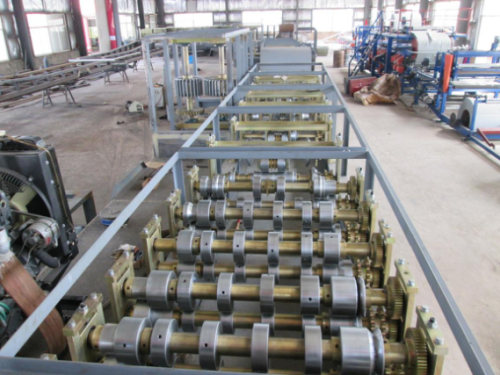

Large Span Roll Forming Machine
Steel And Metal No Beam Roof is formed by trailer type roller system device can be transported to the construction site to make continuous arch steel buildings. Various manufacturing plate device driven by electric hand stitched together operation stitching machine connect the panel together.
Specification:
1) Main machine dimension: 9.65m*2.23m*2.4m
2) Bending machine dimension; 3.8m*2.23m*2.4m
3) Suitable material: galvanized steel, colored steel, etc
4) Coil thickness: 0.6 –1.5mm

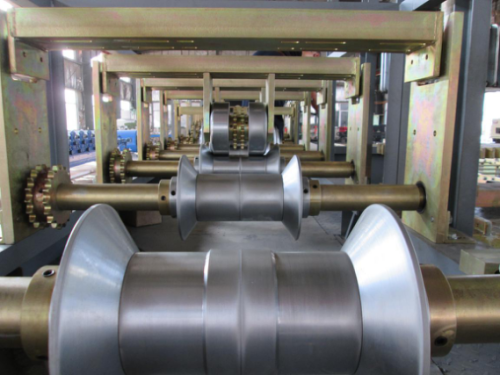

5) Roller stands:16
6) Roller diameter:80mm
7) Totally power:18.5kw
8) Main Power:7.5kw; Hydraulic power:4.0kw; side bending power:1.5kw*2
Curving power:4.0kw
9) Roller material: 40Cr
10) Shaft material: high grade #45 steel
11) Cutting Blade material:Cr12 steel
12) Machine speed: forming speed 13m/min, Seaming speed:6m/min
13) Span : ≤38m
14) Power supply: AC380V±10%, 50Hz, or as per your requirement
Main product :
- Roof roll forming machine
- Roller shutter door roll forming machine
- C and Z purlin roll forming machine
- Downpipe roll forming machine
- Light keel roll forming machine
- Guardrail roll forming machine
- Storage roll forming machine
- Cable tray roll forming machine
- Shearing machine
- Hydraulic decoiler
- Bending machine
- slitting machine
Installation and training:
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.
