Model No.	TSF1325
Brand Name	Transon
application	Laser Cutting
Applied material	Metal
Old and new	New
Laser type	Fiber Laser
Cutting area	1500mm*3000mm
Support graphic format	Ai, Plt, Dxf, Bmp, Dst, Dwg, Las, Dxp
Whether CNC	Yes
cooling method	Water Cooling
place of origin	China
Certification	Ce
Industrial laser brand	Raycus
Industrial laser head brand	Raytools
Servo Motor Brand	Panasonic
Linear guide brand	Pmi
Laser machine control system brand	Cypcut
Core selling point	Automatic
Optical lens brand	Wavelength
warranty period	3 Years
Out-of-warranty service	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Applicable industry	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works, Energy &Amp; Mining, Food &Amp; Beverage Shops, Advertising Company
Where to provide local services (in which countries are there overseas service outlets)	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, South Korea, Chile, Uae, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
Showroom location (in which countries are there sample rooms overseas)	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, Uae, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia, Australia
Mechanical test report	Provided
Video factory inspection	Provided
Marketing type	Ordinary Product
Core component warranty period	3 Years
Core components	Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, Plc
Working size	1500x3000mm
X-Axis Travel	1500
Y -axis Travel	3000
Z -axis Travel	365mm
Laser Power	1kw,1.5kw,2kw,3kw,4kw
X/Y Axis Positioning Accuracy	0.05mm
X/Y Axis Repeated Positioning	0.02mm
Maximum Velocity Of Movement	120m/Min
Tube Diameter	20-220mm
Machine Weight	7500kg

Model	3015C	3015F	2030F
Laser wave length	1064nm
Transmission system	Gear + rails (we have standard brand,we can also produce as your requirements)
X.Y axis location accuracy	±0.01mm
X.Y axis repeat location accuracy	±0.01mm
X.Y axis max moving speed	110m/min	120m/min	120m/min
Max cutting speed	50m/min	70m/min	70m/min
Power	500w-2000w	2000w -6000w	3000w-12000w
Cutting thickness	Detailed in the following cutting thickness
Working area	0913/2513 3015/4015/4020	3015/4015/4020 6015/6020/6025/8025	12025/16030/20030
Application Material	plate /sheet metalwork Iron/Carbon Steel /Stainless Steel /Aluminum/ Copper and all kinds metal

美女脱内裤露出隐私部位-精品久久中文字幕亚洲一区-久久久精品国产亚洲av高清热-91人妻人人澡人人爽精品-99国内精品一区二区三区-精品国产wwxx在线观看-水蜜桃精品视频在线观看-小蜜桃在线高清观看-国产精品视频网站一区

laser cutting machine prices fiber

laser cutting machine prices fiber

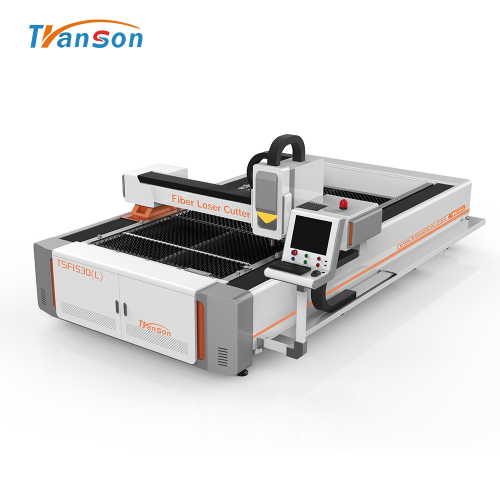

In order to meet the increasingly complex needs of consumers, Transon is targeted at Fiber Laser Cutting Machine market demand, independently developed 3015 sheet and pipe integrated laser fiber cutting machine, one machine dual purpose, this machine solves double cutting needs by one time.

laser cutting machine prices fiber
