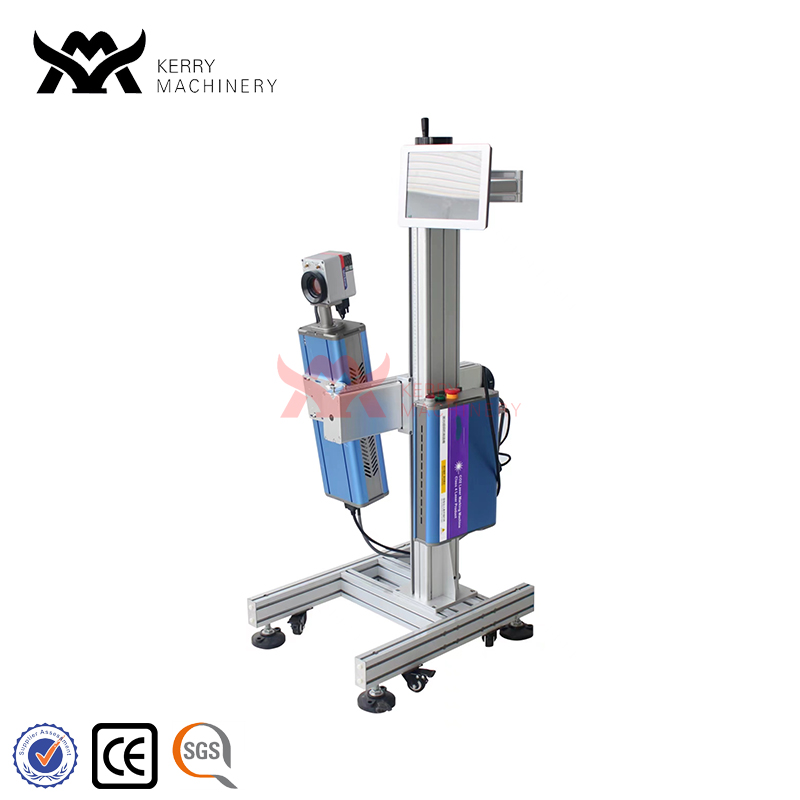

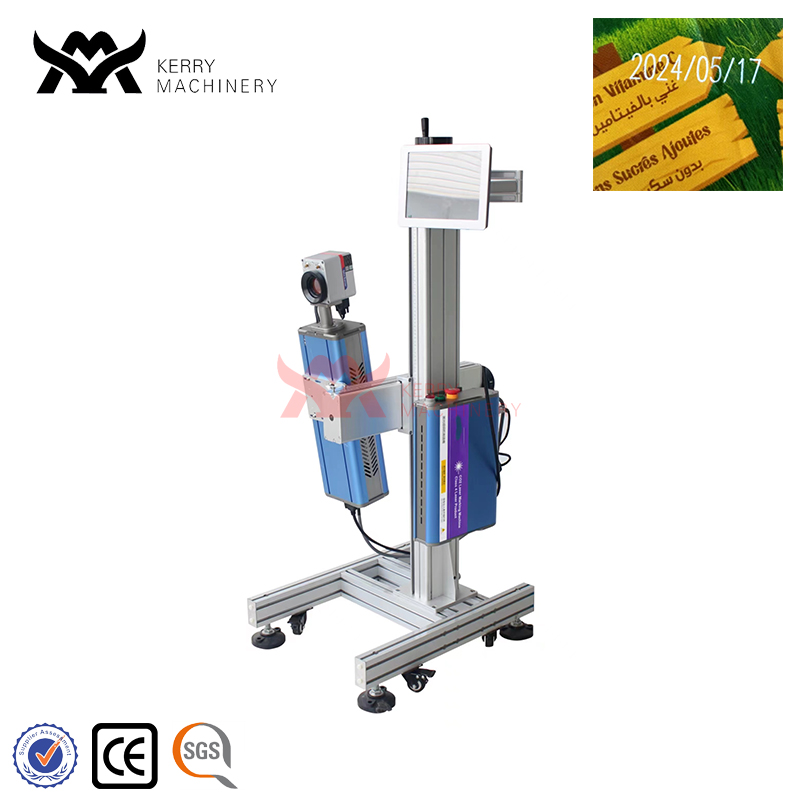

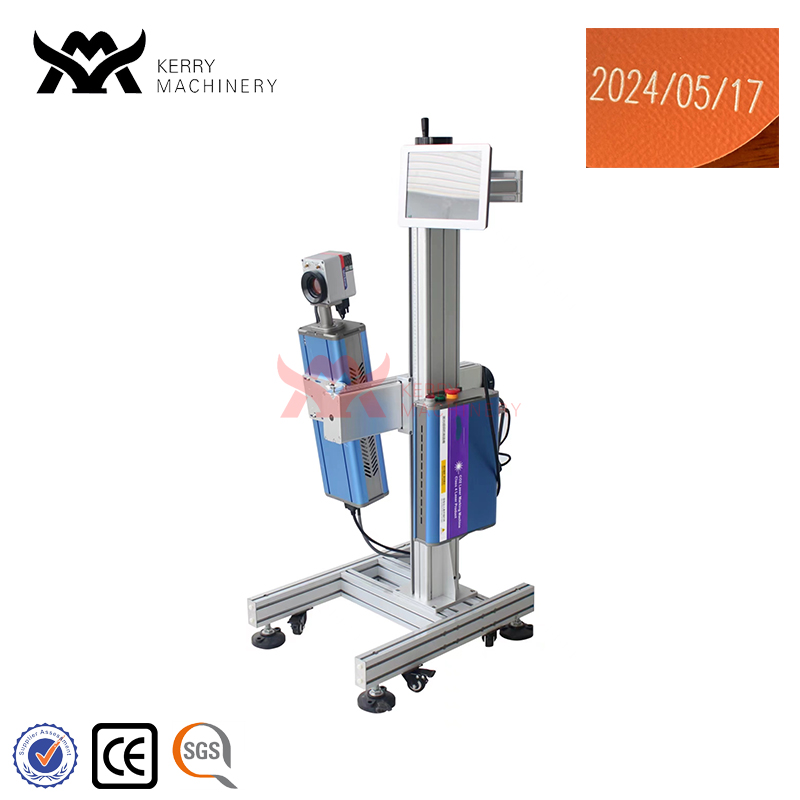

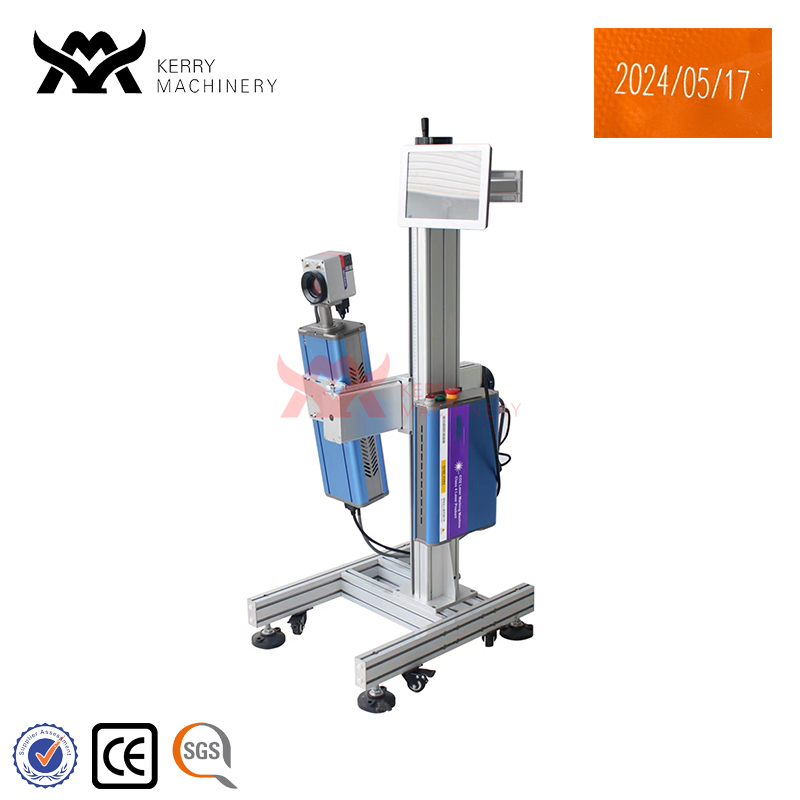

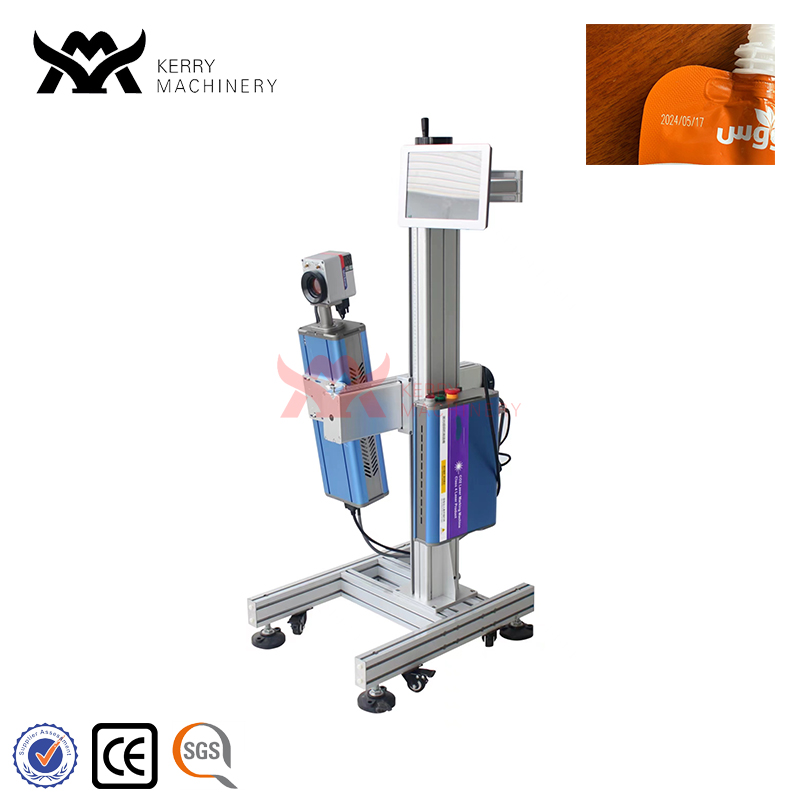

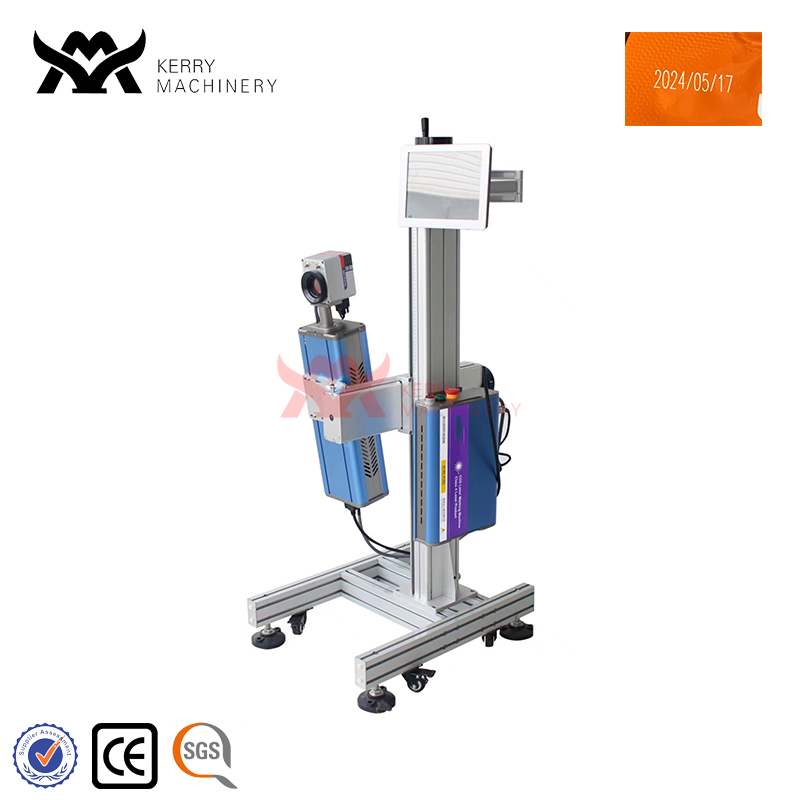

Laser Printers with Date Stamping Function

power:

Options:

Get Latest Price

You might also like

1 set (MOQ)

1 set (MOQ)

1 set (MOQ)

1 set (MOQ)

1 set (MOQ)

1 set (MOQ)

1 set (MOQ)

1 set (MOQ)

1 set (MOQ)

Basic Info

Model No.
Brand Name
application	Beverage
Packaging Type	Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Pouch, case
Packaging Material	Plastic, Paper, Metal, Glass, Wood
Automatic Grade	Automatic
Driven Type	Electric
Voltage	220v
Place Of Origin	Jiangsu, China
Dimension(LWH)	65.5 x 55 x 157
After-sales Service Provided	Online Support, Video Technical Support, Free Spare Parts
Warranty	2 Years
Key Selling Points	High-accuracy, Easy to Operate
Machinery Test Report	Provided
Video Outgoing-inspection	Provided
Core components	Plc
Weight	30 KG

Product description

W6000?series laser inkjet code machine

? Laser Printer for products date print

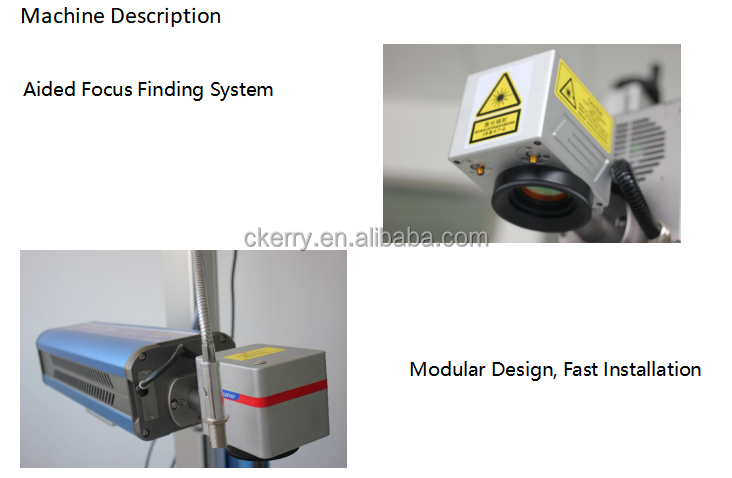

1, Machine Description

2, Technical?Data

3, Machine?Configuration

Laser Printer for products date print

Technical Data

It is mainly composed of laser generator, deflection galvanometer, photoelectric sensor, main controller and power supply.

?????????????????Model Item		CO2 W6330	CO2 W6430	?
Laser Machine Characteristics ?	Material	All aluminum structure
	Laser	Sealed metal radio frequency carbon dioxide laser generator
	Continuous output power	≥30W	≥40W	?
	Laser wavelength	9.3um	10.6um
	Galvanometer deflection	High precision?Double d scanning system
	Engraving speed	≤7000mm/s ?
	Master?control	Highly integrated motherboard with 10 inch screen
	Operating?system	WIN CE
	Cooling System	Air cooling system
? ? ? Laser Parameters ?	Focus lens	Focal length 138 mm
	Marking type	Dot matrix and vector machine (can play both dot matrix and vector)
	Minimum?line width	0.03mm
	Repositioning Accuracy	0.01mm
	Marking area	110mm×110mm(Choosable)
	Locate mode	Red light focusing
	Lines to type	Any lines?in the marking range
	Production Line Speed	0~100m/min??(depends on the material) , 0~150m/min??(depends on the material),0~200m/min??(depends on the material)
? Support Types	Font	Standard Chinese and English, Numbers, etc
	File Format	BMP/DXF/HPGL/JPEG/PLT
	Bar codes	CODE39,CODE128,CODE126,QR,
? Parameters	Power	220V
	Power Consumption	300W	580W	650W
	Machine net weight	14kg	25kg	25kg
	·?3 d bracket net weight	30kg
Operational Reliability		External temperature 0℃-45℃;Humidity≤95% or less; Non - Condensing;No vibration
