LED SMD Capacitor SMD Aluminum Electrolytic Capacitor for Solar LED Lighting

Name: LED SMD Capacitor SMD Aluminum Electrolytic Capacitor for Solar LED Lighting
Brand: Shanghai Yongming Electronic Co.,LTD.
Rating: 4.9 (50 reviews)

Get Latest Price

You might also like

Refrigerator Capacitor Snap in Aluminum Electrolytic Capacitor

10 Piece/Pieces (MOQ)

UPS Capacitor Screw Terminal Electrolytic Capacitor

10 Piece/Pieces (MOQ)

Super Capacitor Screw Mounted Terminal Electrolytic Capacitor RoHS Compliant

10 Piece/Pieces (MOQ)

Wave Inverter Capacitor Snap in Aluminum Electrolytic Capacitor for Wind Turbine Power Inverter

10 Piece/Pieces (MOQ)

Heat Pump Capacitor Snap in Electrolytic Capacitor for Air Conditioner and Refrigerator

10 Piece/Pieces (MOQ)

High Ripple Current Capacitor Snap in Electrolytic Capacitor for Welding Machine

10 Piece/Pieces (MOQ)

Industrial Capacitor Screw Lead Electrolytic Capacitor

10 Piece/Pieces (MOQ)

Energy Storage Capacitor Snap in Aluminum Electrolytic Capacitor for Renewable Energy Power Inverters

10 Bag/Bags (MOQ)

SMD Capacitor SMD Aluminum Electrolytic Capacitor

10 Piece/Pieces (MOQ)

LED SMD Capacitor SMD Aluminum Electrolytic Capacitor for Solar LED Lighting

100 Piece/Pieces (MOQ)

Basic Info

Model No.
Brand Name	Ymin
Type	Aluminum Electrolytic Capacitor
Application	General Purpose
Package Type	Surface Mount
Capacitance	1-50uf
Structure	Fixed Capacitor
Manufacturing Material	Electrolytic
Electrolyte	Electrolytic
Usage	High Frequency Coupling
Filter	Aluminum Electrolytic Capacitor

Product description

SMD, Surface Mount Dives, Aluminum Electrolytic Capacitor is designed for high advanced power supplier and other electronic devices, which is outstanding with its excellent performance. Having been tested in an extremely strict testing condition in our lab, the quality and performance is stable and reliable, which has been one of our best-seller series.

Product Specification:

1. Usage: Industrial Welding Machines, Variable Frequency Speed Controller; PC Machine Power Supplies, Industrial Power Supplies; High Advanced Power Supplier, Power Socket; Road Lamp; LED Power Device, LED Driver, LED Lamp, LED Lighting; Power Meters, Energy Meters, General purpose,

2. Working Condition: ≤100V.DC -55° C ~ +105° C; 160 ~ 450V.DC -40° C ~ +105° C;

3. Low ESR Performance;

4. Excellent Low LC Performance (Leakage Current performace);

5. Low DF Performance (Dissipation Factor performance);

6. Super Long Life Span (Working life reaches 4,000 hours to 20,000 hours, at 105° C);

7. Voltage Range: 10V ~ 450V.DC;

8. Capacitance Range:0.47uF ~ 10,000uF (Condition: Ripple Current 105° C, 100Hz);

9. Capacitance Tolerance: ±20%;

10. Size (Diameter x Height) (mm): 6.3x10; 8x10; 8x13.5; 8x13.5; 8x16.5; 10x13.5; 10x16; 12.5x13.5; 12.5x16; 12.5x21; 16x16.5; 16x21.5; 18x21.5;

11. Standard/Certificate: RoHs compliant;

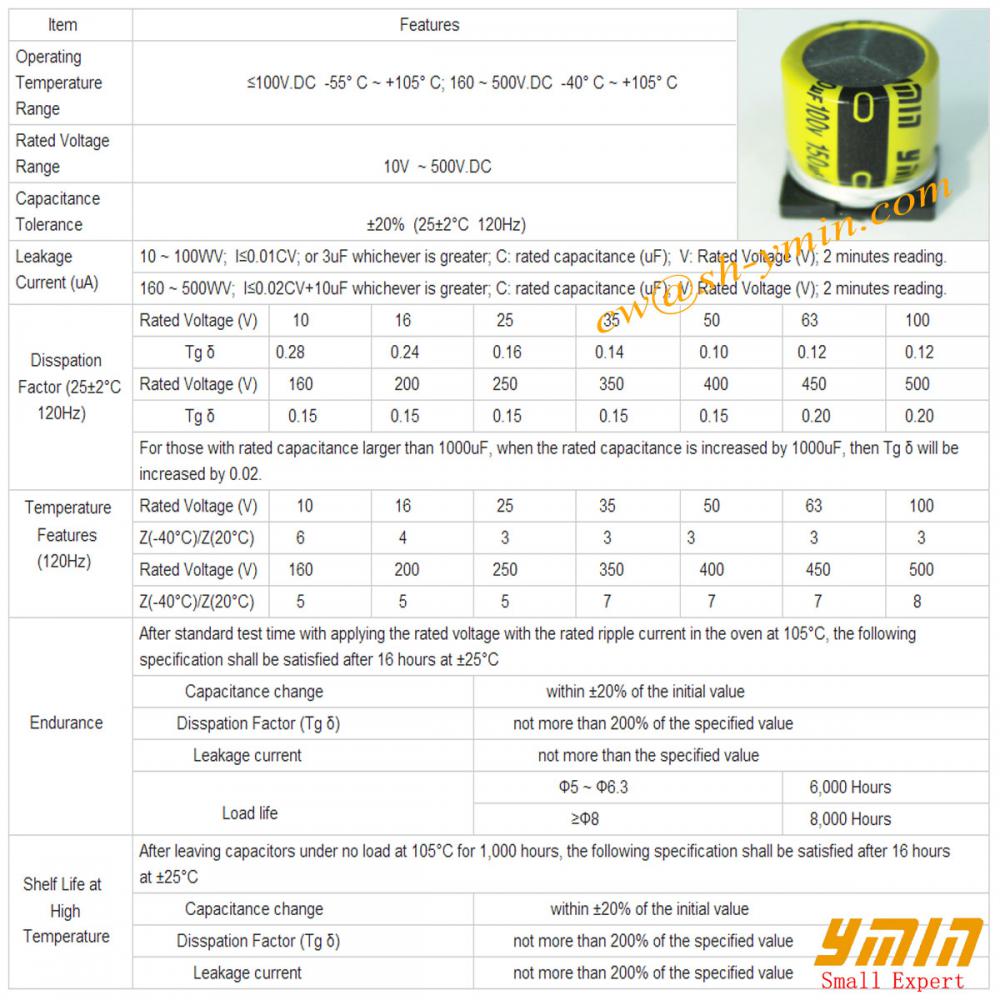

Item	Features
Operating Temperature Range	≤100V.DC -55° C ~ +105° C; 160 ~ 500V.DC -40° C ~ +105° C
Rated Voltage Range	10V ~ 500V.DC
Capacitance Tolerance	±20% (25±2°C 120Hz)
Leakage Current (uA)	10 ~ 100WV; I≤0.01CV; or 3uF whichever is greater; C: rated capacitance (uF); V: Rated Voltage (V); 2 minutes reading.
Leakage Current (uA)	160 ~ 400WV; I≤0.02CV+10uF whichever is greater; C: rated capacitance (uF); V: Rated Voltage (V); 2 minutes reading.
Disspation Factor (25±2°C 120Hz)	Rated Voltage (V)	10	16	25	35	50	63	100
	Tg δ	0.28	0.24	0.20	0.16	0.14	0.12	0.12
	Rated Voltage (V)	160	200	250	350	400	450	500
	Tg δ	0.15	0.15	0.15	0.15	0.15	0.20	0.25
	For those with rated capacitance larger than 1000uF, when the rated capacitance is increased by 1000uF, then Tg δ will be increased by 0.02.
Temperature Features (120Hz)	Rated Voltage (V)	10	16	25	35	50	63	100
	Z(-40°C)/Z(20°C)	6	4	3	3	3	3	3
	Rated Voltage (V)	160	200	250	350	400	450	500
	Z(-40°C)/Z(20°C)	5	5	5	7	7	7	8
Endurance	After standard test time with applying the rated voltage with the rated ripple current in the oven at 105°C, the following specification shall be satisfied after 16 hours at ±25°C
	Capacitance change	within ±20% of the initial value
	Disspation Factor (Tg δ)	not more than 200% of the specified value
	Leakage current	not more than the specified value
	Load life	Φ5			7,000 Hours
		Φ6.3			9,000 Hours
		≥Φ8			10,000 Hours
Shelf Life at High Temperature	After leaving capacitors under no load at 105°C for 1000 hours, the following specification shall be satisfied after 16 hours at ±25°C
	Capacitance change		within ±20% of the initial value
	Disspation Factor (Tg δ)		not more than 200% of the specified value
	Leakage current		not more than 200% of the specified value
