Product Description:

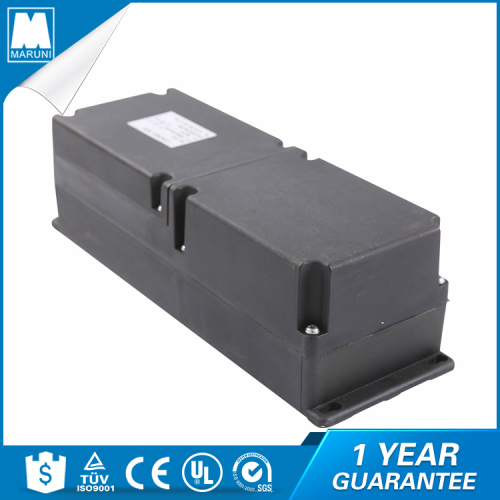

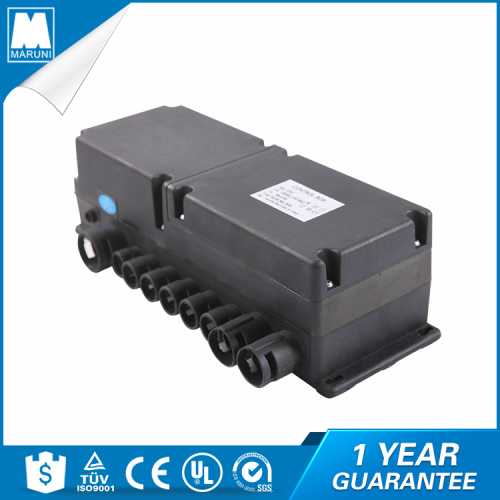

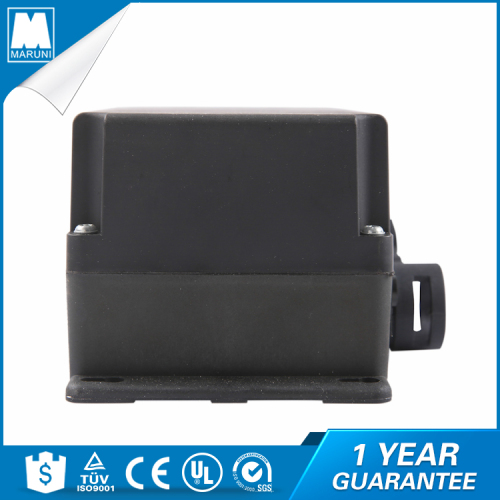

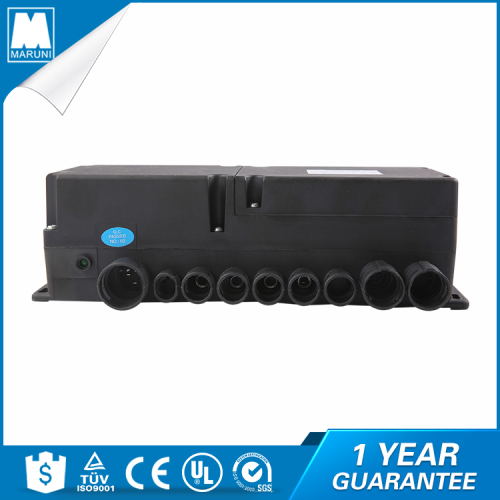

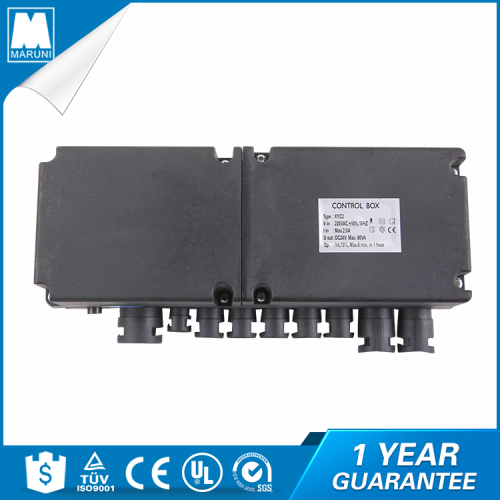

Linear Actuator Controller Kit

ZHJIANG XINYI INTELLIGENT DRIVING TECHNOLOGY had always been devoted to the research and development of the 12V Linear Actuator With Controller.

control boxes are ZHEJIANG XINYI  between actuators (linear, dual or lifting columns) and the related controls used to administer their adjustment. Linear Actuator With Controller are a broad family of intelligent hubs allowing adjustment of various actuator applications. From hospitals and offices to waste water facilities, industrial automation, and heavy-duty machinery within agriculture and construction. They all benefit from actuator systems or solutions with a ZHEJIANG XINYI control box.

LINAK control boxes help ensure movement in applications is smooth, safe, low-energy, low-noise and very easy to monitor and control remotely. Several of them come in environmentally friendly materials and they are designed to be mounted and installed with minimum effort.

ZHEJIANG XINYI actuators come with a control box integrated within the actuator itself. That makes sense in for instance adjustable comfort furniture, where space is limited, or in harsh outdoor environments, where protection against water or dust is needed

These specialized actuators offer the following benefits:

•   Designed for Actuonix actuato
•  Controls one linear actuator
•  Supported input signals include USB, Voltage, Current, RC Servo, and PWM
• On board adjustment of speed, sensitivity, and stroke limits

Technical data:

Input voltage:110VAC/220VAC/240VAC/  50HZ/60HZ

Output voltage:12VDC/24VDC

Duty cycle:10%,stop for 18mins after continuously working 2 mins

Max.power:360VA

Operation temperature:+5℃~40℃

Ip grade:IP 51(the control box has an overload-protection function) provided with a separate type battery,allows to continuously work for about haf an hour whenthepower supply stops)

Colour:Black/Grey
