Liquid Drugs Dispensing Peristaltic Pump For Dosing Dispensing Pump

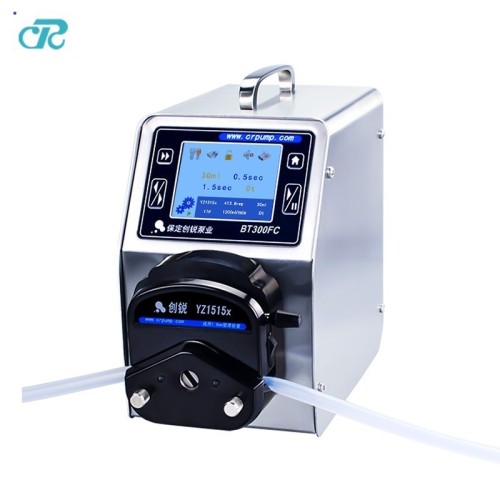

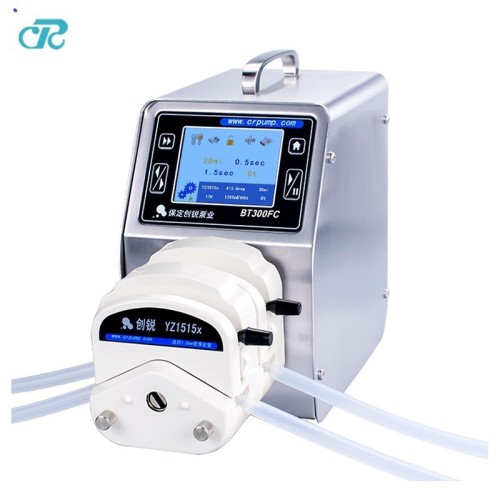

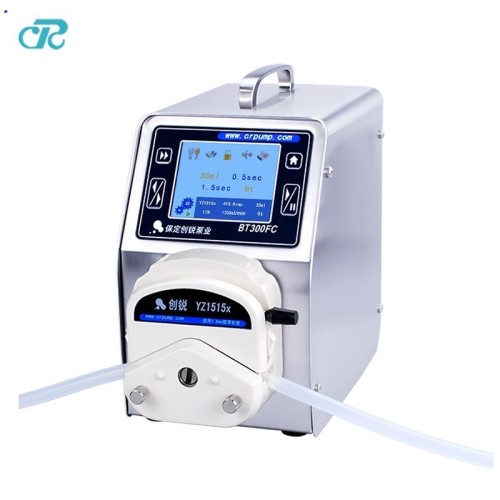

Intelligent high accurancy Dispensing Peristaltic Pump BT300FC has been widely used for filling bottles. Its flow ranges from 0.007-1140ml/min. It has Color LCD display, touch screen and operation panel which are very easy for people to operate. There are several buttons on the Peristaltic Liquid Pump: reversible direction, start/stop control, adjustable speed. Flow display and control; Cumulative allocation is shown.Peristaltic Metering Pump has flow rate calibration. 0.2% precision speed control with 0.1rpm speed resolution. Dosing Pump has Professional operating system. Use the setup wizard to configure the system. Intelligent temperature control minimizes working noise. External logic level signals can control start/stop, direction and easy assignment functions; External analog signals can adjust the speed. The signal is optically isolated. With RS485 Modbus interface. Internal double layer isolation structure, with conformal coating circuit board so that the pump dust, moisture. Anti-electromagnetic interference function, suitable for a wide input voltage range in complex power supply environments. Stainless steel housing, easy to clean, acid, alkali, sodium and organic solvent corrosion. Drive multi-channel and variable pump head. There is optional foot switch control for consumer to choose. It can help users control Peristaltic Tube Pump in a distance from the Small Peristaltic Pump.

Features:

FC Intelligent dispensing peristaltic pump on function is powerful：
·Storage function-user data storage function:(9 sets of filling data) . The original filling data can be quickly found by entering the storage interface with one key.
·External control function-Multiple mode selection: communication mode, analog mode，foot switch control.Provide customized services.
·Memory function-data will be stored in time after power off. When power supply is restored, the pump can remember the parameter Settings before power off, which is more safe and reliable.
·Calibration function-intelligent flow calibration: after setting the target flow, input the actual flow value,and the system will automatically carry out flow calibration to ensure the flow accuracy
·Full speed function-one button to control full speed operation, used for quick cleaning, filling and emptying tubes, etc
·Suckback function-By setting Suckback angle and Suckback speed to prevent liquid dripping and ensure fluid accuracy.
·lock screen function-lock screen design, error proof touch, application more secure.
·Display function-real-time animation of the operation interface shows the running state and working parameter.
·Touch-screen function-3.5-inch color LCD screen,( 59344858, 59344671, 59343191, 59338029,English and Chinese optional) , touch-screen operation,intuitive and
intelligent.
·Whole housing design-stainless steel housing，sturdy and durable , multi-face seamless whole housing design, Long service life,
