Low-E Aluminum XLB-140 North American Hung Window
Low-E Aluminum XLB-140 North American Hung Window
Low-E Aluminum XLB-140 North American Hung Window
Low-E Aluminum XLB-140 North American Hung Window
Low-E Aluminum XLB-140 North American Hung Window

Video

1 / 5

Low-E Aluminum XLB-140 North American Hung Window

Get Latest Price

Basic Info

Model No.
Brand Name Alloy Pro

Product description

XLB-140series Hung windowIntroduc
Hung Windows are a timeless, functional choice, crafted with premium Aluminium Profile for lasting durability and corrosion resistance. Seamlessly complementing Aluminum Curtain Wall and Glass Curtain Walls, these vertically sliding windows offer flexible ventilation—easily opening to let in fresh air while maintaining a sleek, cohesive look with modern building facades. Their sturdy design ensures tight sealing for energy efficiency, making them ideal for both residential and commercial spaces.
Introduc
Thickness:3.0mm? ? ? ? ? ? ? ? ? ? ? ?Blade width:600-1200mm
Bearing:30KG? ? ? ? ? ? ? ? ? ? ? ? ? ? ?Blade height:600-1900mm
FEATURES AND PERFORMANCE
Summary ofTest Results
Product manufacturer:? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?Foshan Xiaoluban doors and Windows Co.. LTD.
Product type:? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?XLB 140Vertical Pushing Vent
Produet series/model:? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?140 Series
Primary product designator:? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?ClassR-PG75-Size tested 1000mmx1600mm
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?Positive design pressure (DP) = 3600 Pa
?
Optional secondary designator:? ? ? ? ? ? ? ? ? ? ? ? ? ?Negative design prcssurc (DP)=-3600 Pa
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?Water penetration resistance test pressure = $40 Pa
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?Canadian Air infltration'exfiltration level:A2
Test completion date:? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?2024-12-20
?

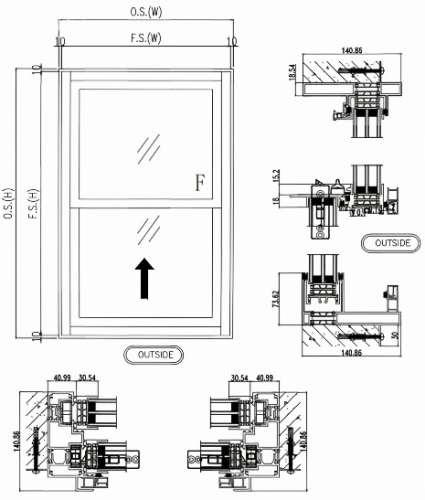

1.3.0mm thickness profile,with narrow sightline,hidden sashes,designed withsub frames for installation
2.35.3mm width thermal break which can fit in triple lGU to improve the heat insulation.
3.Casting harwares are used to replace the plastic hardwares which allow for longerservicelife.
4. CSA and NFRC certification is under application
default name
Basic parameters:
Heat insulation:UW1.7W/m2K? ?? Ultimate wind resistance:+300Pa
Sound insulation performance:Rw up to 35dB Waterproof performance:+Pa540
?
