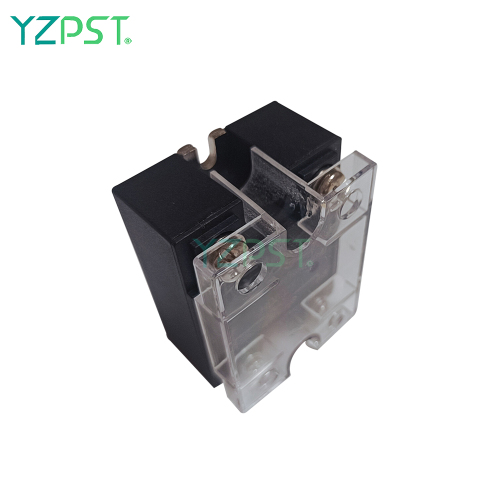

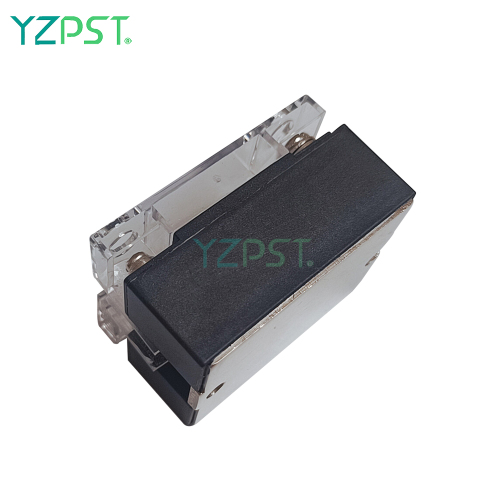

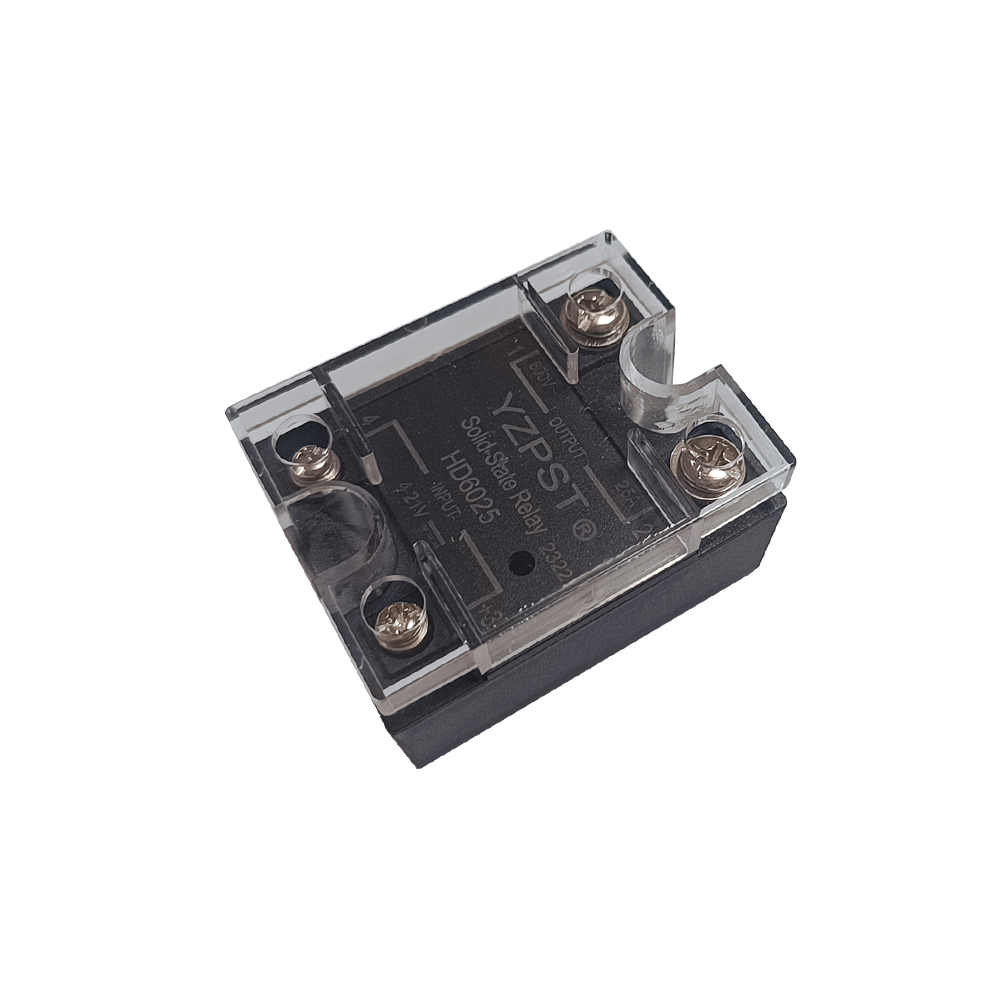

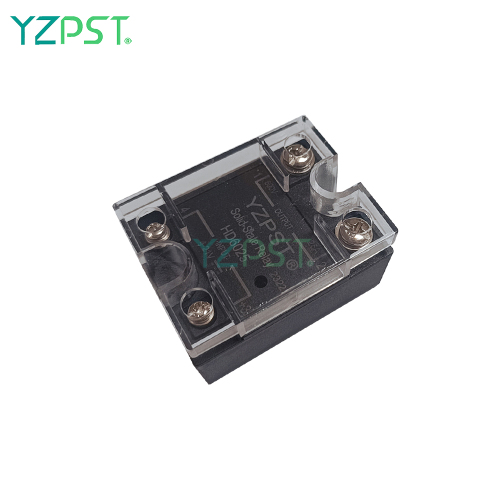

Low Forward Voltage Solid State Relay SSR HD6025
$6.50
≥100 Piece/Pieces
$5.00
≥1000 Piece/Pieces
Options:
- Control Voltage:3-32V
- Operating Voltage:48-660V
- Rated Load Current:25A
- Transient Overvoltage:1200V
- Maximum Off-State Leakage Current:5mA
- Minimum Off-State dv/dt:500V/us
Basic Info
| Model No. | YZPST-HD6025 |
|---|---|
| Brand Name | YZPST |
| place of origin | China |
| Control Voltage | 3-32V |
| Operating Voltage | 48-660V |
| Rated Load Current | 25A |
| Transient Overvoltage | 1200V |
Product description
Rating Load Current 25A @48-660 VAC
SCR output for heavy industrial loads
Zero Voltage or instantaneous turn-on outputs
Low Forward Voltage
DC control
TC=25°C unless otherwise specified
| Parameter | Test Conditions | Values | Unit |
| Control Voltage | DC | 3-32 | V |
| Operating Voltage | AC (47-63Hz) | 48-660 | V |
| Rated Load Current | 25 | A | |
| Transient Overvoltage | 1200 | V | |
| Maximum Off-State Leakage Current | Rated Voltage | 5 | mA |
| Minimum Off-State dv/dt | Rated Voltage | 500 | V/us |
| Maximum Load Current | 25 | A | |
| Minimum Load Current | 40 | mA | |
| Maximum 1 Cycle Surge Current | 50/60Hz | 235/250 | A |
| Maximum On-State Voltage Drop | Rated Current | 1.15 | V |
| Thermal Resistance Junction to Case | 0.8 | ℃/W | |
| Minimum Power Factor | Rated Maximum Load | 0.5 |
