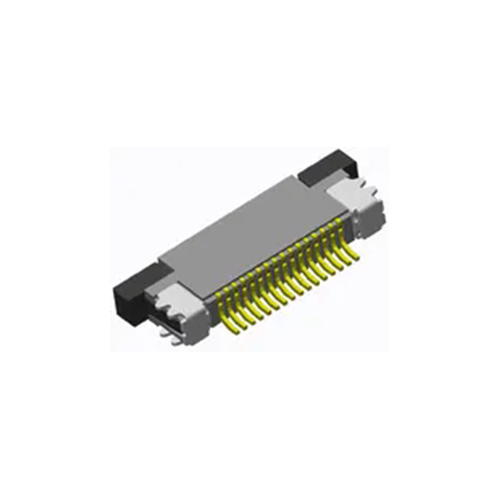

Product Name:Lying paste down Right angle type FPC Connector

FPC translated into Chinese is: flexible printed circuit board, commonly known as the PCB made of soft materials (can be folded, bent material); connectors for LCD display to drive the circuit (PCB) connection, mainly 0.5mm pitch products. 0.3mm pitch products have also been used in large quantities.
With the trend of having LCD drivers being integrated into LCD devices, the number of pins of FPC will be reduced accordingly, and there are already related products in the market. In the longer term, FPC connectors are expected to be integrated with other cell phone components in the frame of the phone or its LCD module.
The products are mainly used in various digital communication products, portable electronic products, computer peripherals, measuring instruments, automotive electronics and other fields, such as cell phones, digital cameras, notebook computers, MID, MP3\4\5, handheld game consoles, audio systems, etc.

Applications.
1.FPC connectors are mainly used in: LCD, scanner, and other electronic equipment.
2. Computer main board, LCD, telecommunication card, memory, mobile hard disk, including mobile devices. Mobile devices (such as cell phones, MP3 players and notebook computers) are increasingly using FPC connectors in the use of impact-resistant back-lock mechanism connectors.
3. Automotive electronic connectors, car GPS navigation, medical equipment, products are widely used in audio, digital machines, video cameras, car audio, TV sets, typewriters, calculators, cash registers, telephones, CD-ROM, VCD, DVD, copiers, printers, wireless instruments, visual call equipment and aerospace products high-tech pioneers.

SPECIFICATION

Rated Current:0.5A
Contact Resistance:30mQ Max
Insulation Resistance:500MQ Min
Withstand Voltage:500VAC/DC
Operation Temperature: -40c to +105°c
material:
Housing:High-temperature material
Terminal:Copper alloy

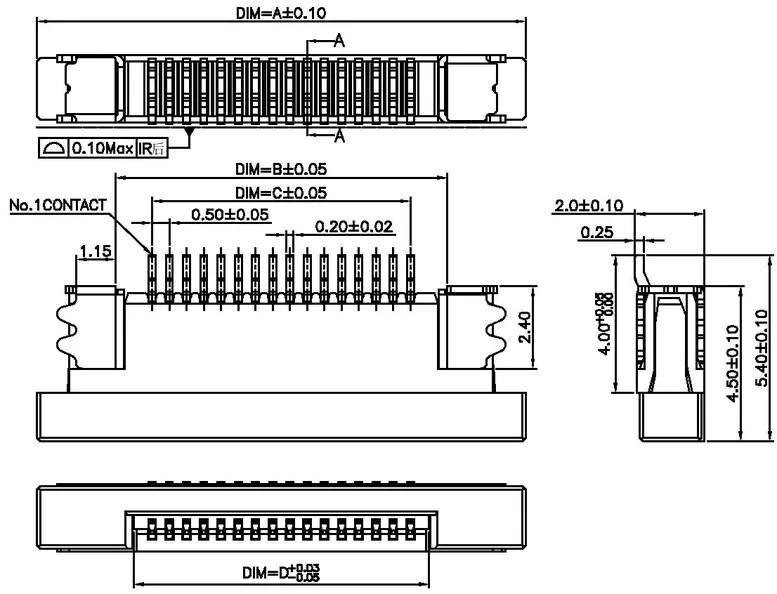

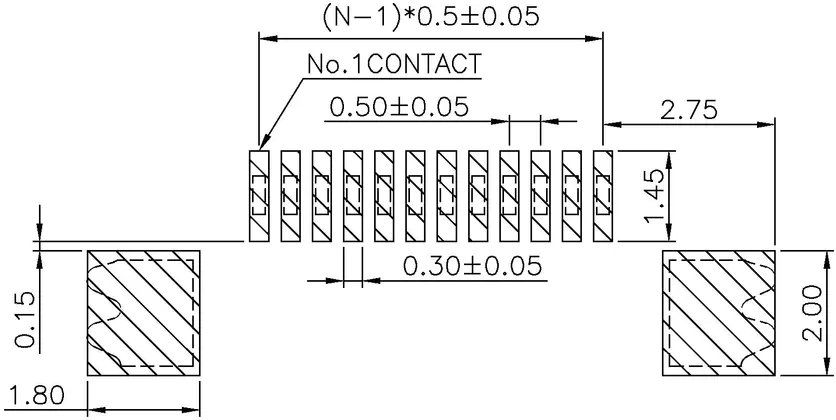

PCB LAYOUT

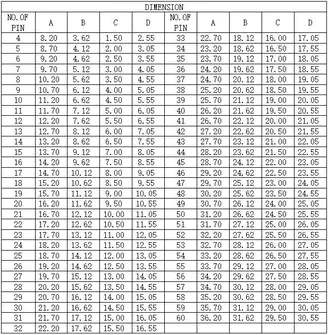

Dimensions  list

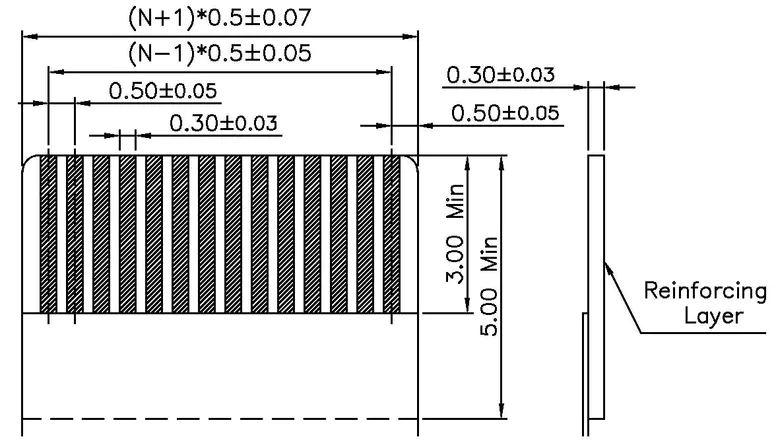

APPLICABLE  FPC
