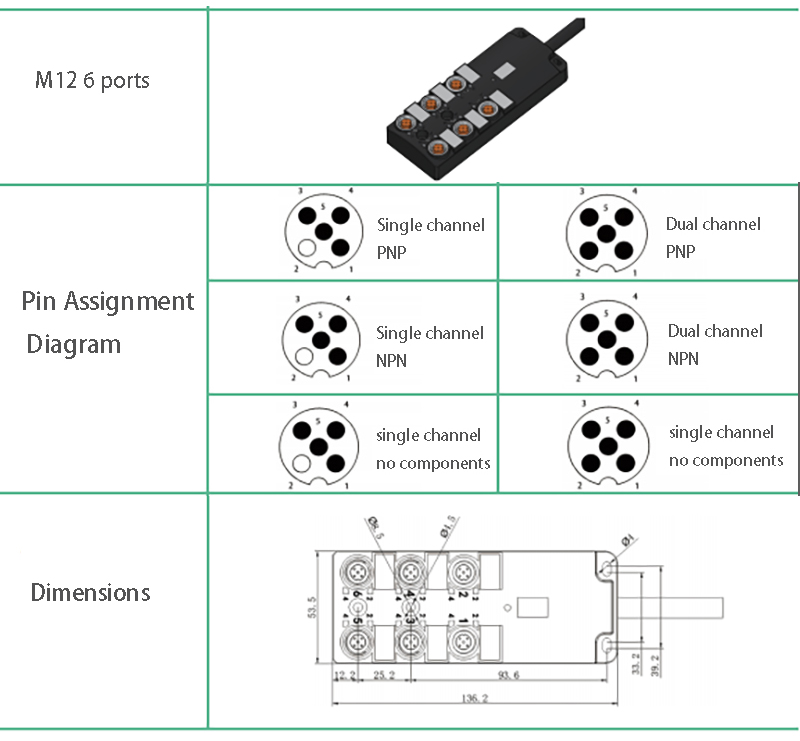

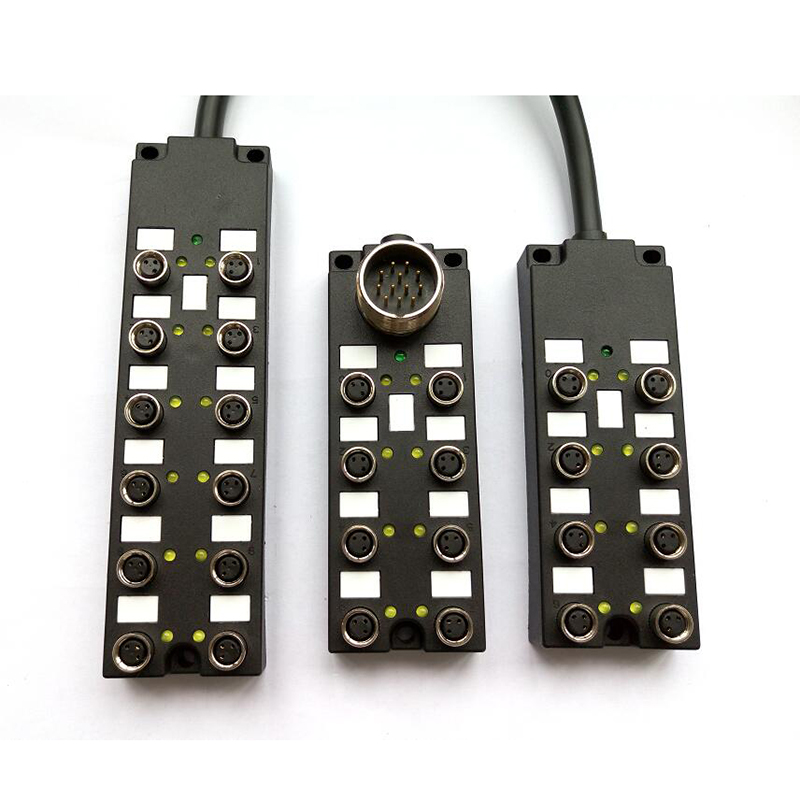

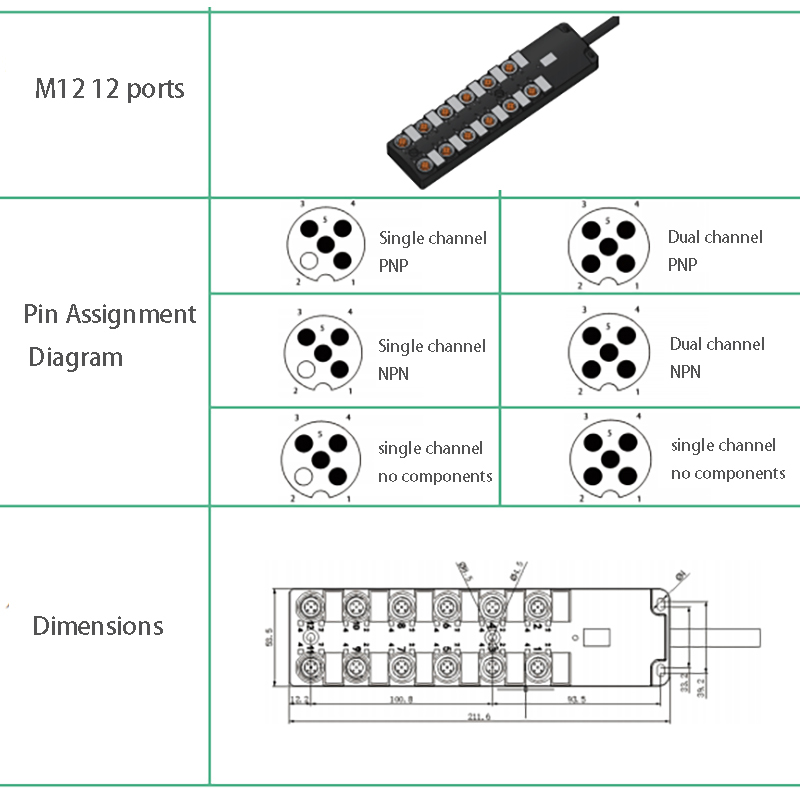

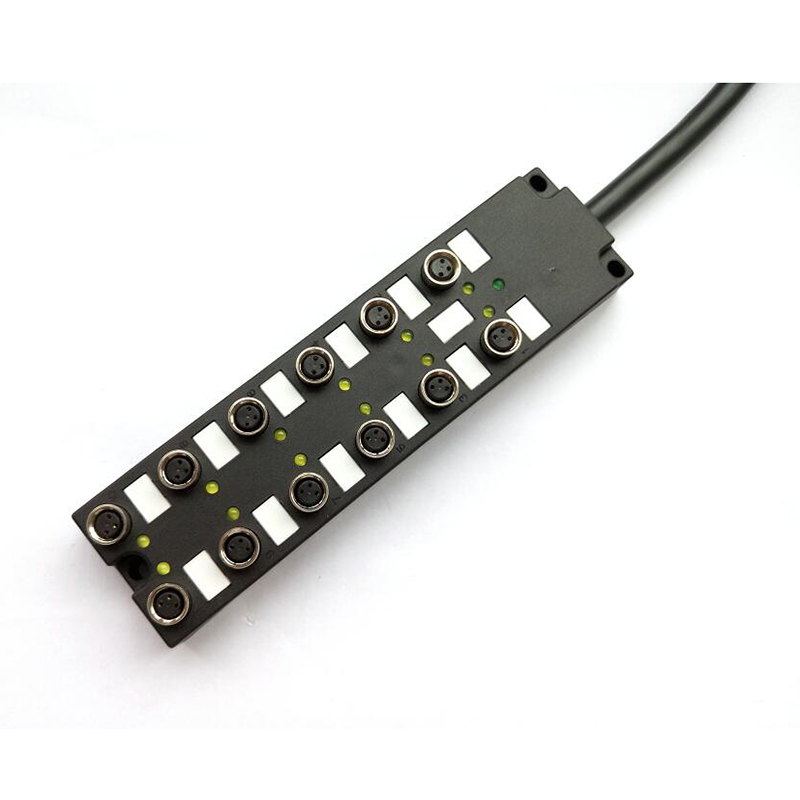

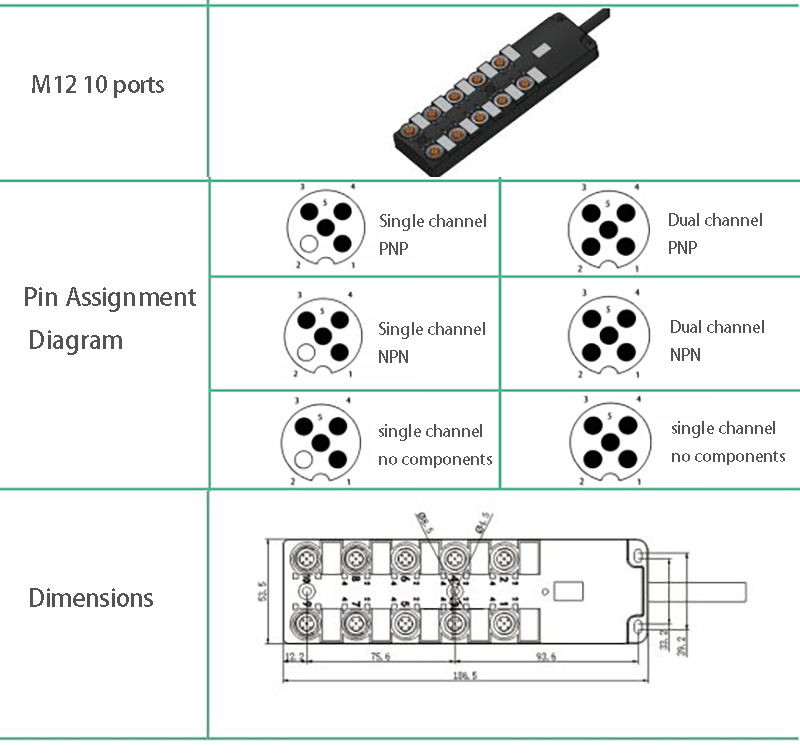

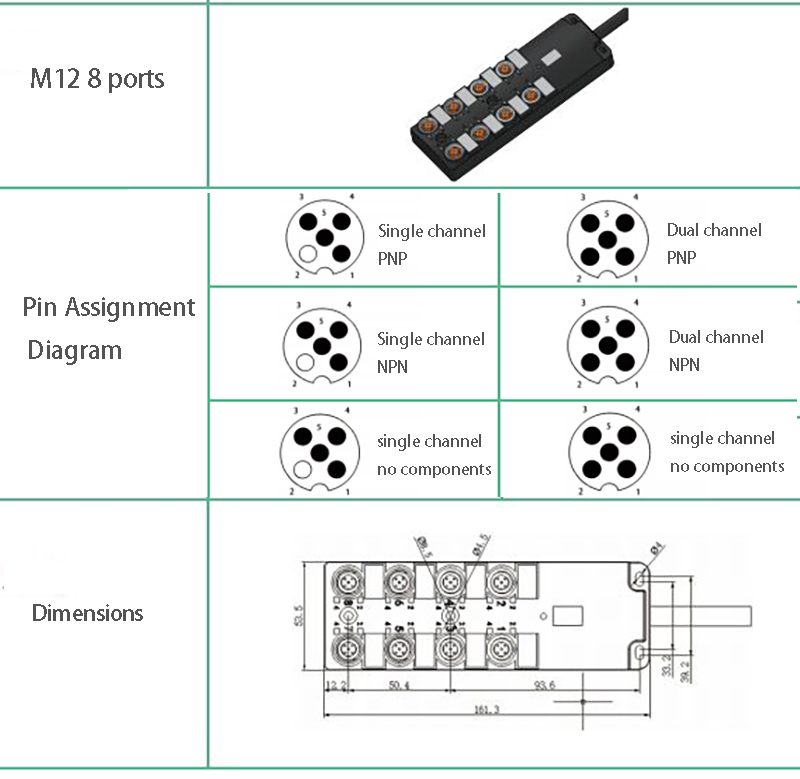

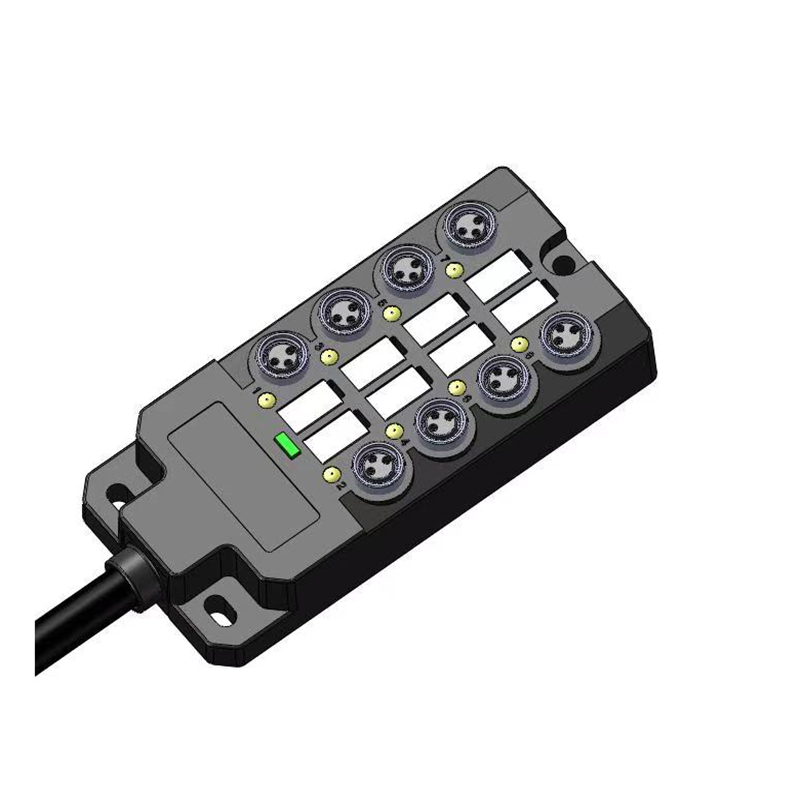

M12 Sensor Junction Box - Proximity Switch Distributor NPN PNP IO Module
$50.00
~ $65.00
/ piece
Options:
- NPN Dual 6 Ports
- NPN single 4 port
- PNP single 6 port
- PNP Dual 6 Ports
- NPN single 8 port
- NPN Dual 8 Ports
- PNP single 8 port
- NPN Dual 4 Ports
- PNP single 4 port
- PNP Dual 4 Ports
- NPN single 6 port
- PNP Dual 8 Ports
Get Latest Price
You might also like
$1.50
500 piece (MOQ)
$0.10
1000 piece (MOQ)
Basic Info
| Type | cores sensor junction box |
|---|---|
| Mounting Type | see details |
| Description | see details, hub IO module |
| Model Number | NPN PNP |
| place of origin | China |
Show More
Product description
technical parameter
Rated voltage: 250VAC/DC
Rated current: 4A
Protection class: IP65/IP67
Temperature range: -25~+85℃
Supply voltage: 10-30VDC (standard 24VDC)
Power Indicator: Yellow LED
Output point: 1
Number of I/O channels: 4 6 8 10 12
Supply current: Max.2A
Current parameters: Max.8A
Maximum load: According to the specific standard definition, the maximum current value and load capacity of the cable must be
considered.
Shell material: plastic (flame retardant material) PC+ABS
Temperature range: -40-+80℃
Cable/Cable/Wire Material: Standard PUR
Connection method: Thread M12x1
Rated voltage: 250VAC/DC
Rated current: 4A
Protection class: IP65/IP67
Temperature range: -25~+85℃
Supply voltage: 10-30VDC (standard 24VDC)
Power Indicator: Yellow LED
Output point: 1
Number of I/O channels: 4 6 8 10 12
Supply current: Max.2A
Current parameters: Max.8A
Maximum load: According to the specific standard definition, the maximum current value and load capacity of the cable must be
considered.
Shell material: plastic (flame retardant material) PC+ABS
Temperature range: -40-+80℃
Cable/Cable/Wire Material: Standard PUR
Connection method: Thread M12x1
Feedback From Customers
Shipping & Payment
1, Can you provide free samples?
Yes , Free samples is available , you just need to pay for the shipping cost.
2, What is your MOQ ?
Normally , 100m per a color or size.
3,?What is your payment terms?
Payment amount ≤ 100USD , 100% in advance ; payment amount ≥ 600USD , 30%T/T in advance ,balance before shippment.
4, How about your quality?
Try a small order , you will have a judgement.
5, How can we get my order ? How can we know you have sent the goods?
We will send you the goods by UPS,DHL, TNT,Fedex,Oversea shippment or other forwarder, all with tracking number.
