Damping Vibration Stabilize And Balance Mount Pads

?Machinery Mount Pads Description

?

The anti-vibration mount can used in metal working machines, satin pressure machine tools, textile, printing machinery, food processing machines, rubber machines, wire and cable machines, packaging machines, generators and heavy equipment.

The desired penetration into the horn under the machine foot bolt holes. To spin and load-bearing plate contact with reality, then the level of machine adjustment (bolt clockwise rotation lift the machine), Adjusted the machine level. Tighten the nut, fixed level status. Because rubber creep phenomenon, for the first time, adjust the machine level again after two weeks.

?

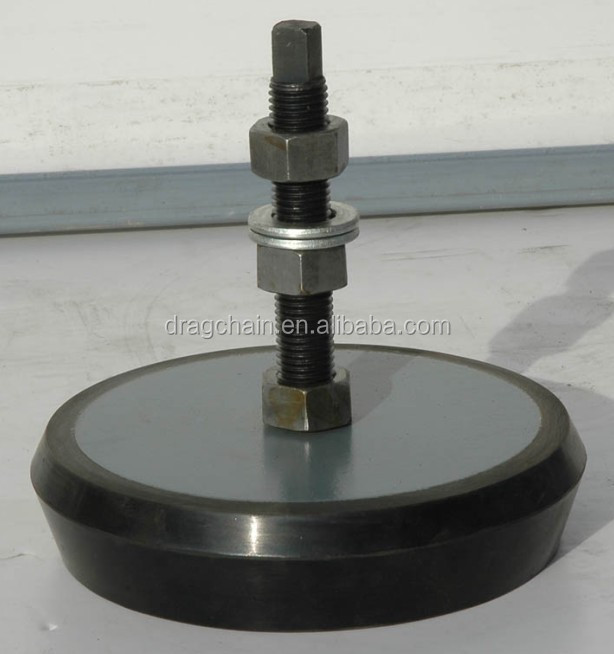

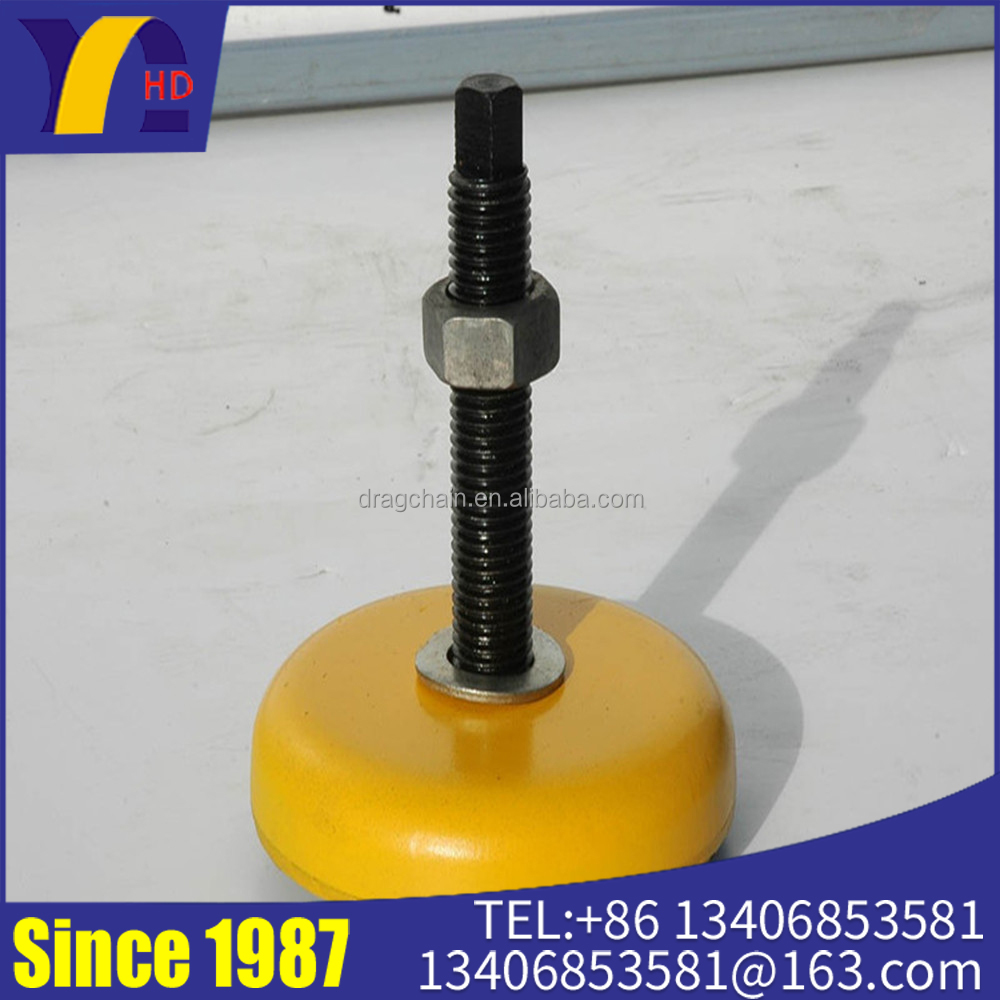

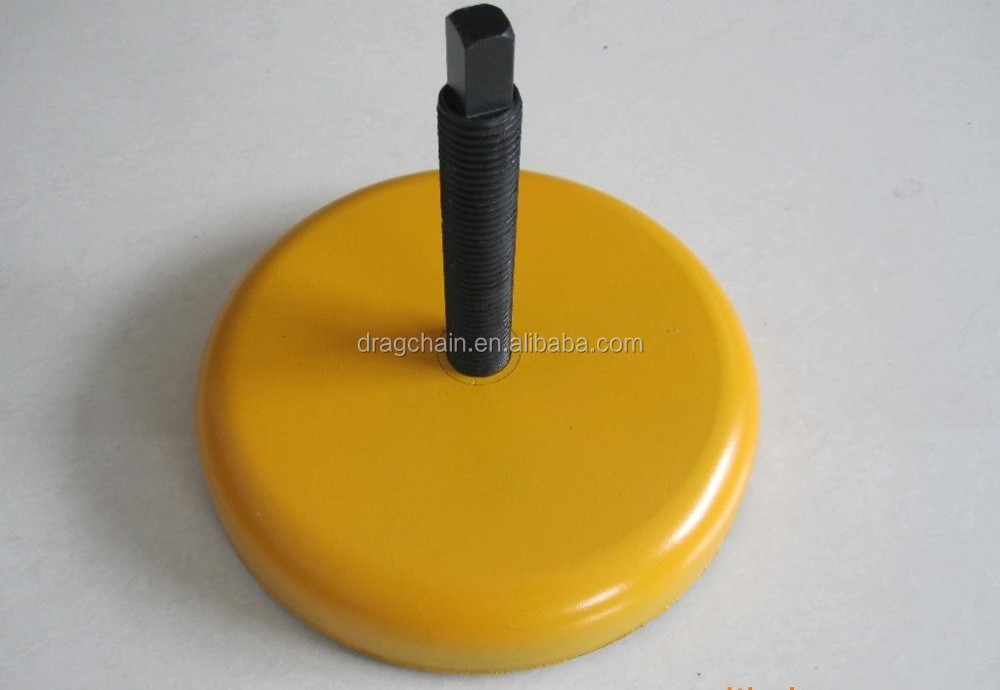

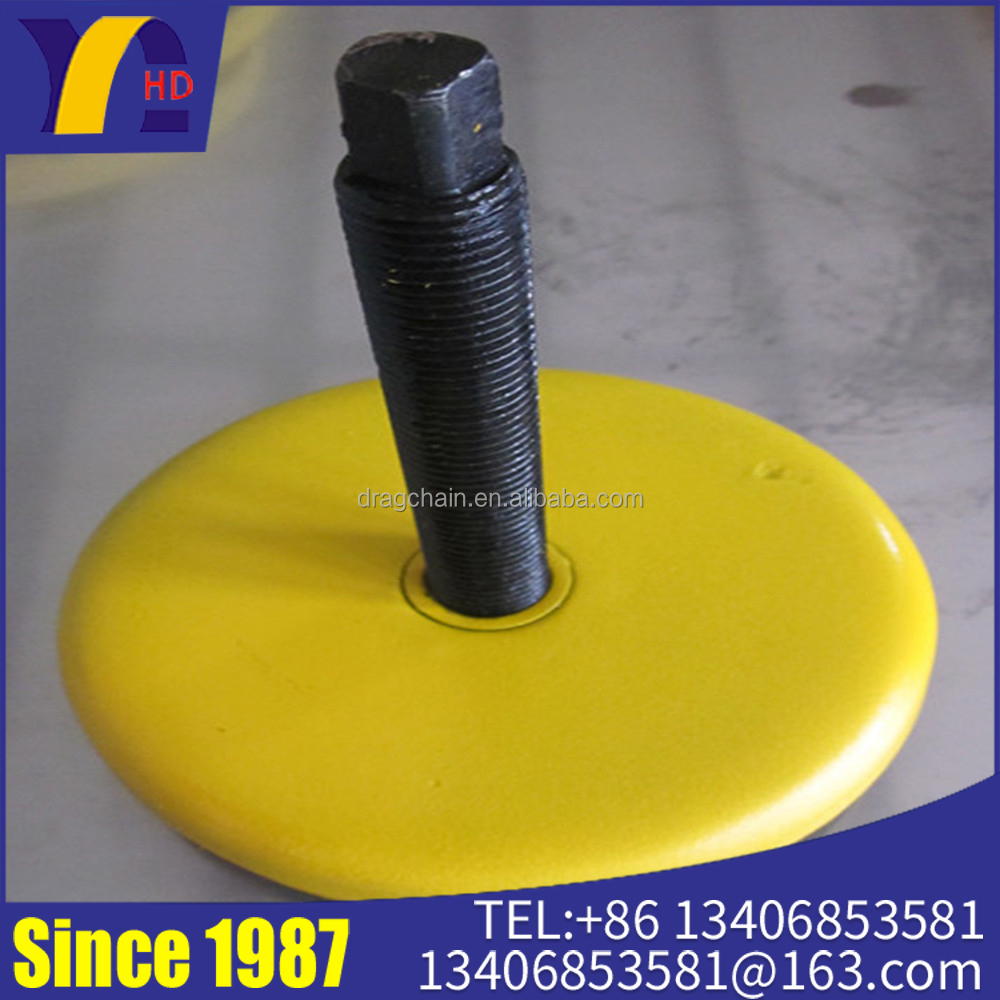

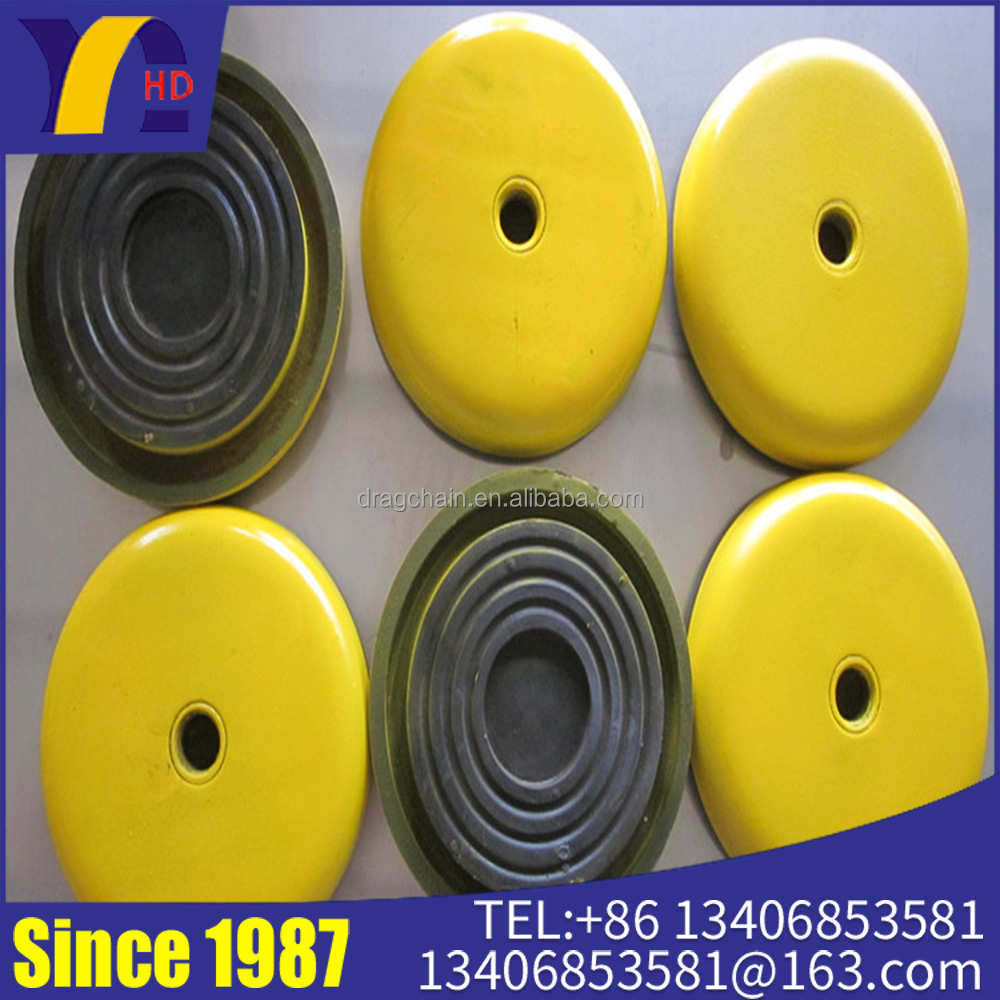

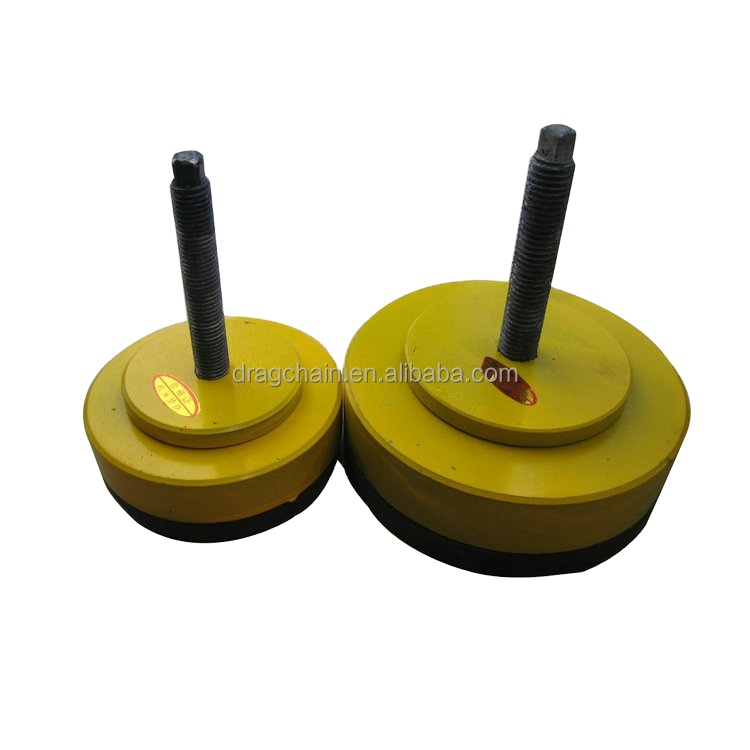

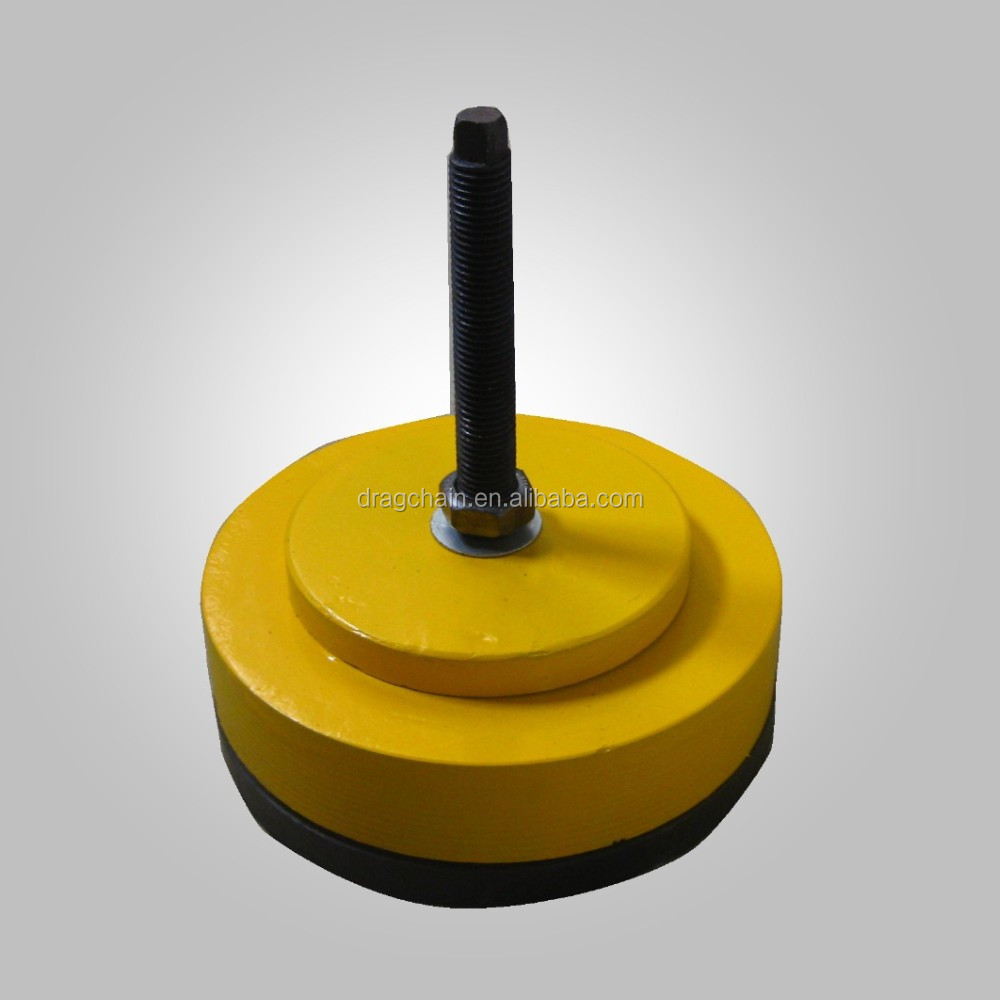

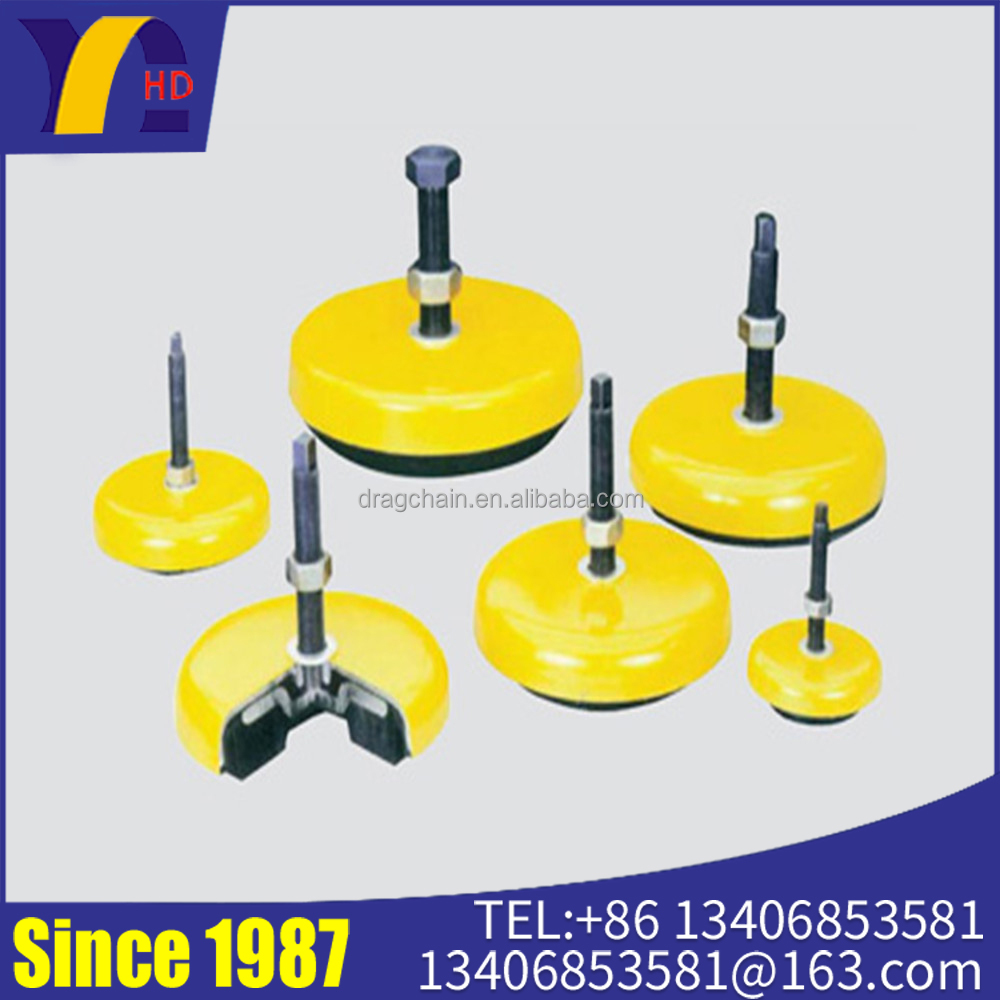

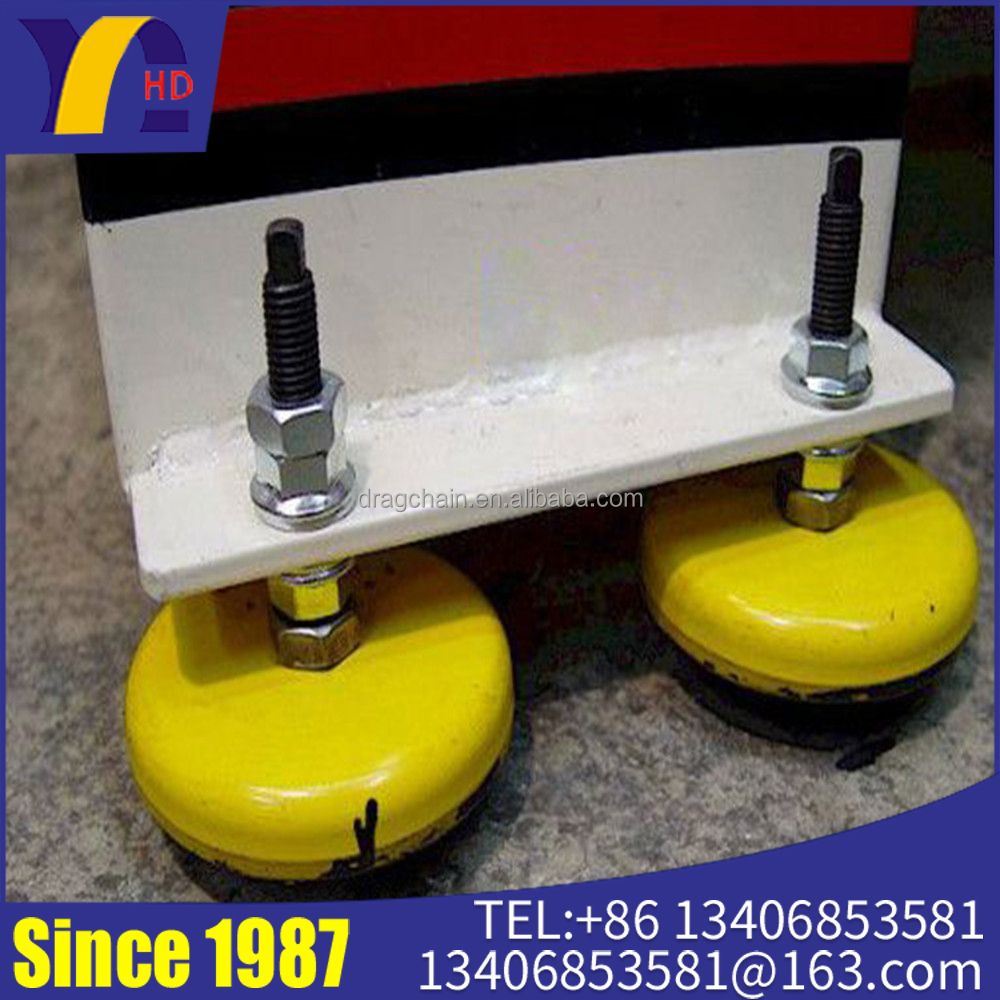

?Machinery Mount Pads Show

?

?

?Machinery Mount Pads Feature

?

The anti-vibration mount can effectively reduce the machine self-vibration; reduce the vibration force exposed or incoming, to ensure the products’ accuracy and quality. Also, the anti-vibration mount prevent the vibration and noise of building, united the all kinds of machine tools, adapt the technology development.

Large adaptive range, convenient and fast.

NBR synthetic rubber, resistant to oil and coolants.

?

?Machinery Mount Pads?Size

?

Model	01	02	03	04	05	06	07	08	09
Diameter (mm)	130	160	180	200	220	240	260	280	300
Height (mm)	50		60		70		80		100
Thread	12		16		18		20		24
Height Adjust (mm)	15		20			25			30
Load Per Mount (N)	4000-8000	6000-12000	7000-14000	8000-16000	9000-18000	10000-20000	11000-22000	12500-25000	15000-30000

?

?Trade

?

MOQ: 10?Boxes

Payment: L/C, D/A, D/P, T/T, Western Union, MoneyGram;? 30% deposits; 70% balance before delivery or against copy of BL

Delivery Time: 3-7 days for samples; Within 10 days for batch goods.

Packaging:?Carton or wooden cases

Shipping:?By Air or by Sea for batch goods, for FCL OR LCL; Airport/ Port receiving;

?Service

?

Professional & Passion Sales team 24 hours at your service
Participating in the various exhibitions help you to know us more completely sample could be sent in 1-2 days
OEM of customized products / logo / brand / packing is accepted small qty accepted & quick delivery

Can send you samples for free

?
