Managed Gigabit Ethernet Fiber 24port Network POE Switch
$153.00
≥1 Piece/Pieces
$148.00
≥300 Piece/Pieces
$143.00
≥2000 Piece/Pieces
$139.00
≥5000 Piece/Pieces
Color:
Options:
- SL24H
- OEM
- ODM
- ODM
Basic Info
| Model No. | SL240H |
|---|---|
| Brand Name | OEM/ODM |
| Transmission rate | 10/100/1000mbps |
| Communication mode | Full-Duplex, Full-Duplex &Amp; Half-Duplex, Half-Duplex |
| Model Number | SL240H |
| product name | 24 Port Gigabit PoE Switch |
| Power Supply | 400W |
Product description

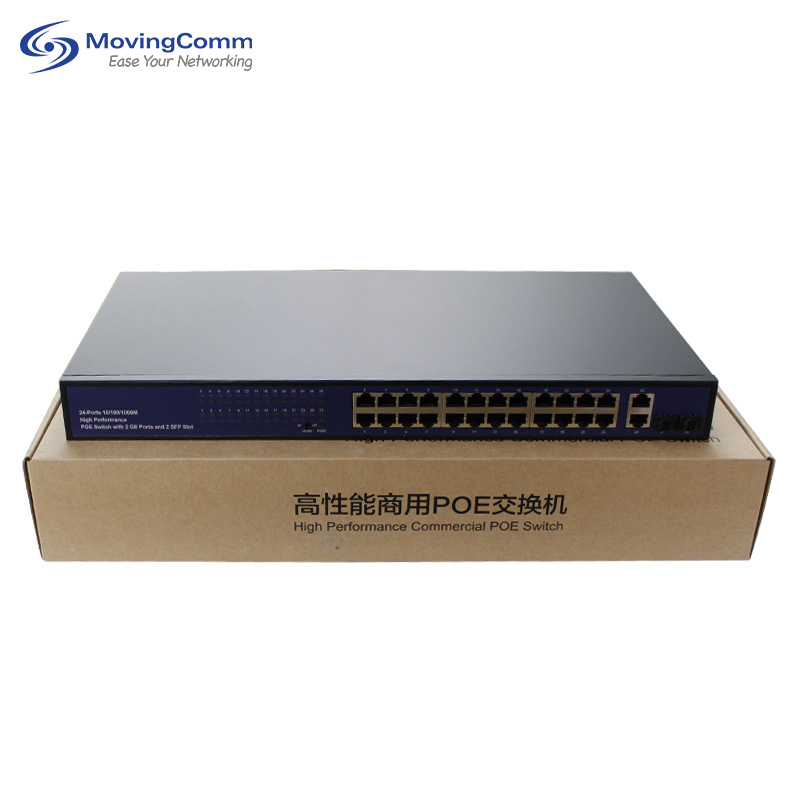

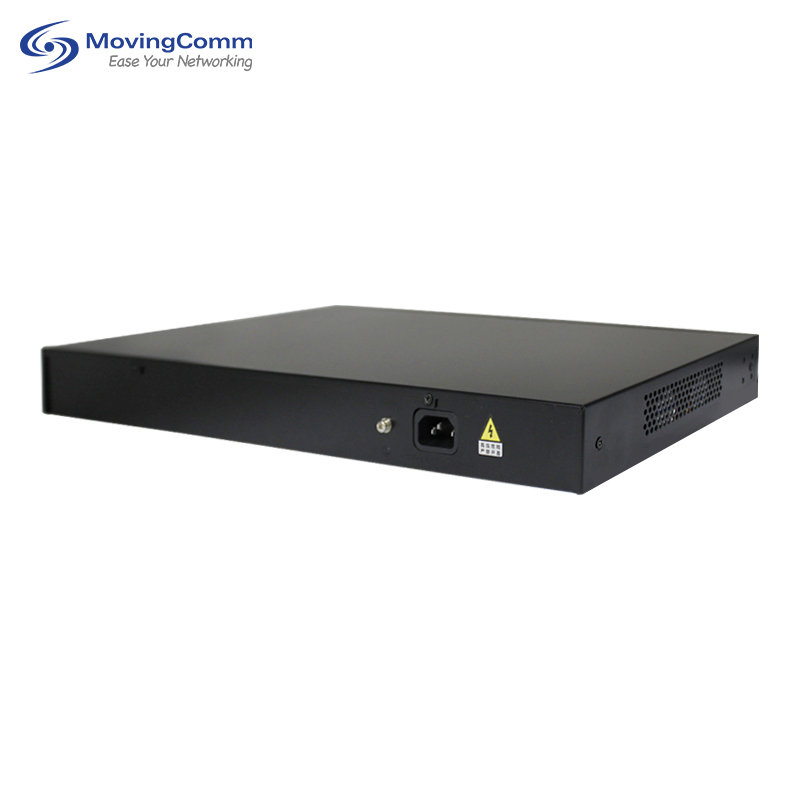

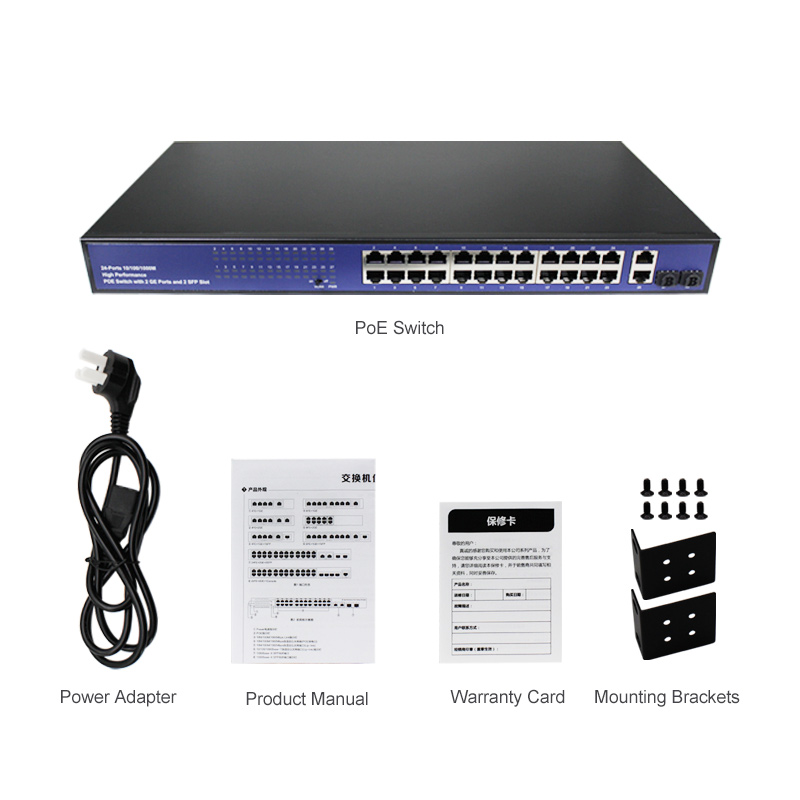

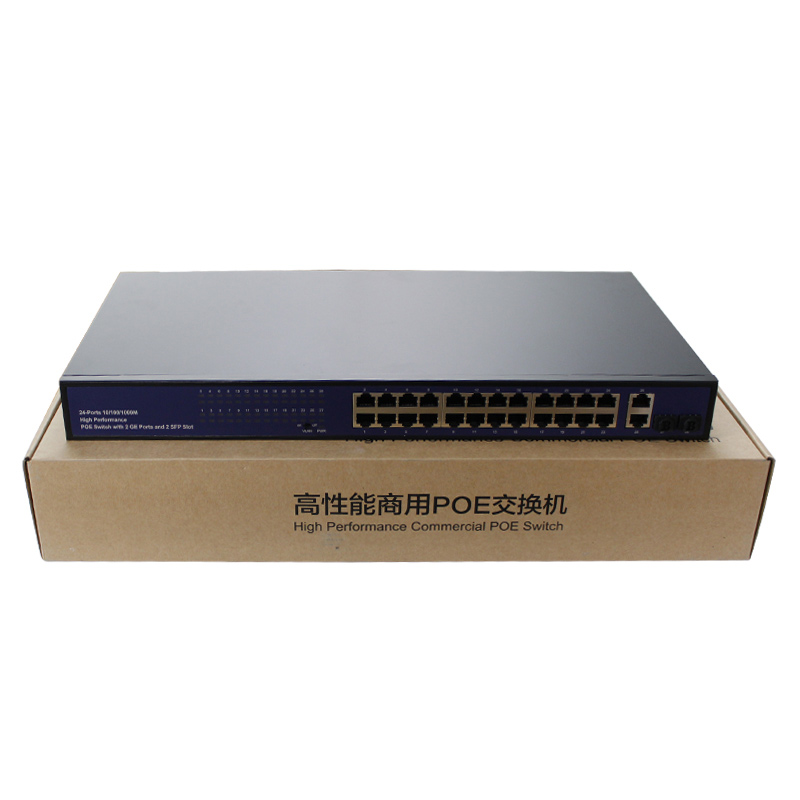

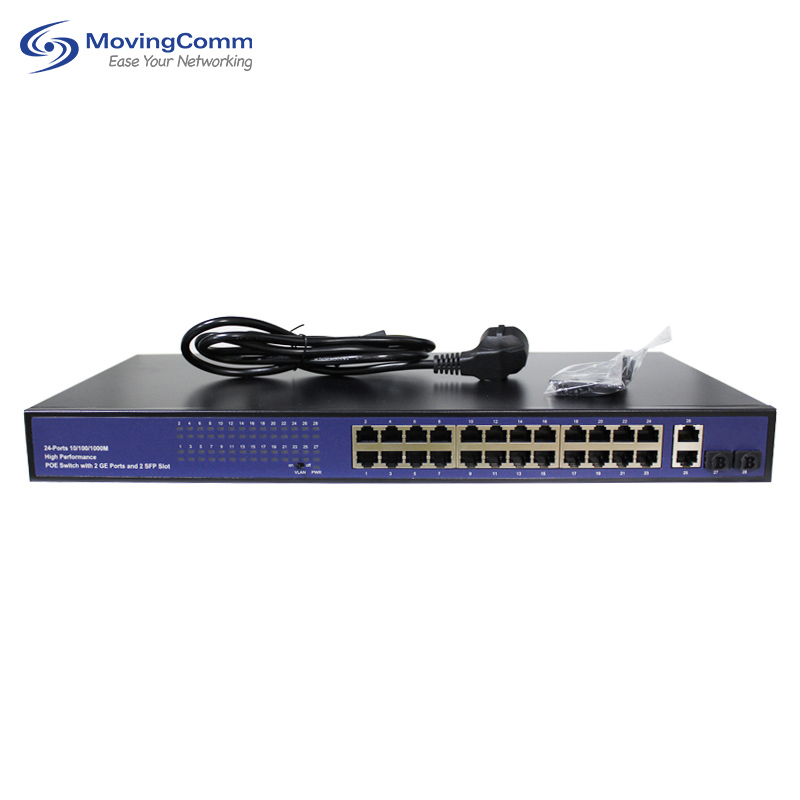

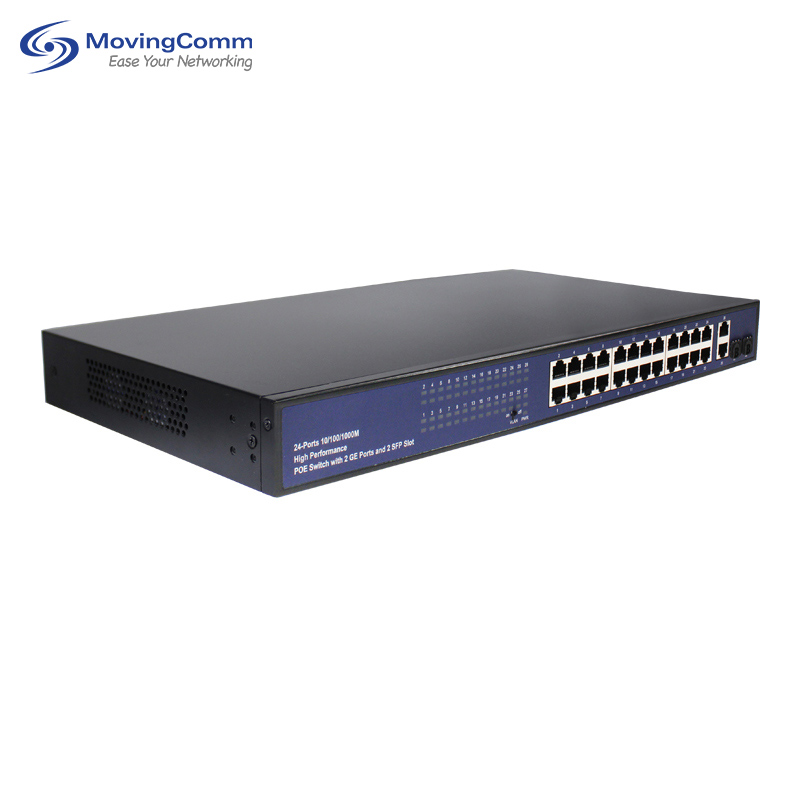

ComIn SL240H is a medium-sized enterprise-class POE switch. The POE Switch product is equipped with 2 SFP optical ports and 24 x 10M/100M/1000M adaptive electrical ports. Each network port supports a maximum of 30W POE power supply, and the switch supports a maximum of 400W POE power supply. The Network Switches product has the characteristics of high performance, easy installation, and easy maintenance, which greatly saves manpower and material costs in the network deployment. WiFi access point Products are widely used in such as small and medium-sized enterprises, conference rooms, urban villages, hotels, Internet cafes, shopping malls and other places.AC Controller/POE Switch
|
Model |
ComIn SL240H |
|
Standard |
IEEE802.3 10 BASE-T Ethernet IEEE802.3u 100 BASE-TX Fast Ethernet IEEE802.3ab 1000BASE-T GIGABIT Ethernet ANSI/IEEE 802.3 NWay Auto-negotiation IEEE802.3af IEEE802.3at |
|
Interface |

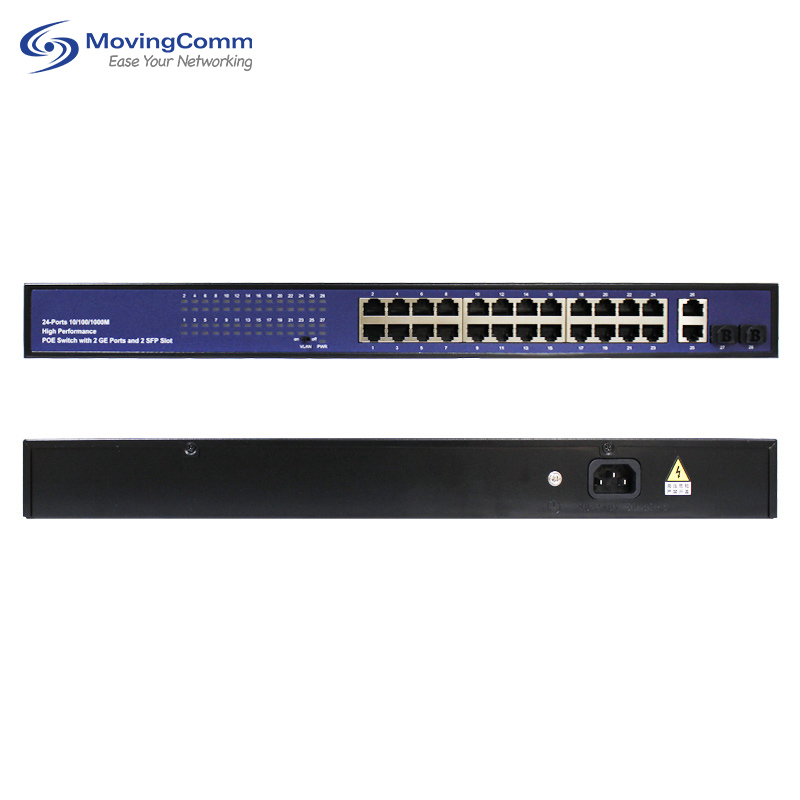

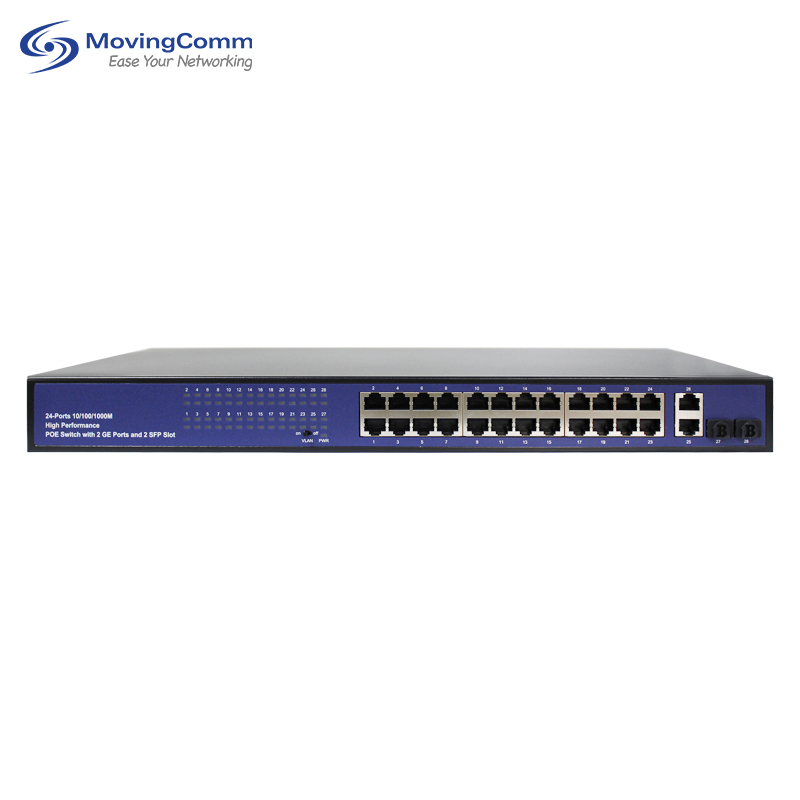

24 x 10M/100M/1000M RJ45 ports support POE power supply 2 x 10M/100M/1000M uplink port 2 x 1000M SFP optical port |
|
Port Properties |
Connector: RJ-45, SFP Supports 10M/100M/1000M Mbit/s rate Supports half-duplex, full duplex, self-negotiation working mode Support MDI/MDI-X Self-adaptation |
|
Network Cable |
10/100/1000 BASE-TX 3/4/5 twisted pair, supports maximum transmission distance of 100 meters |
|
Features |
With On/Off switch to enable/disable VLAN (port isolation) |
|
LED Light |
Each Port: Link/Act Indicator Each Device: Power Indicator |
|
Backplane Bandwidth |
56Gbps |
|
Forwarding Rate |
10Mbps: 14800pps 100Mbps: 148000pps 1000Mbps: 148000pps |
|
Switch Mode |
Storage and Forwarding Mode |
|
MAC Address Table |
MAC Address Auto-Learning and Auto-Aging. Max MAC address table: 8K |
|
PoE+ Power Supply |
Single port maximum power: 30W, Whole device power: 400W (Model: SL240H) |
|

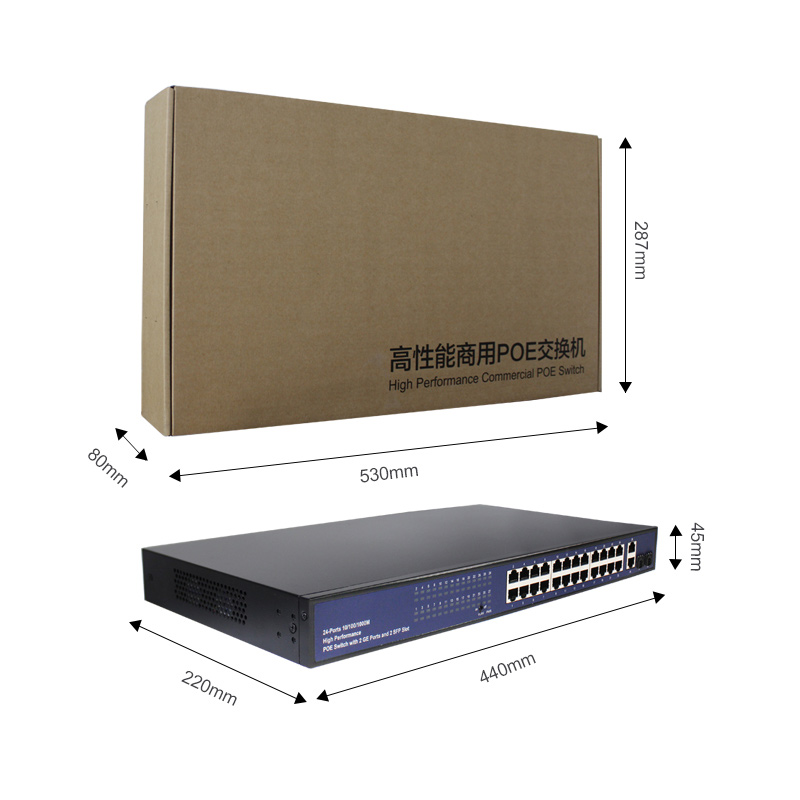

Size |
440mm x 221.5mm x 45mm |
|

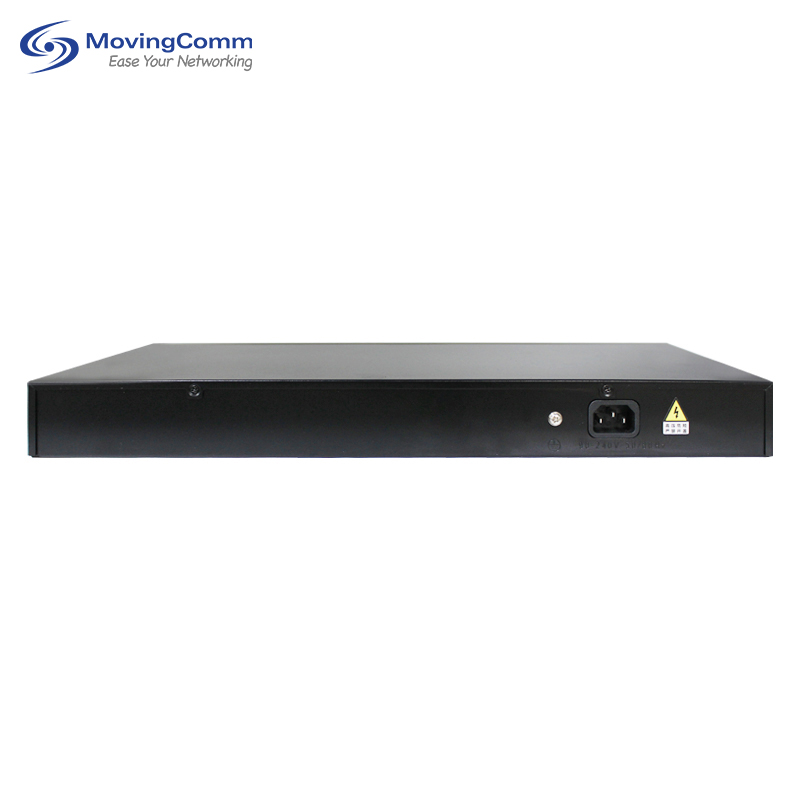

Input Power |
400W AC 100 V～240 V, 50/60 HZ |
|
Working Temperature |
0°C ~ 40 °C |
|
Heat Dissipate |
Internal fan cooling |
