Manufacturing Execution System Application

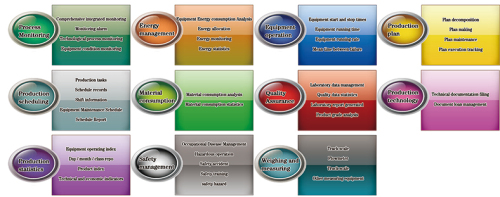

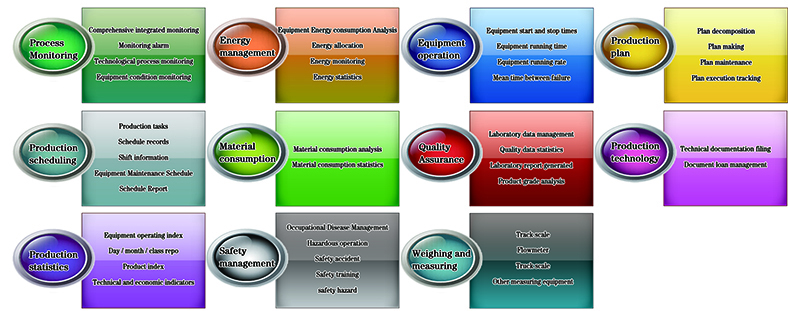

We deeply know the importance of execution layer to the enterprise Information. The industry needs a reliable executive system to make the Information management simply, improve efficiency and makes a convenient environment. This is why we persist in creating "JG- MES" system. JG-MES manufacturing execution system includes two levels of application, which is executive layer and automation layer. Single Channel Analyzer builds eight management modules innovatively, become a bridge to connect the planning layer ERP and the bottom control. Every modules are independent and still integrated, it can be carried out in stages to promote MES, makes the information process more convenient and easy, to meet the manufacturing enterprises "unified

Product Features

Strong environmental adaptability: can adapt to the harsh industrial site environment.

Highly corrosive environment: MES System is made of corrosion-resistant materials and can adapt to most corrosive environments such as strong alkalis.

There are no special requirements for the composition of the materials to be measured: Manufacturing Execution System is not affected by bubbles; MES System Architecture is low affected by large particles; MES System Software is not affected by magnetic interference.

The detection range of particle size is wide: the maximum size range of 60 percentage points can be detected, and the minimum size range of 20 percentage points can be detected.

The size fraction span is large: The particle size measurement can be achieved in the diameter of the grain between 20μm to 1000μm.

Product Parameter

The maximum detectable flow channel number           1
The number of size fraction that can be detected at the same time in each channel   ≤2
The grain diameter range that can be detected (μm)  20 ～ 1000
The nominal detectable particle size interval per size fraction (%)
Size fraction	Interval
μm：-75 ～ -850 mesh：200 ～ 20	20 ～ 80
μm：-45 ～ -75  mesh：325 ～ 200	30 ～ 70
μm：-25 ～ -45  mesh：500 ～ 325	70 ～ 95
Maximum nominal particle size span (percentage point) 30
the absolute error in the 1σ (%)                1 ~ 2
Analog output：4 ~ 20mA
Level of protection：detector：IP65；main control box：IP54
Ambient temperature：0 ~ +50℃
Medium environment：1 ~ 90℃
Medium pressure：86 ~ 106KPa
Power supply：220V AC，50Hz，50W

Product Application

It is mainly used to detect and analyze the particle size of the hard grain in the liquid and solid mixture slurry. PSI can be used in the grinding and dressing fields of black metal industry, basic metal industry, industrial mineral industry, and gold industry.
