Mapmapper Software LED Controller for Event Lighting

20ports Madmapper LED controller is standard 2U rack size 20x512ch DMX led controller device.

Madmapper software controller is AC90-250V input, very friendly to small projects.

If your project need more than 12universe Madmapper lighting controller, you can connect many Madmapper artnet controller together with switch. Also you can choose ISEELED 4x512ch, 8x512ch, 16*512ch, 20*512ch, 30*512ch dmx artnet controller.

LED Madmapper controller description

1, Compatibles with DMX512 led pixel lights.

2, 8x512 CH, 16x512 CH, 4x512 CH, 12x512 CH, 20x512 CH, 30x512 CH Artnet dmx controller are available.

3, LCD screen show IP address and universe information

4, RJ45 in & out, with built in switch, realize series connection between many dmx artnet led controller.

5, Compatible with different software, such as Madmapper, Madrix, Jinx and others.

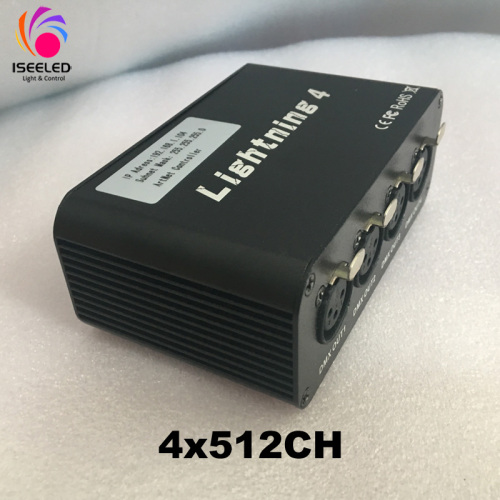

Model	Lightning 4 LED-ANC4x512	Lightning 12 LED-ANC12x512	Lightning 20 LED-ANC20x512	Lightning 30 LED-ANC30x512
CPU	ARM	ARM+FPGA
Input Protocols	ART-NET II, ART-NET III	ART-NET II, ART-NET III, sANC
Configuration	IP address, Artnet Name
Output Protocols	DMX512
Input Connection	RJ45
Output Connector	3pin/5pin XLR female
Input Voltage	DC5-24V	AC90-250V
Input Power (Max)	2W	5W
Dimension	125x70x45 mm	483x155x44 mm	482.6x130x88mm	482.6x130x88mm
Net Weight	0.7kg	1.0kg	2.0kg	2.0kg



FAQ

1, Why use a Artnet DMX controller?
Artnet controller supports DMX512 signal output. The advantage of Artnet is real time control and stable signal, you can program LED lights to display any wanted effect. You can set intensity, colour within a split-second.

2, What is DMX led controller?
DMX is an acronym for Digital Multiplex.
DMX led controller uses standard digital communication protocol to control intelligent lighting fixtures.



3, How about capacity of a DMX universe?
A standard DMX universe's capacity is 512 channels.
For RGB lightings, one pixel takes 3 DMX channels, then one universe controls 512/3=170pixels.
For RGBW lightings, one pixel takes 4 DMX channels, then one universe controls 512/4=128pixels.



4, How do I set up Artnet controller?

Set Artnet parameters on our software or on broswer, depends on the model which you're using, for more details, feel free to ask us.
