MCX-KWE Right Angle Jack Connector
Get Latest Price
You might also like
Basic Info
| Brand Name | ying shun |
|---|
Product description
The MCX 90° right-angle female PCB connector features an L-shaped integrated inner conductor design, specifically designed for space-constrained, high-density PCB layouts. It reduces vertical space requirements by 60% while maintaining excellent DC-6GHz RF performance. It is an ideal RF interface solution for compact wireless devices, test instruments, and automotive systems.
?
Product Introduction
Product Name:MCX-KWE Right Angle Jack Connector
Connector Type: MCX Female, 90° Right Angle
Impedance Matching: 50Ω
Frequency Range: DC - 6GHz
VSWR: ≤1.30 @ 2GHz
≤1.45 @ 6GHz Standard Connection (Including Right Angle Loss)
Shielding Effect: ≥85dB @ 3GHz - 360° Full Shielding
Housing Material: Nickel-plated Copper/Gold-plated (Optional)
Inner Conductor: Gold-plated Copper
Insulation Material: PTFE (Polytetrafluoroethylene) Low Loss, Stable Dielectric Constant
Mounting Method: Through-hole Soldering/Surface Mount (Optional)
Mating/Removal Life: ≥500 Cycles, Performance Degradation <15%
Operating Temperature: -40℃ ~ +85℃ Industrial Grade Range
?

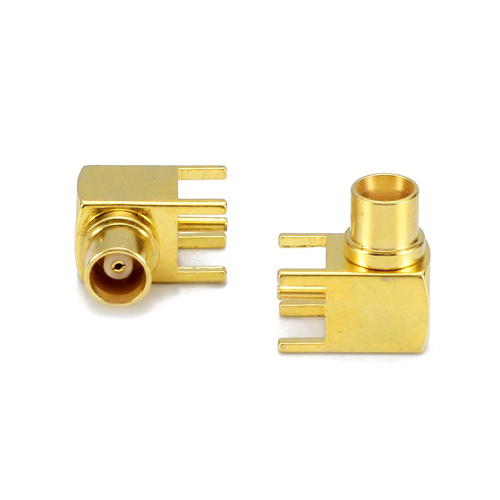

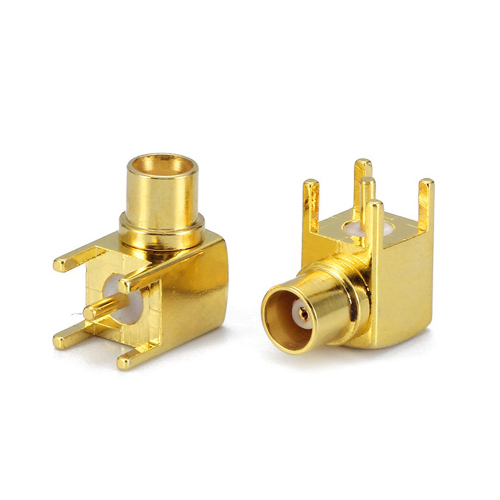

Product display image
Main Application Areas
Wireless Communication Modules: Compact designs of 4G/5G modules, WiFi/Bluetooth modules
Test and Measurement Instruments: Portable test equipment, field instruments
Automotive Electronic Systems: T-Box, in-vehicle entertainment, ADAS sensors
IoT Gateways: Industrial gateways, smart home hubs
Medical Equipment: Portable medical instruments, remote monitoring equipment
Aerospace: Airborne communication equipment, UAV control systems
