MD1022 Surface Grinding Machine - Grinding Equipment

Video

1 / 7

MD1022 Surface Grinding Machine - Grinding Equipment

$4150.00

≥1 set
$3950.00

≥10 set
$3750.00

≥20 set

Options:

MD1022

Get Latest Price

You might also like

MD1022 Surface Grinding Machine - Grinding Equipment

1 set (MOQ)

Magnetic Table Surface Grinding Machine MD1022 Electric Grinder

1 set (MOQ)

MD618A Surface Grinding Machine Price List

1 set (MOQ)

MD1022 Surface Grinding Machine - Grinding Equipment

1 set (MOQ)

MD618A Surface Grinding Machine: Precision Plane Surface Equipment

1 set (MOQ)

Basic Info

Model No.
Brand Name
Type	Universal
CNC Or Not	Normal
Condition	New
Wheel Size(mm)	200x20x31.75
Place Of Origin	Shandong, China
Brand Name	SGSK
Voltage	220V/380V/415V
Dimension(LWH)	1680x1140x1760mm
Weight (KG)	980
Power (kW)	1.5
Warranty	1 Year
Key Selling Points	Competitive Price
Showroom Location	Turkey, Peru, Chile, None, Brazil
Applicable Industries	Manufacturing Plant, Machinery Repair Shops, factory
Marketing type	Hot Product 2019
Machinery Test Report	Provided
Video Outgoing-inspection	Provided
Warranty Of Core Components	1 Year
Core components	Motor
Name	surface grinding machine MD1022 grinding equipment
Worktable Size	540*250mm
Max travel of table	560*260mm
Table T Slot	1*14mm
Grinding Wheel Speed	2850rpm
Spindle Motor	1.5kw
Cooling Motor	40w
Surface Roughness	Ra0.32
Surface Roughness(μm)	0.32 μm
Certification	CE ISO

Product description

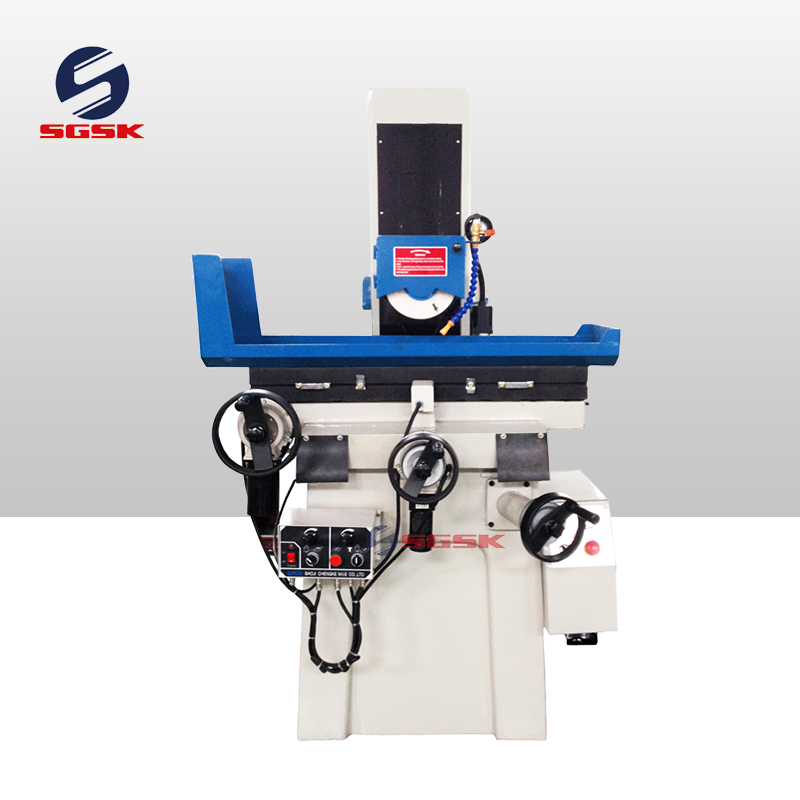

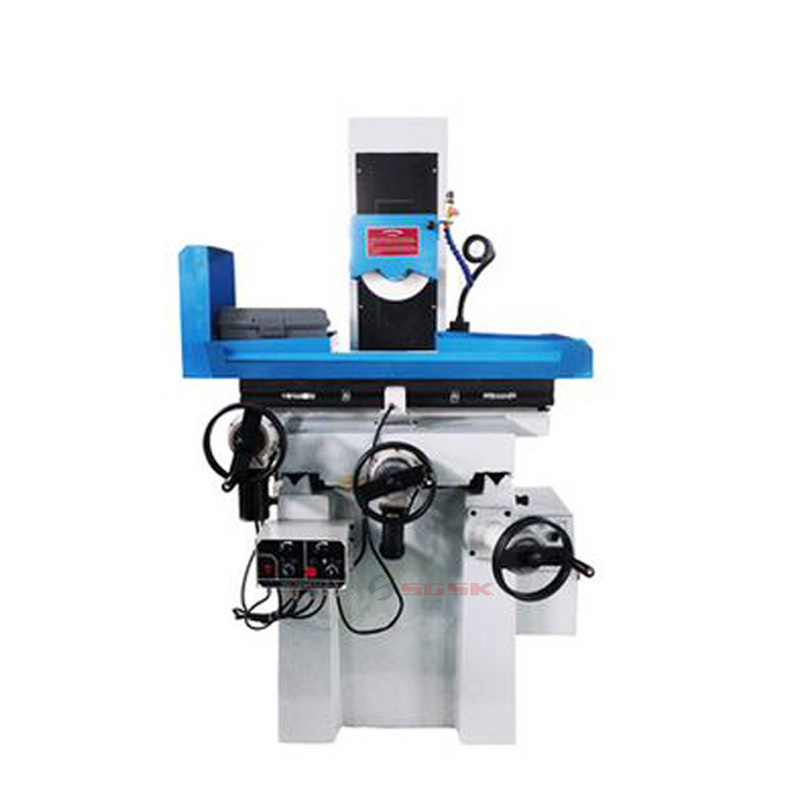

Surface grinding machine MD1022 grinding equipment

Products Description

Details Display

Product Paramenters

The main performance characteristics:
1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.
2. The transverse motion of the working table can be used to realize the mechanical transmission and the manual transmission.
3. The longitudinal movement of the working table can achieve mechanical drive and manual drive.

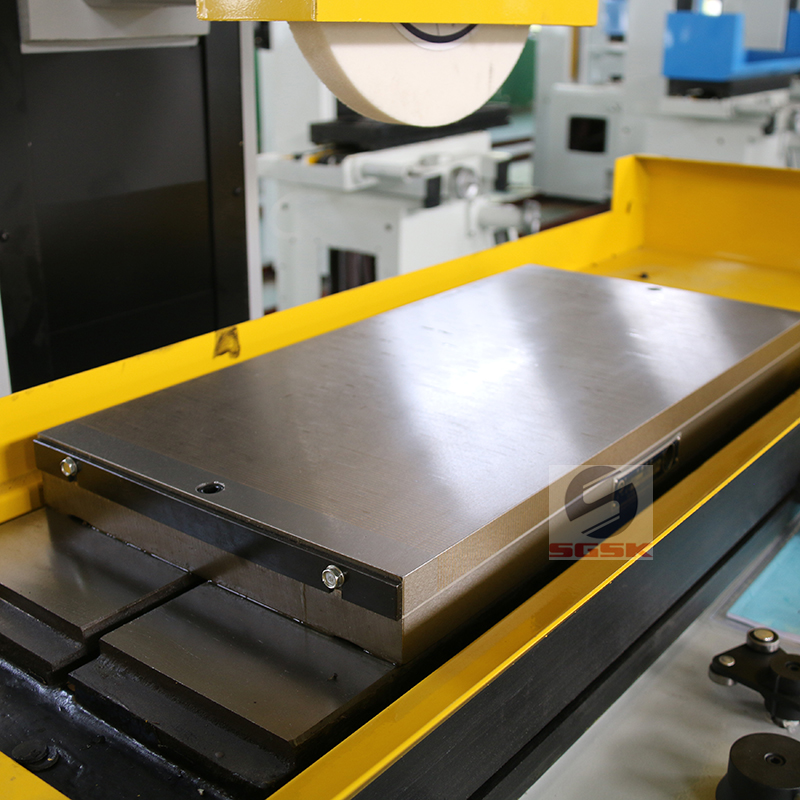

4. Can grinding a variety of flat and complex shape, suitable for grinding without motorized feed, according to the user needs to be equipped with permanent magnetic sucker or electromagnetic sucker.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Product main technical parameters:

Specifications					Units	MD1022
workbench	Worktable size (L * W)			mm	540×250
		Max. travel of table			mm	560×260
		Table T slot (slot number x slot width)			mm	1×14
Grinding head	The grinding wheel size (o. d * w * i. d.)			mm	φ200×20×Φ31.75
		Distance spindle center line to working table			mm	420
		Grinding wheel speed	50HZ	r/min	2850
		Grinding wheel speed		60HZ	r/min	3360
The amount of feed	Table longitudinal (left and right) speed			m/min	3-20
		Transverse (front and rear) feed handwheel feed	Continuous (stepless)	mm/min	400
				Intermittent (stepless)	mm/min	0-5
				Handwheel per turn	mm	4.0
				Handwheel per lattice	mm	0.02
		The vertical (up and down) feed handwheel feed	Handwheel per turn	mm	1.25
		The vertical (up and down) feed handwheel feed		Handwheel per lattice	mm	0.01
Reversing feeder	Total input power			W	150
		X- feeder output speed			r/min	0-225
		X- feeder size			mm	280×130×120
		Y- feeder output speed			r/min	0-120
		Y- feeder size			mm	280×130×120
Motor power			Spindle motor	kw	1.5
Motor power				Cooling motor	W	40
working accuracy	The process surface of the base level of the parallel degree			mm	300:0.005
working accuracy		Surface roughness			μm	Ra0.32
Machine weight			Net weight	kg	880
Machine weight				Gross weight	kg	980
External size (L * w * h)					mm	1680x1140x1760
Packing size (L * w * h)					mm	1200x1400x1940

Recommend Products

1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.

2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.

3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.

4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.

5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact
model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.

8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
