Mechanical Shock Test Machine for Batteries
$15000.00
≥1 set
use:
- Sine Wave Test Machine
Basic Info
| Warranty | 3 Years, 1 Year |
|---|---|
| Customized Support | Oem, Odm, Obm |
| Place Of Origin | Guangdong, China |
| Brand Name | Yaoke |
| Model Number | YK-B182 |
Product description

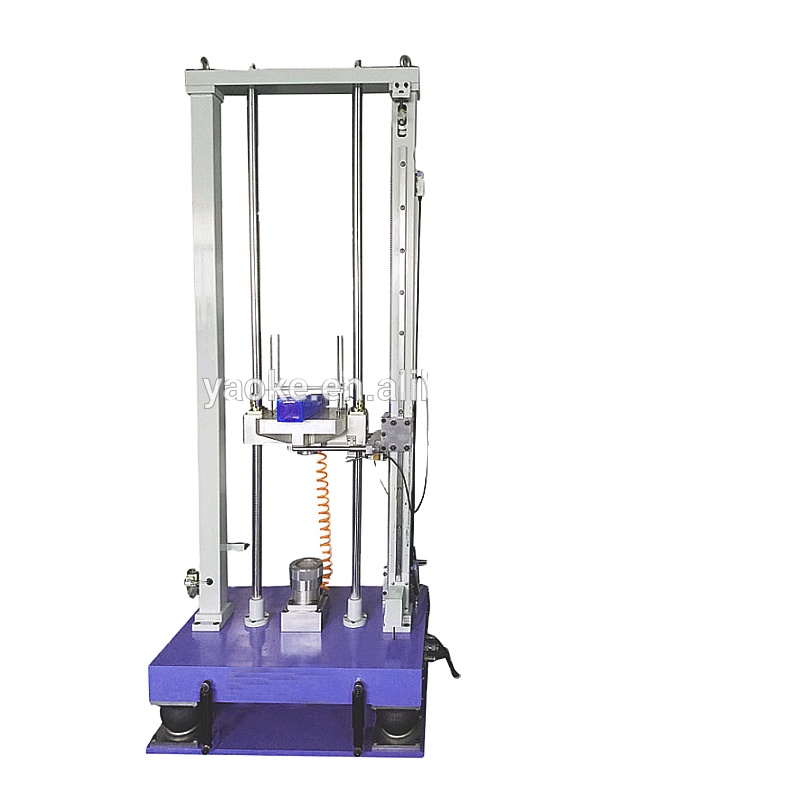

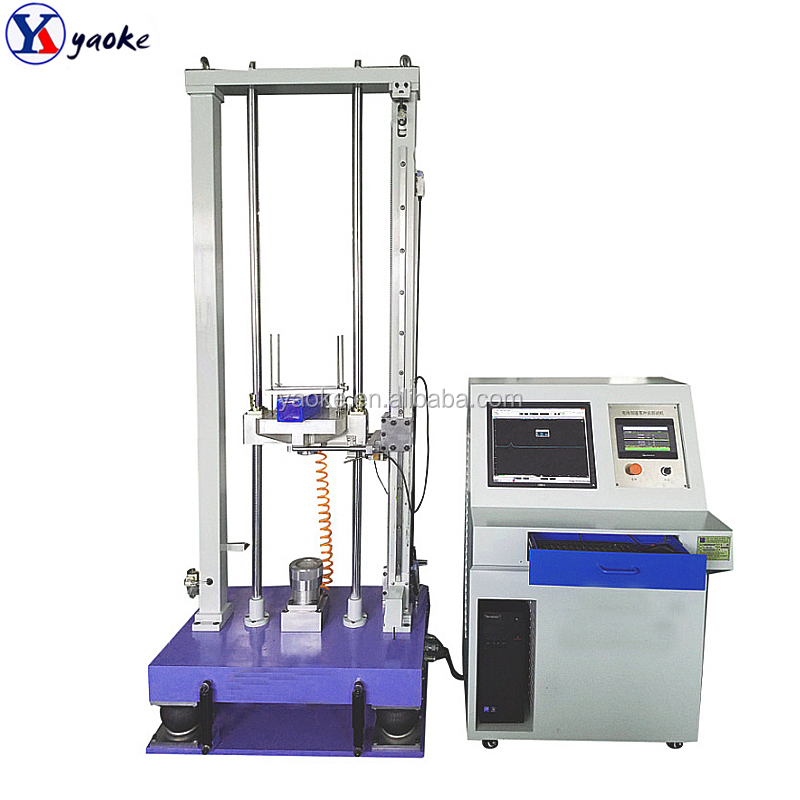

Acceleration Mechanical Shock Test Machine/ Battery Shock Impact Tester
?This Shock control measurement system is a special shock wave capture and analysis platform that based on high quality DSP con structuredynamic measure, analysis and control. It consists of control system, measurement system & software system based on WINDOWS to control modular & low noise design measurement hardware to achieve control & measure sub functionalhardware electrical circuit installing in the interface cabinet with independent integral con structure( independent control cabinet and measurement cabinet). USB2.0 is introduced to connect the communicationof interface cabinet & PC.
?
Standard Compliance
1.YD/T 2344.1—2011 LiFePO4battery system for telecommunications. Part 1:Integrated battery system
2.GB/T 2423.5Environmental testing for electric and electronic products. Part 2: Test methods. Test Ea and guidance: Shock
3.GB/T 2423.6Environmental testing for electric and electronic products. Part 2: Test methods. Test Eb and guidance: Bump
4.IEC 68-2-29Test Eb and guidance:Bump
5.JJG497-2000Verification Regulation of Bump Testing Machines
?
Features;
1. Working bench with perfect structure, good uniformity of bench's acceleration.
2. High reliable of system, safety device.
3. The saw-tooth wave and?trapezoidal?wave, etc. extensible.
4. Capacity of crash and impact test function.?
5. Optoelectronic feedback.
?
?
|
Model |
YK-B182 |
|
1.Max. Loading Capacity : |
50kg |
|
2.Bench Size : |
500mm×700mm |
|
3.Pulse Wave : |
half-sine wave |
|
4.Shock Peak Acceleration : |
half-sine wave: 25~1000m/s2 |
|
5.Pulse Width: |
half-sine wave:2~20ms |
|
6.Max. Shock Frequency: |
80times /min |
|
7.Max.Drop Height: |
120mm |
|
8.External Dimension : |
L800 X W640 X H710mm |
|
9.Power Consumption : |
Bench power consumption 2.0KVA;Air compressor power consumption 11.0KVA; |
|
10.Bench Weight : |
1100Kg |
|
11.Power Source : |
AC 380V±10% 3Phase?? 50Hz |
|
12.Air Source /Air supply pressure : |
0.8m3/min/8kg/cm |
?
Warranty & Service
1. Warranty period: one year from the purchase day.
2. During the warranty period, use the product in accordance with the printed instructions but encountered a problem and then we will provide free maintenance. If the product didn't work and after the confirmation and then we'll send a new one for free.
3. Engineers available to service machinery overseas
4. Beyond the warranty period, the product problems also can be solved by our company, but charge component cost and maintenance cost properly.
5. We welcome your call our hotline or email us for consulting, maintenance and other services.
6. OEM and ODM available
?
?
?Dongguan Yaoke Instrument Equipment Co.,Ltd is specialize in rubber and plastic testing machine over 10 years,With our advanced technologies and best customer service, Our product has exported to more than 100 countries and regions,which win favorable comments from customers worldwide

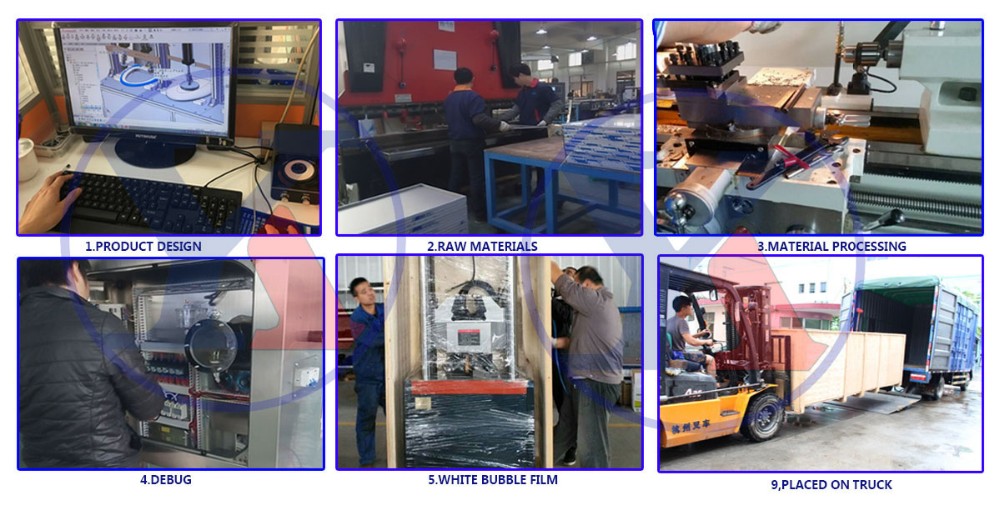

Our production line have turning machine,griding machine,milling machine,CNC machining center and sheet metal bending machine,design department has 5 people special for design and research new product.With these advantages,we can control product quality from source.
If you have any inquiry or concern,Sales and after service department will reply you within 24 hours..
?
